Microba Research Discovery Report

Functional profiles: MetaCyc Group

Quantitative visualisation of the top most abundant microbial functions identified in the analysed samples.

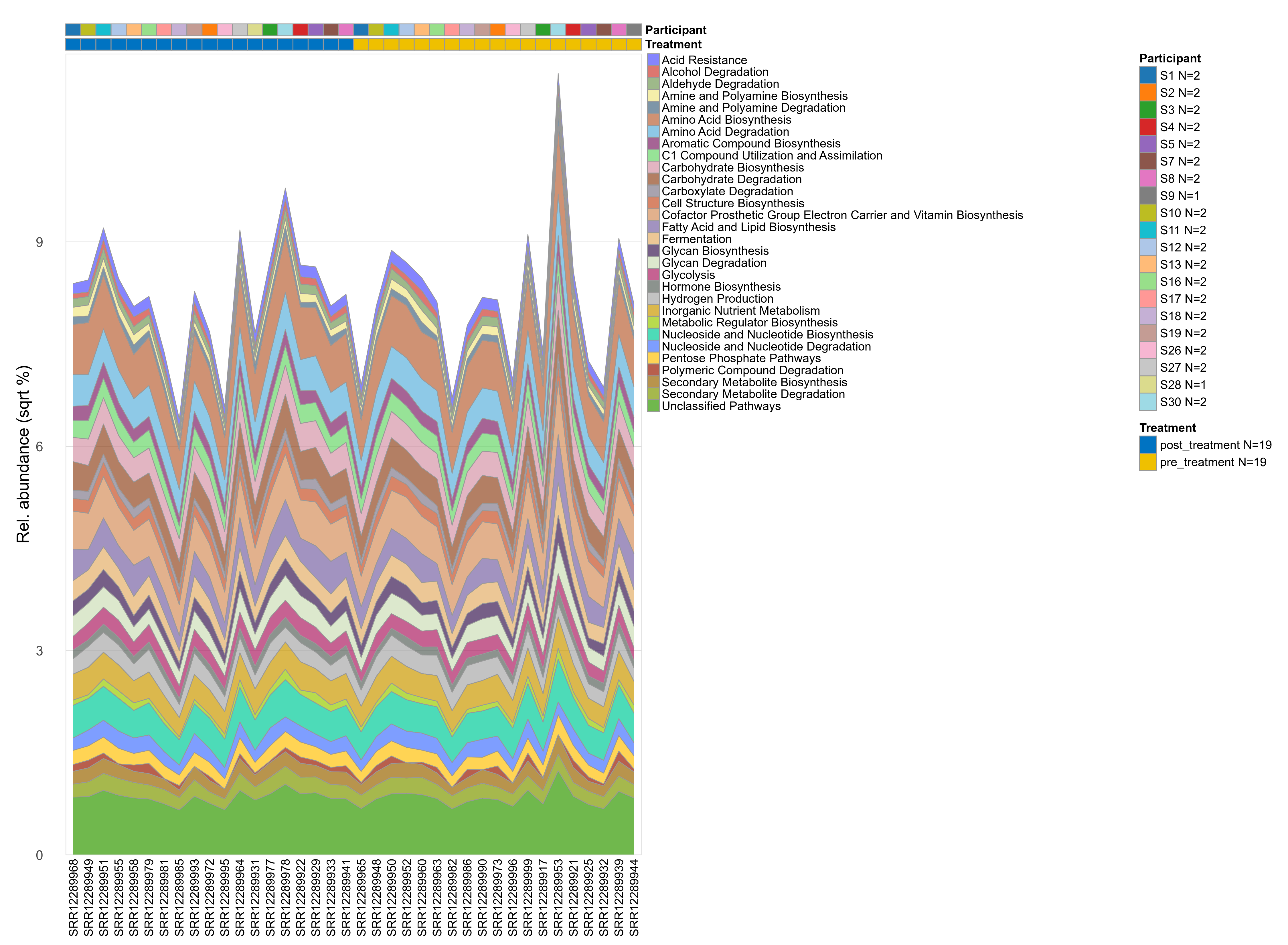

Areachart

Click here to open full-sized image in new window.

Barchart clustered within each group

Click here to open full-sized image in new window.

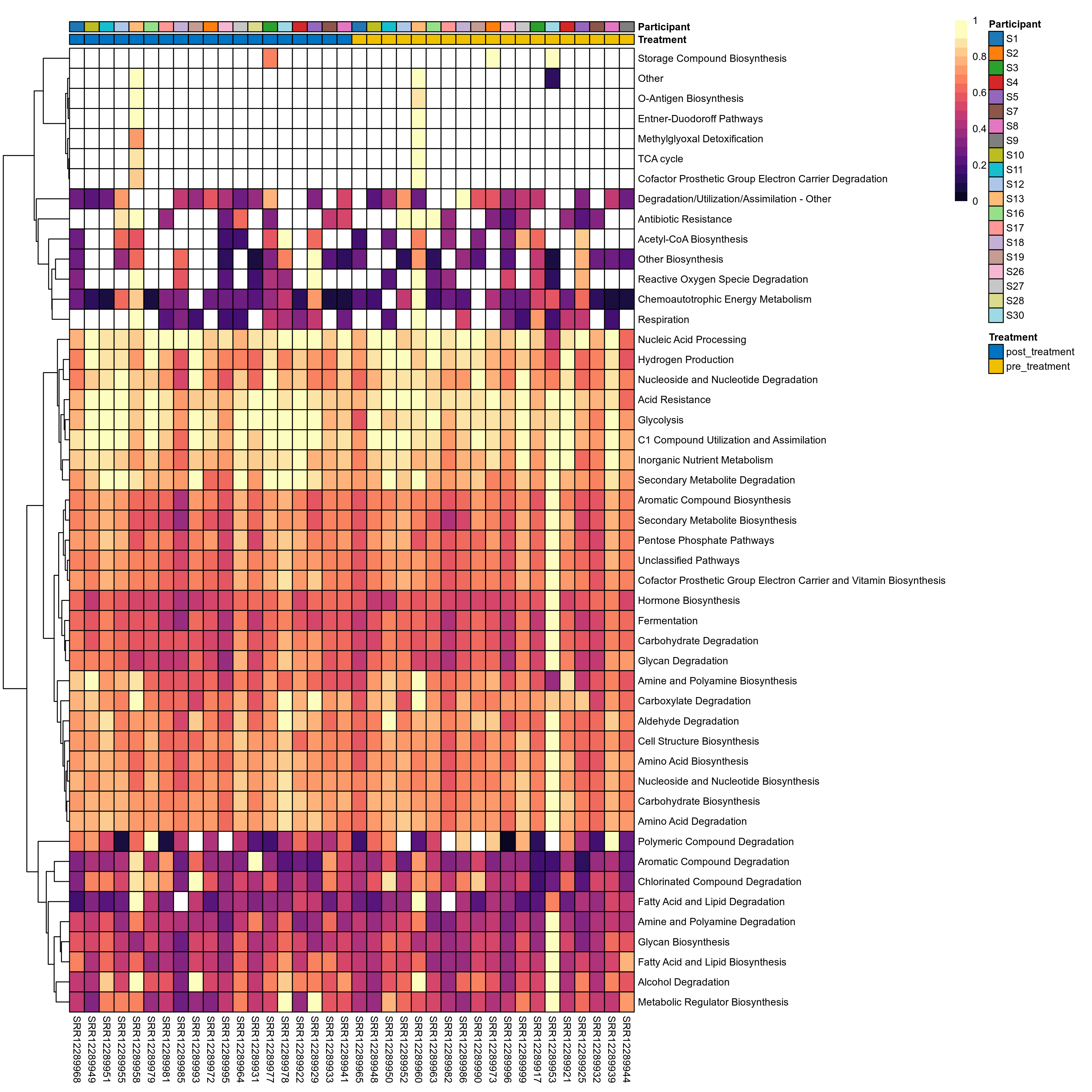

Scaled heatmap of most abundant features ordered by study group

Features were filtered by mean abundance. Samples were first ordered by study group and then clustered within each study group. Abundances were scaled to a max value of 1. Color scale shows not-detected (white), and abundance ranging from low (blue) to high (yellow).

Click here to open full-sized image in new window.

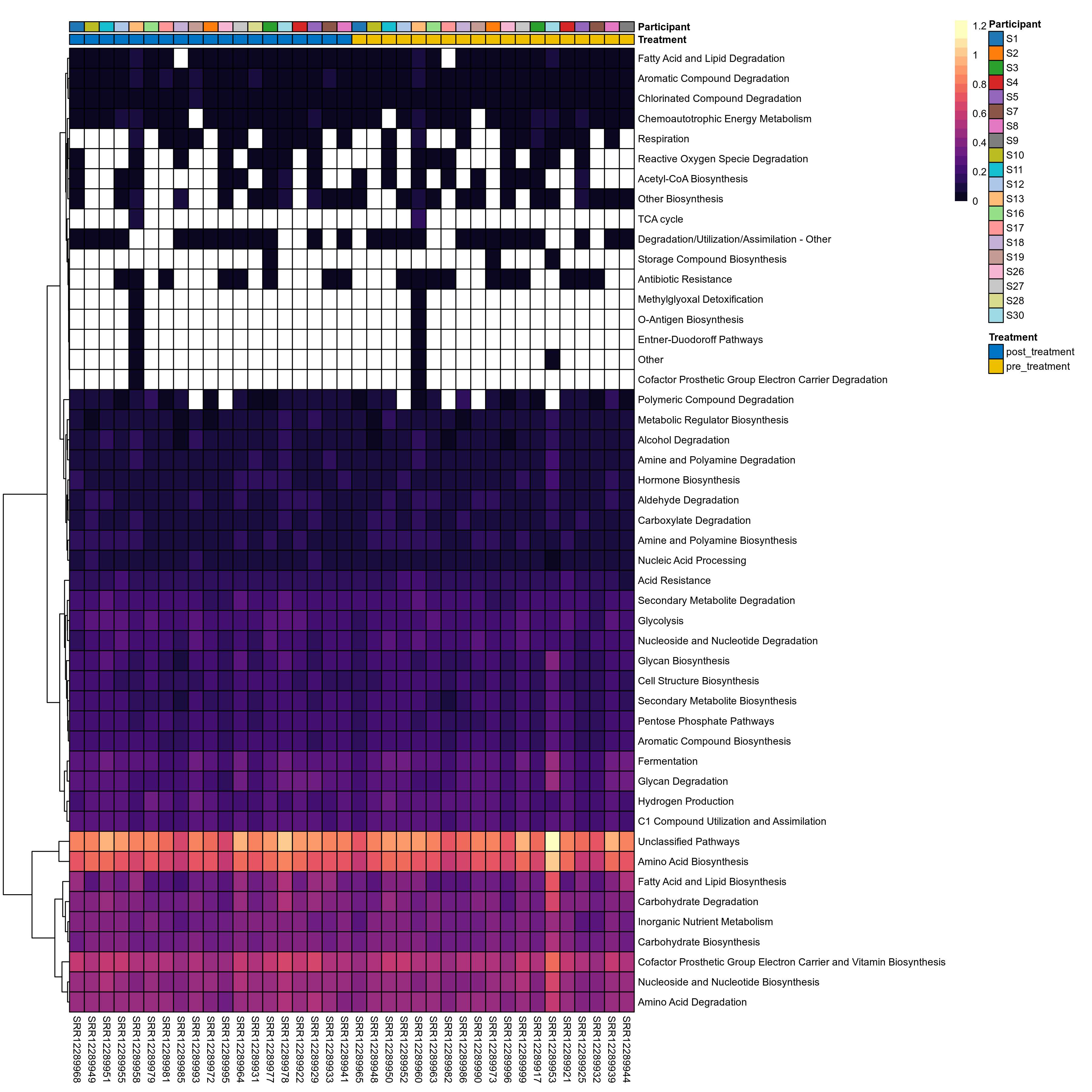

Heatmap of most abundant features ordered by study group

Features were filtered by mean abundance. Samples were first ordered by study group and then clustered within each study group. Color scale shows not-detected (white), and abundance ranging from low (blue) to high (yellow).

Click here to open full-sized image in new window.

Scaled heatmap of all features

Profiles were clustered by hierarchical clustering. Abundances were scaled to a max value of 1. Color scale shows not-detected (white), and abundance ranging from low (blue) to high (yellow).

Click here to open full-sized image in new window.

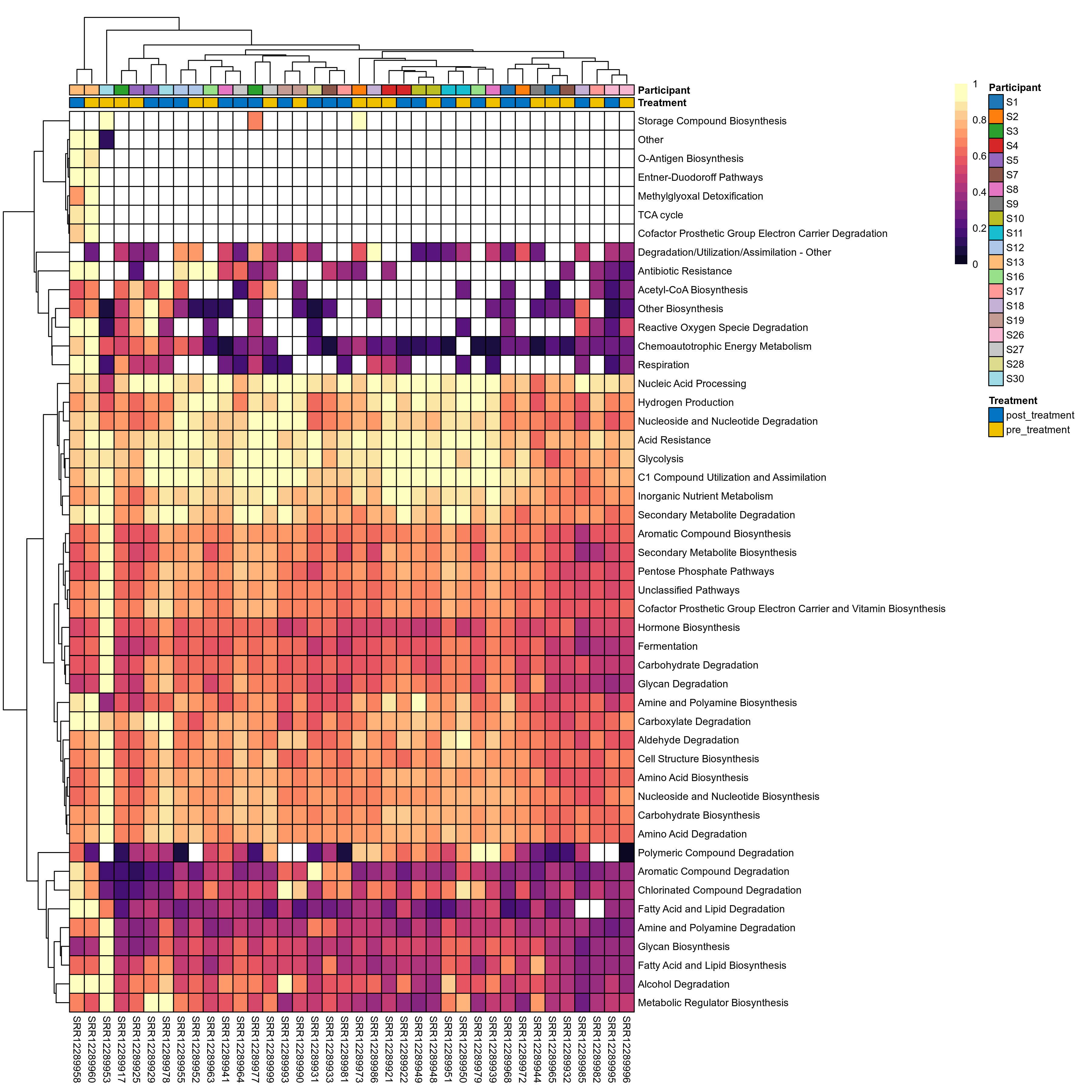

Heatmap of all features

Profiles were clustered by hierarchical clustering. Color scale shows not-detected (white), and abundance ranging from low (blue) to high (yellow).

Click here to open full-sized image in new window.

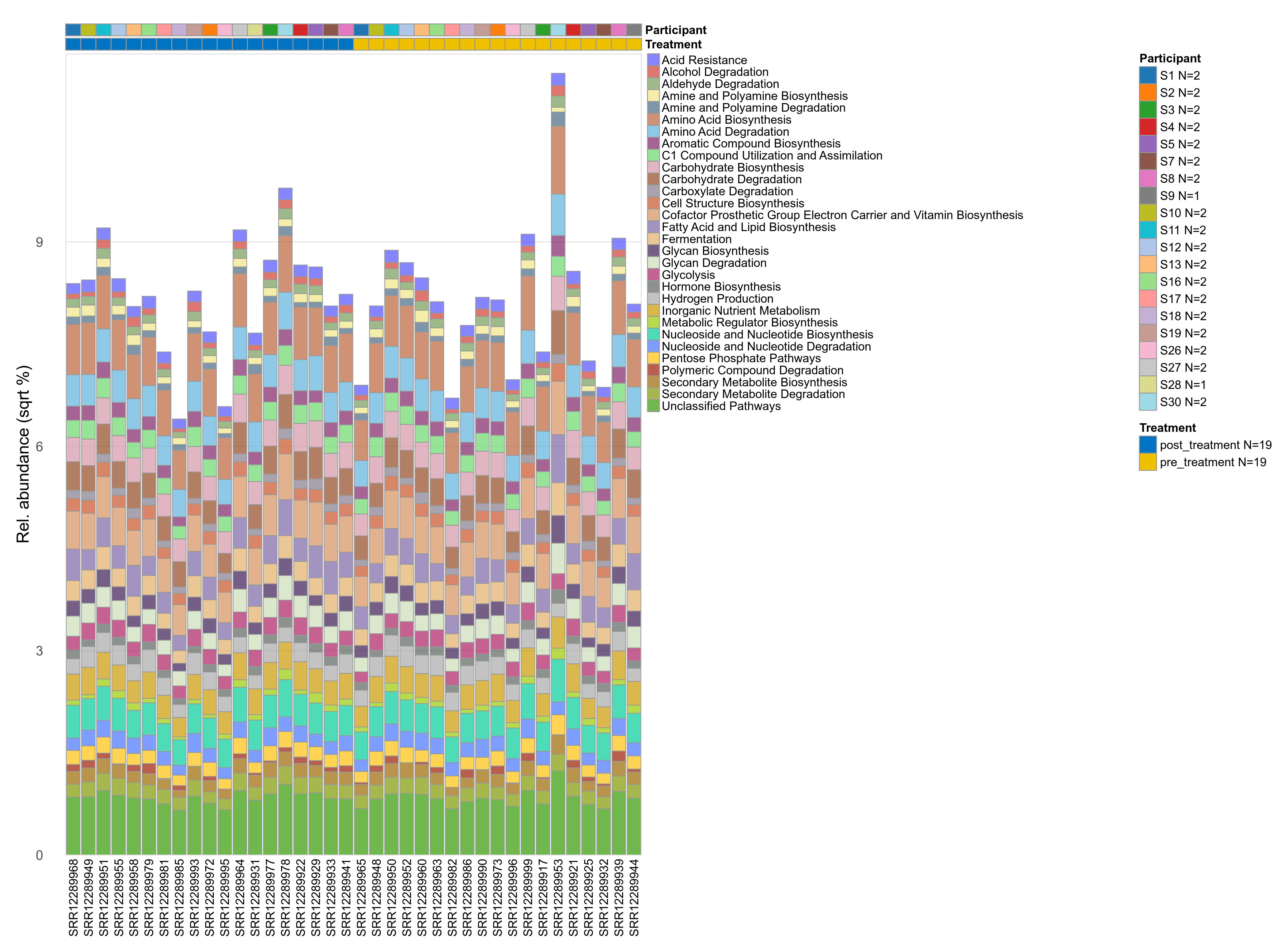

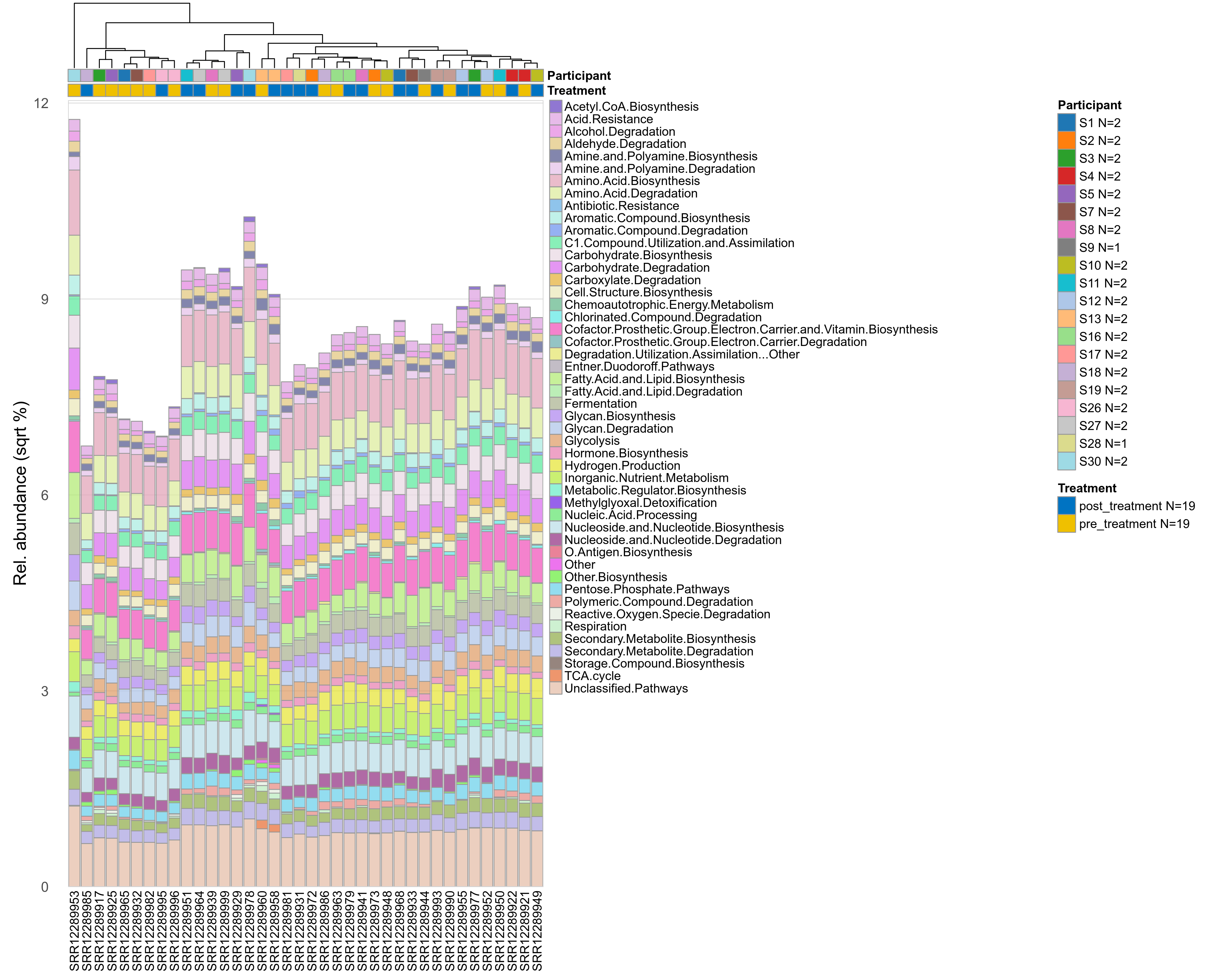

Hierarchically clustered barchart

Profiles were clustered by hierarchical clustering.

Click here to open full-sized image in new window.

Interactive Barchart

Click here to open interactive barchart in new window.

MetaCyc Group

Functional Alpha Diversity

This page provides an overview of the functional alpha diversity of the analysed sample. Alpha diversity was measured using the Shannon index and functional richnes. Richness measures the total number of gene functions present in each sample. Shannon index combines richness and evenness.

Methods:

Shannon diversity was compared using linear mixed effect regression, including Participant as a random effect (intercept), and Treatment as a fixed effect. Effect tested: Treatment. Richness was compared using linear mixed effect regression, including Participant as a random effect (intercept), and Treatment as a fixed effect. Effect tested: Treatment. Data was rarefied to 16572 reads.

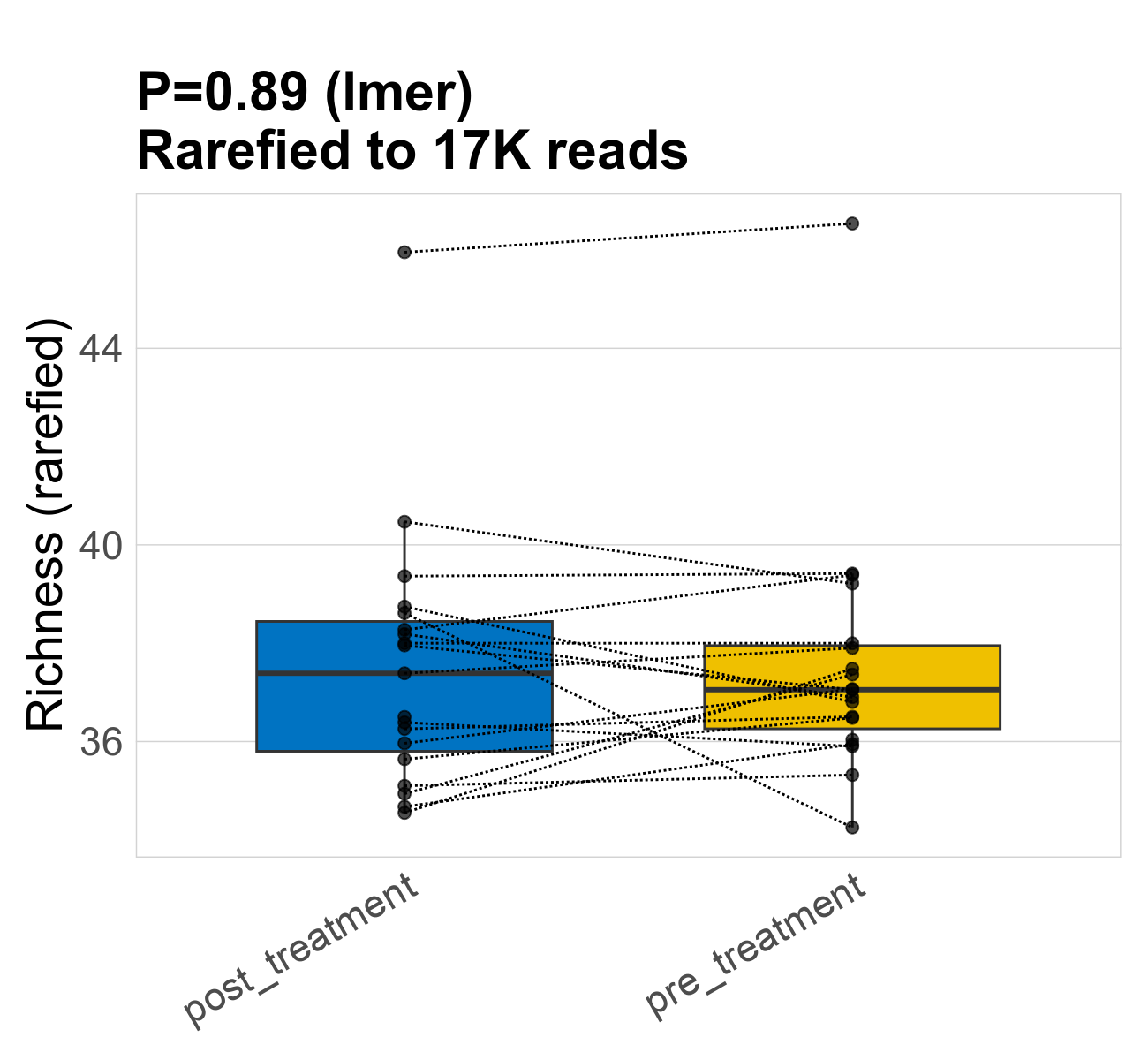

Index: Richness

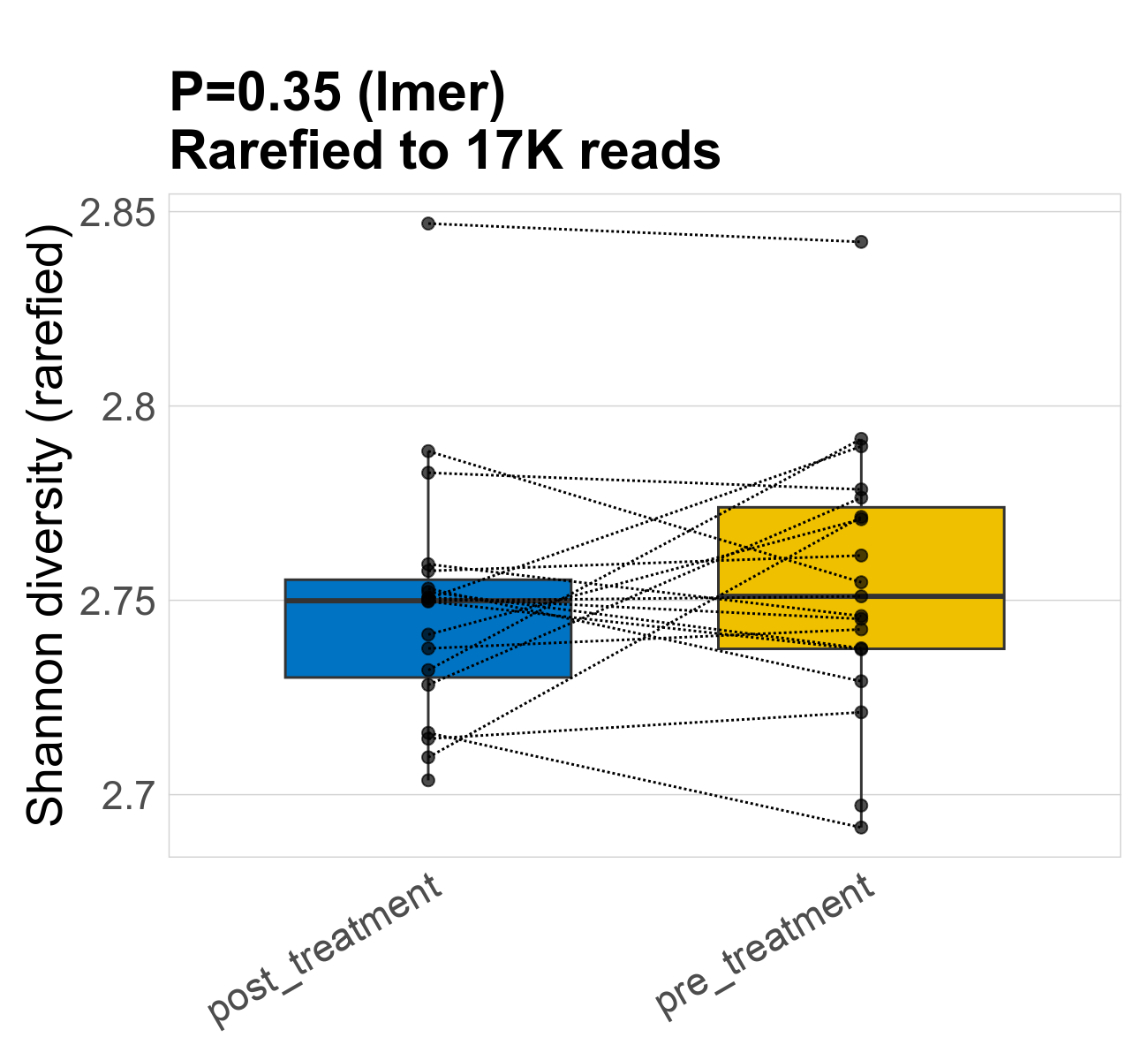

Index: Shannon index

Summary Table

Index	rarefiedTo	P lmer condition effect	Mean Pos	Mean Abundance	Median Abundance	Mean Treatmentpost_treatment	Median Treatmentpost_treatment	SD Treatmentpost_treatment	Mean Treatmentpre_treatment	Median Treatmentpre_treatment	SD Treatmentpre_treatment	Fold Change Log2(Treatmentpre_treatment/Treatmentpost_treatment)	Positive samples	Positive Treatmentpost_treatment	Positive Treatmentpre_treatment	Positive_Treatmentpost_treatment_percent	Positive_Treatmentpre_treatment_percent
Shannon	16572	0.35	2.8	2.8	2.8	2.7	2.7	0.033	2.8	2.8	0.035	0.052	38 / 38 (100%)	19 / 19 (100%)	19 / 19 (100%)	1	1
Richness	16572	0.89	38	38	37	38	37	2.7	38	37	2.6	0	38 / 38 (100%)	19 / 19 (100%)	19 / 19 (100%)	1	1

Download diversity values in csv format . On some platforms (including Windows) you may need to change the suffix from .txt or .html to .csv before opening the file in a spreadsheet program, like Excel.

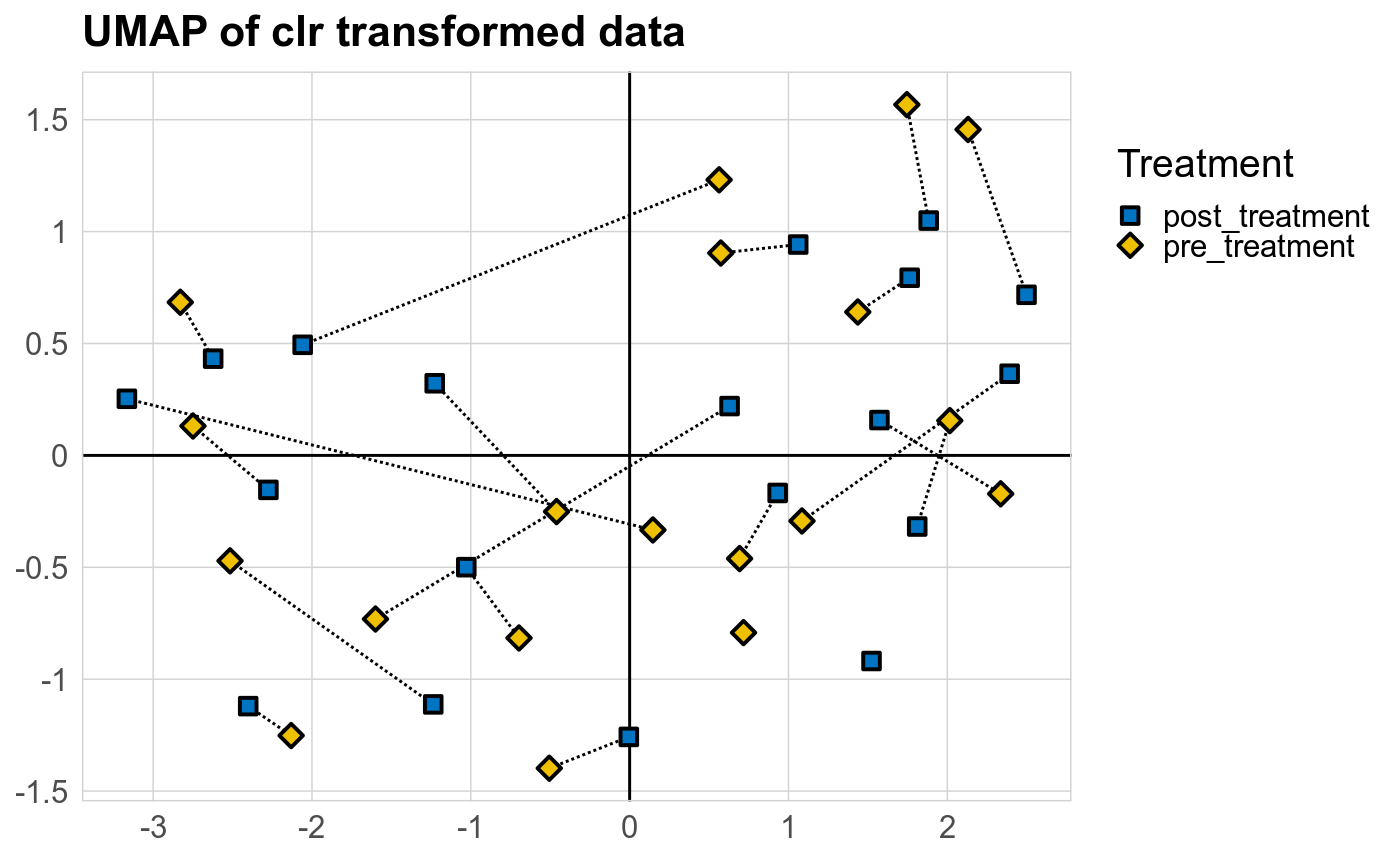

Functional clustering and ordination

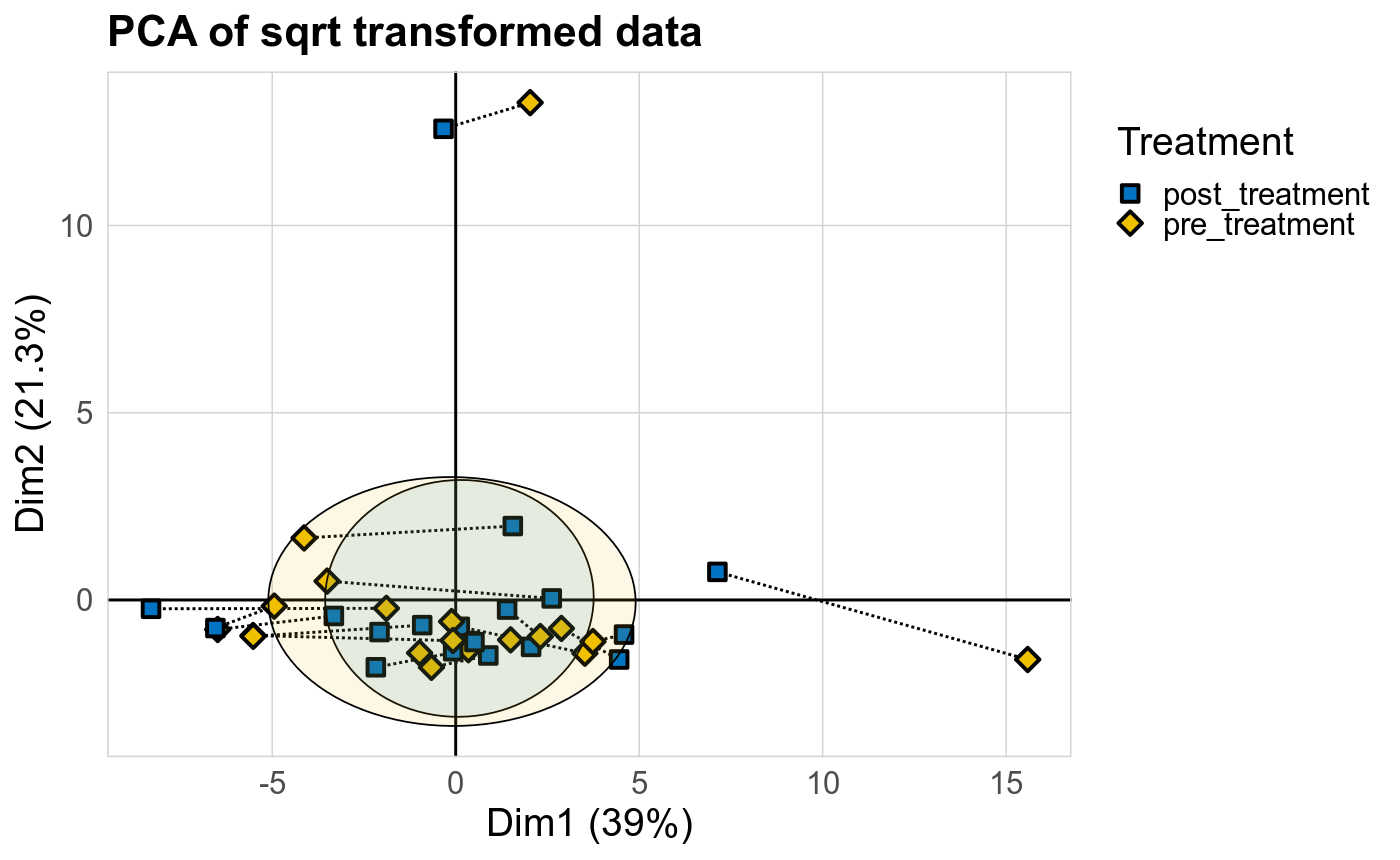

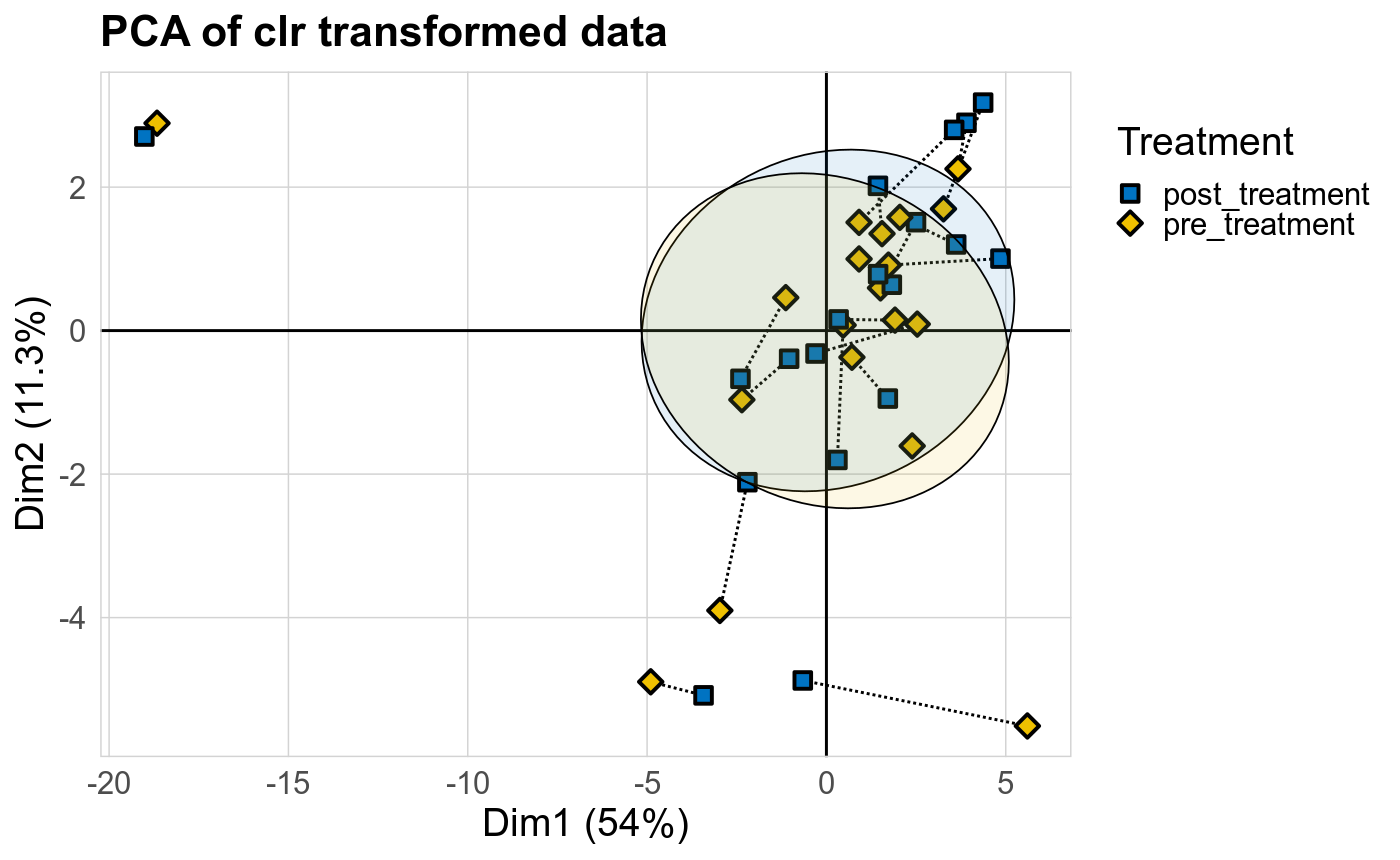

Microbial functions were analyzed using supervised and unsupervised multivariate techniques. Functional profiles were ordinated using the unsupervised methods Principal Coordinates Analysis (PCoA), Non-Metric Multidimensional Scaling (NMDS) and Principal Component Analysis (PCA). The supervised methods Adonis and Redundancy analysis (RDA) were used to assess if variance in the functional profiles was significantly associated with the study condition. A guide explaining these methods can be found here. Sparse Partial Least Square Discriminant Analysis (sPLS-DA) from the MixMc package was additionaly used to extract features associated with the condition of interest.

Unsupervised ordination

Interactive PCA (clr transformed)

Please click here to view an interactive 3D PCA.

MetaCyc Group

Univariate analysis of microbial functions

Differentially abundant microbial functions were identified using the univariate methods ANOVA or LMER (linear mixed effect regression) on clr transformed relative abundance data, Fisher's exact test, and Aldex2 (ANOVA-like Differential Expression). Aldex2 was run on read count data. Fisher's exact test was used to test for diffrerences in the presence and absence (detection rate) of microbial functions across study groups.

LMER is used for repeated measures data, using random effects to control for correlation between samples from the same subject. Fixed effects are included for treatment groups, time, and treatment over time, where appropriate. The LMER P values correspond to a nested model test of the significance of including the corresponding fixed effect.

ALDEx2 uses subsampling (Bayesian sampling) to estimate the underlying technical variation. For each subsample instance, center log-ratio transformed data is statistically compared across study groups and computed P values are corrected for multiple testing using the Benjamini–Hochberg procedure. The expected P value (mean P value) is reported, which are those that would likely have been observed if the same samples had been run multiple times. The expected values are reported for both the distribution of P values and for the distribution of Benjamini–Hochberg corrected values.

Function	P lmer condition effect (sqrt)	FDR lmer condition effect (sqrt)	Pbonf lmer condition effect (sqrt)	P lmer condition effect (clr)	FDR lmer condition effect (clr)	Pbonf lmer condition effect (clr)	Mean Pos	Mean Abundance	Median Abundance	Mean Treatmentpost_treatment	Median Treatmentpost_treatment	SD Treatmentpost_treatment	Mean Treatmentpre_treatment	Median Treatmentpre_treatment	SD Treatmentpre_treatment	Fold Change Log2(Treatmentpre_treatment/Treatmentpost_treatment)	Positive samples	Positive Treatmentpost_treatment	Positive Treatmentpre_treatment	Positive_Treatmentpost_treatment_percent	Positive_Treatmentpre_treatment_percent
Glycolysis	0.14	0.92	1	0.15	0.95	1	0.052	0.052	0.053	0.055	0.058	0.011	0.05	0.052	0.012	-0.14	38 / 38 (100%)	19 / 19 (100%)	19 / 19 (100%)	1	1

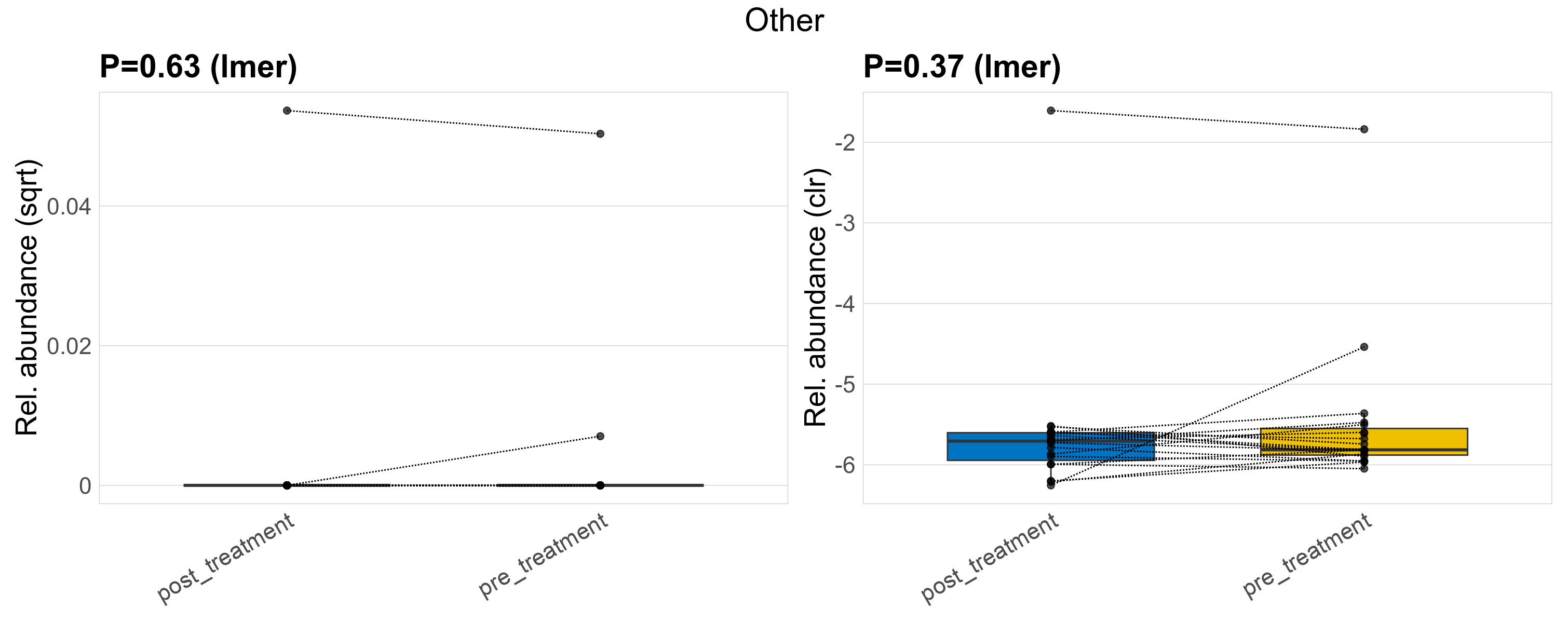

Other	0.63	0.92	1	0.37	0.95	1	0.0018	0.00014	0	0.00015	0	0.00066	0.00014	0	0.00058	-0.1	3 / 38 (7.9%)	1 / 19 (5.3%)	2 / 19 (11%)	0.0526	0.105
Pentose Phosphate Pathways	0.53	0.92	1	0.5	0.95	1	0.041	0.041	0.042	0.042	0.043	0.011	0.041	0.038	0.014	-0.035	38 / 38 (100%)	19 / 19 (100%)	19 / 19 (100%)	1	1
Alcohol Degradation	0.18	0.92	1	0.28	0.95	1	0.0095	0.0095	0.0078	0.01	0.0087	0.0053	0.0089	0.0076	0.0059	-0.17	38 / 38 (100%)	19 / 19 (100%)	19 / 19 (100%)	1	1

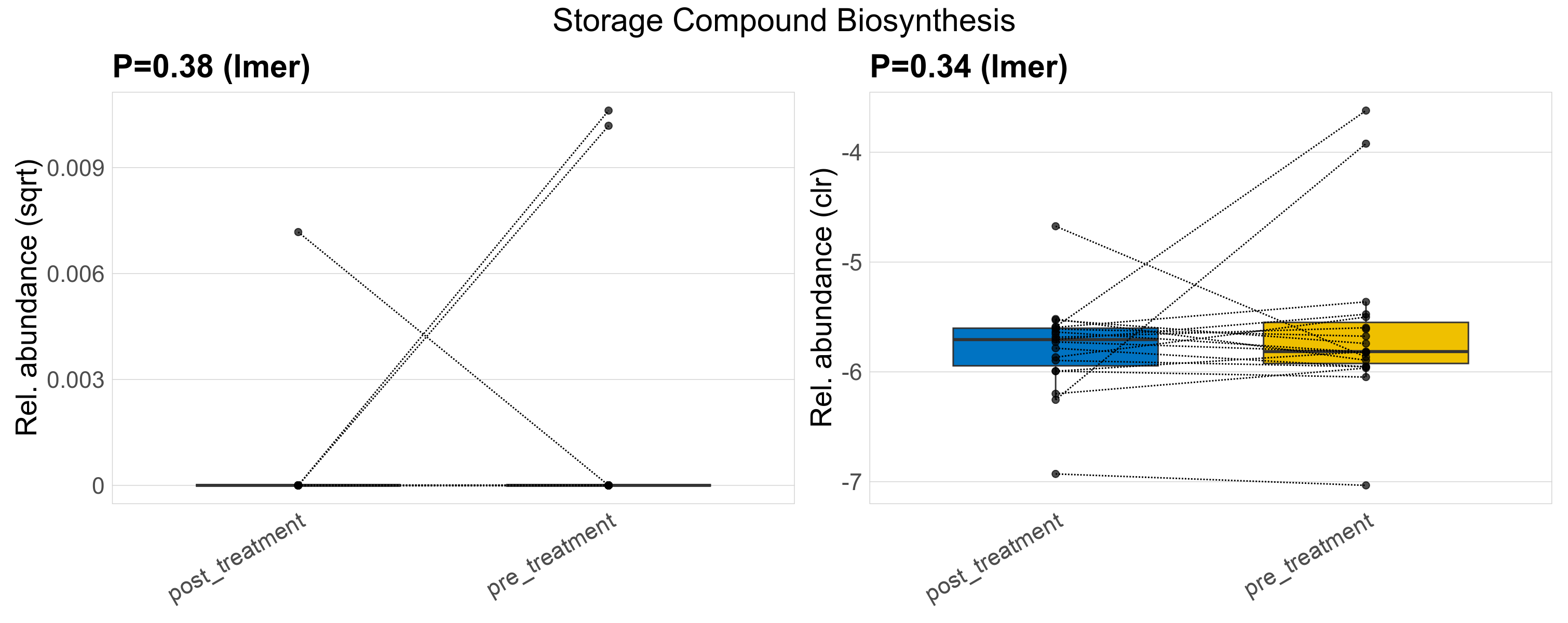

Storage Compound Biosynthesis	0.38	0.92	1	0.34	0.95	1	8.9e-05	7e-06	0	2.7e-06	0	1.2e-05	1.1e-05	0	3.4e-05	2	3 / 38 (7.9%)	1 / 19 (5.3%)	2 / 19 (11%)	0.0526	0.105
Cell Structure Biosynthesis	0.81	0.92	1	0.99	0.99	1	0.035	0.035	0.034	0.035	0.035	0.0064	0.035	0.034	0.011	0	38 / 38 (100%)	19 / 19 (100%)	19 / 19 (100%)	1	1
Aromatic Compound Degradation	0.054	0.92	1	0.045	0.95	1	0.0025	0.0025	0.0018	0.0031	0.0018	0.003	0.0018	0.0018	0.0014	-0.78	38 / 38 (100%)	19 / 19 (100%)	19 / 19 (100%)	1	1
Fermentation	0.51	0.92	1	0.47	0.95	1	0.082	0.082	0.081	0.079	0.08	0.021	0.086	0.084	0.041	0.12	38 / 38 (100%)	19 / 19 (100%)	19 / 19 (100%)	1	1
Glycan Biosynthesis	0.52	0.92	1	0.49	0.95	1	0.043	0.043	0.041	0.041	0.041	0.015	0.046	0.038	0.031	0.17	38 / 38 (100%)	19 / 19 (100%)	19 / 19 (100%)	1	1
Carbohydrate Degradation	0.64	0.92	1	0.67	0.95	1	0.16	0.16	0.15	0.16	0.15	0.039	0.16	0.14	0.067	0	38 / 38 (100%)	19 / 19 (100%)	19 / 19 (100%)	1	1
Hydrogen Production	0.64	0.92	1	0.34	0.95	1	0.069	0.069	0.07	0.068	0.067	0.021	0.07	0.075	0.018	0.042	38 / 38 (100%)	19 / 19 (100%)	19 / 19 (100%)	1	1
Polymeric Compound Degradation	0.69	0.92	1	0.12	0.95	1	0.0069	0.0058	0.0041	0.0055	0.0047	0.0055	0.006	0.0018	0.007	0.13	32 / 38 (84%)	17 / 19 (89%)	15 / 19 (79%)	0.895	0.789
Aldehyde Degradation	0.78	0.92	1	0.94	0.99	1	0.015	0.015	0.014	0.015	0.015	0.004	0.015	0.013	0.0047	0	38 / 38 (100%)	19 / 19 (100%)	19 / 19 (100%)	1	1
Unclassified Pathways	0.6	0.92	1	0.64	0.95	1	0.72	0.72	0.7	0.72	0.73	0.16	0.71	0.69	0.24	-0.02	38 / 38 (100%)	19 / 19 (100%)	19 / 19 (100%)	1	1
Amino Acid Biosynthesis	0.7	0.92	1	0.82	0.99	1	0.51	0.51	0.5	0.52	0.5	0.089	0.51	0.49	0.15	-0.028	38 / 38 (100%)	19 / 19 (100%)	19 / 19 (100%)	1	1
Amine and Polyamine Degradation	0.94	0.99	1	0.94	0.99	1	0.01	0.01	0.0087	0.01	0.0088	0.0049	0.01	0.0085	0.0087	0	38 / 38 (100%)	19 / 19 (100%)	19 / 19 (100%)	1	1
Chlorinated Compound Degradation	0.26	0.92	1	0.23	0.95	1	0.0014	0.0014	0.0012	0.0015	0.0012	0.001	0.0013	0.0011	0.00086	-0.21	38 / 38 (100%)	19 / 19 (100%)	19 / 19 (100%)	1	1
Acetyl-CoA Biosynthesis	0.76	0.92	1	0.61	0.95	1	0.0017	0.00078	0	0.00076	0	0.0014	0.00079	0	0.0013	0.056	17 / 38 (45%)	8 / 19 (42%)	9 / 19 (47%)	0.421	0.474

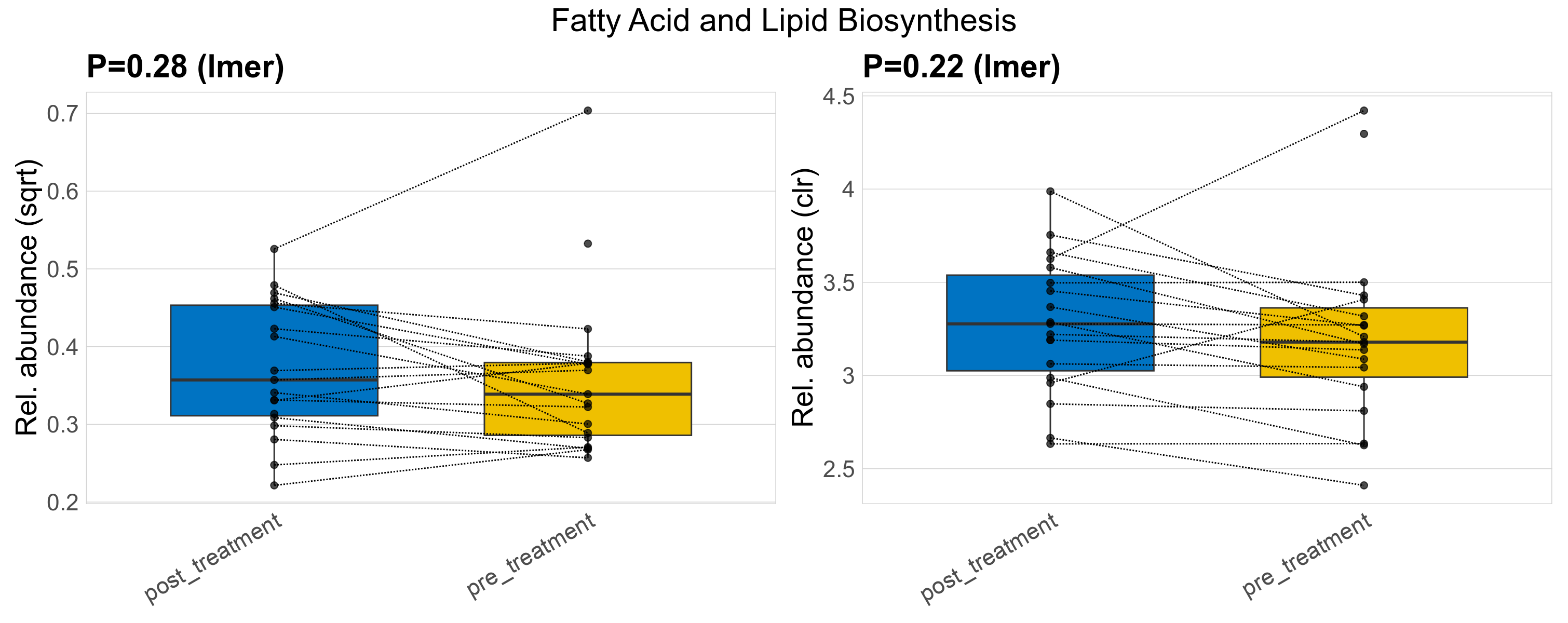

Fatty Acid and Lipid Biosynthesis	0.28	0.92	1	0.22	0.95	1	0.14	0.14	0.12	0.15	0.13	0.065	0.14	0.11	0.1	-0.1	38 / 38 (100%)	19 / 19 (100%)	19 / 19 (100%)	1	1
Other Biosynthesis	0.65	0.92	1	0.62	0.95	1	0.002	0.0012	0.00018	0.0015	0.00011	0.0027	0.001	0.00044	0.0018	-0.58	24 / 38 (63%)	11 / 19 (58%)	13 / 19 (68%)	0.579	0.684

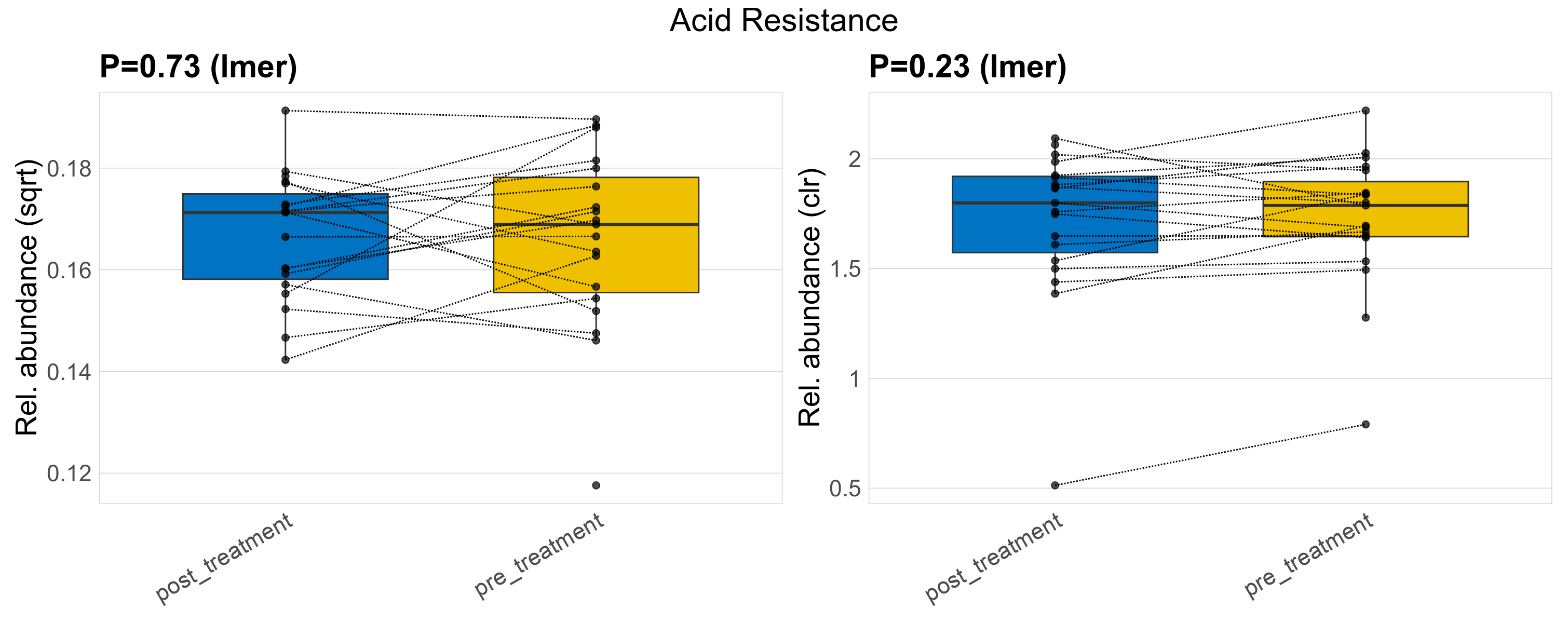

Acid Resistance	0.73	0.92	1	0.23	0.95	1	0.028	0.028	0.029	0.028	0.029	0.0042	0.028	0.029	0.0056	0	38 / 38 (100%)	19 / 19 (100%)	19 / 19 (100%)	1	1
Inorganic Nutrient Metabolism	0.79	0.92	1	0.97	0.99	1	0.14	0.14	0.14	0.14	0.14	0.023	0.14	0.13	0.034	0	38 / 38 (100%)	19 / 19 (100%)	19 / 19 (100%)	1	1
Amine and Polyamine Biosynthesis	1	1	1	0.99	0.99	1	0.014	0.014	0.013	0.014	0.012	0.0051	0.015	0.015	0.0063	0.1	38 / 38 (100%)	19 / 19 (100%)	19 / 19 (100%)	1	1
Secondary Metabolite Degradation	0.079	0.92	1	0.16	0.95	1	0.046	0.046	0.043	0.048	0.048	0.013	0.044	0.041	0.0096	-0.13	38 / 38 (100%)	19 / 19 (100%)	19 / 19 (100%)	1	1
Aromatic Compound Biosynthesis	0.77	0.92	1	0.58	0.95	1	0.042	0.042	0.042	0.042	0.042	0.0097	0.043	0.042	0.014	0.034	38 / 38 (100%)	19 / 19 (100%)	19 / 19 (100%)	1	1

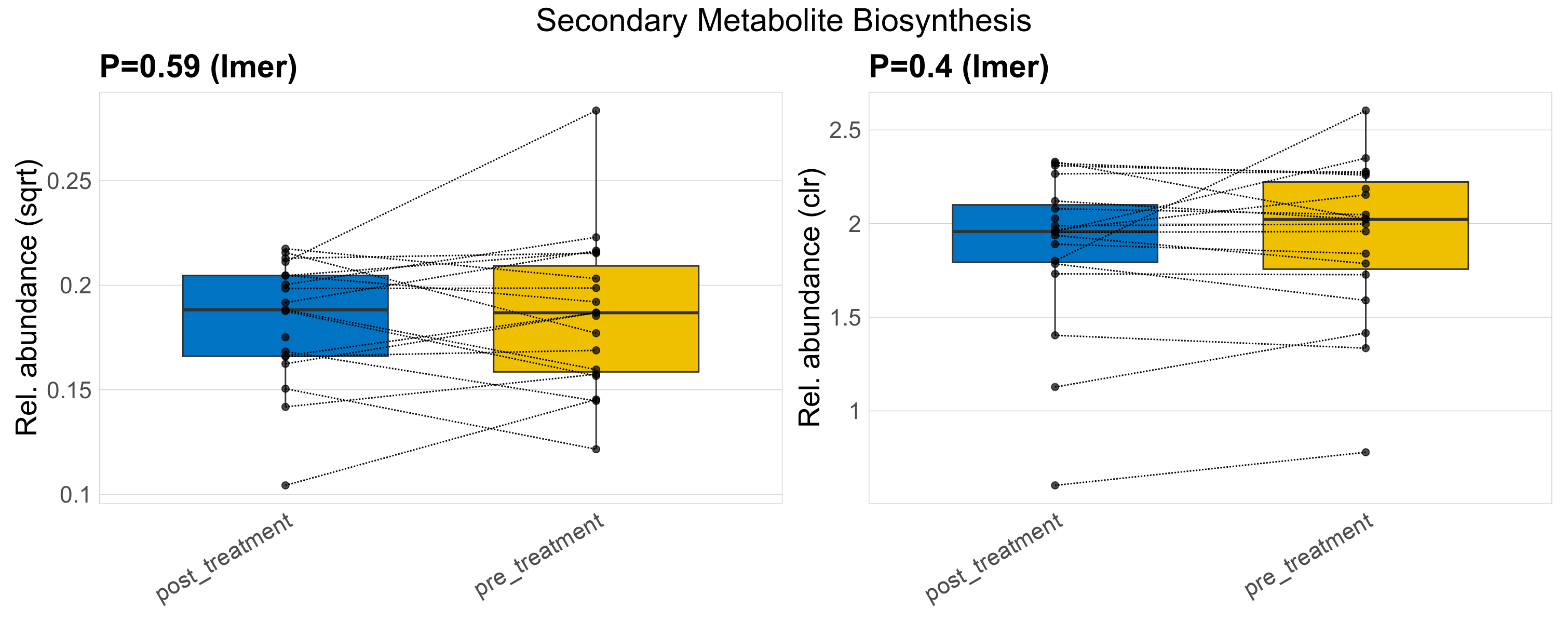

Secondary Metabolite Biosynthesis	0.59	0.92	1	0.4	0.95	1	0.035	0.035	0.035	0.034	0.035	0.01	0.036	0.035	0.015	0.082	38 / 38 (100%)	19 / 19 (100%)	19 / 19 (100%)	1	1
Nucleoside and Nucleotide Biosynthesis	0.62	0.92	1	0.88	0.99	1	0.21	0.21	0.2	0.21	0.21	0.037	0.21	0.19	0.055	0	38 / 38 (100%)	19 / 19 (100%)	19 / 19 (100%)	1	1
Antibiotic Resistance	0.57	0.92	1	0.56	0.95	1	3e-04	0.00014	0	0.00012	0	0.00022	0.00016	3.3e-05	0.00028	0.42	18 / 38 (47%)	8 / 19 (42%)	10 / 19 (53%)	0.421	0.526
Chemoautotrophic Energy Metabolism	0.47	0.92	1	0.68	0.95	1	0.0021	0.0019	0.00092	0.0018	0.0011	0.0025	0.002	0.00084	0.0031	0.15	35 / 38 (92%)	18 / 19 (95%)	17 / 19 (89%)	0.947	0.895
Carbohydrate Biosynthesis	0.81	0.92	1	0.9	0.99	1	0.14	0.14	0.14	0.14	0.14	0.023	0.14	0.14	0.035	0	38 / 38 (100%)	19 / 19 (100%)	19 / 19 (100%)	1	1

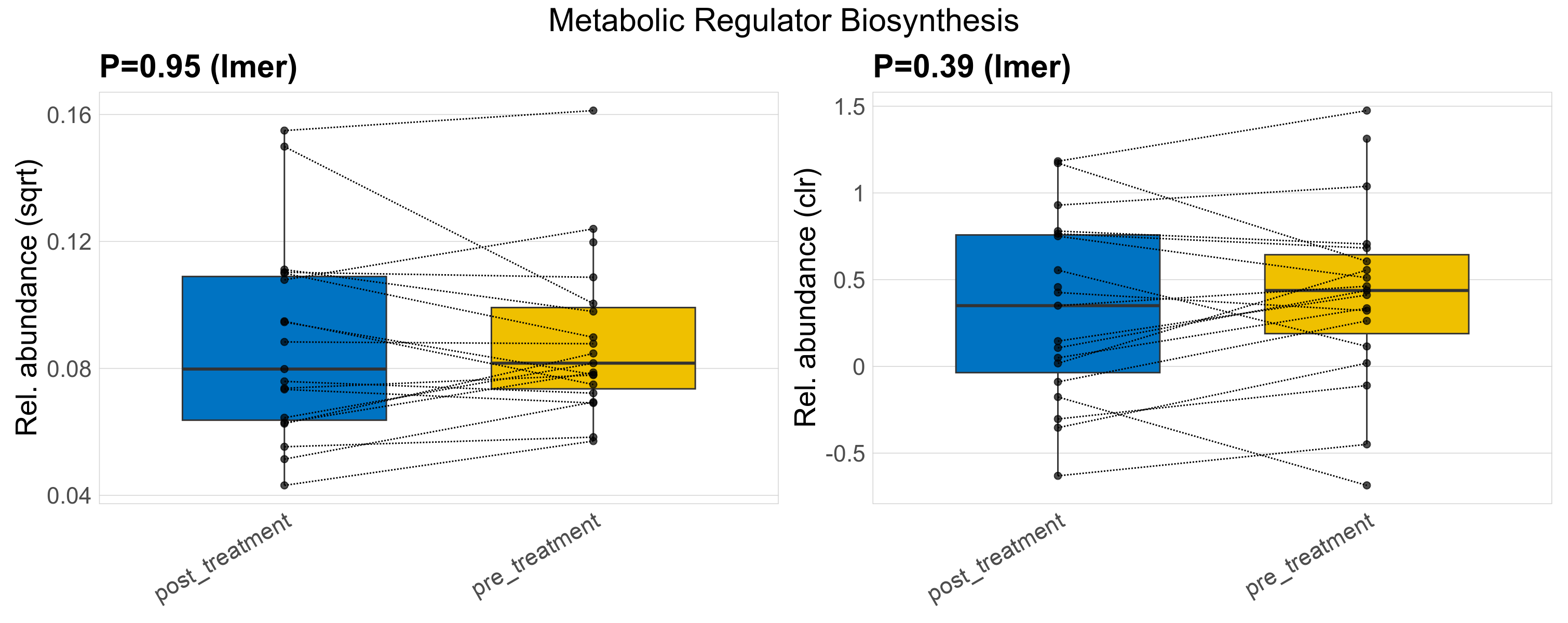

Metabolic Regulator Biosynthesis	0.95	0.99	1	0.39	0.95	1	0.0086	0.0086	0.0065	0.0086	0.0064	0.0062	0.0085	0.0067	0.0054	-0.017	38 / 38 (100%)	19 / 19 (100%)	19 / 19 (100%)	1	1
Carboxylate Degradation	0.6	0.92	1	0.77	0.99	1	0.013	0.013	0.013	0.014	0.013	0.0046	0.013	0.013	0.0042	-0.11	38 / 38 (100%)	19 / 19 (100%)	19 / 19 (100%)	1	1
C1 Compound Utilization and Assimilation	0.35	0.92	1	0.53	0.95	1	0.065	0.065	0.066	0.067	0.071	0.013	0.064	0.064	0.014	-0.066	38 / 38 (100%)	19 / 19 (100%)	19 / 19 (100%)	1	1
Nucleic Acid Processing	0.074	0.92	1	0.2	0.95	1	0.012	0.012	0.013	0.013	0.013	0.0019	0.012	0.013	0.0029	-0.12	38 / 38 (100%)	19 / 19 (100%)	19 / 19 (100%)	1	1
Glycan Degradation	0.7	0.92	1	0.62	0.95	1	0.076	0.076	0.076	0.075	0.083	0.027	0.076	0.074	0.037	0.019	38 / 38 (100%)	19 / 19 (100%)	19 / 19 (100%)	1	1
Amino Acid Degradation	0.52	0.92	1	0.67	0.95	1	0.21	0.21	0.2	0.21	0.21	0.036	0.2	0.2	0.051	-0.07	38 / 38 (100%)	19 / 19 (100%)	19 / 19 (100%)	1	1
Fatty Acid and Lipid Degradation	0.9	0.99	1	0.84	0.99	1	0.002	0.0019	0.0013	0.0018	0.0013	0.0023	0.0019	0.0015	0.002	0.078	36 / 38 (95%)	18 / 19 (95%)	18 / 19 (95%)	0.947	0.947
Respiration	0.72	0.92	1	0.81	0.99	1	0.0017	0.00092	0.00023	0.00083	0.00024	0.0018	0.001	0.00021	0.0019	0.27	21 / 38 (55%)	11 / 19 (58%)	10 / 19 (53%)	0.579	0.526
Cofactor Prosthetic Group Electron Carrier and Vitamin Biosynthesis	0.56	0.92	1	0.67	0.95	1	0.3	0.3	0.29	0.3	0.3	0.066	0.3	0.29	0.091	0	38 / 38 (100%)	19 / 19 (100%)	19 / 19 (100%)	1	1
Reactive Oxygen Specie Degradation	0.97	0.99	1	0.96	0.99	1	0.0011	0.00046	0	0.00048	0	0.00099	0.00045	0	0.00091	-0.093	16 / 38 (42%)	8 / 19 (42%)	8 / 19 (42%)	0.421	0.421
Hormone Biosynthesis	0.4	0.92	1	0.33	0.95	1	0.014	0.014	0.012	0.013	0.012	0.0033	0.014	0.013	0.0067	0.11	38 / 38 (100%)	19 / 19 (100%)	19 / 19 (100%)	1	1

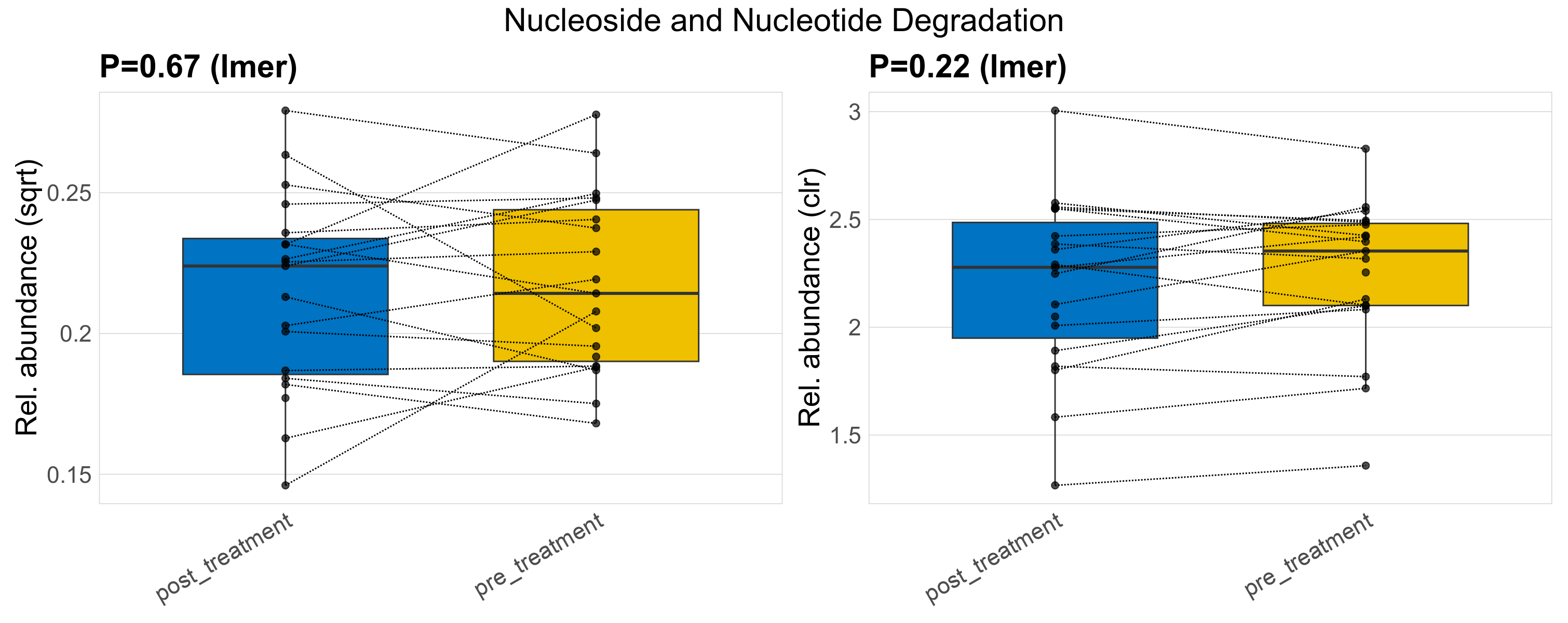

Nucleoside and Nucleotide Degradation	0.67	0.92	1	0.22	0.95	1	0.048	0.048	0.047	0.047	0.05	0.015	0.048	0.046	0.014	0.03	38 / 38 (100%)	19 / 19 (100%)	19 / 19 (100%)	1	1
Degradation/Utilization/Assimilation - Other	0.48	0.92	1	0.48	0.95	1	4e-04	0.00027	0.00016	0.00025	0.00015	0.00029	3e-04	0.00016	0.00041	0.26	26 / 38 (68%)	13 / 19 (68%)	13 / 19 (68%)	0.684	0.684

Click here to open full-sized image in new window.

Click here to open full-sized image in new window.

Methods:

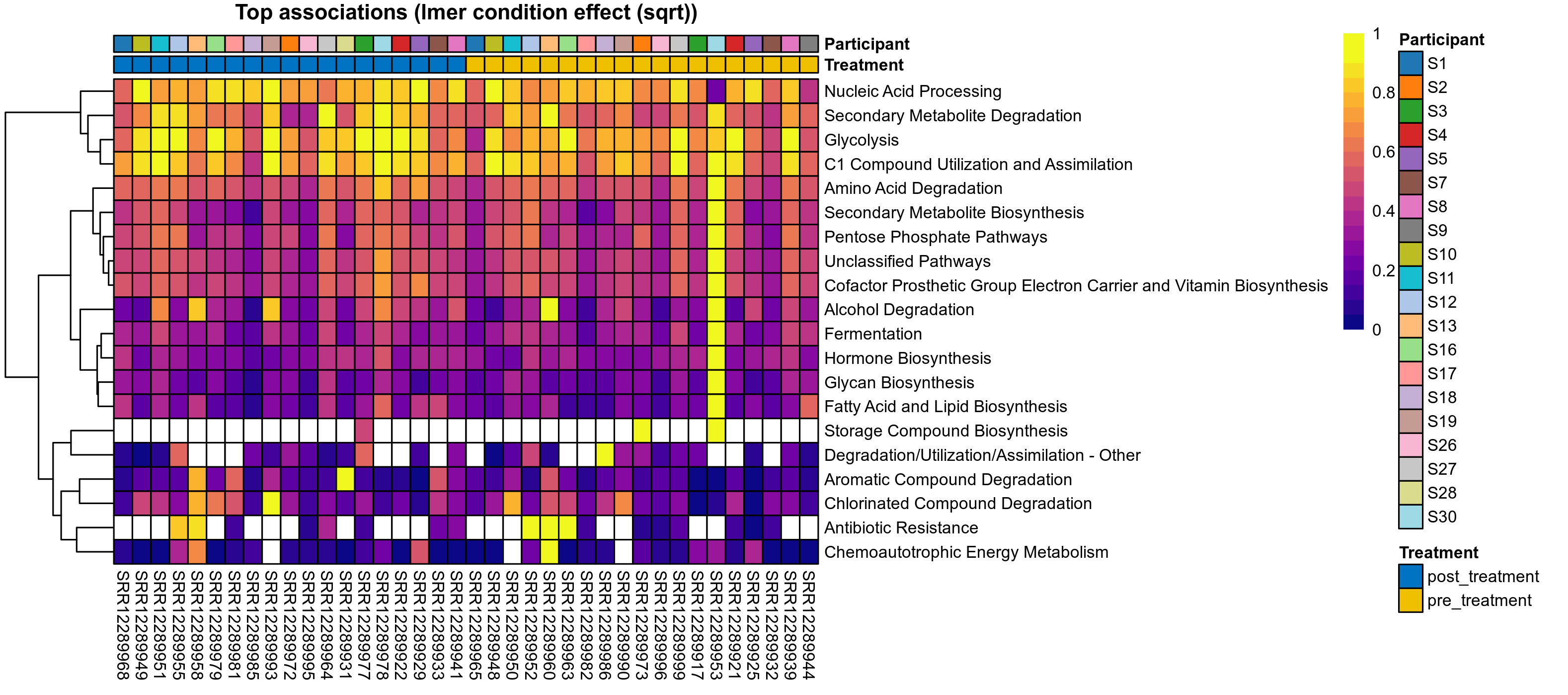

P lmer condition effect (sqrt): Differentially abundant functions were identified by linear mixed effect regression without confounders. Random effects: Participant (intercept). Fixed effects: Treatment. Effect tested: Treatment.

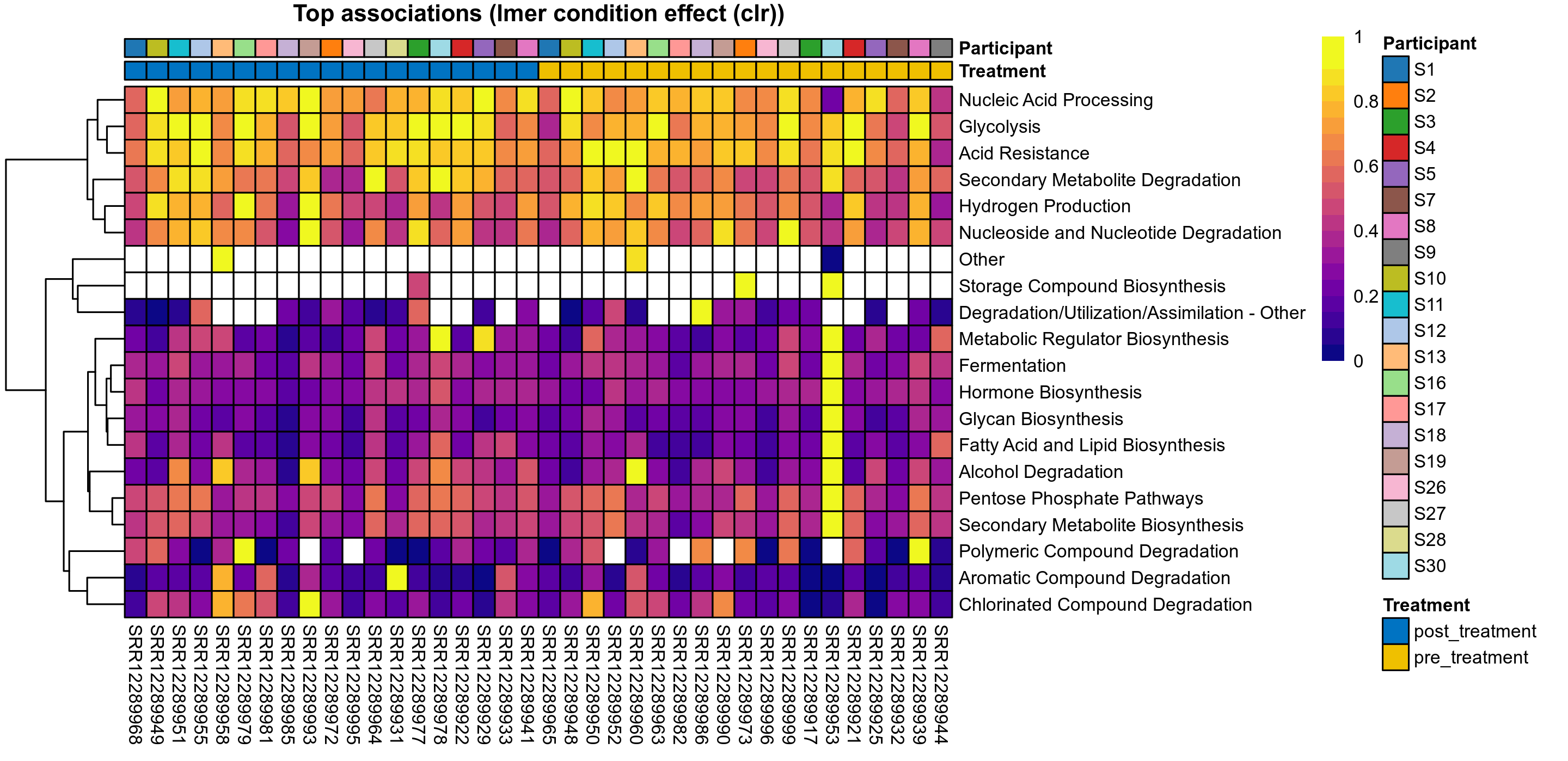

P lmer condition effect (clr): Differentially abundant functions were identified by linear mixed effect regression without confounders. Random effects: Participant (intercept). Fixed effects: Treatment. Effect tested: Treatment.

Glossary:

clr: Centered log-ratio transformation. P Welch's ANOVA (sqrt): Welch's ANOVA p-values (Anova was run on sqrt transformed abundances). It is an alternative to the classic ANOVA and can be used even if the samples have unequal variances and/or unequal sample sizes. P Welch's t-test (sqrt): Welch's T-test p-values (run on sqrt transformed abundances). It is an alternative to the classic Student's t-test and is more reliable if the data violates the assumption of homogeneity of variances and/or if the study conditions have unequal sample sizes. P Welch's ANOVA (clr): Welch's ANOVA p-values (Anova was run on clr transformed abundances). It is an alternative to the classic ANOVA and can be used even if the samples have unequal variances and/or unequal sample sizes. P Welch's t-test (clr): Welch's T-test p-values (run on clr transformed abundances). It is an alternative to the classic Student's t-test and is more reliable if the data violates the assumption of homogeneity of variances and/or if the study conditions have unequal sample sizes. P lmer XXX (clr): P-value of Linear Mixed-Effects Regression on clr transformed abundances, testing significance of XXX effect. Varying intercepts per subjects are used to control for repeated measures. Pbonf: Bonferroni corrected p-value. FDR: False Discovery Rate q-value. Mean Pos: Mean abundance in positive samples. Positive samples: The number and percentage of samples in which each function has been detected. Positive XXX: The number and percentage of positive samples in study group XXX. Positive_XXX_percent: Percentage of positive samples in study group XXX. P Welch's t-test (Aldex2): Expected P value of Welch’s t-test computed by Aldex2. FDR Welch's t-test (Aldex2): Expected Benjamini-Hochberg corrected P value for Welch’s t-test. P Wilcoxon rank test (Aldex2): Expected P value of Wilcoxon rank test computed by Aldex2. FDR Wilcoxon rank test (Aldex2): Expected Benjamini-Hochberg corrected P value of Wilcoxon test. P Kruskal-Wallace test (Aldex2): Expected P value of Kruskal-Wallace test. FDR Kruskal-Wallace test (Aldex2): Expected Benjamini-Hochberg corrected P value of Kruskal-Wallace test. P GLM test (Aldex2): Expected P value of generalized linear model. FDR GLM test (Aldex2): Expected Benjamini-Hochberg corrected P value of generalized linear model.

Differentially Abundant Microbial Functions

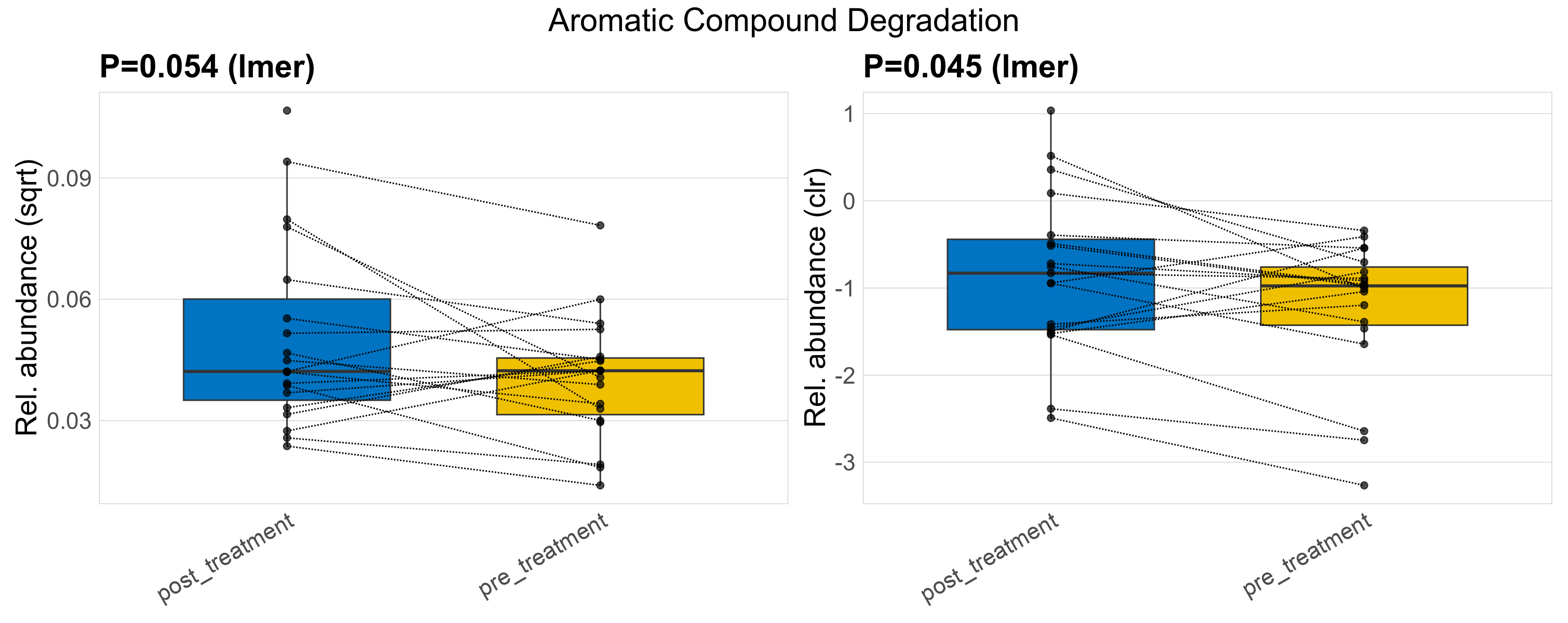

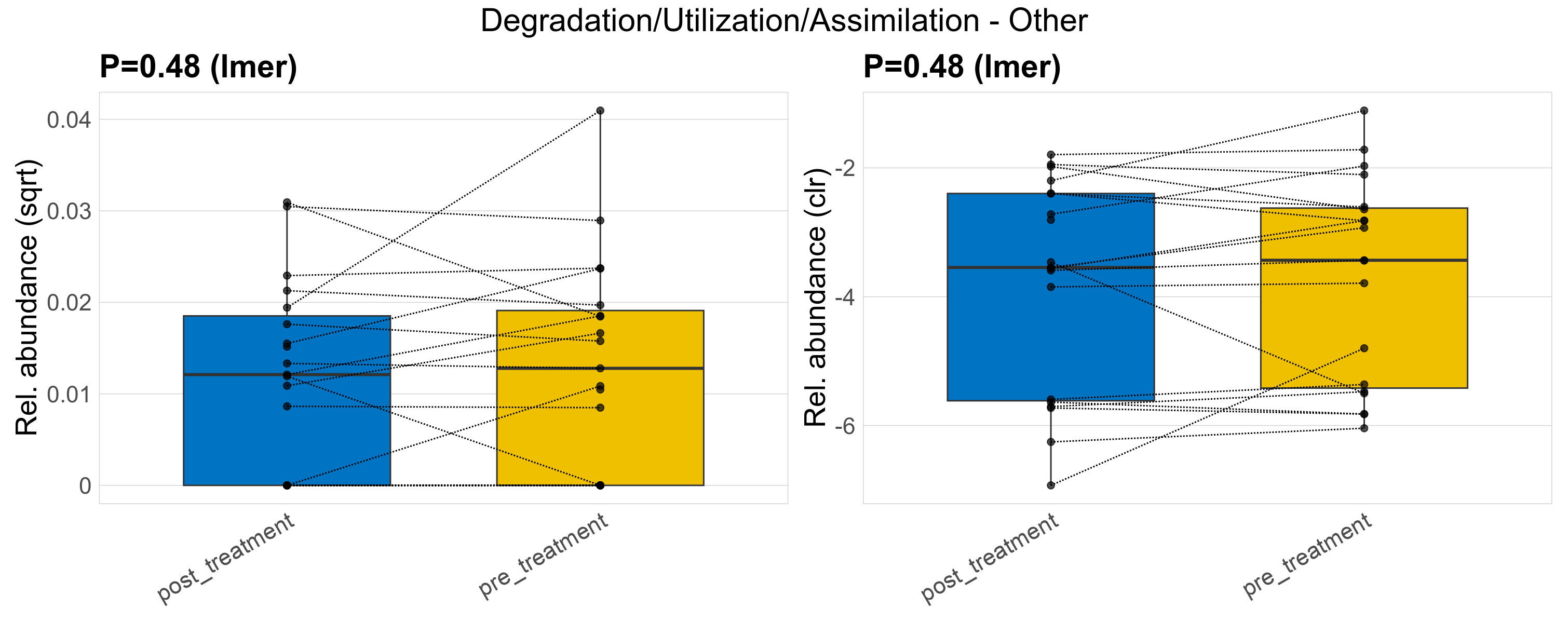

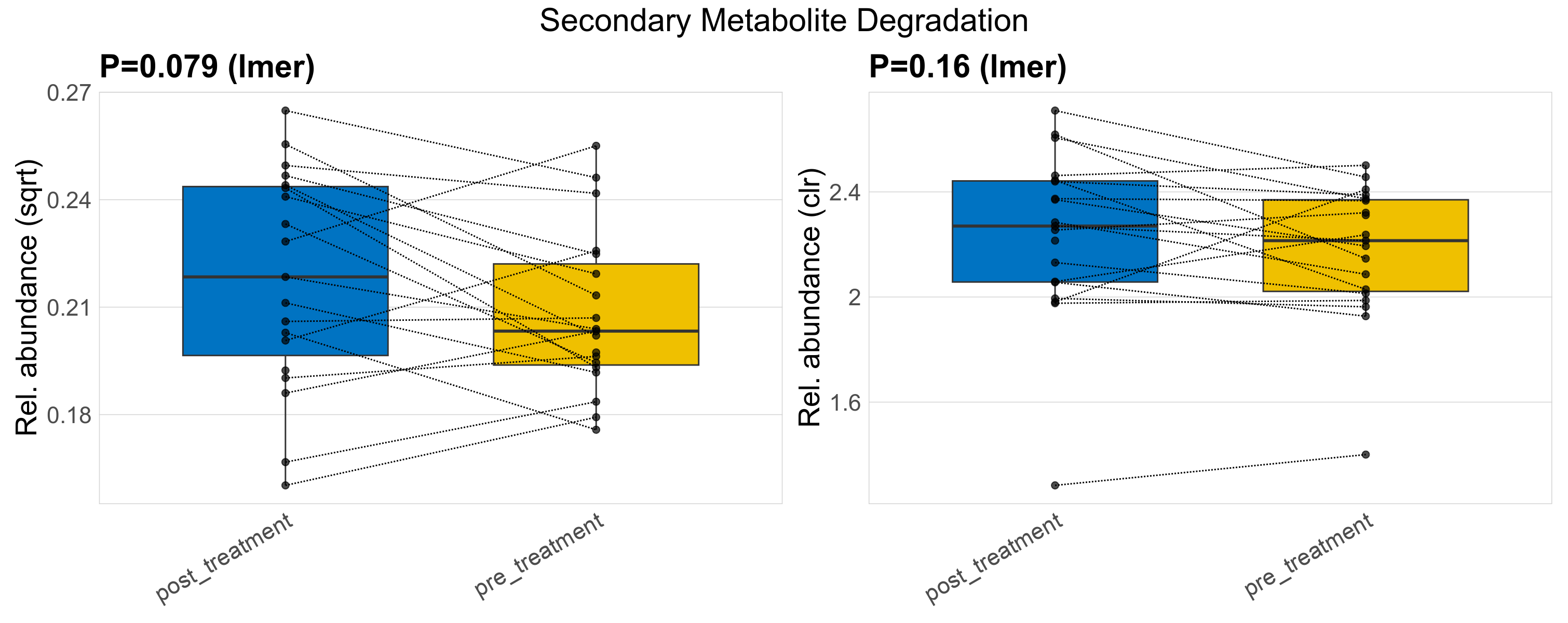

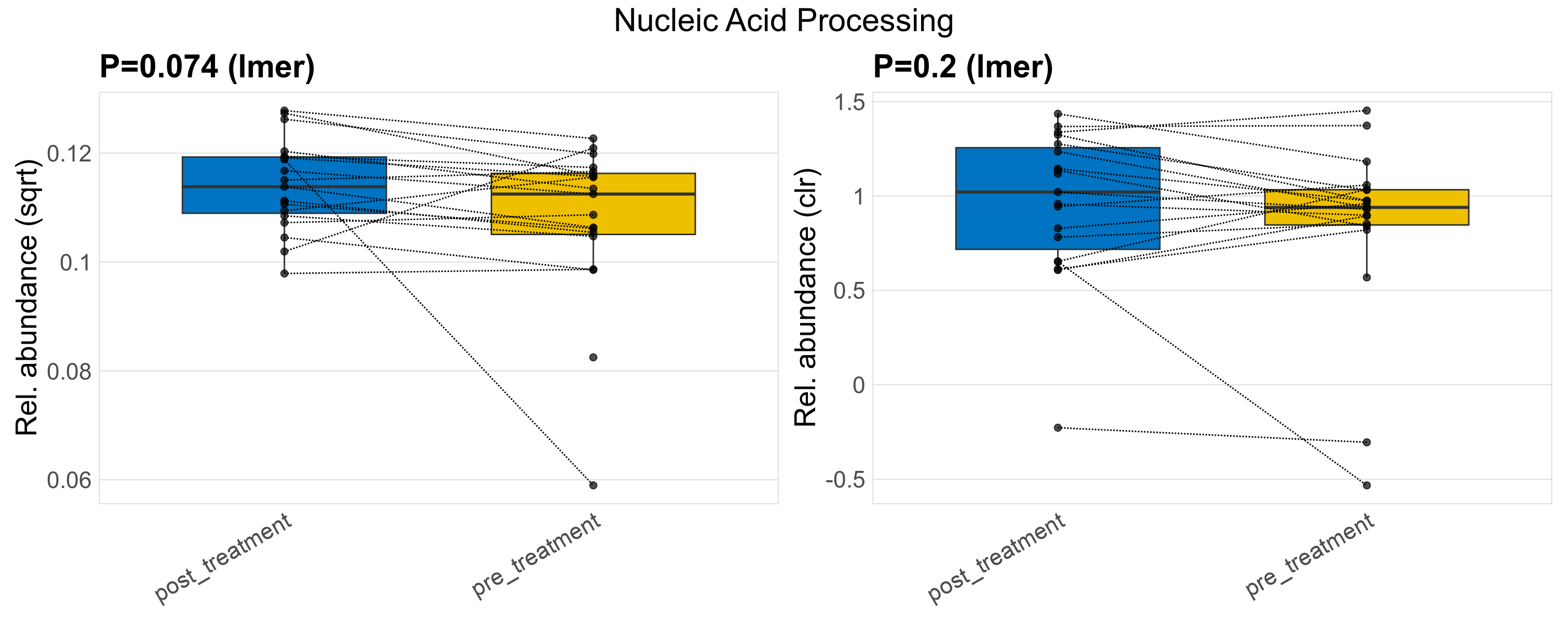

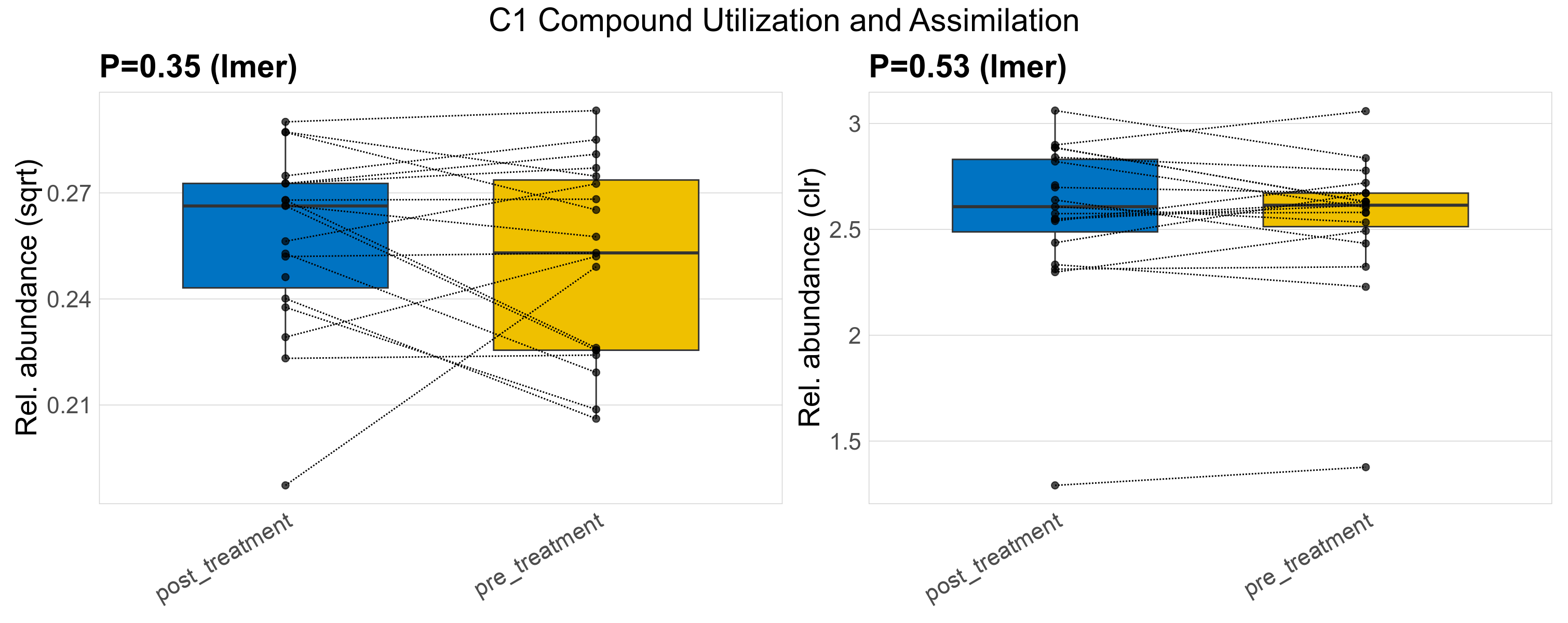

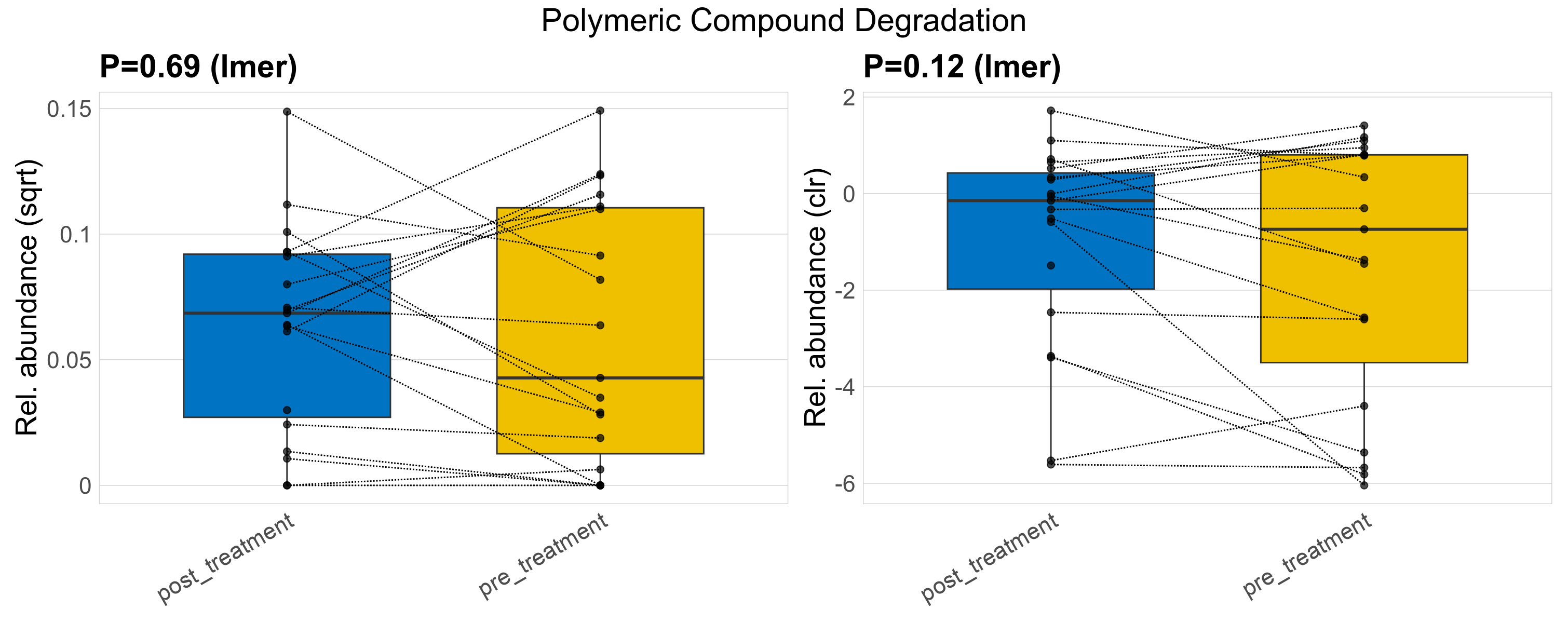

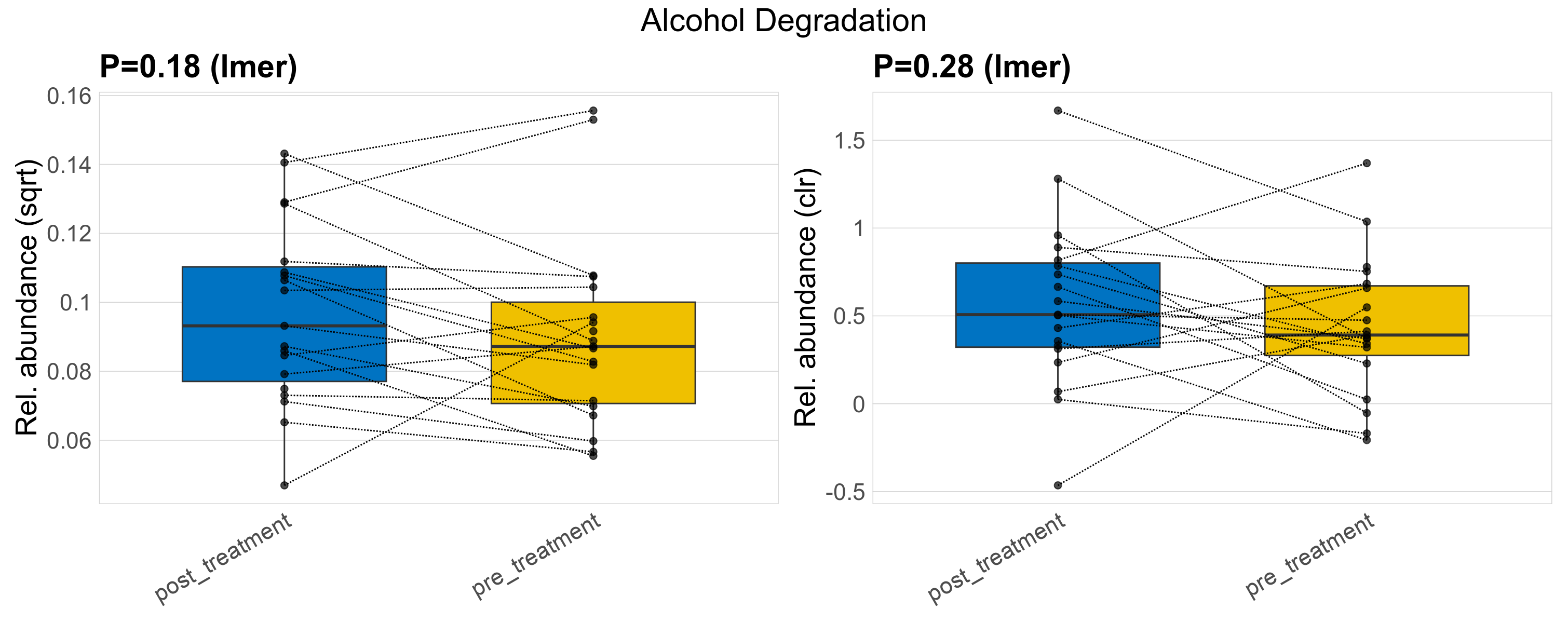

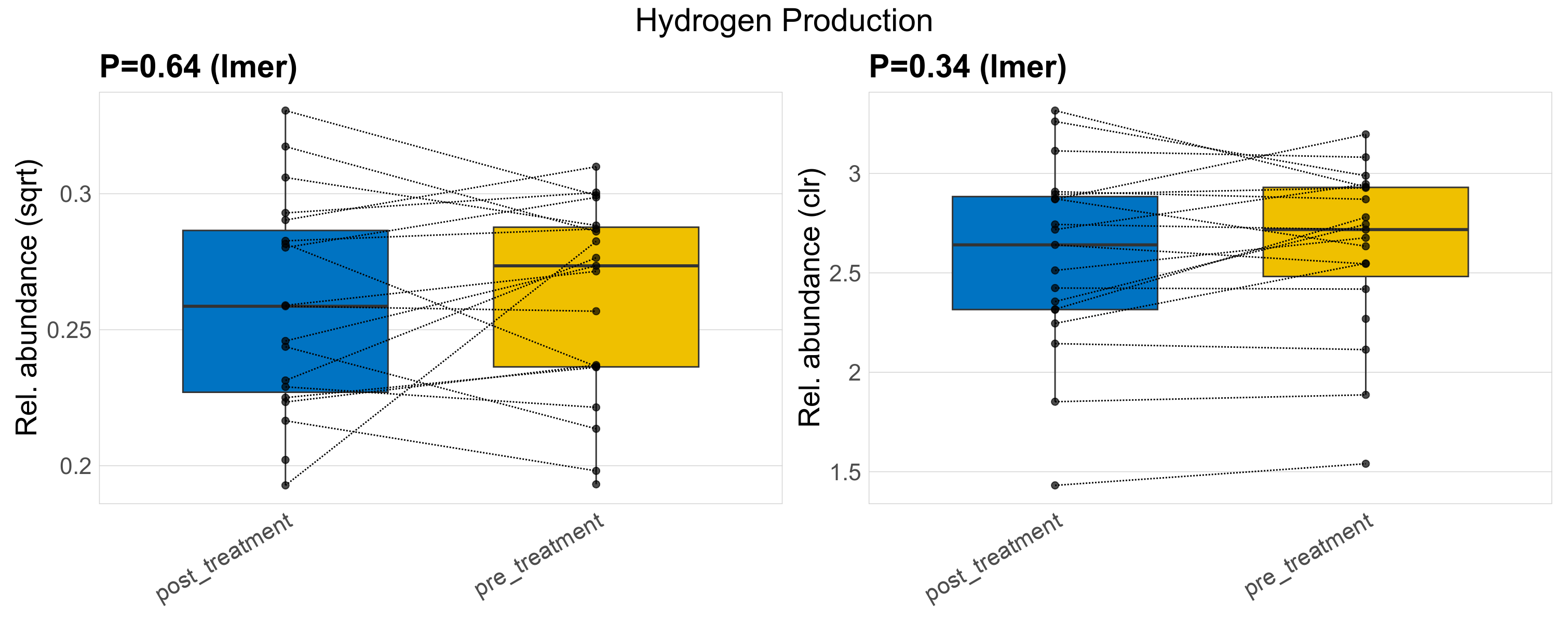

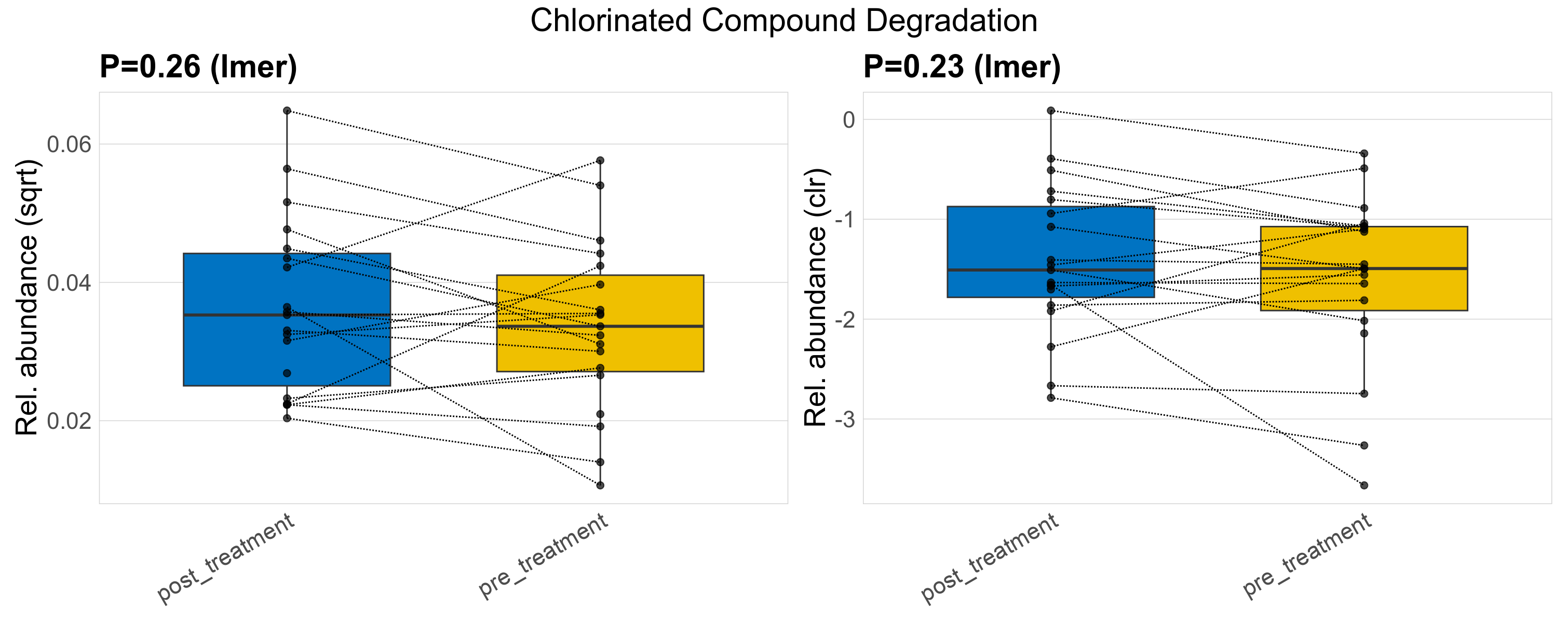

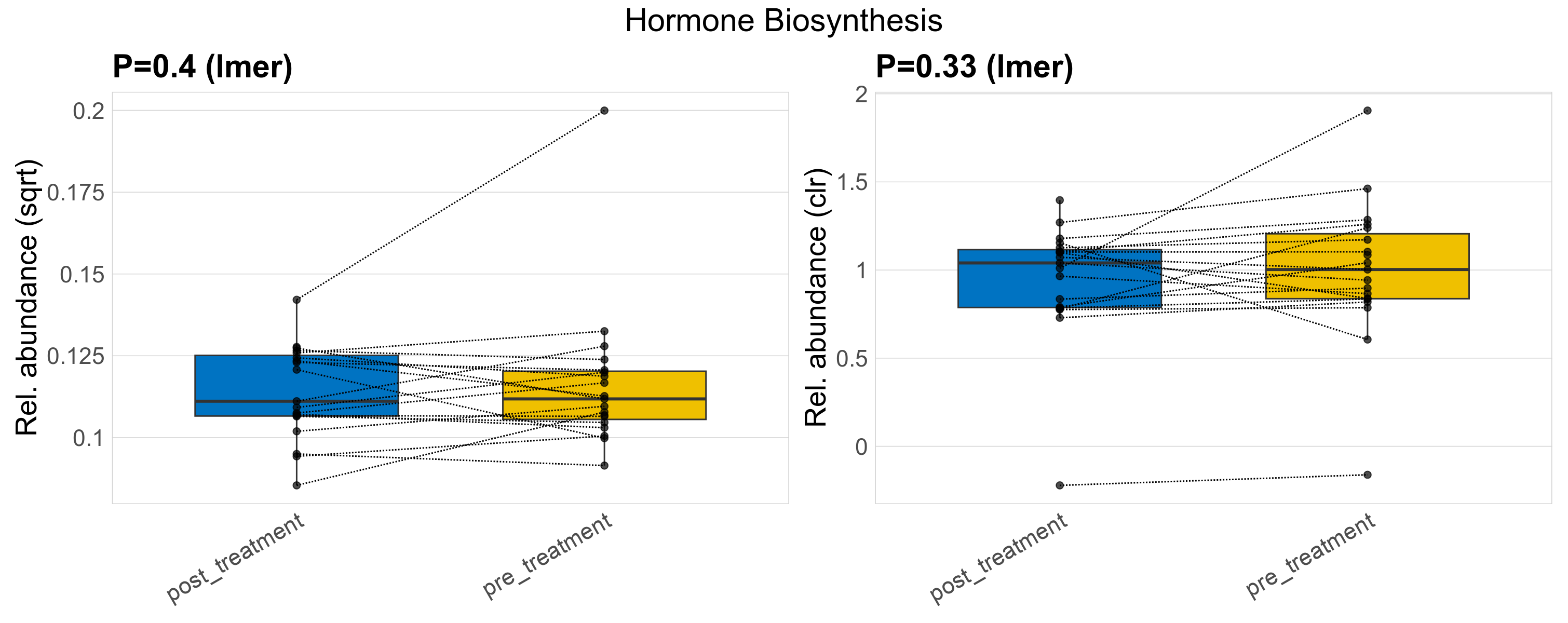

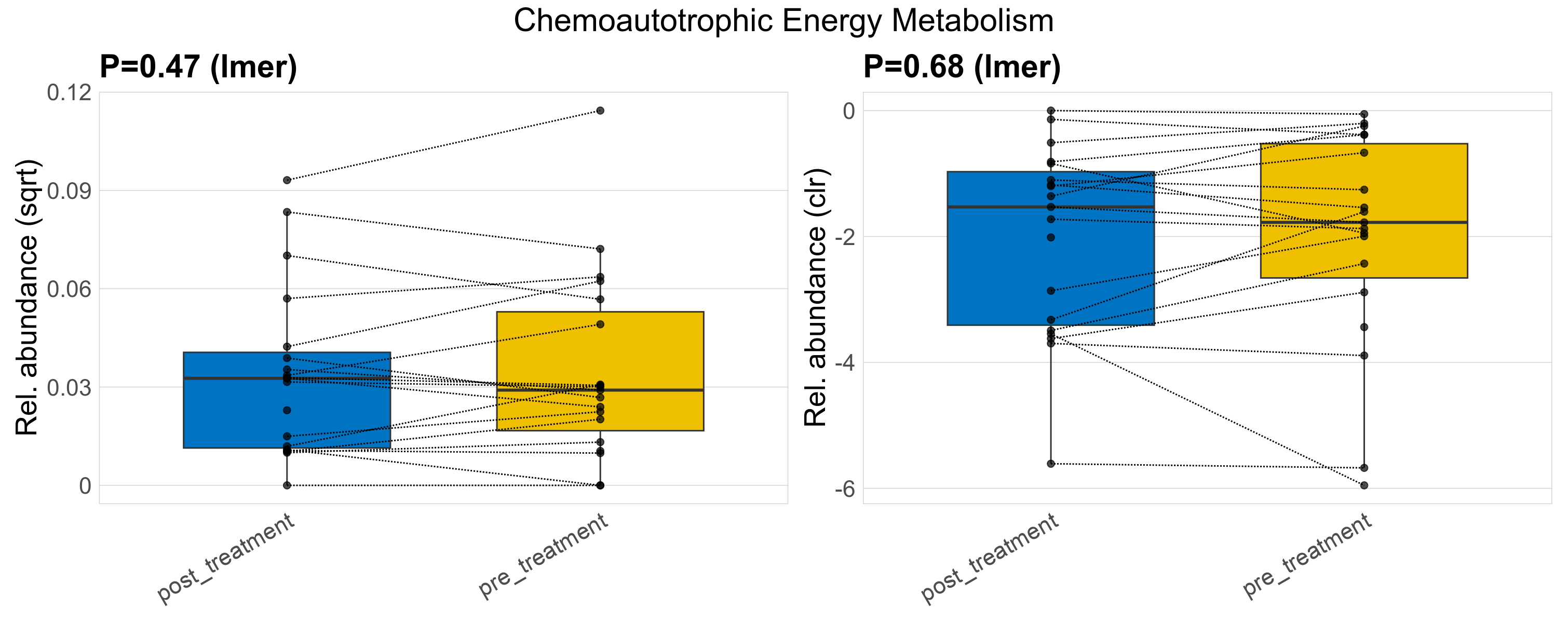

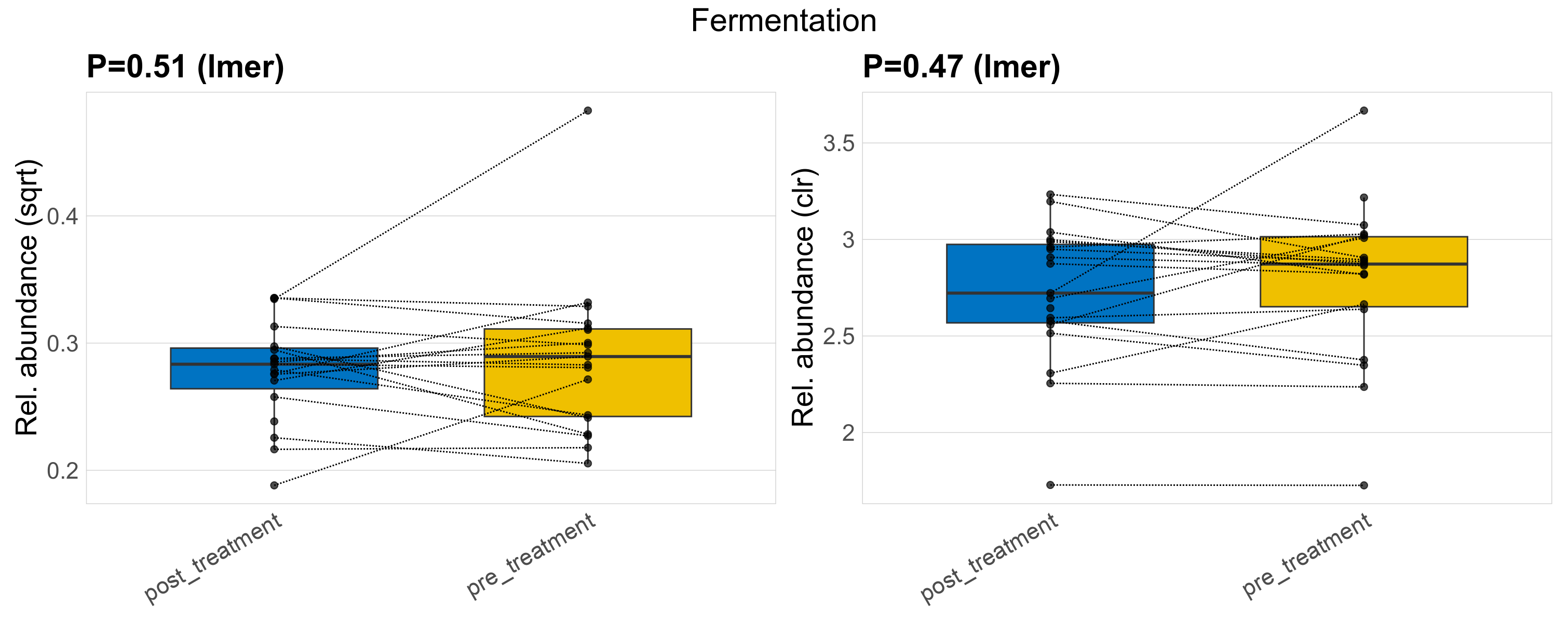

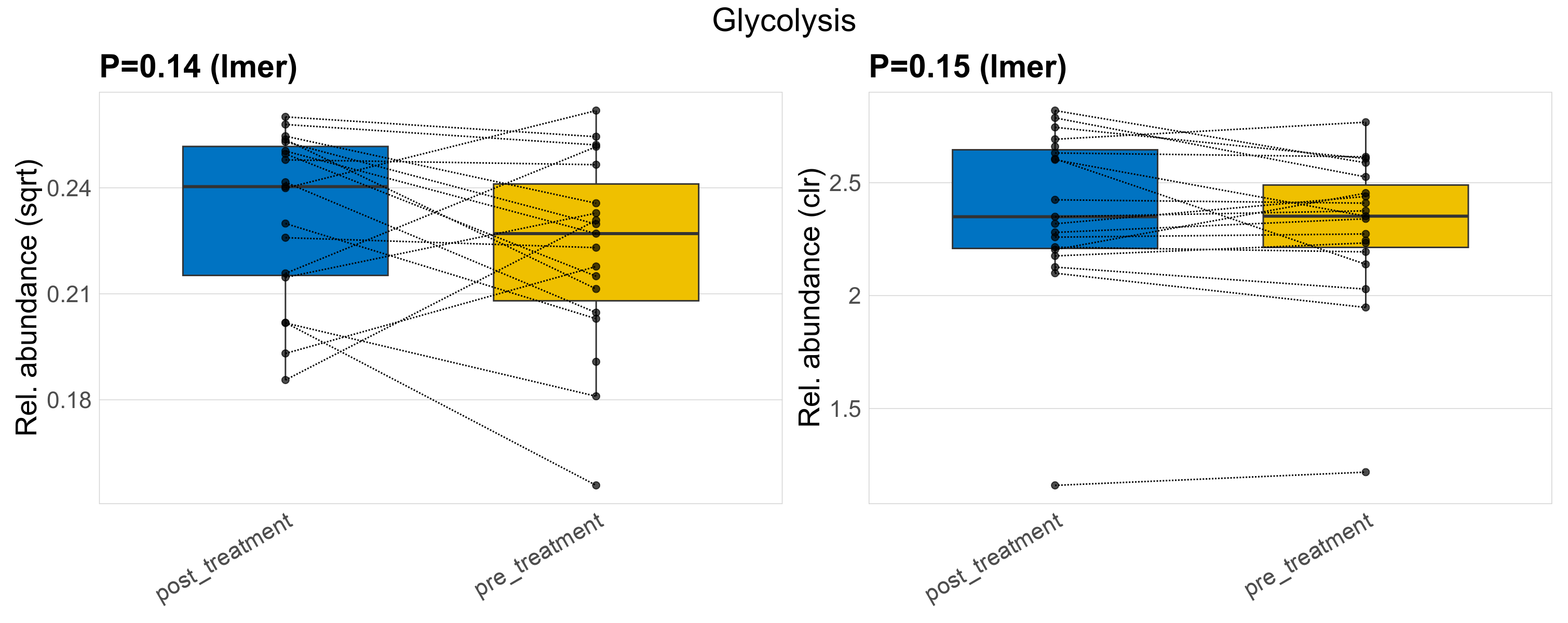

The following plots present the distribution of the top most differentially abundant microbial functions across all applied statistical analysis. Plots are ordered alphabetically.

Glossary:

"Rel. Abundance": Relative abundance data; "Rel. Abundance (sqrt)": sqrt (Hellinger) transformed relative abundances; "Rel. Abundance (clr)": centered log-ratio (clr) transformed read counts.
