Microba Research Discovery Report

Analysis: Aim 2 Longitudinal Fibre Intake Effect

Taxonomic Profiles (Family)

The charts below show the taxonomic composition of the analysed samples using different quantitative visualization techniques. Only the top most abundant families are shown.

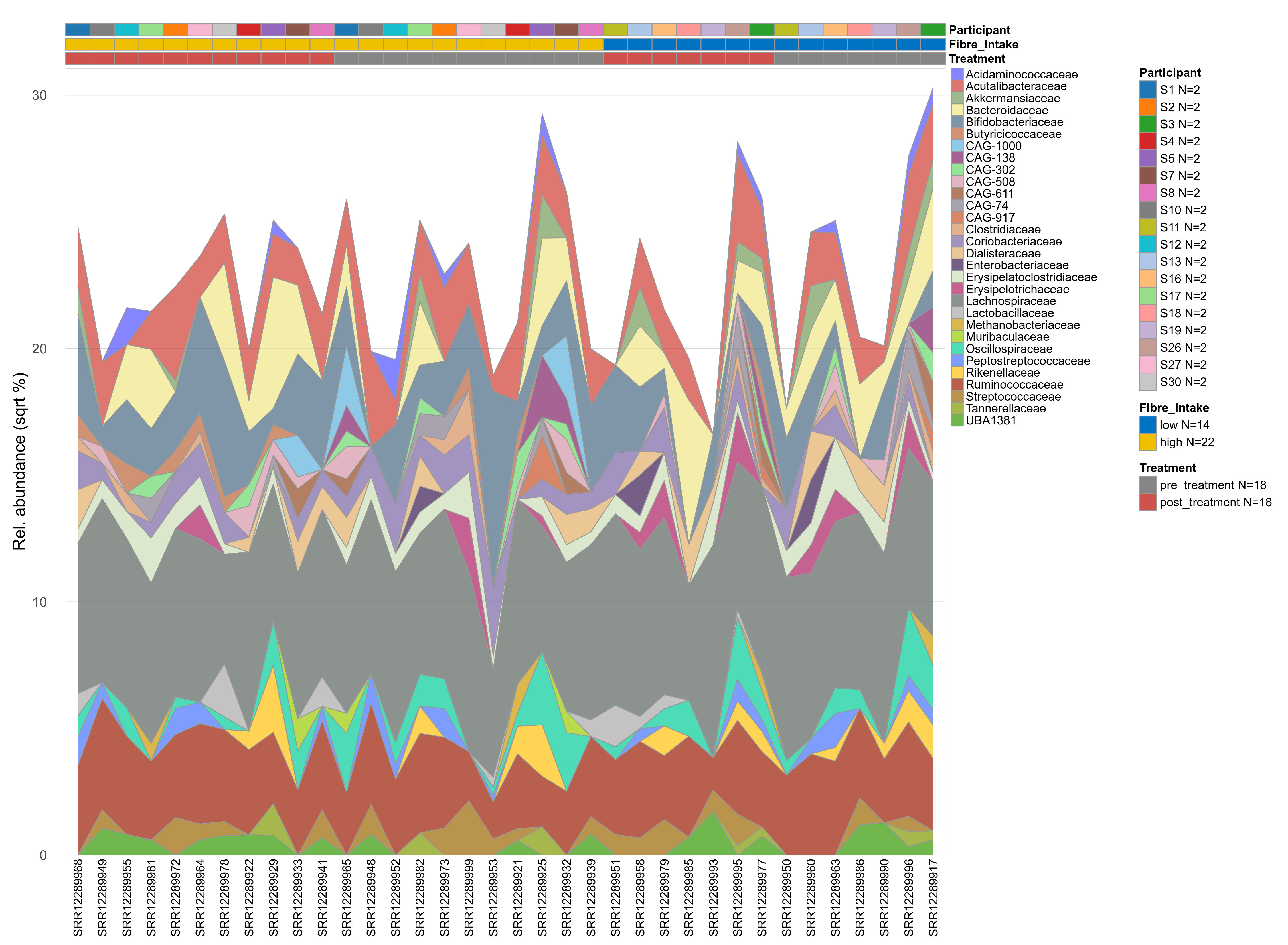

Areachart

Click here to open full-sized image in new window.

Barchart clustered within each group

Click here to open full-sized image in new window.

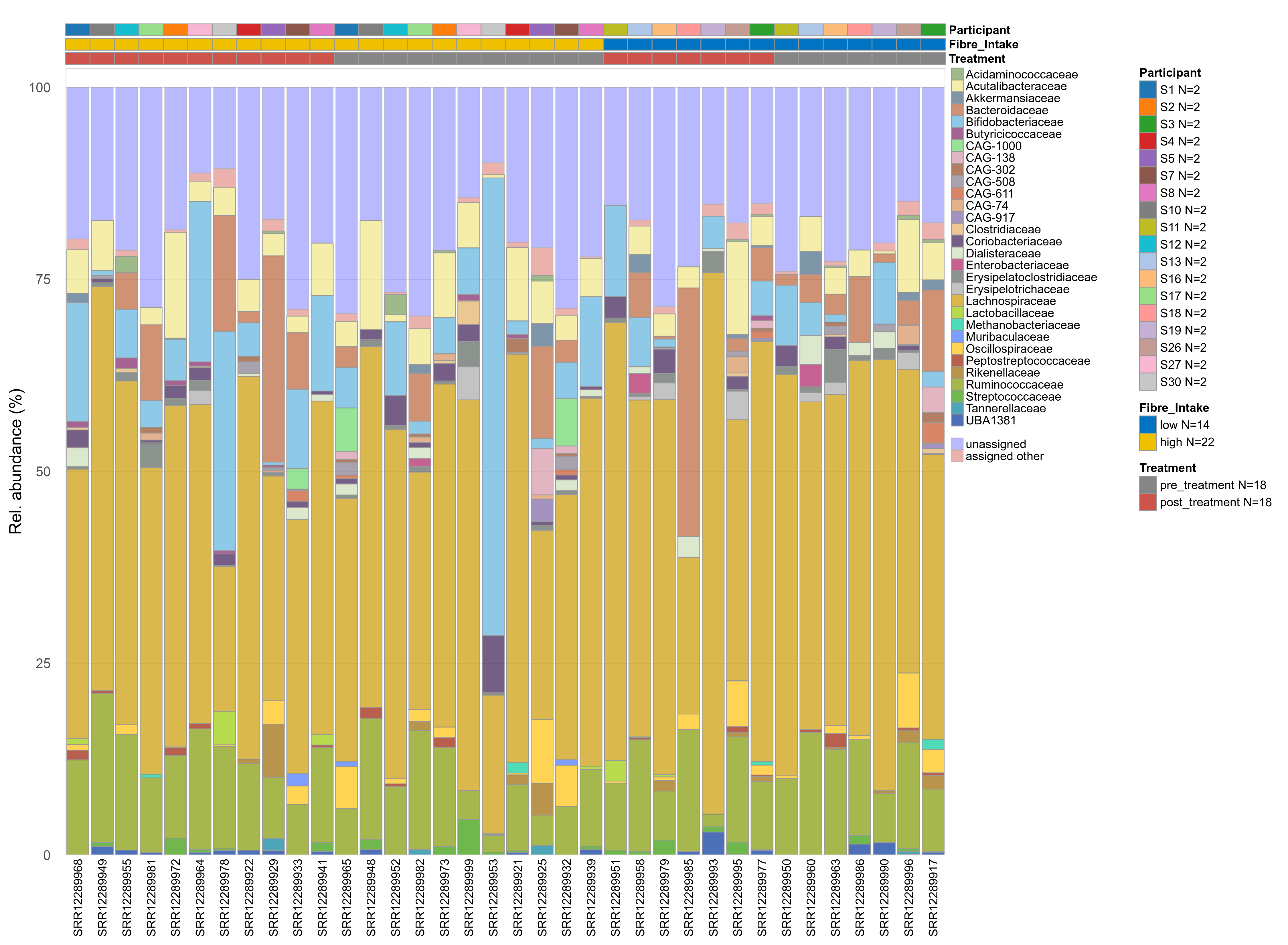

All features barchart clustered within each group

Click here to open full-sized image in new window.

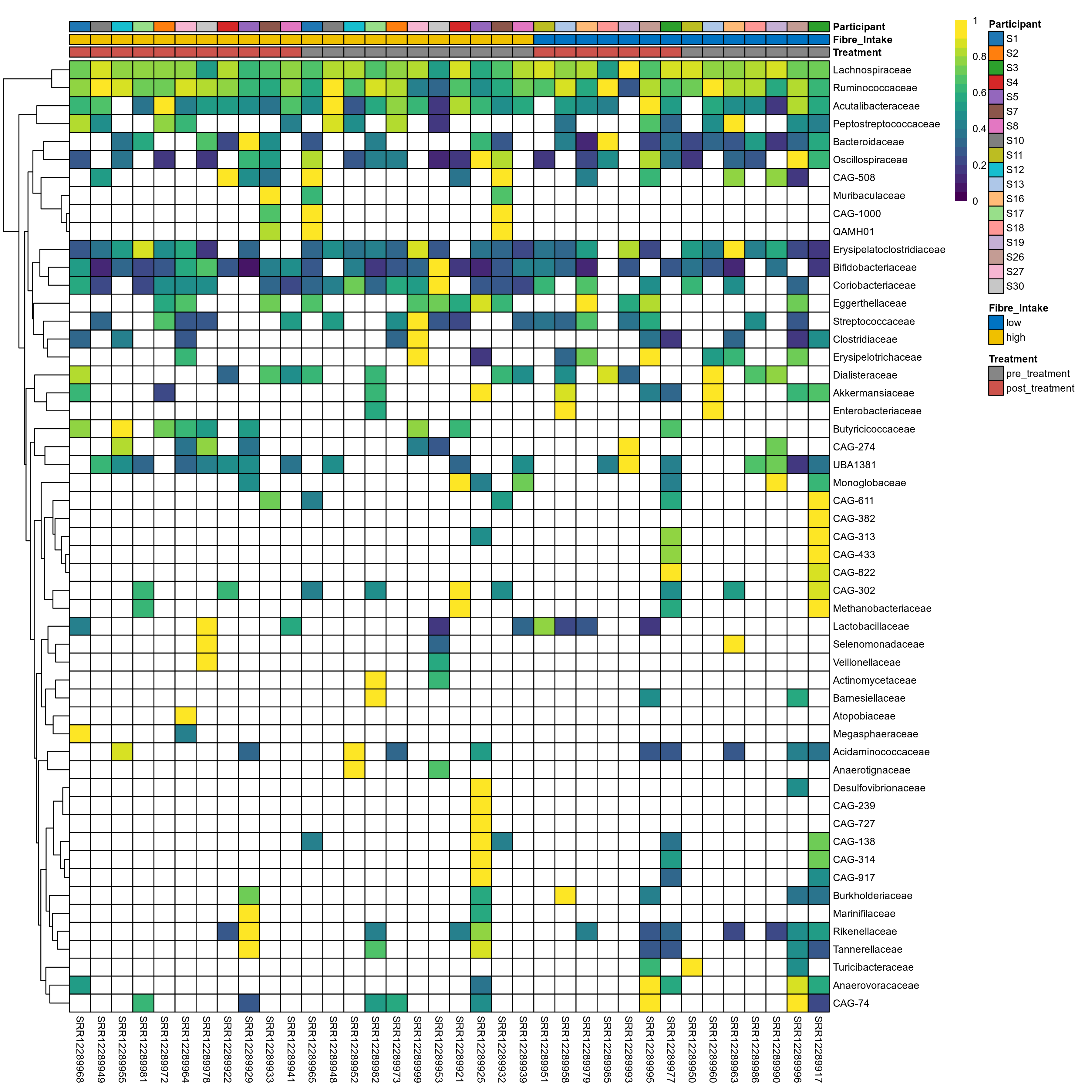

Scaled heatmap of most abundant features ordered by study group

Features were filtered by mean abundance. Samples were first ordered by study group and then clustered within each study group. Abundances were scaled to a max value of 1. Color scale shows not-detected (white), and abundance ranging from low (blue) to high (yellow).

Click here to open full-sized image in new window.

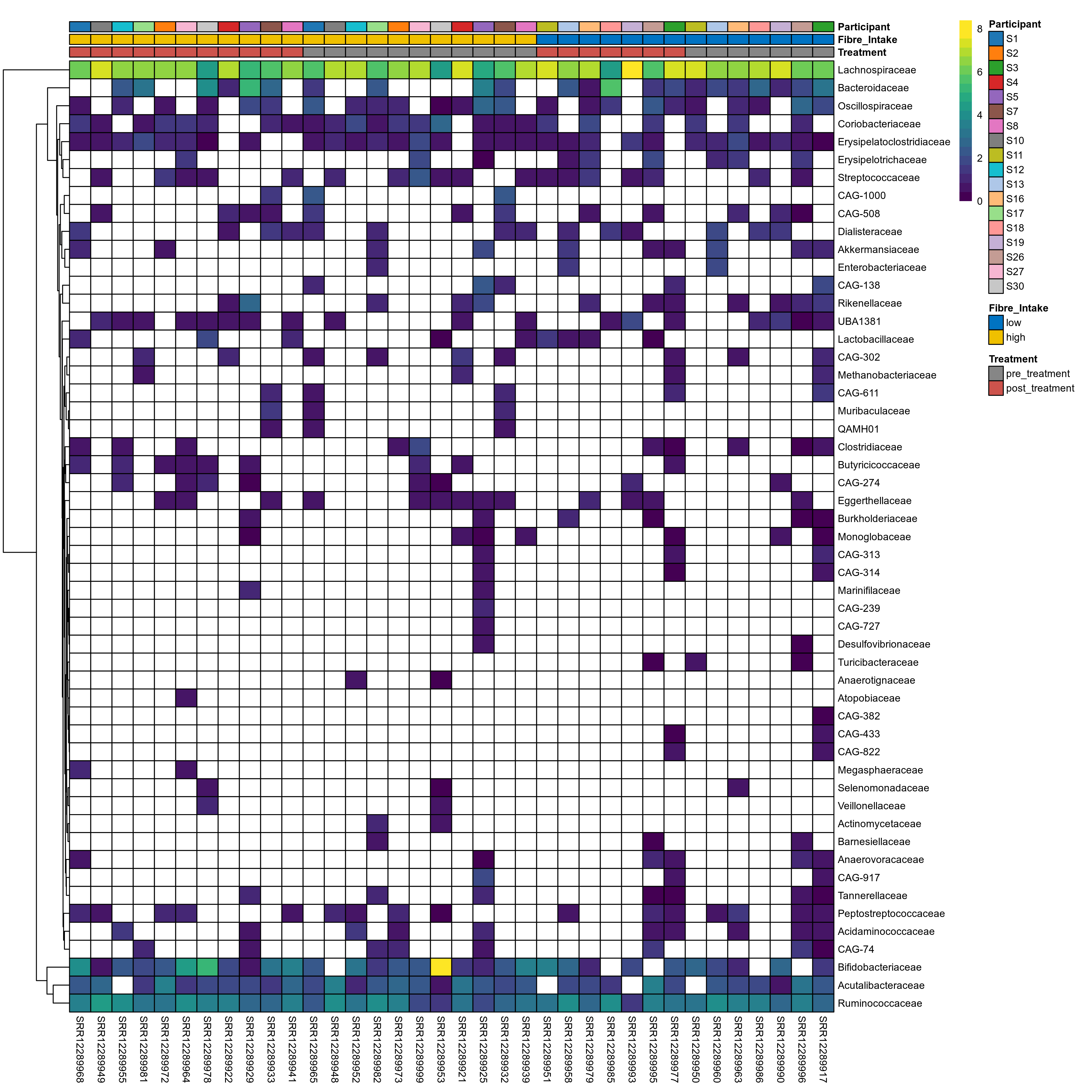

Heatmap of most abundant features ordered by study group

Features were filtered by mean abundance. Samples were first ordered by study group and then clustered within each study group. Color scale shows not-detected (white), and abundance ranging from low (blue) to high (yellow).

Click here to open full-sized image in new window.

Scaled heatmap of all features

Profiles were clustered by hierarchical clustering. Abundances were scaled to a max value of 1. Color scale shows not-detected (white), and abundance ranging from low (blue) to high (yellow).

Click here to open full-sized image in new window.

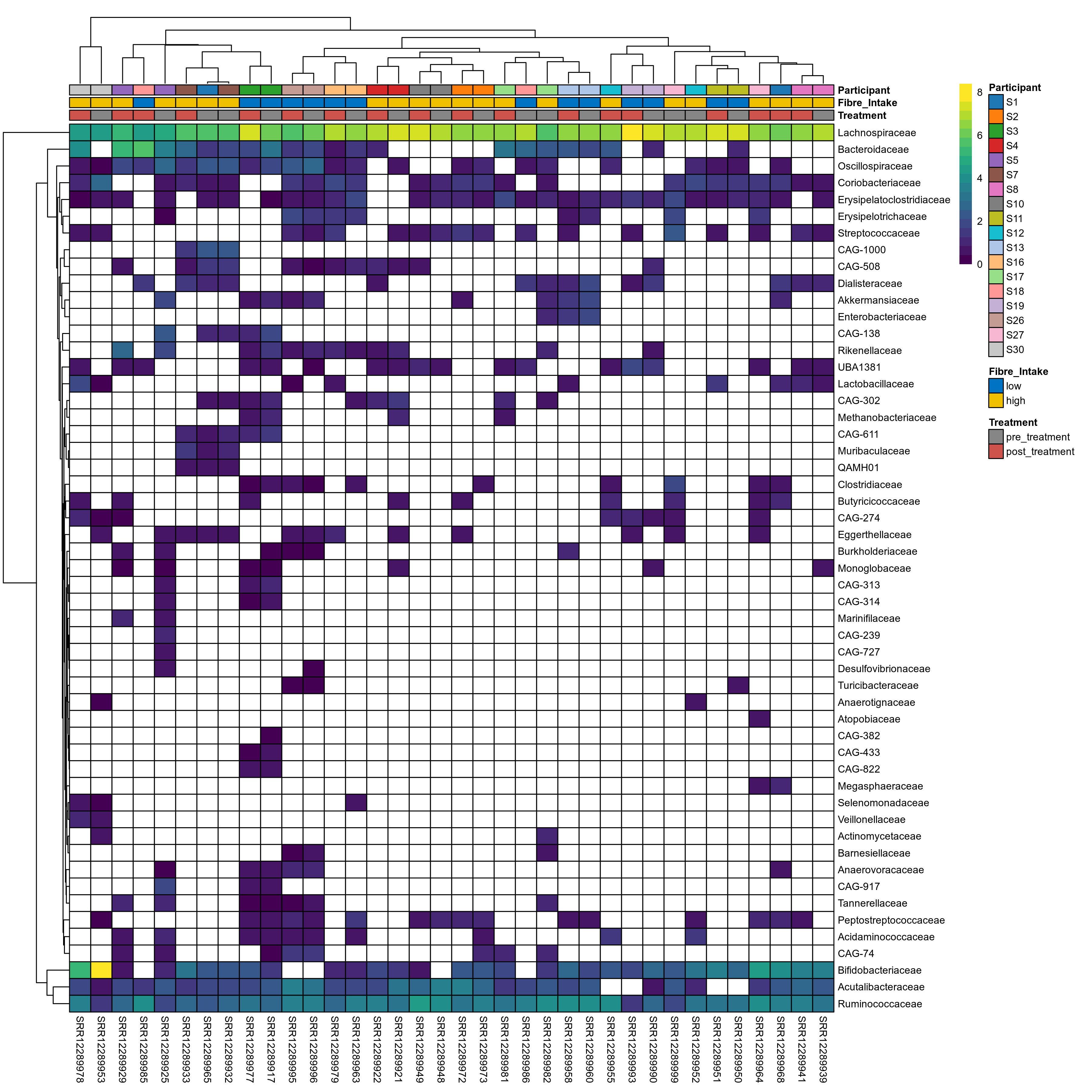

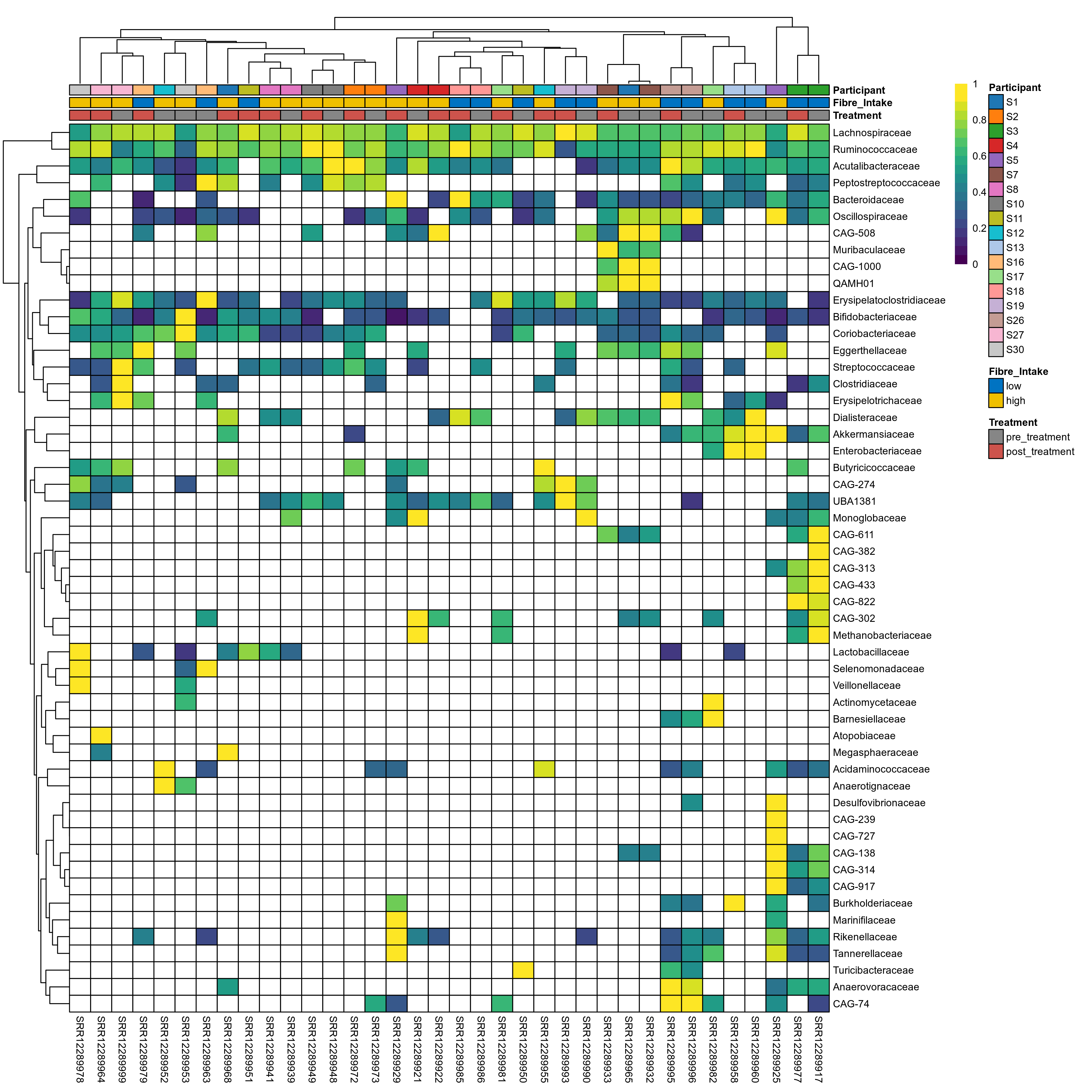

Heatmap of all features

Profiles were clustered by hierarchical clustering. Color scale shows not-detected (white), and abundance ranging from low (blue) to high (yellow).

Click here to open full-sized image in new window.

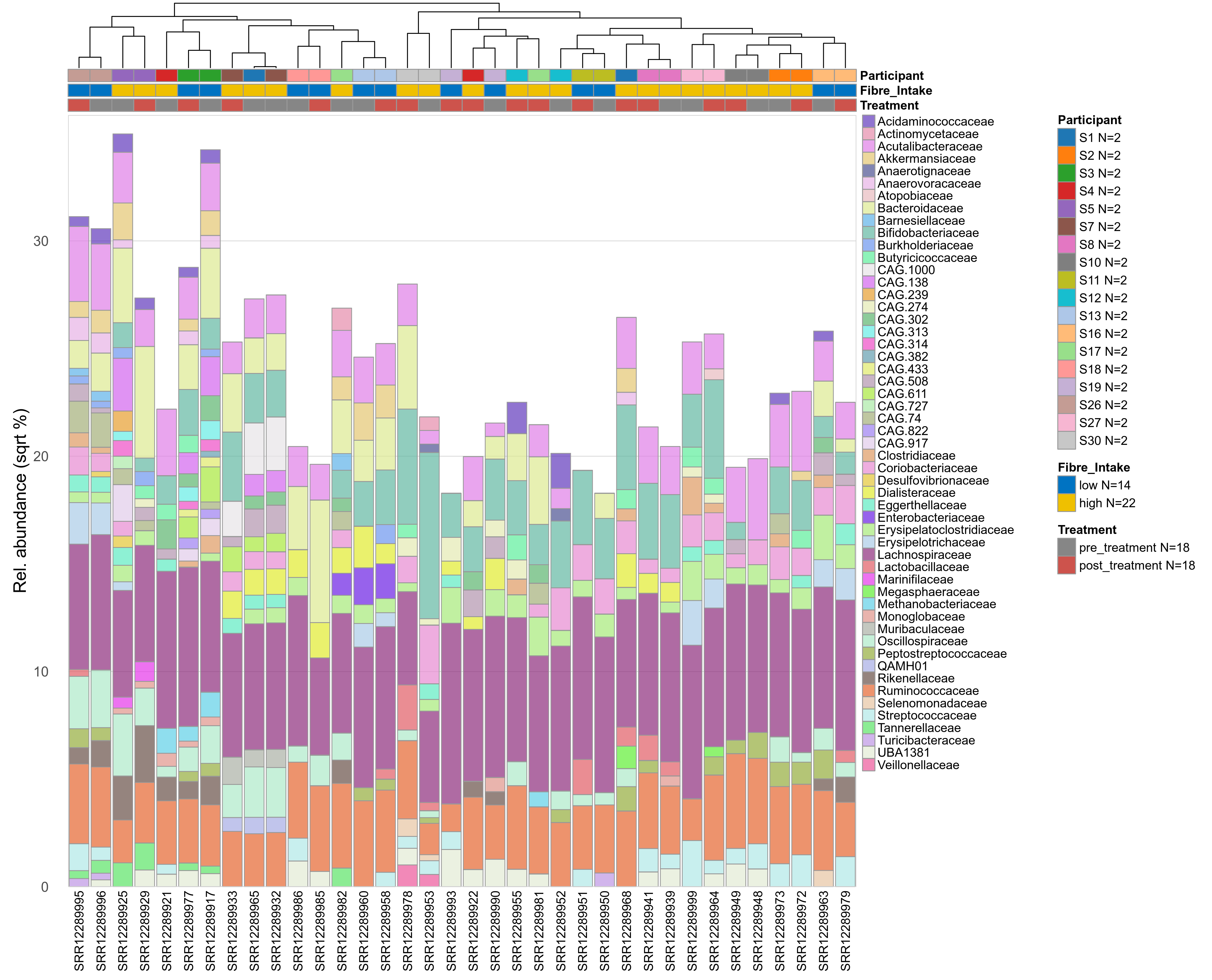

Hierarchically clustered barchart

Profiles were clustered by hierarchical clustering.

Click here to open full-sized image in new window.

Interactive Barchart

Click here to open interactive barchart in new window.

Microbial alpha diversity (family)

This page provides an overview of the microbial alpha diversity of the analysed samples. Alpha diversity is measured by the Shannon index and species richnes. Richness simply quantifies the total number of families present in each sample. Shannon index additionally accounts for relative abundance and evenness of the families present and quantifies the entropy of microbial communties. Barcharts and boxplots present the mean diversity in each study group.

Methods:

Shannon diversity was compared using linear mixed effect regression, including Participant as a random effect (intercept), and Fibre_Intake, Treatment, and Fibre_Intake vs Treatment as fixed effects. Effect tested: Fibre_Intake vs Treatment. Richness was compared using linear mixed effect regression, including Participant as a random effect (intercept), and Fibre_Intake, Treatment, and Fibre_Intake vs Treatment as fixed effects. Effect tested: Fibre_Intake vs Treatment. Data was rarefied to 702268 reads.

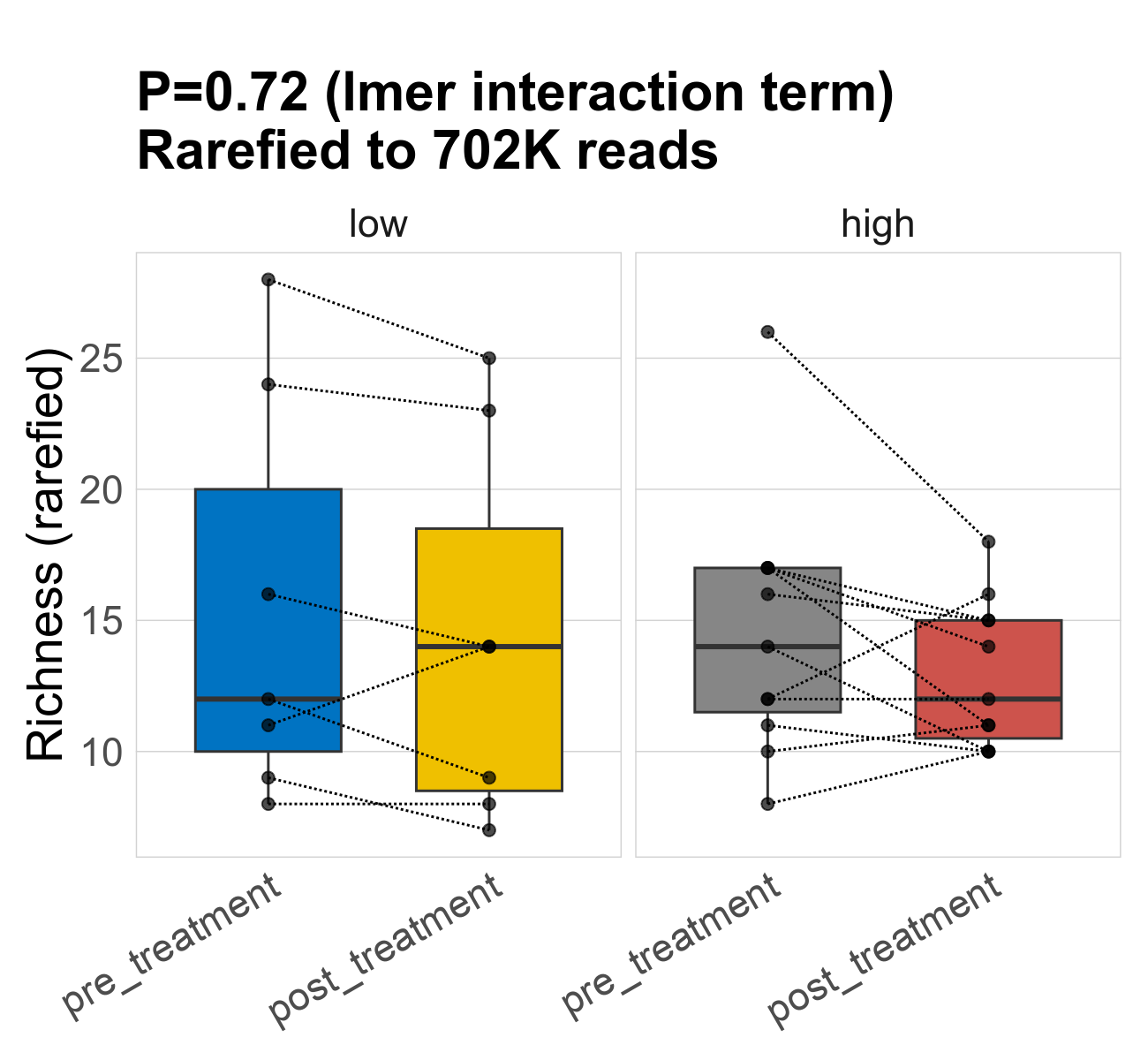

Index: Richness

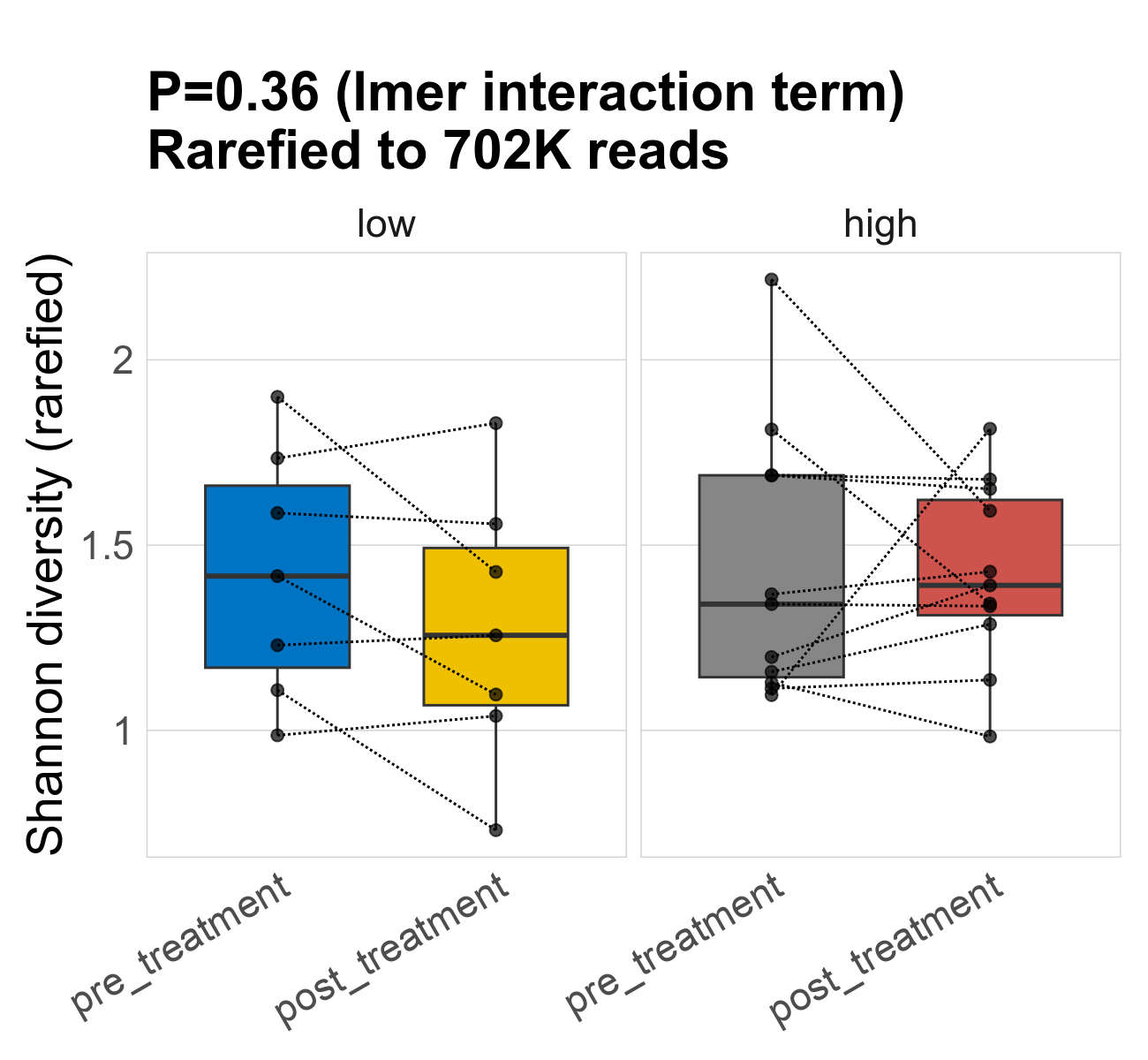

Index: Shannon index

Summary Table

Index rarefiedTo P lmer treatment effect (interaction) Mean Pos Mean Abundance Median Abundance Mean Fibre_Intakelow:Treatmentpre_treatment Median Fibre_Intakelow:Treatmentpre_treatment SD Fibre_Intakelow:Treatmentpre_treatment Mean Fibre_Intakelow:Treatmentpost_treatment Median Fibre_Intakelow:Treatmentpost_treatment SD Fibre_Intakelow:Treatmentpost_treatment Fold Change Log2(Fibre_Intakelow:Treatmentpost_treatment/Fibre_Intakelow:Treatmentpre_treatment) Positive samples Positive Fibre_Intakelow:Treatmentpre_treatment Positive Fibre_Intakelow:Treatmentpost_treatment Positive_Fibre_Intakelow:Treatmentpre_treatment_percent Positive_Fibre_Intakelow:Treatmentpost_treatment_percent Mean Fibre_Intakehigh:Treatmentpre_treatment Median Fibre_Intakehigh:Treatmentpre_treatment SD Fibre_Intakehigh:Treatmentpre_treatment Mean Fibre_Intakehigh:Treatmentpost_treatment Median Fibre_Intakehigh:Treatmentpost_treatment SD Fibre_Intakehigh:Treatmentpost_treatment Fold Change Log2(Fibre_Intakehigh:Treatmentpost_treatment/Fibre_Intakehigh:Treatmentpre_treatment) Positive Fibre_Intakehigh:Treatmentpre_treatment Positive Fibre_Intakehigh:Treatmentpost_treatment Positive_Fibre_Intakehigh:Treatmentpre_treatment_percent Positive_Fibre_Intakehigh:Treatmentpost_treatment_percent
Shannon 702268 0.36 1.4 1.4 1.4 1.4 1.4 0.34 1.3 1.3 0.36 -0.11 36 / 36 (100%) 7 / 7 (100%) 7 / 7 (100%) 1 1 1.4 1.3 0.37 1.4 1.4 0.25 0 11 / 11 (100%) 11 / 11 (100%) 1 1
Richness 702268 0.72 14 14 13 15 12 7.7 14 14 7.2 -0.1 36 / 36 (100%) 7 / 7 (100%) 7 / 7 (100%) 1 1 15 14 4.9 13 12 2.8 -0.21 11 / 11 (100%) 11 / 11 (100%) 1 1
Download diversity values in csv format . On some platforms (including Windows) you may need to change the suffix from .txt or .html to .csv before opening the file in a spreadsheet program, like Excel.

Clustering and ordination (family)

Taxonomic profiles were analyzed using supervised and unsupervised multivariate methods. Profiles were ordinated using the unsupervised methods Principal Coordinates Analysis (PCoA), Non-Metric Multidimensional Scaling (NMDS) and Principal Component Analysis (PCA). PCoA and NMDS are related to PCA, but take dissimlarity matrices as input. PCoA and NMDS both attempt to represent the pairwise dissimlarities between samples in low dimensional space as close as possible. NMDS is a rank-based approach and therefore less effected by outliers.

The supervised methods Adonis and Redundancy analysis (RDA) were used to assess if variance in microbial community composition can be attributed to the study condition. NMDS, PCoA and Adonis were run on Bray-Curtis dissimilarities. A short introduction of the used methods can be found at the GUide to STatistical Analysis in Microbial Ecology (GUSTA ME). Sparse Partial Least Square Discriminant Analysis (sPLS-DA) from the MixMc package was additionaly used to extract features associated with the study condition.

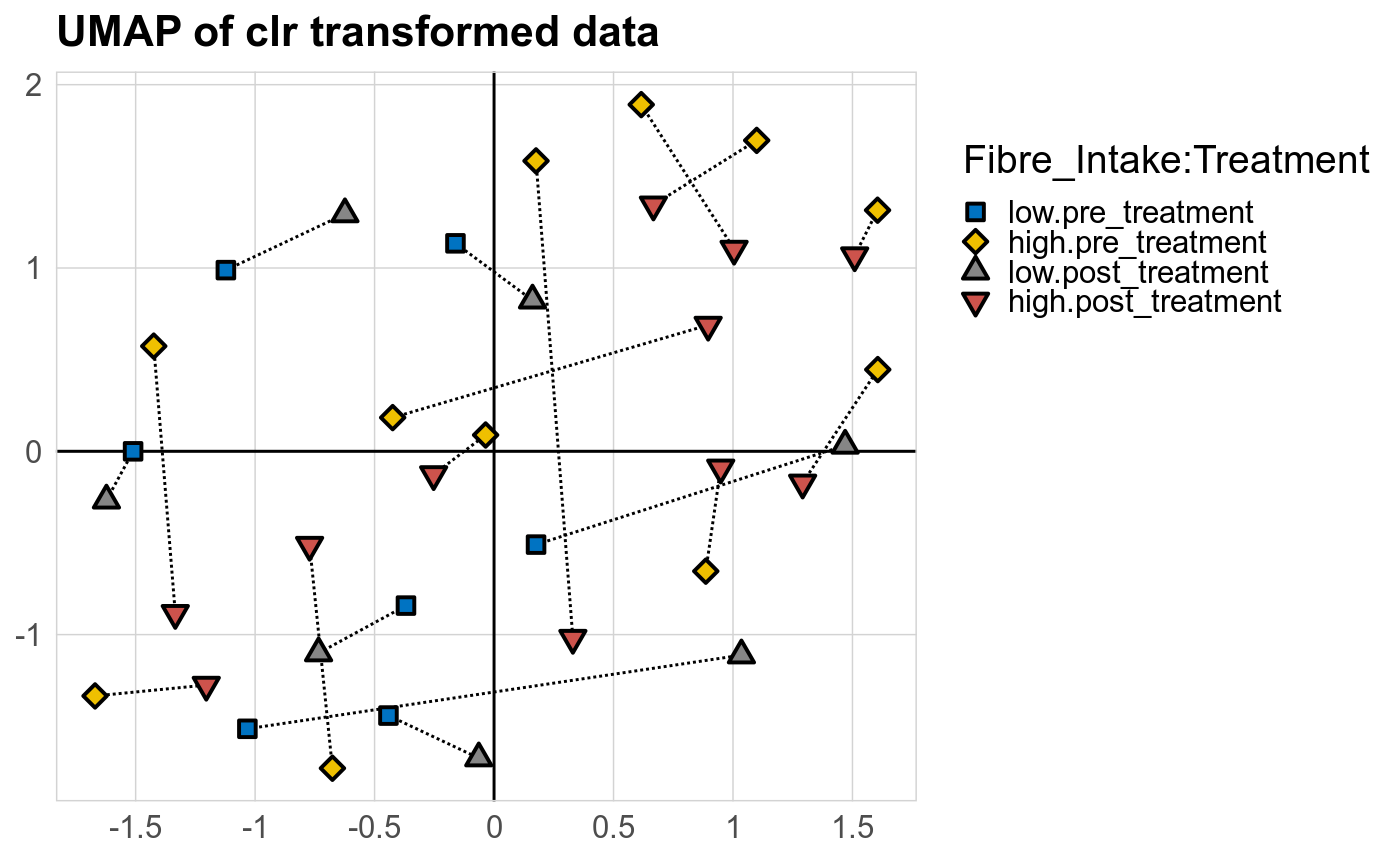

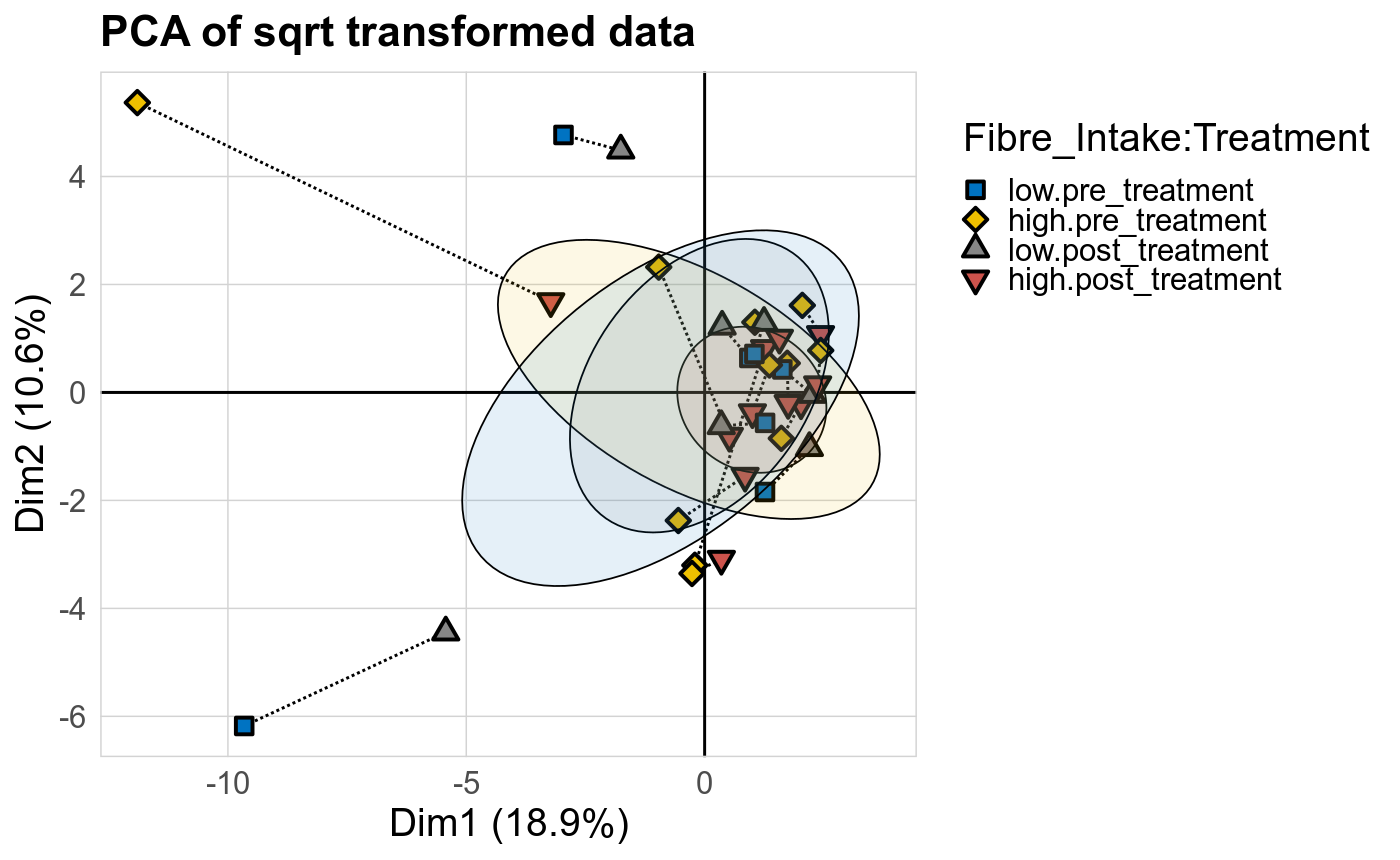

Unsupervised ordination

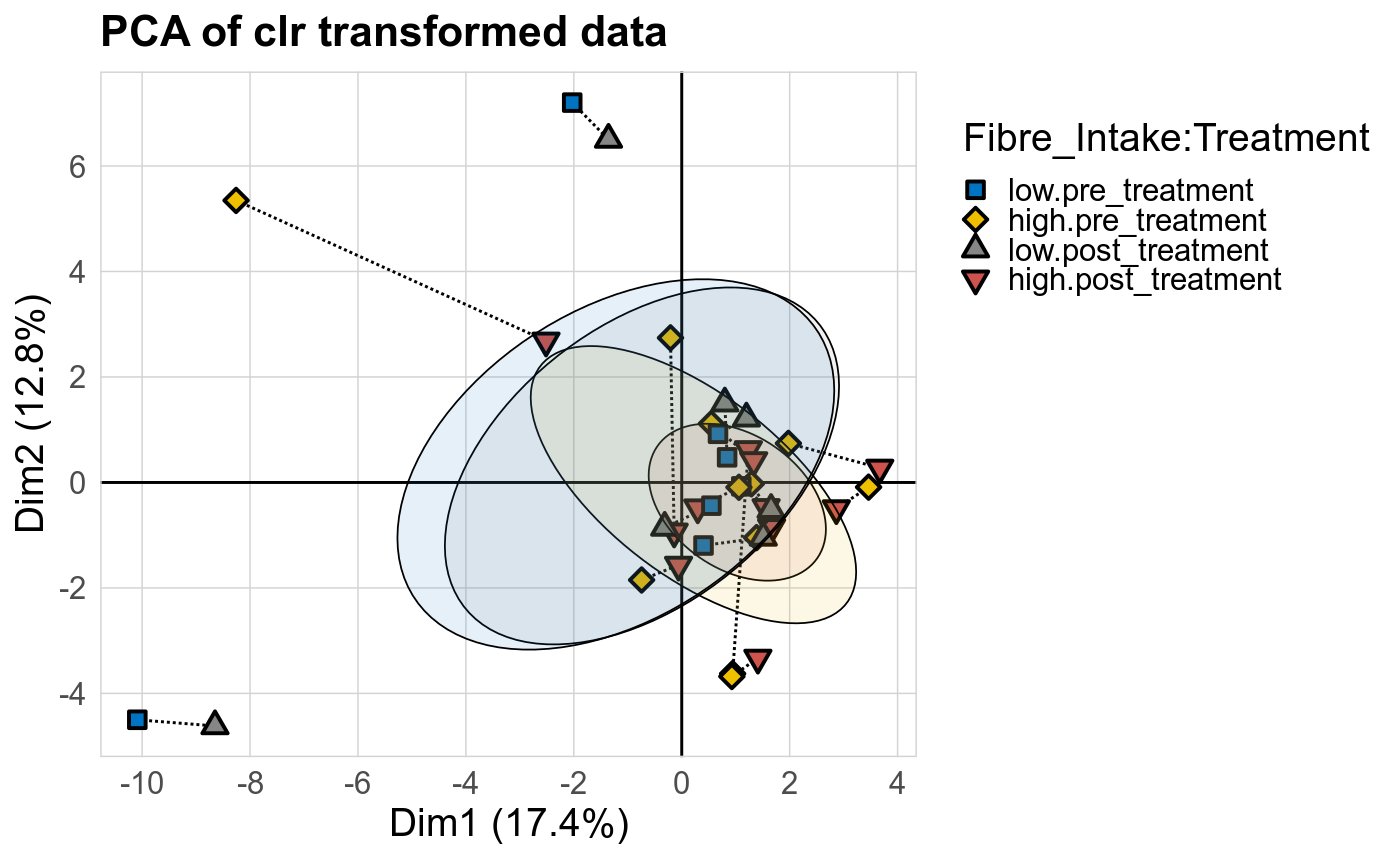

Interactive PCA (clr transformed)

Please click here to view an interactive 3D PCA.

Univariate analysis of family abundance

Differentially abundant families were identified by ANOVA or LMER (linear mixed effect regression) of clr transformed relative abudances, Fisher's exact test and/or ALDEx2 (on families read counts). Fisher's exact test is used to test for differences in the detection rate, i.e. number of samples in which each family has been detected.

LMER is used for repeated measures data, using random effects to control for correlation between samples from the same subject. Fixed effects are included for treatment groups, time, and treatment over time, where appropriate. The LMER P values correspond to a nested model test of the significance of including the corresponding fixed effect.

ALDEx2 uses subsampling (Bayesian sampling) to estimate the underlying technical variation. For each subsample instance, center log-ratio transformed data is statistically compared across study groups and computed P values are corrected for multiple testing using the Benjamini–Hochberg procedure. The expected P value (mean P value) is reported, which are those that would likely have been observed if the same samples had been run multiple times. The expected values are reported for both the distribution of P values and for the distribution of Benjamini–Hochberg corrected values.

Taxon GTDB taxonomy P lmer study group effect (sqrt) FDR lmer study group effect (sqrt) Pbonf lmer study group effect (sqrt) P lmer time effect (sqrt) FDR lmer time effect (sqrt) Pbonf lmer time effect (sqrt) P lmer treatment effect (interaction) (sqrt) FDR lmer treatment effect (interaction) (sqrt) Pbonf lmer treatment effect (interaction) (sqrt) P lmer study group effect (clr) FDR lmer study group effect (clr) Pbonf lmer study group effect (clr) P lmer time effect (clr) FDR lmer time effect (clr) Pbonf lmer time effect (clr) P lmer treatment effect (interaction) (clr) FDR lmer treatment effect (interaction) (clr) Pbonf lmer treatment effect (interaction) (clr) Mean Pos Mean Abundance Median Abundance Mean Fibre_Intakelow:Treatmentpre_treatment Median Fibre_Intakelow:Treatmentpre_treatment SD Fibre_Intakelow:Treatmentpre_treatment Mean Fibre_Intakelow:Treatmentpost_treatment Median Fibre_Intakelow:Treatmentpost_treatment SD Fibre_Intakelow:Treatmentpost_treatment Fold Change Log2(Fibre_Intakelow:Treatmentpost_treatment/Fibre_Intakelow:Treatmentpre_treatment) Positive samples Positive Fibre_Intakelow:Treatmentpre_treatment Positive Fibre_Intakelow:Treatmentpost_treatment Positive_Fibre_Intakelow:Treatmentpre_treatment_percent Positive_Fibre_Intakelow:Treatmentpost_treatment_percent Mean Fibre_Intakehigh:Treatmentpre_treatment Median Fibre_Intakehigh:Treatmentpre_treatment SD Fibre_Intakehigh:Treatmentpre_treatment Mean Fibre_Intakehigh:Treatmentpost_treatment Median Fibre_Intakehigh:Treatmentpost_treatment SD Fibre_Intakehigh:Treatmentpost_treatment Fold Change Log2(Fibre_Intakehigh:Treatmentpost_treatment/Fibre_Intakehigh:Treatmentpre_treatment) Positive Fibre_Intakehigh:Treatmentpre_treatment Positive Fibre_Intakehigh:Treatmentpost_treatment Positive_Fibre_Intakehigh:Treatmentpre_treatment_percent Positive_Fibre_Intakehigh:Treatmentpost_treatment_percent
Acidaminococcaceae Acidaminococcaceae 0.94 0.95 1 0.059 0.76 1 0.67 0.92 1 0.62 0.95 1 0.21 0.99 1 0.64 0.87 1 0.76 0.21 0 0.16 0 0.22 0.06 0 0.1 -1.4 10 / 36 (28%) 3 / 7 (43%) 2 / 7 (29%) 0.429 0.286 0.33 0 0.79 0.22 0 0.64 -0.58 3 / 11 (27%) 2 / 11 (18%) 0.273 0.182
Acutalibacteraceae Acutalibacteraceae 0.27 0.68 1 0.55 0.91 1 0.78 0.92 1 0.22 0.71 1 0.34 0.99 1 0.77 0.94 1 5.1 4.5 3.7 3.7 3.5 3.2 3.6 2.9 4.1 -0.04 32 / 36 (89%) 6 / 7 (86%) 5 / 7 (71%) 0.857 0.714 5.6 5 4 4.6 3.7 3.7 -0.28 11 / 11 (100%) 10 / 11 (91%) 1 0.909
Akkermansiaceae Akkermansiaceae 0.23 0.68 1 0.46 0.91 1 0.86 0.92 1 0.19 0.71 1 0.87 0.99 1 0.93 1 1 1.4 0.39 0 0.78 0 1.1 0.45 0 0.85 -0.79 10 / 36 (28%) 3 / 7 (43%) 3 / 7 (43%) 0.429 0.429 0.37 0 0.91 0.13 0 0.37 -1.5 2 / 11 (18%) 2 / 11 (18%) 0.182 0.182
Anaerovoracaceae Anaerovoracaceae 0.16 0.68 1 0.68 0.91 1 0.92 0.95 1 0.15 0.71 1 0.74 0.99 1 0.96 1 1 0.54 0.091 0 0.18 0 0.34 0.22 0 0.43 0.29 6 / 36 (17%) 2 / 7 (29%) 2 / 7 (29%) 0.286 0.286 0.014 0 0.045 0.031 0 0.1 1.1 1 / 11 (9.1%) 1 / 11 (9.1%) 0.0909 0.0909
Bacteroidaceae Bacteroidaceae 0.13 0.68 1 0.65 0.91 1 0.12 0.64 1 0.007 0.29 0.29 0.19 0.99 1 0.053 0.39 1 7.5 4.6 1.6 4.4 3.1 3.7 6.4 1.7 12 0.54 22 / 36 (61%) 7 / 7 (100%) 5 / 7 (71%) 1 0.714 2.2 0 3.8 5.9 1.5 8.6 1.4 4 / 11 (36%) 6 / 11 (55%) 0.364 0.545
Barnesiellaceae Barnesiellaceae 0.95 0.95 1 0.82 0.94 1 0.52 0.92 1 0.88 0.95 1 0.87 0.99 1 0.46 0.73 1 0.31 0.026 0 0.03 0 0.081 0.018 0 0.047 -0.74 3 / 36 (8.3%) 1 / 7 (14%) 1 / 7 (14%) 0.143 0.143 0.055 0 0.18 0 0 0 -Inf 1 / 11 (9.1%) 0 / 11 (0%) 0.0909 0
Bifidobacteriaceae Bifidobacteriaceae 0.17 0.68 1 0.68 0.91 1 0.69 0.92 1 0.16 0.71 1 0.59 0.99 1 0.33 0.73 1 8.6 7.4 4.6 3.3 2.1 3.5 4 4.2 4.3 0.28 31 / 36 (86%) 5 / 7 (71%) 5 / 7 (71%) 0.714 0.714 9.7 4.7 17 9.8 6.3 8.9 0.015 10 / 11 (91%) 11 / 11 (100%) 0.909 1
Burkholderiaceae Burkholderiaceae 0.61 0.94 1 0.32 0.91 1 0.52 0.92 1 0.35 0.77 1 0.51 0.99 1 0.8 0.94 1 0.3 0.05 0 0.032 0 0.054 0.13 0 0.29 2 6 / 36 (17%) 2 / 7 (29%) 2 / 7 (29%) 0.286 0.286 0.022 0 0.073 0.039 0 0.13 0.83 1 / 11 (9.1%) 1 / 11 (9.1%) 0.0909 0.0909
Butyricicoccaceae Butyricicoccaceae 0.34 0.7 1 0.5 0.91 1 0.42 0.92 1 0.28 0.72 1 0.4 0.99 1 0.39 0.73 1 0.69 0.17 0 0 0 0 0.092 0 0.24 Inf 9 / 36 (25%) 0 / 7 (0%) 1 / 7 (14%) 0 0.143 0.12 0 0.29 0.38 0.36 0.44 1.7 2 / 11 (18%) 6 / 11 (55%) 0.182 0.545
CAG-1000 CAG-1000 0.12 0.68 1 1 1 1 0.28 0.88 1 0.13 0.71 1 0.83 0.99 1 0.38 0.73 1 4.9 0.41 0 0 0 0 0 0 0 NA 3 / 36 (8.3%) 0 / 7 (0%) 0 / 7 (0%) 0 0 1.1 0 2.4 0.24 0 0.81 -2.2 2 / 11 (18%) 1 / 11 (9.1%) 0.182 0.0909
CAG-138 CAG-138 0.57 0.94 1 0.61 0.91 1 0.34 0.88 1 0.34 0.77 1 0.98 0.99 1 0.13 0.55 1 2.5 0.34 0 0.47 0 1.2 0.14 0 0.36 -1.7 5 / 36 (14%) 1 / 7 (14%) 1 / 7 (14%) 0.143 0.143 0.73 0 1.8 0 0 0 -Inf 3 / 11 (27%) 0 / 11 (0%) 0.273 0
CAG-274 CAG-274 0.77 0.94 1 0.61 0.91 1 0.33 0.88 1 0.95 0.95 1 0.72 0.99 1 0.21 0.73 1 0.5 0.11 0 0.086 0 0.23 0.17 0 0.46 0.98 8 / 36 (22%) 1 / 7 (14%) 1 / 7 (14%) 0.143 0.143 0.028 0 0.07 0.17 0 0.3 2.6 2 / 11 (18%) 4 / 11 (36%) 0.182 0.364
CAG-302 CAG-302 0.9 0.95 1 0.1 0.82 1 0.74 0.92 1 0.71 0.95 1 0.28 0.99 1 1 1 1 0.74 0.18 0 0.27 0 0.51 0.054 0 0.14 -2.3 9 / 36 (25%) 2 / 7 (29%) 1 / 7 (14%) 0.286 0.143 0.27 0 0.54 0.13 0 0.3 -1.1 4 / 11 (36%) 2 / 11 (18%) 0.364 0.182
CAG-313 CAG-313 0.33 0.7 1 0.46 0.91 1 0.87 0.92 1 0.54 0.93 1 0.84 0.99 1 0.46 0.73 1 0.46 0.039 0 0.11 0 0.29 0.063 0 0.17 -0.8 3 / 36 (8.3%) 1 / 7 (14%) 1 / 7 (14%) 0.143 0.143 0.017 0 0.055 0 0 0 -Inf 1 / 11 (9.1%) 0 / 11 (0%) 0.0909 0
CAG-314 CAG-314 0.88 0.95 1 0.71 0.91 1 0.6 0.92 1 0.79 0.95 1 0.9 0.99 1 0.47 0.73 1 0.32 0.027 0 0.042 0 0.11 0.02 0 0.054 -1.1 3 / 36 (8.3%) 1 / 7 (14%) 1 / 7 (14%) 0.143 0.143 0.048 0 0.16 0 0 0 -Inf 1 / 11 (9.1%) 0 / 11 (0%) 0.0909 0
CAG-508 CAG-508 0.83 0.94 1 0.51 0.91 1 0.63 0.92 1 0.66 0.95 1 0.58 0.99 1 0.42 0.73 1 0.77 0.26 0 0.3 0 0.5 0.13 0 0.25 -1.2 12 / 36 (33%) 3 / 7 (43%) 2 / 7 (29%) 0.429 0.286 0.33 0 0.67 0.23 0 0.46 -0.52 3 / 11 (27%) 4 / 11 (36%) 0.273 0.364
CAG-611 CAG-611 0.62 0.94 1 0.28 0.91 1 0.6 0.92 1 0.91 0.95 1 0.98 0.99 1 0.64 0.87 1 1.2 0.17 0 0.38 0 1 0.14 0 0.36 -1.4 5 / 36 (14%) 1 / 7 (14%) 1 / 7 (14%) 0.143 0.143 0.11 0 0.25 0.12 0 0.41 0.13 2 / 11 (18%) 1 / 11 (9.1%) 0.182 0.0909
CAG-74 CAG-74 0.82 0.94 1 0.45 0.91 1 0.77 0.92 1 0.95 0.95 1 0.44 0.99 1 0.95 1 1 1 0.23 0 0.38 0 0.95 0.31 0 0.81 -0.29 8 / 36 (22%) 2 / 7 (29%) 1 / 7 (14%) 0.286 0.143 0.2 0 0.34 0.1 0 0.28 -1 3 / 11 (27%) 2 / 11 (18%) 0.273 0.182
CAG-917 CAG-917 0.78 0.94 1 0.82 0.94 1 0.51 0.92 1 0.88 0.95 1 0.92 0.99 1 0.45 0.73 1 1.3 0.11 0 0.09 0 0.24 0.046 0 0.12 -0.97 3 / 36 (8.3%) 1 / 7 (14%) 1 / 7 (14%) 0.143 0.143 0.26 0 0.88 0 0 0 -Inf 1 / 11 (9.1%) 0 / 11 (0%) 0.0909 0
Clostridiaceae Clostridiaceae 0.89 0.95 1 0.54 0.91 1 0.83 0.92 1 0.39 0.77 1 0.5 0.99 1 0.38 0.73 1 0.61 0.17 0 0.15 0 0.26 0.074 0 0.16 -1 10 / 36 (28%) 3 / 7 (43%) 2 / 7 (29%) 0.429 0.286 0.31 0 0.92 0.095 0 0.18 -1.7 2 / 11 (18%) 3 / 11 (27%) 0.182 0.273
Coriobacteriaceae Coriobacteriaceae 0.068 0.68 1 0.53 0.91 1 0.061 0.5 1 0.034 0.53 1 0.65 0.99 1 0.12 0.54 1 1.7 1.2 0.65 0.72 0 1.1 1.1 0 1.4 0.61 24 / 36 (67%) 3 / 7 (43%) 3 / 7 (43%) 0.429 0.429 1.8 0.68 2.2 0.83 0.44 0.81 -1.1 10 / 11 (91%) 8 / 11 (73%) 0.909 0.727
Dialisteraceae Dialisteraceae 0.39 0.76 1 0.21 0.88 1 0.36 0.88 1 0.72 0.95 1 0.8 0.99 1 0.76 0.94 1 1.6 0.61 0 1.1 0 1.5 0.57 0 1 -0.95 14 / 36 (39%) 3 / 7 (43%) 3 / 7 (43%) 0.429 0.429 0.46 0 0.66 0.48 0 0.83 0.061 4 / 11 (36%) 4 / 11 (36%) 0.364 0.364
Eggerthellaceae Eggerthellaceae 0.094 0.68 1 0.13 0.82 1 0.035 0.44 1 0.055 0.57 1 0.13 0.99 1 0.044 0.39 1 0.49 0.18 0 0.073 0 0.19 0.27 0 0.38 1.9 13 / 36 (36%) 1 / 7 (14%) 3 / 7 (43%) 0.143 0.429 0.25 0.32 0.26 0.11 0 0.19 -1.2 6 / 11 (55%) 3 / 11 (27%) 0.545 0.273
Enterobacteriaceae Enterobacteriaceae 0.43 0.79 1 0.87 0.97 1 0.48 0.92 1 0.68 0.95 1 0.8 0.99 1 0.41 0.73 1 2.2 0.18 0 0.42 0 1.1 0.37 0 0.98 -0.18 3 / 36 (8.3%) 1 / 7 (14%) 1 / 7 (14%) 0.143 0.143 0.095 0 0.32 0 0 0 -Inf 1 / 11 (9.1%) 0 / 11 (0%) 0.0909 0
Erysipelatoclostridiaceae Erysipelatoclostridiaceae 0.31 0.7 1 0.074 0.76 1 0.26 0.88 1 0.55 0.93 1 0.071 0.97 1 0.44 0.73 1 1 0.83 0.51 1.3 0.76 1.4 0.75 0.43 0.98 -0.79 30 / 36 (83%) 7 / 7 (100%) 5 / 7 (71%) 1 0.714 0.72 0.5 0.89 0.74 0.46 0.94 0.04 10 / 11 (91%) 8 / 11 (73%) 0.909 0.727
Erysipelotrichaceae Erysipelotrichaceae 0.26 0.68 1 0.74 0.92 1 0.26 0.88 1 0.19 0.71 1 0.75 0.99 1 0.36 0.73 1 1.9 0.49 0 0.71 0 0.93 0.9 0 1.5 0.34 9 / 36 (25%) 3 / 7 (43%) 3 / 7 (43%) 0.429 0.429 0.41 0 1.3 0.16 0 0.55 -1.4 2 / 11 (18%) 1 / 11 (9.1%) 0.182 0.0909
Lachnospiraceae Lachnospiraceae 0.2 0.68 1 0.96 1 1 0.97 0.97 1 0.78 0.95 1 0.48 0.99 1 0.77 0.94 1 42 42 44 46 43 7 47 49 16 0.031 36 / 36 (100%) 7 / 7 (100%) 7 / 7 (100%) 1 1 39 45 11 39 42 9.7 0 11 / 11 (100%) 11 / 11 (100%) 1 1
Lactobacillaceae Lactobacillaceae 0.67 0.94 1 0.046 0.76 1 0.58 0.92 1 0.4 0.77 1 0.00094 0.038 0.038 0.057 0.39 1 1.2 0.29 0 0 0 0 0.47 0.1 0.97 Inf 9 / 36 (25%) 0 / 7 (0%) 4 / 7 (57%) 0 0.571 0.052 0 0.13 0.59 0 1.3 3.5 2 / 11 (18%) 3 / 11 (27%) 0.182 0.273
Methanobacteriaceae Methanobacteriaceae 0.68 0.94 1 0.6 0.91 1 0.88 0.92 1 0.77 0.95 1 0.99 0.99 1 0.94 1 1 0.91 0.1 0 0.19 0 0.5 0.067 0 0.18 -1.5 4 / 36 (11%) 1 / 7 (14%) 1 / 7 (14%) 0.143 0.143 0.12 0 0.4 0.045 0 0.15 -1.4 1 / 11 (9.1%) 1 / 11 (9.1%) 0.0909 0.0909
Monoglobaceae Monoglobaceae 0.72 0.94 1 0.18 0.82 1 0.86 0.92 1 0.92 0.95 1 0.32 0.99 1 1 1 1 0.2 0.04 0 0.086 0 0.17 0.011 0 0.029 -3 7 / 36 (19%) 2 / 7 (29%) 1 / 7 (14%) 0.286 0.143 0.06 0 0.12 0.0088 0 0.029 -2.8 3 / 11 (27%) 1 / 11 (9.1%) 0.273 0.0909
Muribaculaceae Muribaculaceae 0.25 0.68 1 1 1 1 0.74 0.92 1 0.16 0.71 1 0.78 0.99 1 0.51 0.77 1 0.98 0.082 0 0 0 0 0 0 0 NA 3 / 36 (8.3%) 0 / 7 (0%) 0 / 7 (0%) 0 0 0.12 0 0.27 0.15 0 0.48 0.32 2 / 11 (18%) 1 / 11 (9.1%) 0.182 0.0909
Oscillospiraceae Oscillospiraceae 0.82 0.94 1 0.67 0.91 1 0.11 0.64 1 0.9 0.95 1 0.95 0.99 1 0.12 0.54 1 2.2 1.5 0.39 1.7 0.57 2.6 1.4 0.45 2.1 -0.28 24 / 36 (67%) 5 / 7 (71%) 5 / 7 (71%) 0.714 0.714 2.1 0.74 2.9 0.71 0.2 1.1 -1.6 8 / 11 (73%) 6 / 11 (55%) 0.727 0.545
Peptostreptococcaceae Peptostreptococcaceae 0.44 0.79 1 0.34 0.91 1 0.27 0.88 1 0.39 0.77 1 0.49 0.99 1 0.29 0.73 1 0.69 0.31 0 0.41 0.36 0.63 0.18 0 0.28 -1.2 16 / 36 (44%) 4 / 7 (57%) 3 / 7 (43%) 0.571 0.429 0.29 0 0.54 0.34 0 0.47 0.23 4 / 11 (36%) 5 / 11 (45%) 0.364 0.455
QAMH01 QAMH01 0.15 0.68 1 1 1 1 0.37 0.88 1 0.13 0.71 1 0.77 0.99 1 0.42 0.73 1 0.5 0.041 0 0 0 0 0 0 0 NA 3 / 36 (8.3%) 0 / 7 (0%) 0 / 7 (0%) 0 0 0.098 0 0.22 0.037 0 0.12 -1.4 2 / 11 (18%) 1 / 11 (9.1%) 0.182 0.0909
Rikenellaceae Rikenellaceae 0.64 0.94 1 0.35 0.91 1 0.74 0.92 1 0.24 0.71 1 0.32 0.99 1 0.78 0.94 1 1.7 0.57 0 0.56 0.3 0.75 0.37 0 0.53 -0.6 12 / 36 (33%) 4 / 7 (57%) 3 / 7 (43%) 0.571 0.429 0.59 0 1.3 0.68 0 2.1 0.2 3 / 11 (27%) 2 / 11 (18%) 0.273 0.182
Ruminococcaceae Ruminococcaceae 0.11 0.68 1 0.28 0.91 1 0.017 0.44 0.68 0.41 0.77 1 0.54 0.99 1 0.0076 0.23 0.31 11 11 10 11 12 3.5 10 8.9 5.1 -0.14 36 / 36 (100%) 7 / 7 (100%) 7 / 7 (100%) 1 1 8.5 8.7 4.7 12 12 3.6 0.5 11 / 11 (100%) 11 / 11 (100%) 1 1
Selenomonadaceae Selenomonadaceae 0.34 0.7 1 0.17 0.82 1 0.12 0.64 1 0.59 0.95 1 0.18 0.99 1 0.12 0.54 1 0.44 0.037 0 0.083 0 0.22 0 0 0 -Inf 3 / 36 (8.3%) 1 / 7 (14%) 0 / 7 (0%) 0.143 0 0.007 0 0.023 0.06 0 0.2 3.1 1 / 11 (9.1%) 1 / 11 (9.1%) 0.0909 0.0909
Streptococcaceae Streptococcaceae 0.22 0.68 1 0.051 0.76 1 0.043 0.44 1 0.26 0.71 1 0.019 0.39 0.77 0.032 0.39 1 1.1 0.55 0.11 0.21 0 0.43 0.76 0.66 0.75 1.9 18 / 36 (50%) 2 / 7 (29%) 5 / 7 (71%) 0.286 0.714 0.75 0.21 1.4 0.42 0 0.7 -0.84 6 / 11 (55%) 5 / 11 (45%) 0.545 0.455
Tannerellaceae Tannerellaceae 0.77 0.94 1 0.68 0.91 1 0.74 0.92 1 0.84 0.95 1 0.97 0.99 1 0.55 0.8 1 0.62 0.12 0 0.068 0 0.13 0.037 0 0.062 -0.88 7 / 36 (19%) 2 / 7 (29%) 2 / 7 (29%) 0.286 0.286 0.18 0 0.42 0.14 0 0.47 -0.36 2 / 11 (18%) 1 / 11 (9.1%) 0.182 0.0909
Turicibacteraceae Turicibacteraceae 0.023 0.68 0.93 0.15 0.82 1 0.25 0.88 1 0.039 0.53 1 0.24 0.99 1 0.24 0.73 1 0.22 0.018 0 0.073 0 0.15 0.021 0 0.057 -1.8 3 / 36 (8.3%) 2 / 7 (29%) 1 / 7 (14%) 0.286 0.143 0 0 0 0 0 0 NA 0 / 11 (0%) 0 / 11 (0%) 0 0
UBA1381 UBA1381 0.2 0.68 1 0.8 0.94 1 0.024 0.44 0.95 0.25 0.71 1 0.61 0.99 1 0.011 0.23 0.45 0.79 0.4 0.053 0.51 0.11 0.72 0.58 0 1.1 0.19 18 / 36 (50%) 4 / 7 (57%) 3 / 7 (43%) 0.571 0.429 0.16 0 0.28 0.44 0.48 0.35 1.5 3 / 11 (27%) 8 / 11 (73%) 0.273 0.727

Click here to open full-sized image in new window.

Click here to open full-sized image in new window.

Methods:

P lmer study group effect (sqrt): Differentially abundant species were identified by linear mixed effect regression without confounders. Random effects: Participant (intercept). Fixed effects: Fibre_Intake, Treatment, Fibre_Intake vs Treatment. Effect tested: Fibre_Intake.

P lmer study group effect (clr): Differentially abundant species were identified by linear mixed effect regression without confounders. Random effects: Participant (intercept). Fixed effects: Fibre_Intake, Treatment, Fibre_Intake vs Treatment. Effect tested: Fibre_Intake.

P lmer time effect (sqrt): Differentially abundant species were identified by linear mixed effect regression without confounders. Random effects: Participant (intercept). Fixed effects: Fibre_Intake, Treatment, Fibre_Intake vs Treatment. Effect tested: Treatment.

P lmer time effect (clr): Differentially abundant species were identified by linear mixed effect regression without confounders. Random effects: Participant (intercept). Fixed effects: Fibre_Intake, Treatment, Fibre_Intake vs Treatment. Effect tested: Treatment.

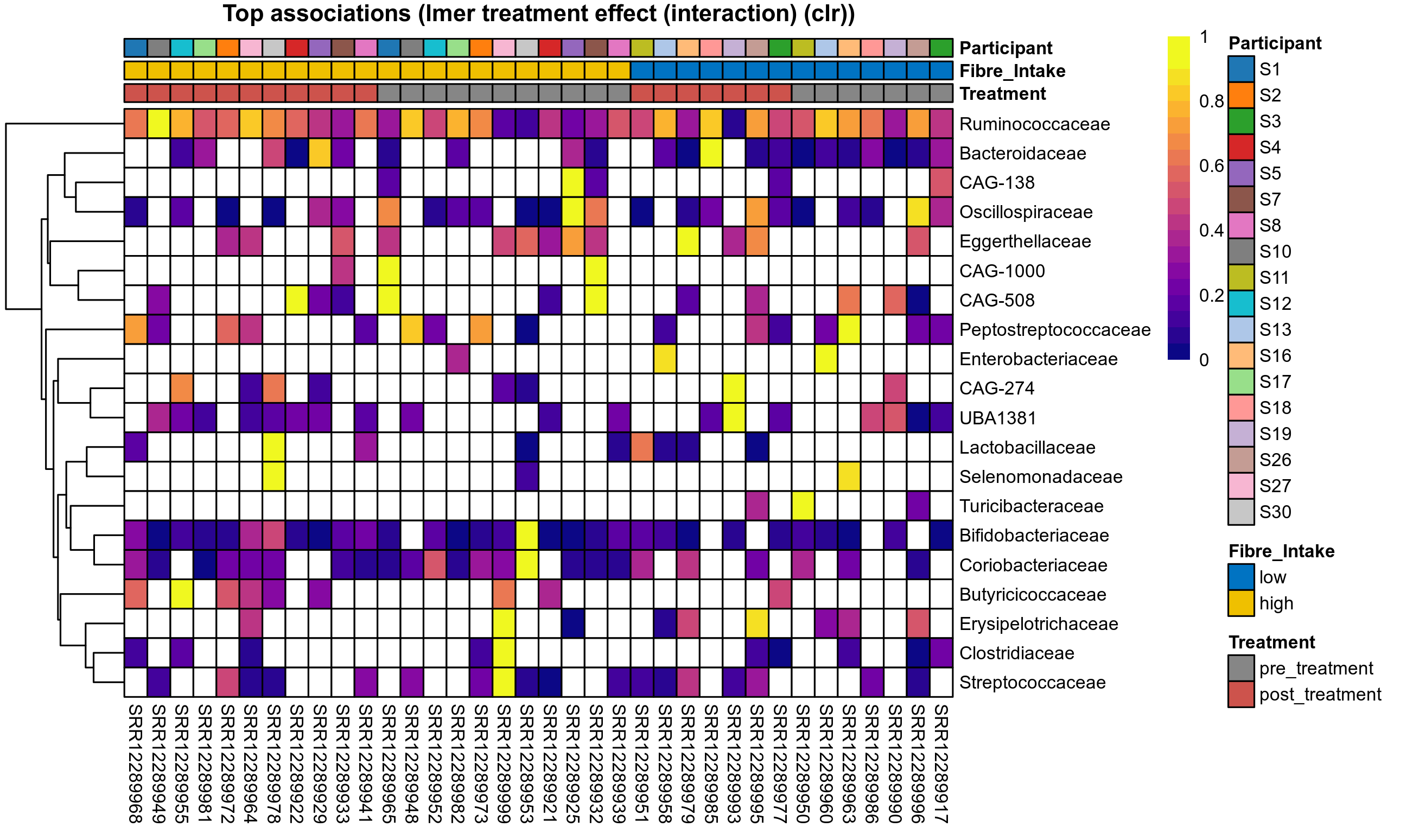

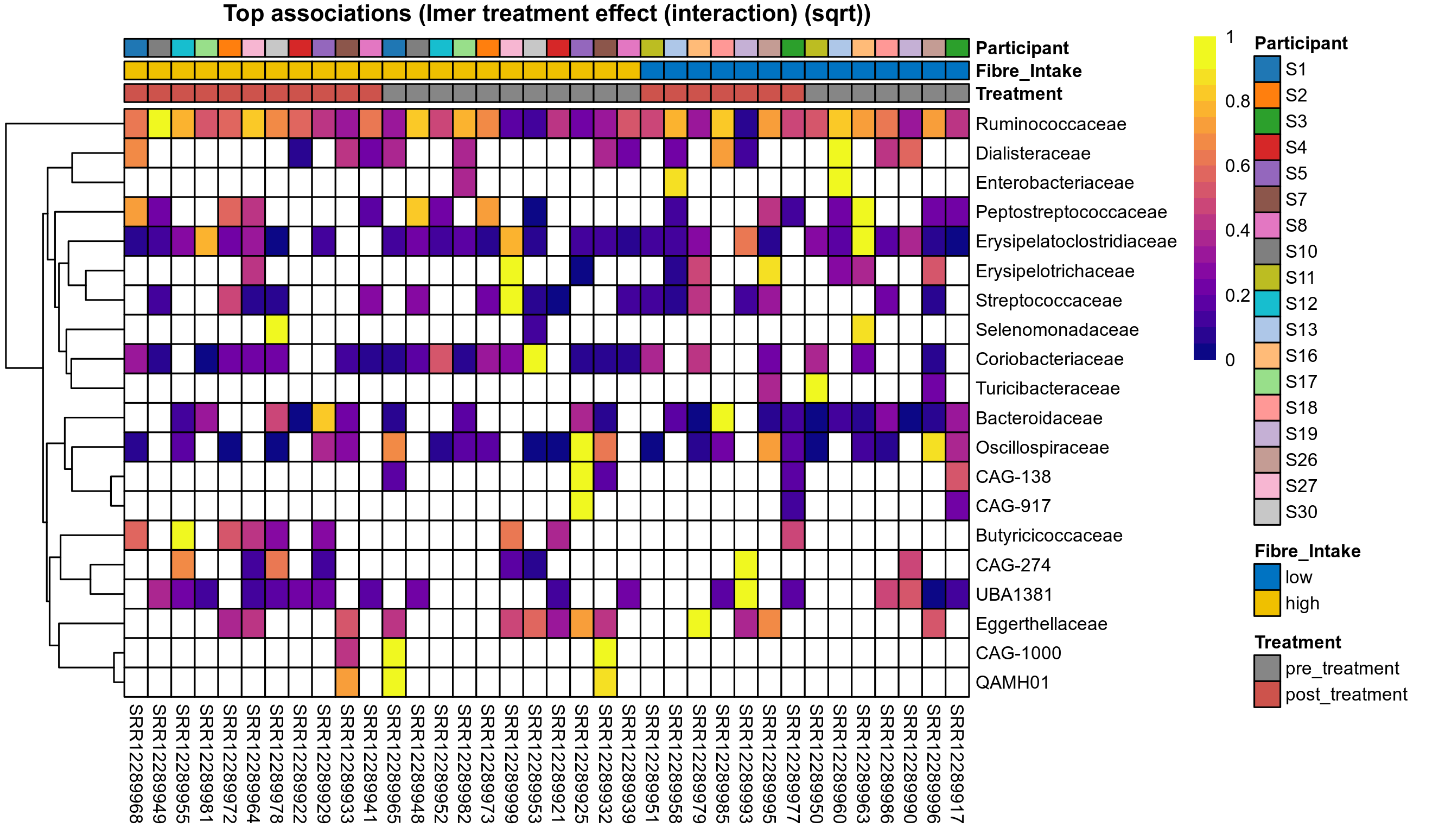

P lmer treatment effect (interaction) (sqrt): Differentially abundant species were identified by linear mixed effect regression without confounders. Random effects: Participant (intercept). Fixed effects: Fibre_Intake, Treatment, Fibre_Intake vs Treatment. Effect tested: Fibre_Intake vs Treatment.

P lmer treatment effect (interaction) (clr): Differentially abundant species were identified by linear mixed effect regression without confounders. Random effects: Participant (intercept). Fixed effects: Fibre_Intake, Treatment, Fibre_Intake vs Treatment. Effect tested: Fibre_Intake vs Treatment.

Glossary:

clr: Centered log-ratio transformation. P Welch's ANOVA (sqrt): Welch's ANOVA p-values (Anova was run on sqrt transformed abundances). It is an alternative to the classic ANOVA and can be used even if the samples have unequal variances and/or unequal sample sizes. P Welch's t-test (sqrt): Welch's T-test p-values (run on sqrt transformed abundances). It is an alternative to the classic Student's t-test and is more reliable if the data violates the assumption of homogeneity of variances and/or if the study conditions have unequal sample sizes. P Welch's ANOVA (clr): Welch's ANOVA p-values (Anova was run on clr transformed abundances). It is an alternative to the classic ANOVA and can be used even if the samples have unequal variances and/or unequal sample sizes. P Welch's t-test (clr): Welch's T-test p-values (run on clr transformed abundances). It is an alternative to the classic Student's t-test and is more reliable if the data violates the assumption of homogeneity of variances and/or if the study conditions have unequal sample sizes. P lmer XXX (clr): P-value of Linear Mixed-Effects Regression on clr transformed abundances, testing significance of XXX effect. Varying intercepts per subjects are used to control for repeated measures. Pbonf: Bonferroni corrected p-value. FDR: False Discovery Rate q-value. Mean Pos: Mean abundance in positive samples. Positive samples: The number and percentage of samples in which each family has been detected. Positive XXX: The number and percentage of positive samples in study group XXX. Positive_XXX_percent: Percentage of positive samples in study group XXX. P Welch's t-test (Aldex2): Expected P value of Welch’s t-test computed by Aldex2. FDR Welch's t-test (Aldex2): Expected Benjamini-Hochberg corrected P value for Welch’s t-test. P Wilcoxon rank test (Aldex2): Expected P value of Wilcoxon rank test computed by Aldex2. FDR Wilcoxon rank test (Aldex2): Expected Benjamini-Hochberg corrected P value of Wilcoxon test. P Kruskal-Wallace test (Aldex2): Expected P value of Kruskal-Wallace test. FDR Kruskal-Wallace test (Aldex2): Expected Benjamini-Hochberg corrected P value of Kruskal-Wallace test. P GLM test (Aldex2): Expected P value of generalized linear model. FDR GLM test (Aldex2): Expected Benjamini-Hochberg corrected P value of generalized linear model.

Differentially abundant taxa (family)

The following plots present the distribution of the top most differentially abundant families across all applied statistical analysis. Plots are ordered alphabetically.

Glossary:

"Rel. Abundance": Relative abundance data; "Rel. Abundance (sqrt)": sqrt (Hellinger) transformed relative abundances; "Rel. Abundance (clr)": centered log-ratio (clr) transformed read counts.

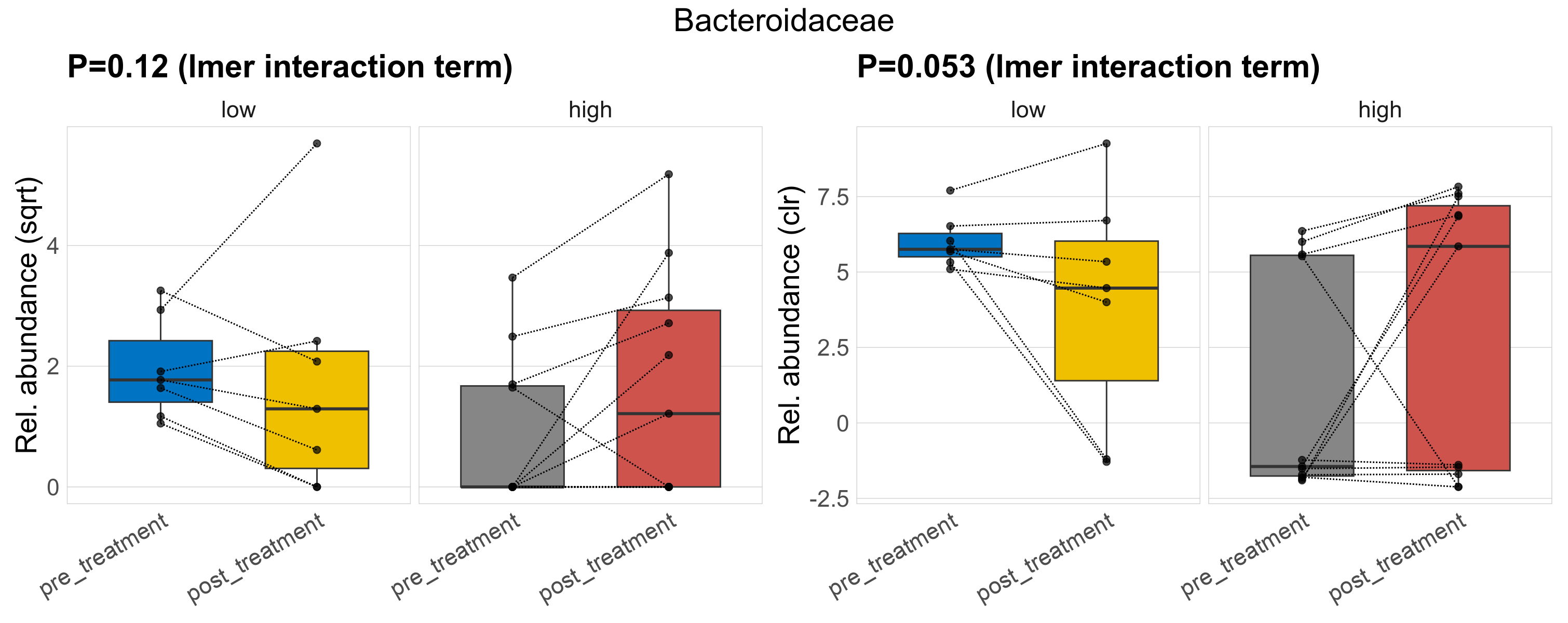

Bacteroidaceae

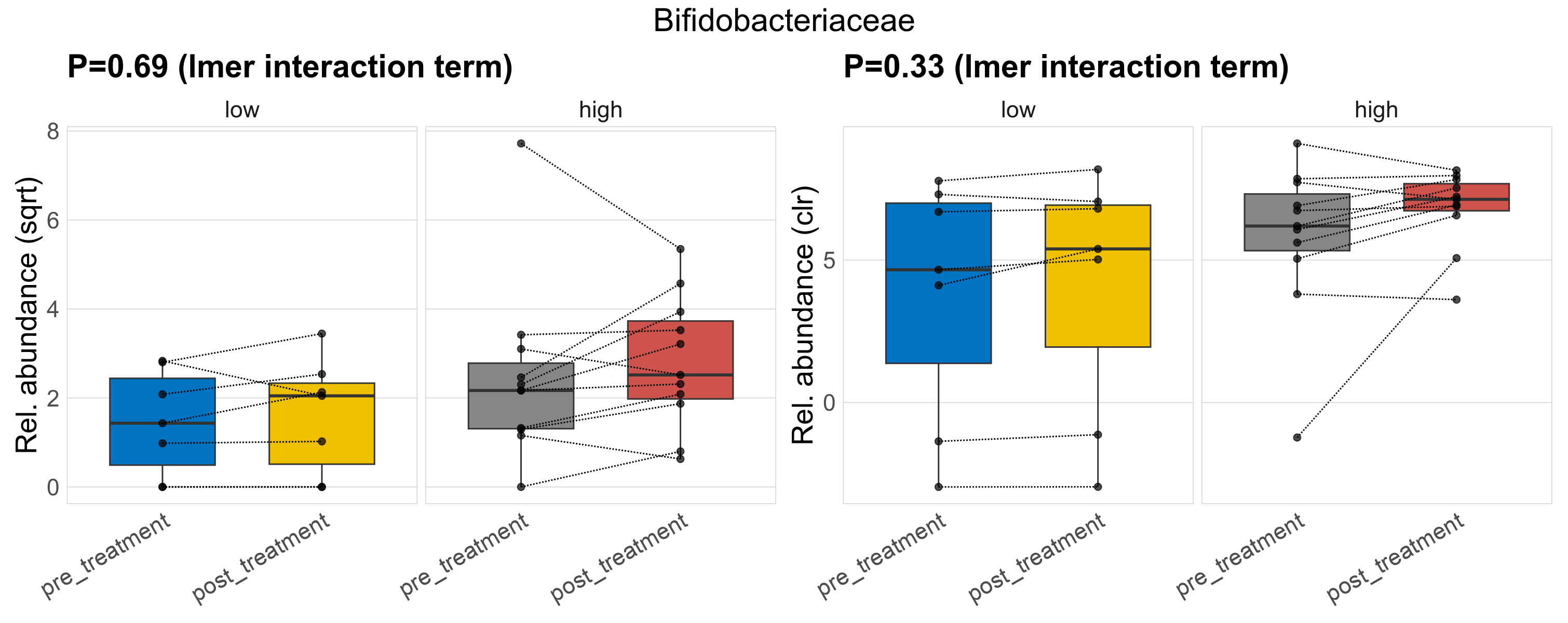

Bifidobacteriaceae

CAG 138

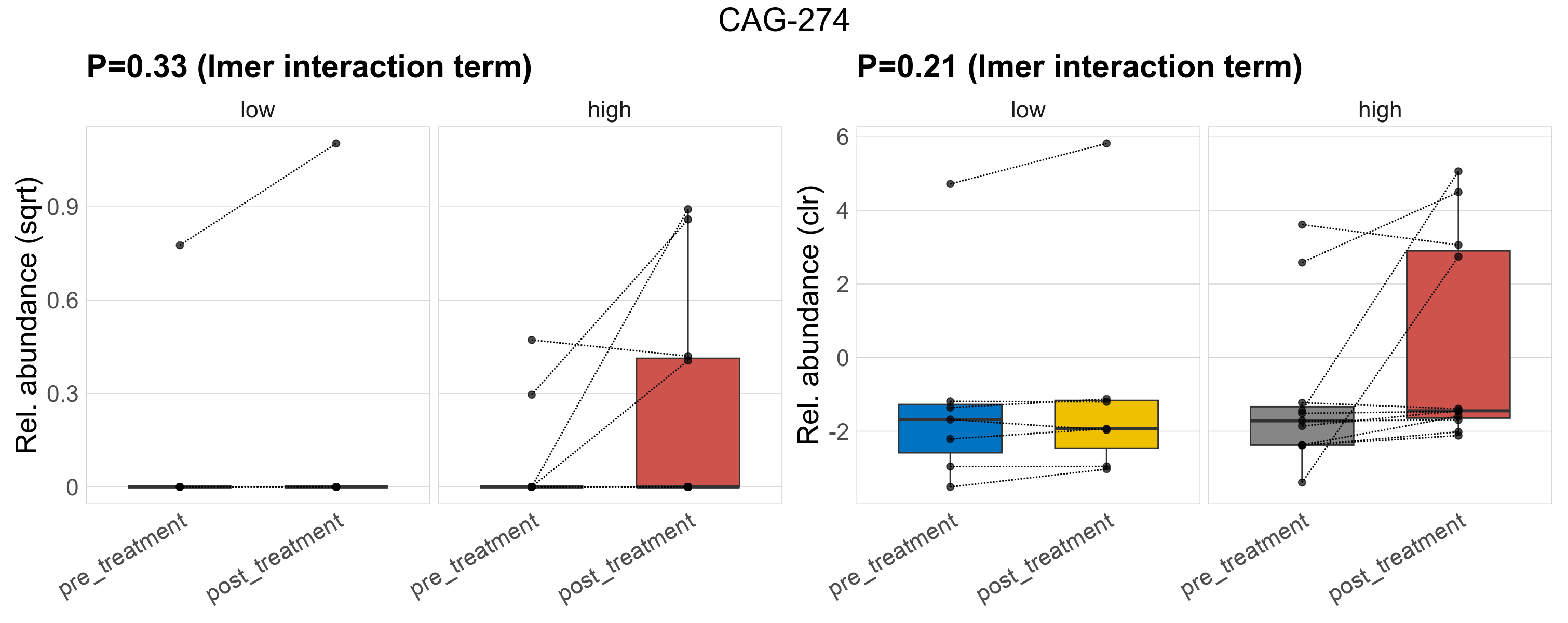

CAG 274

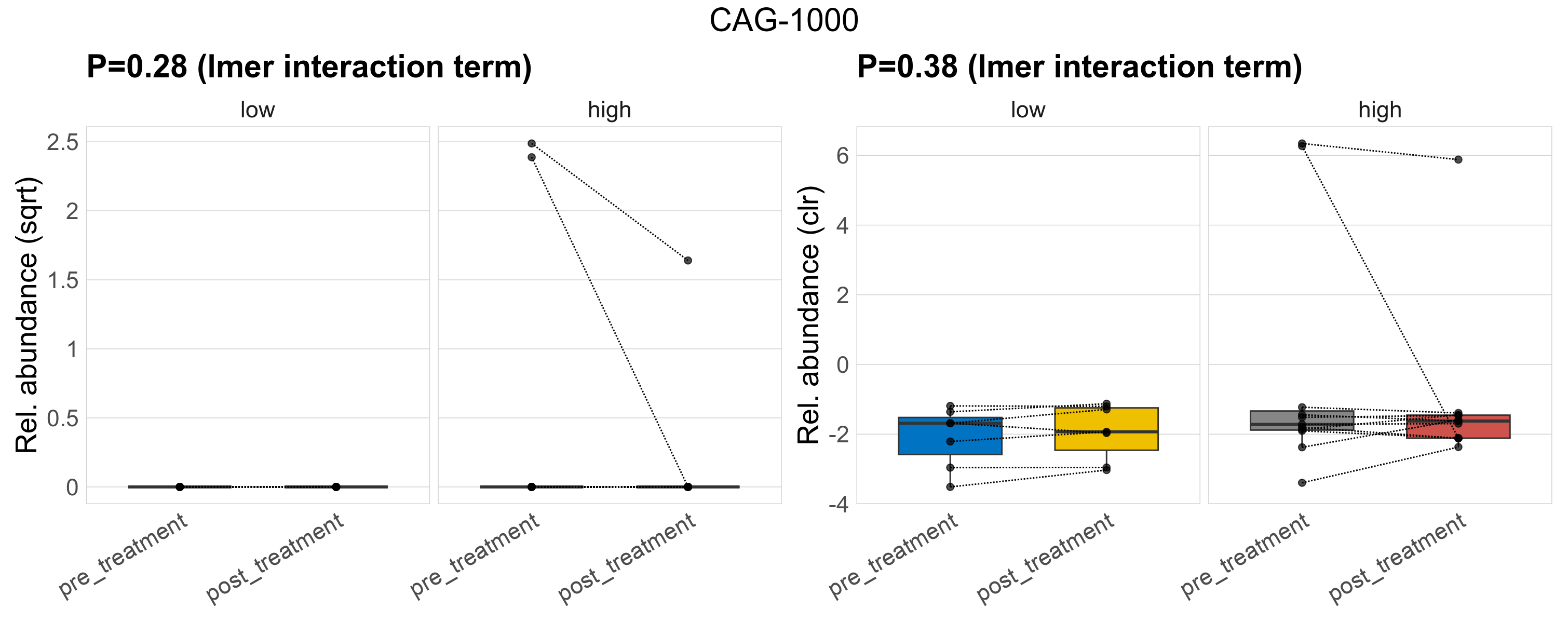

CAG 1000

Clostridiaceae

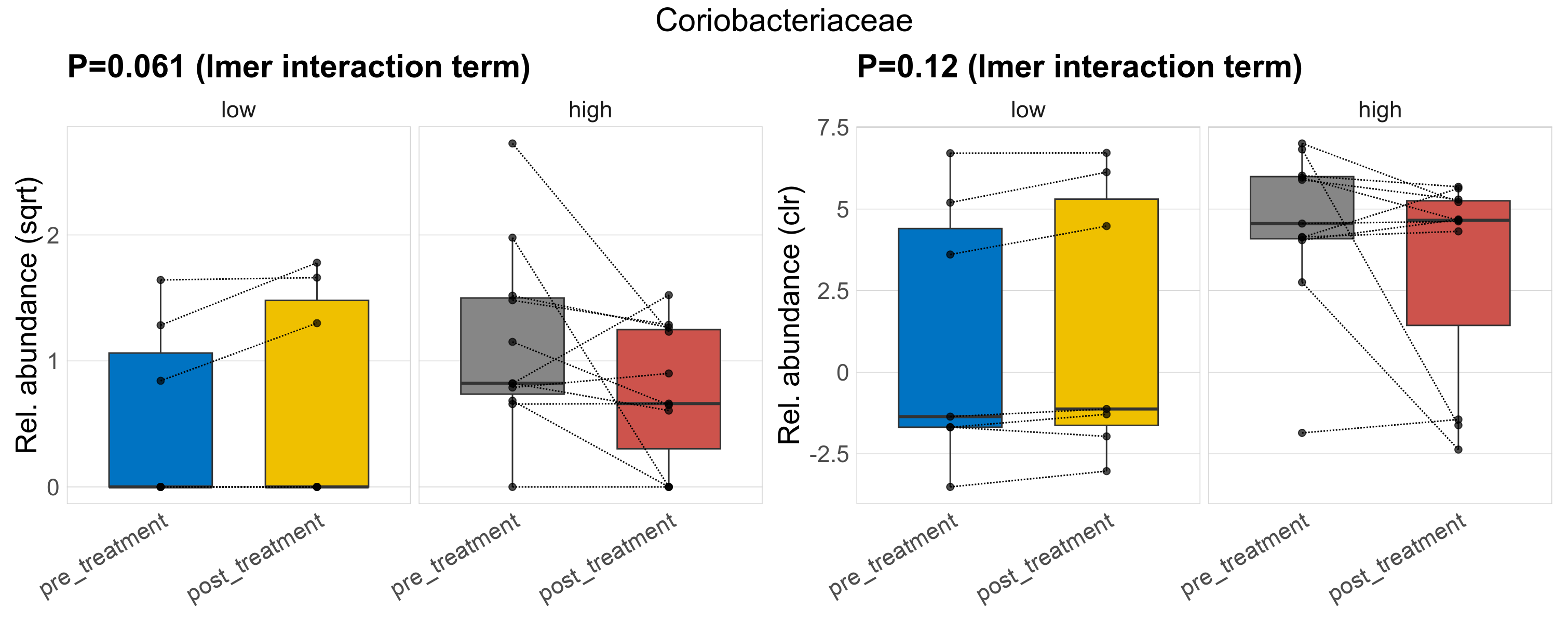

Coriobacteriaceae

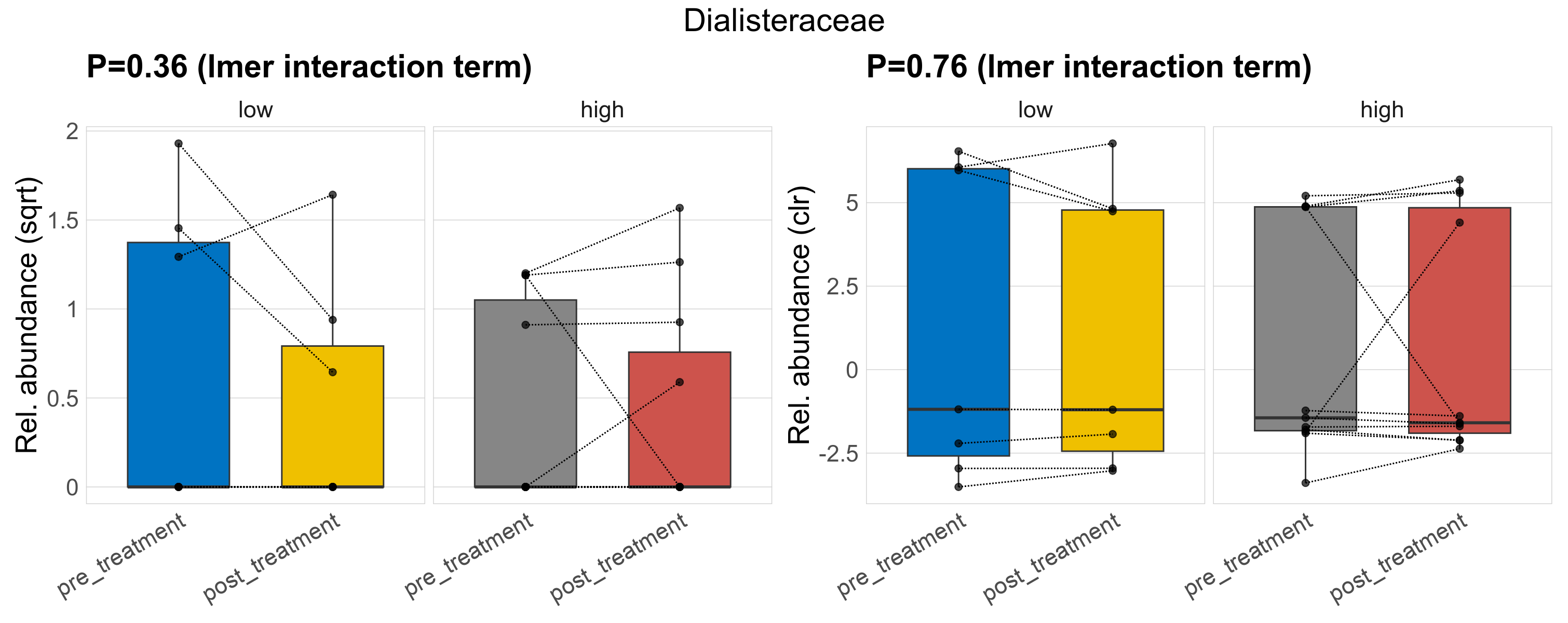

Dialisteraceae

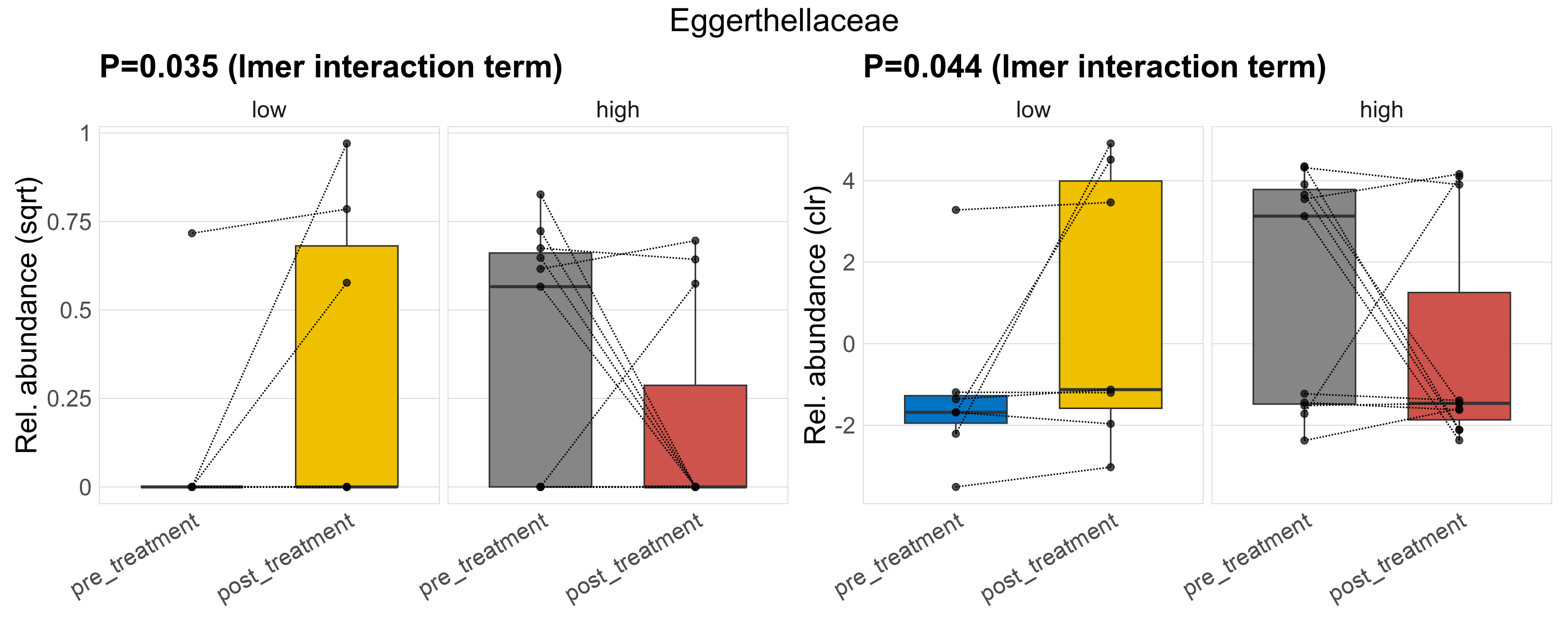

Eggerthellaceae

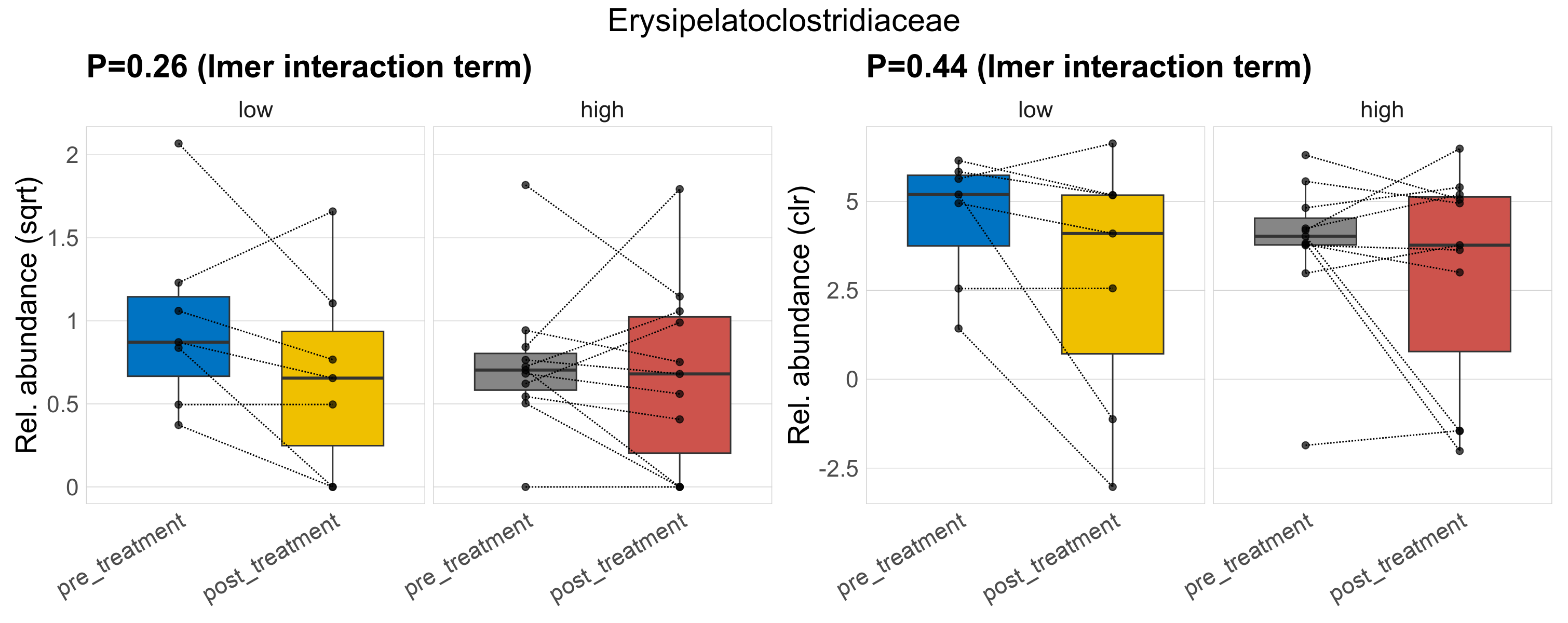

Erysipelatoclostridiaceae

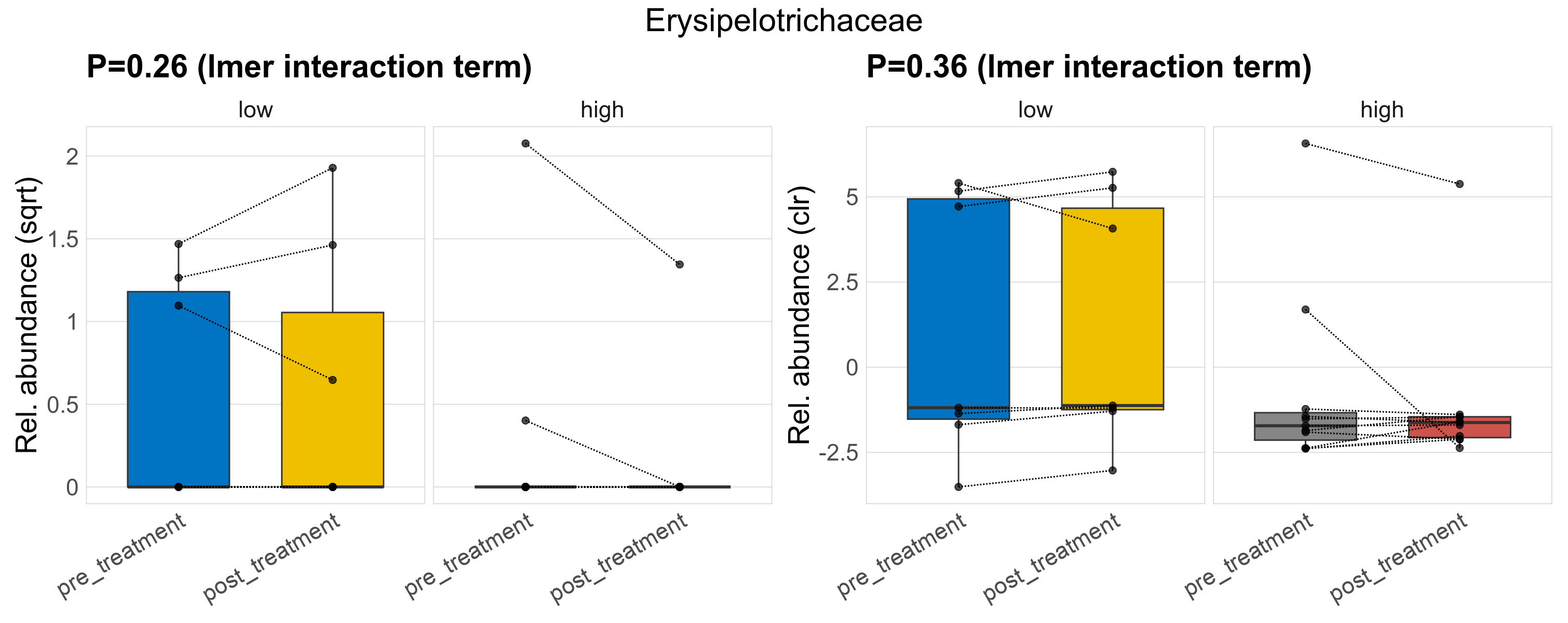

Erysipelotrichaceae

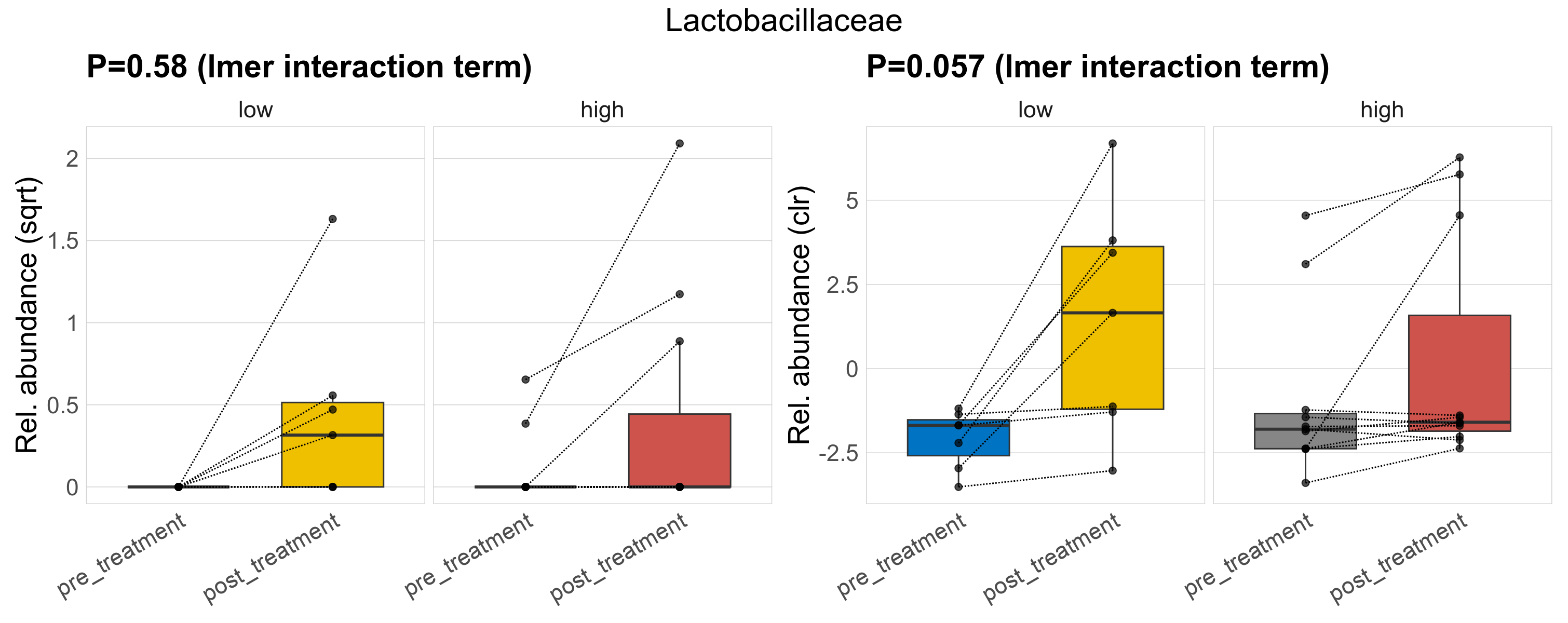

Lactobacillaceae

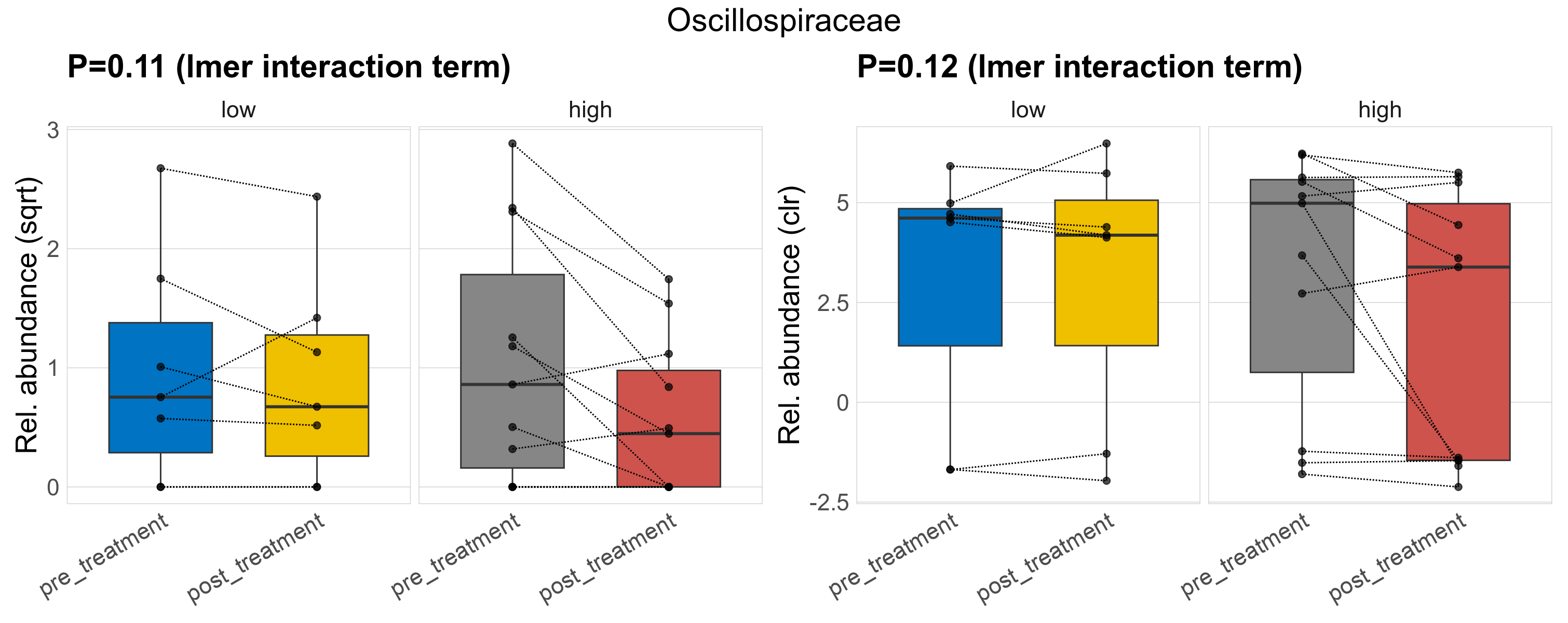

Oscillospiraceae

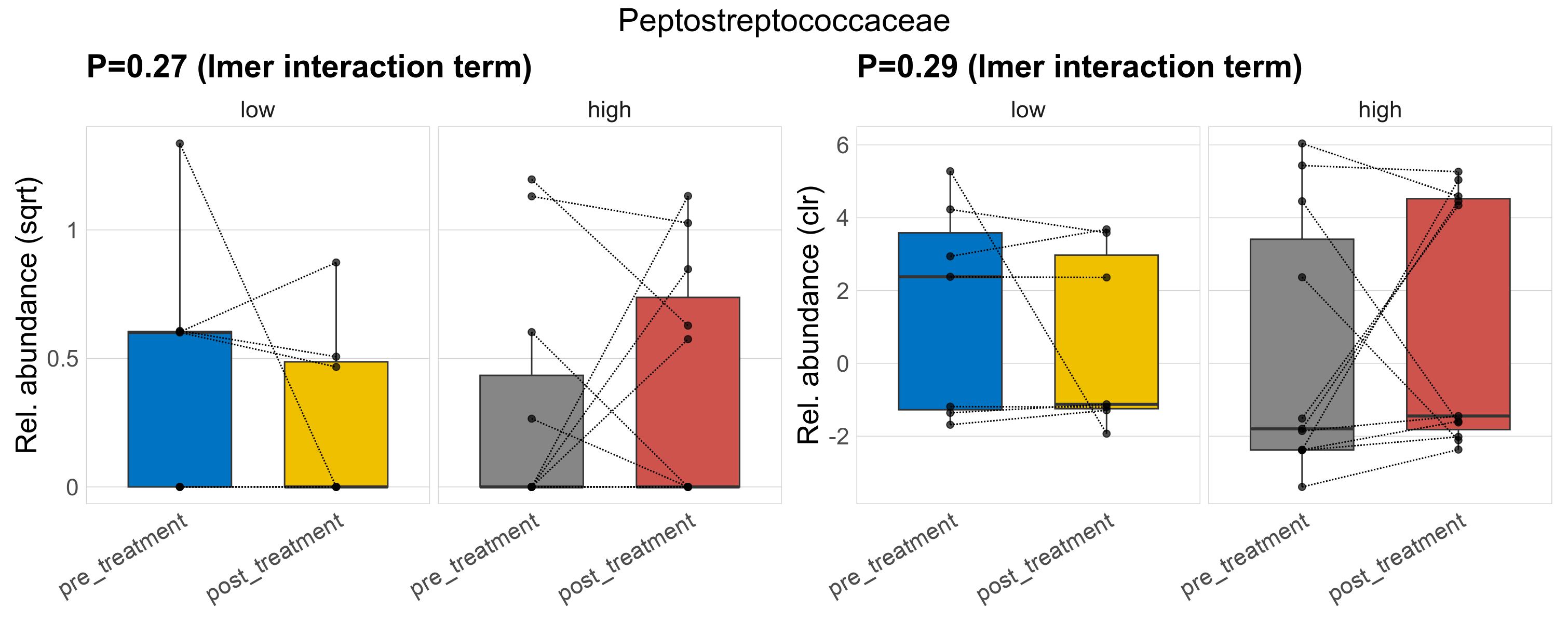

Peptostreptococcaceae

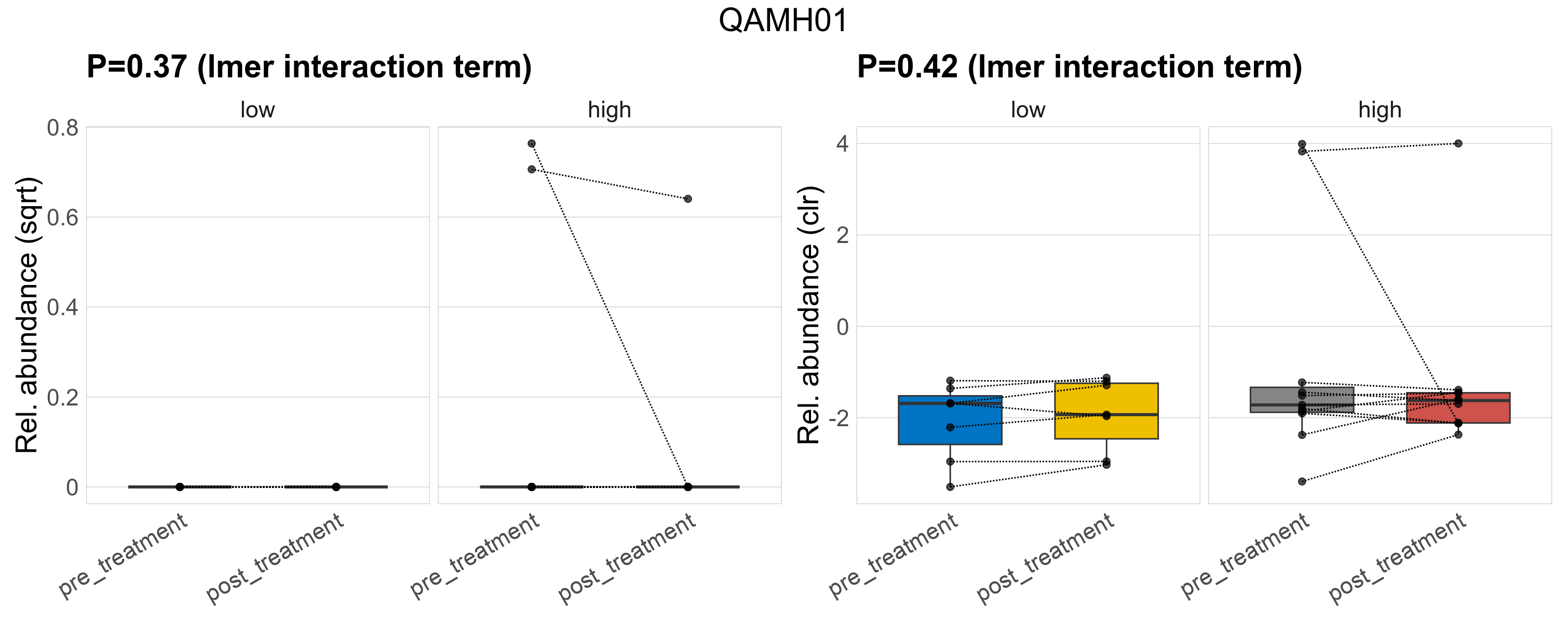

QAMH01

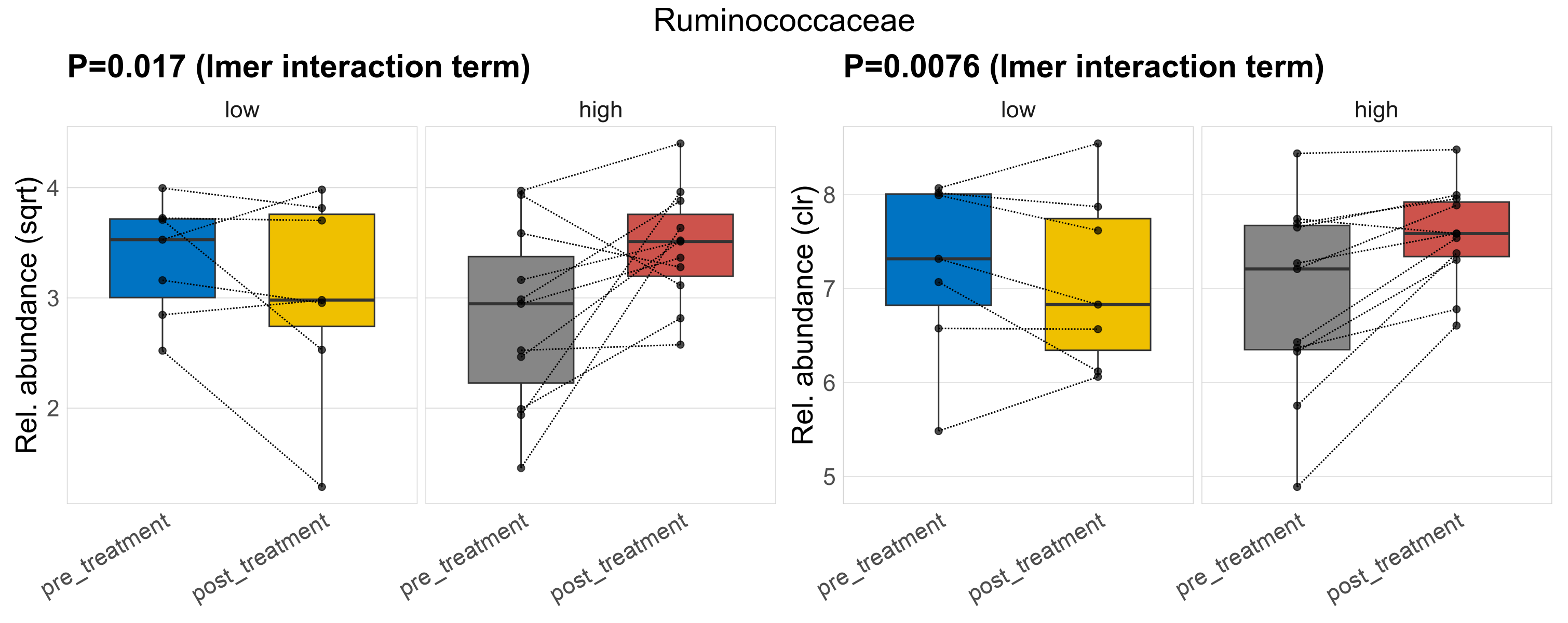

Ruminococcaceae

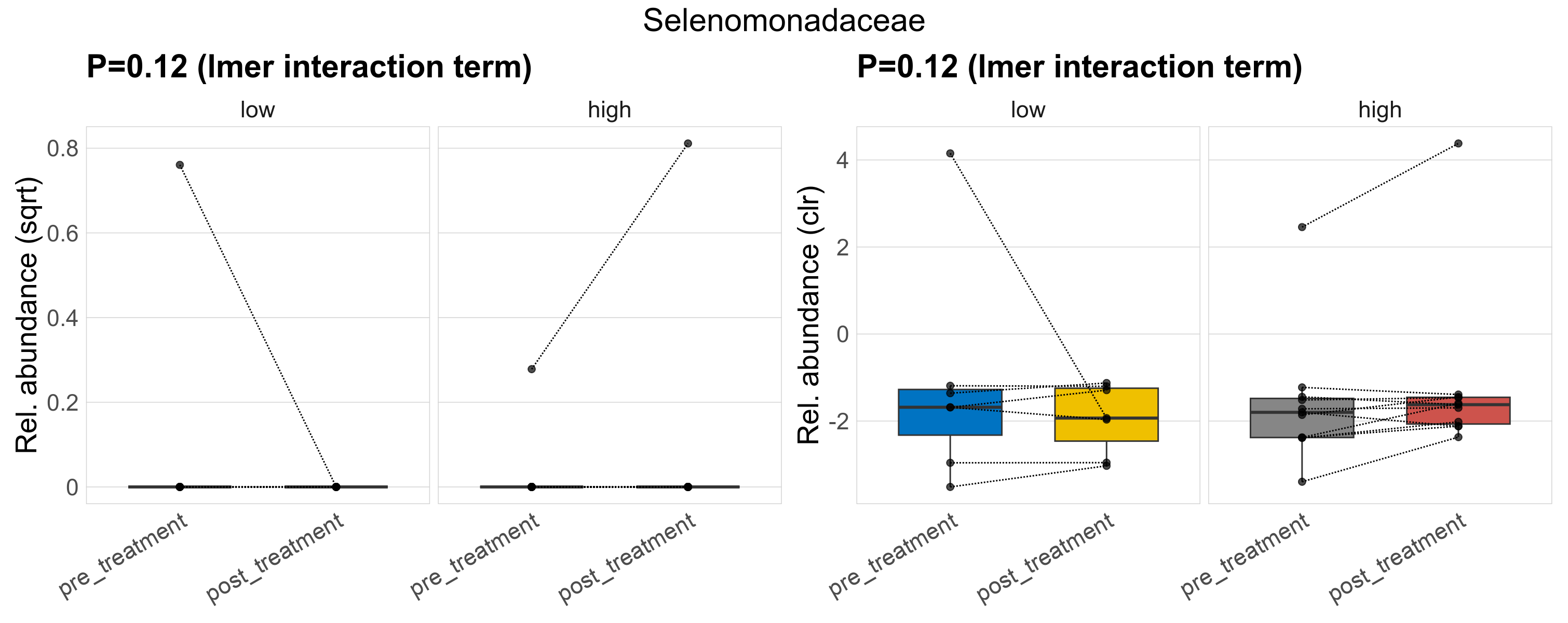

Selenomonadaceae

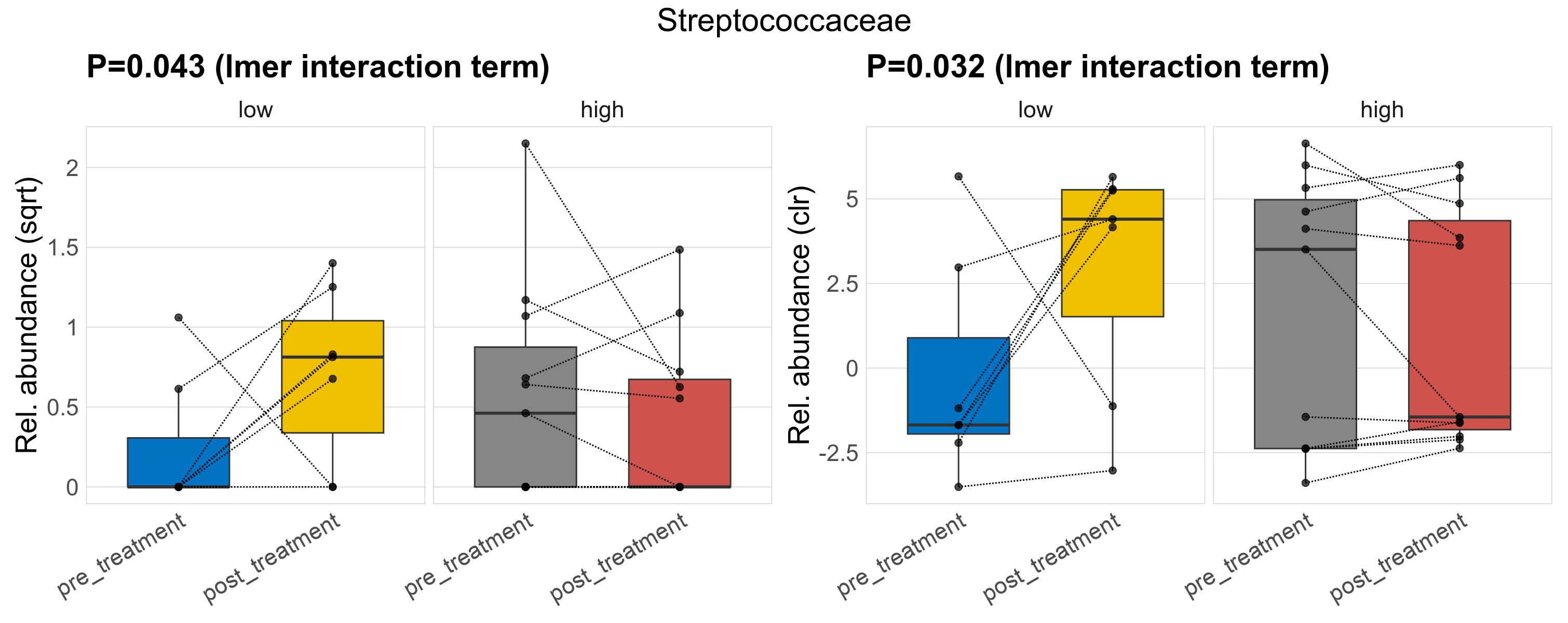

Streptococcaceae

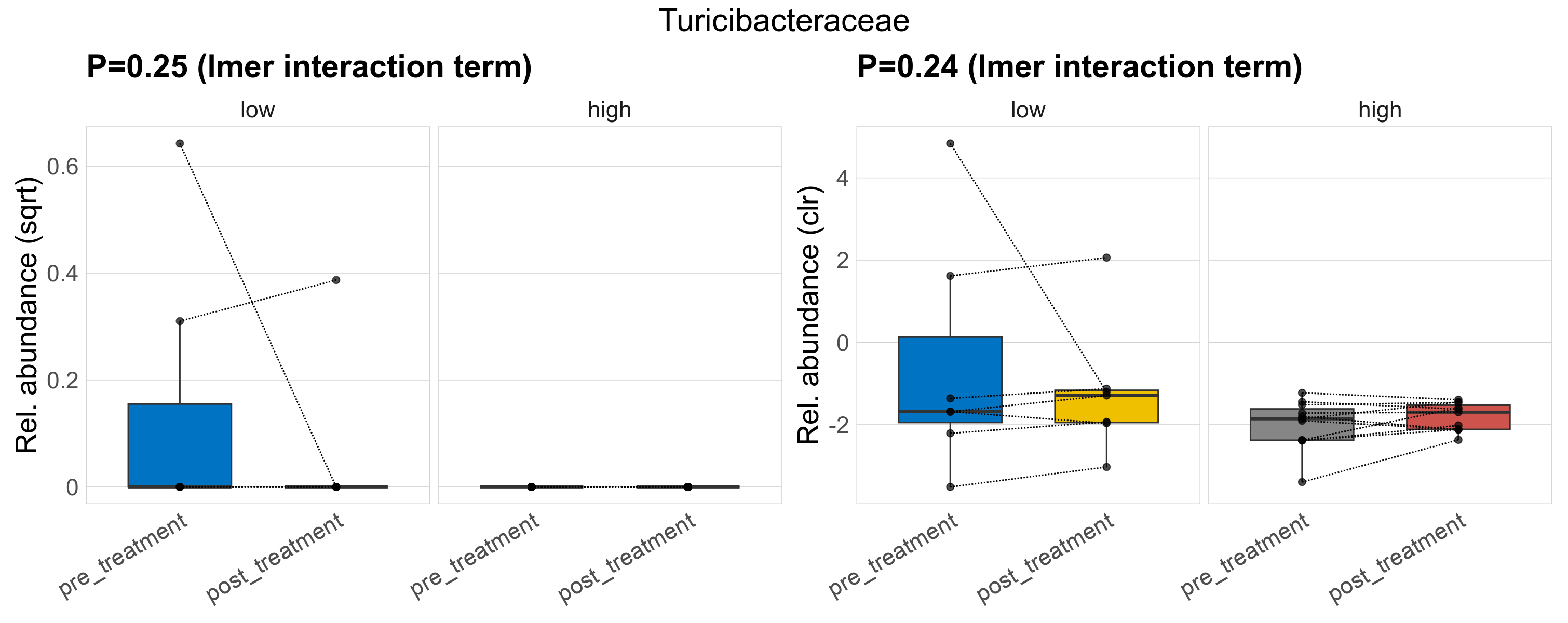

Turicibacteraceae

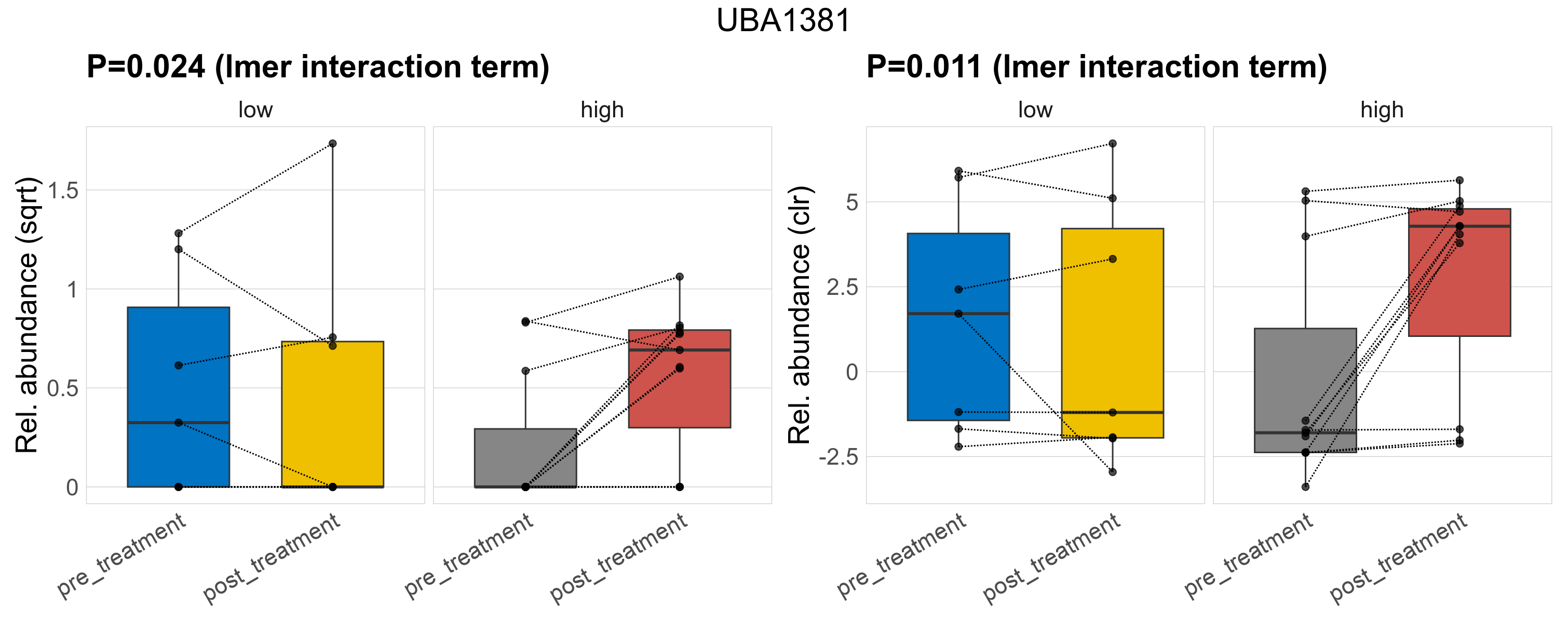

UBA1381
