Microba Research Discovery Report

Analysis: Aim 3 Post Treatment Fibre Intake Effect

Functional profiles: MetaCyc Pathway

Quantitative visualisation of the top most abundant microbial functions identified in the analysed samples.

Scaled heatmap of most abundant features ordered by study group

Features were filtered by mean abundance. Samples were first ordered by study group and then clustered within each study group. Abundances were scaled to a max value of 1. Color scale shows not-detected (white), and abundance ranging from low (blue) to high (yellow).

Click here to open full-sized image in new window.

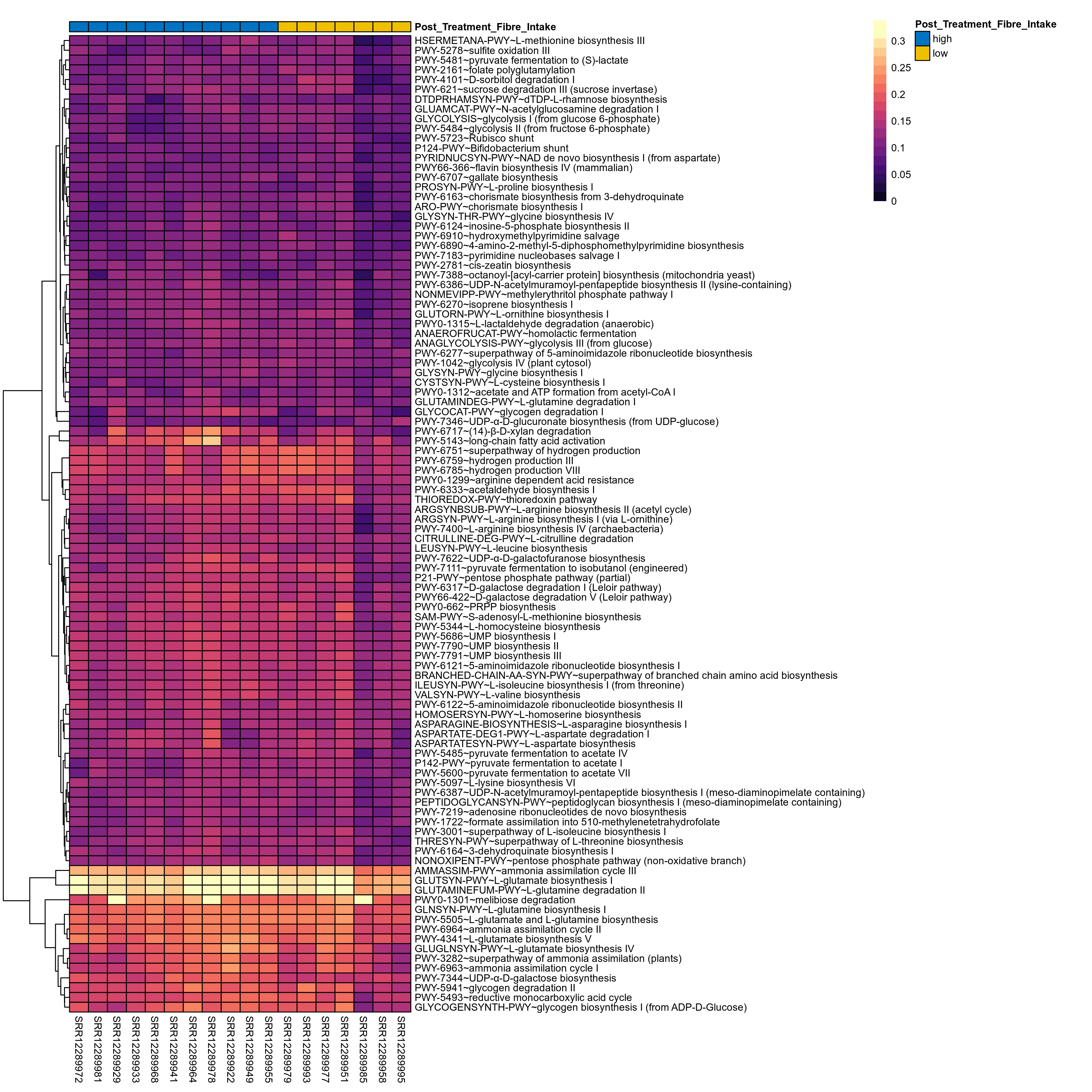

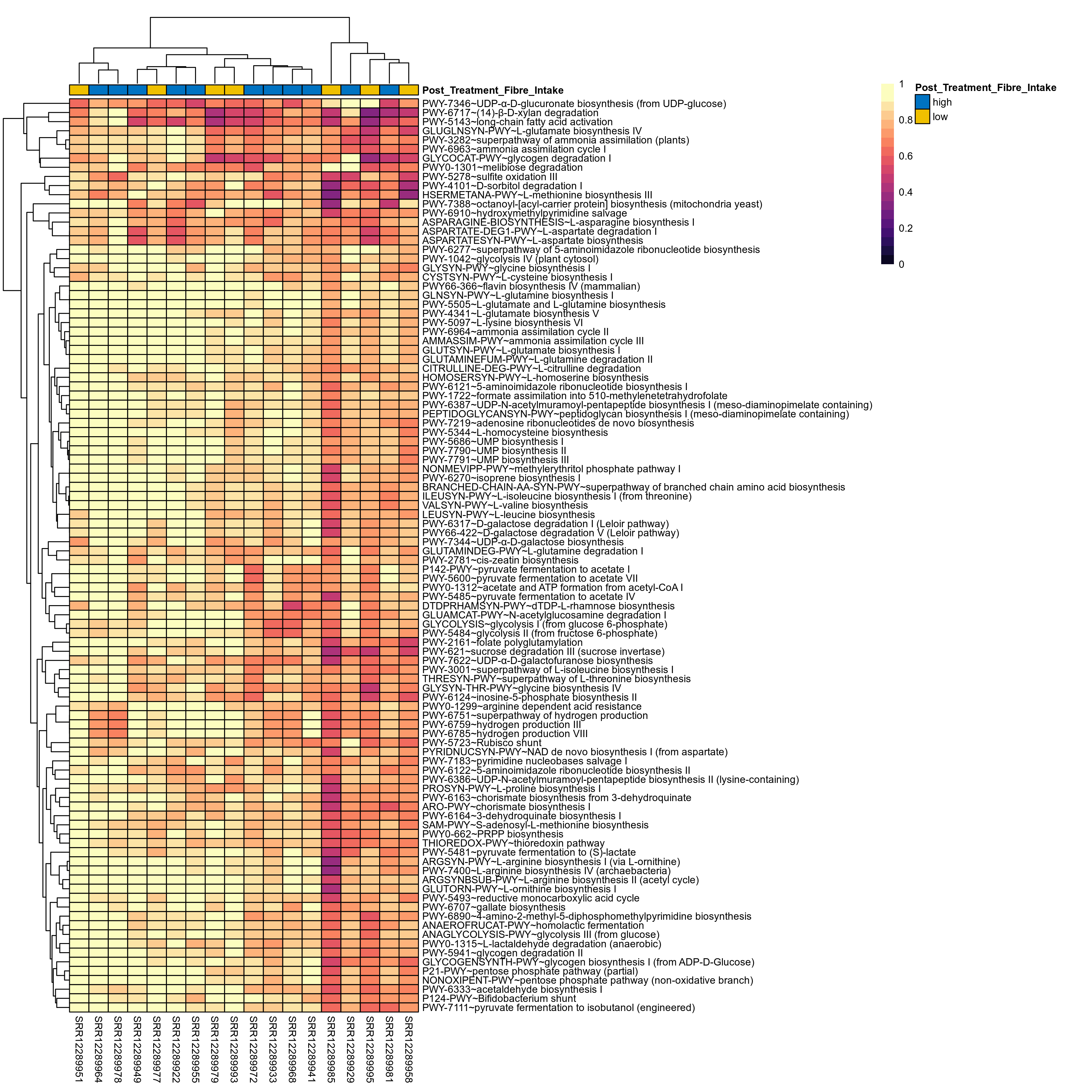

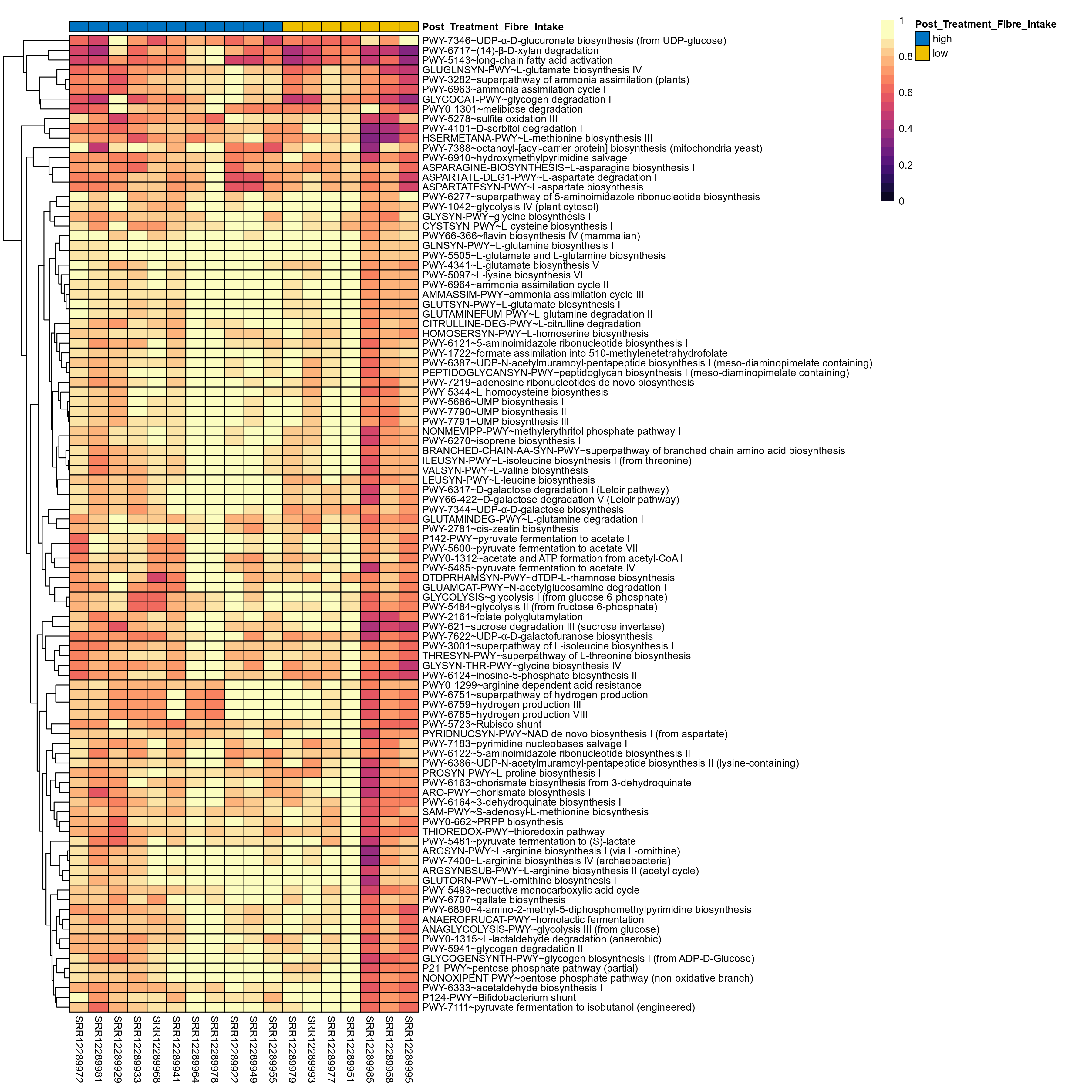

Heatmap of most abundant features ordered by study group

Features were filtered by mean abundance. Samples were first ordered by study group and then clustered within each study group. Color scale shows not-detected (white), and abundance ranging from low (blue) to high (yellow).

Click here to open full-sized image in new window.

Scaled heatmap of all features

Profiles were clustered by hierarchical clustering. Abundances were scaled to a max value of 1. Color scale shows not-detected (white), and abundance ranging from low (blue) to high (yellow).

Click here to open full-sized image in new window.

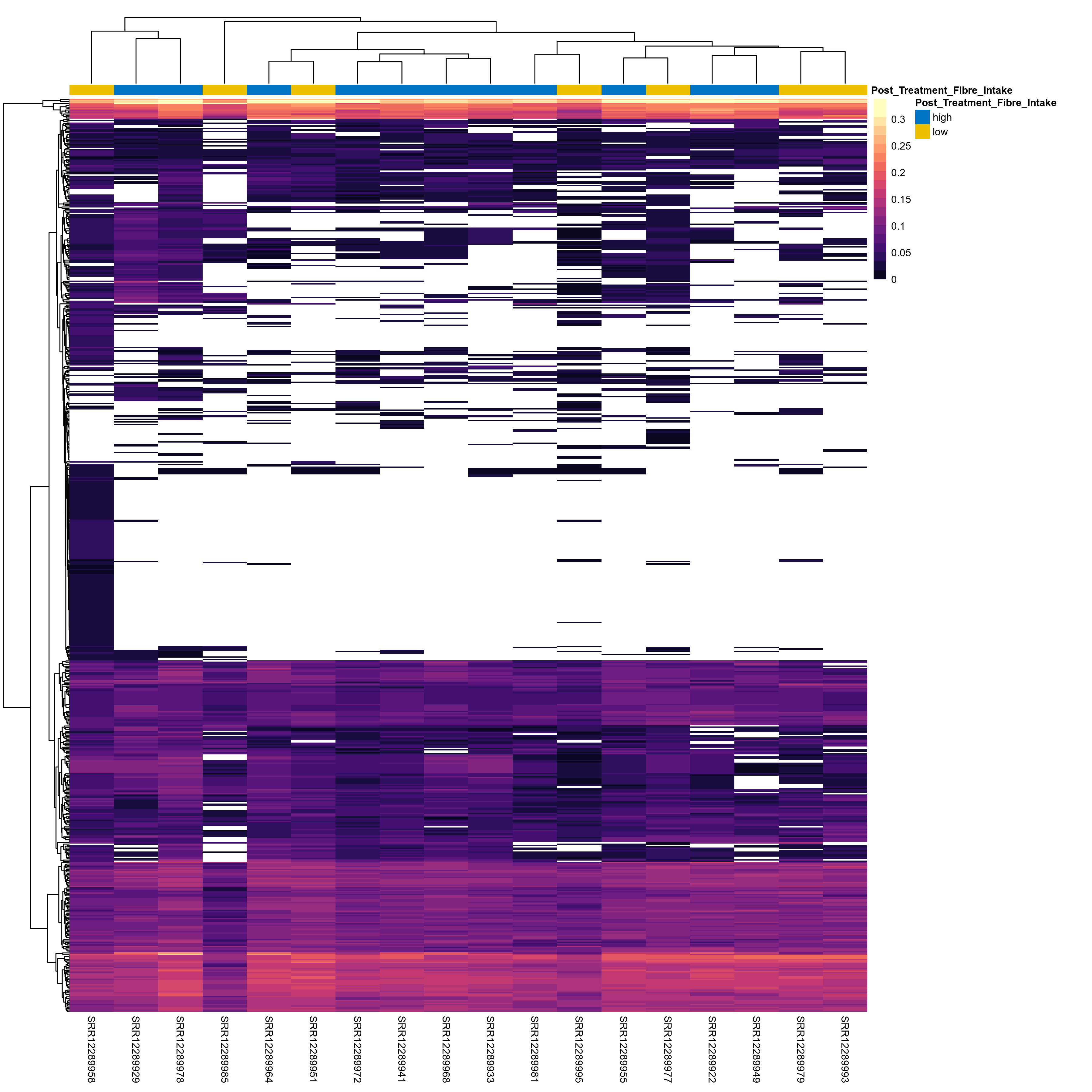

Heatmap of all features

Profiles were clustered by hierarchical clustering. Color scale shows not-detected (white), and abundance ranging from low (blue) to high (yellow).

Click here to open full-sized image in new window.

Scaled heatmap of top most abundant features filtered by mean abundance

Profiles were clustered by hierarchical clustering. Abundances were scaled to a max value of 1. Color scale shows not-detected (white), and abundance ranging from low (blue) to high (yellow).

Click here to open full-sized image in new window.

Heatmap of top most abundant features filtered by mean abundance

Profiles were clustered by hierarchical clustering. Color scale shows not-detected (white), and abundance ranging from low (blue) to high (yellow).

Click here to open full-sized image in new window.

Scaled heatmap of top most abundant features filtered by max abundance

Profiles were clustered by hierarchical clustering. Abundances were scaled to a max value of 1. Color scale shows not-detected (white), and abundance ranging from low (blue) to high (yellow).

Click here to open full-sized image in new window.

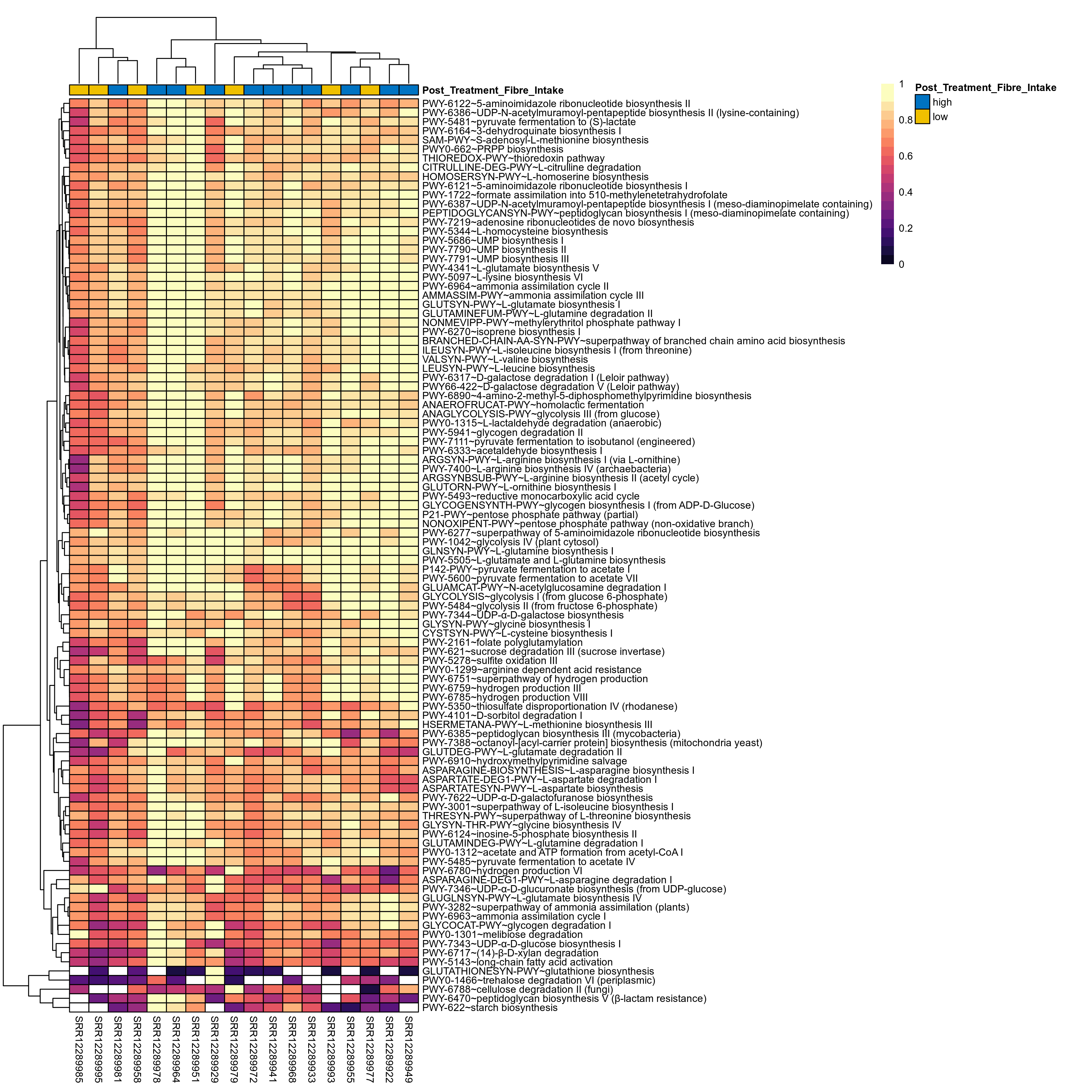

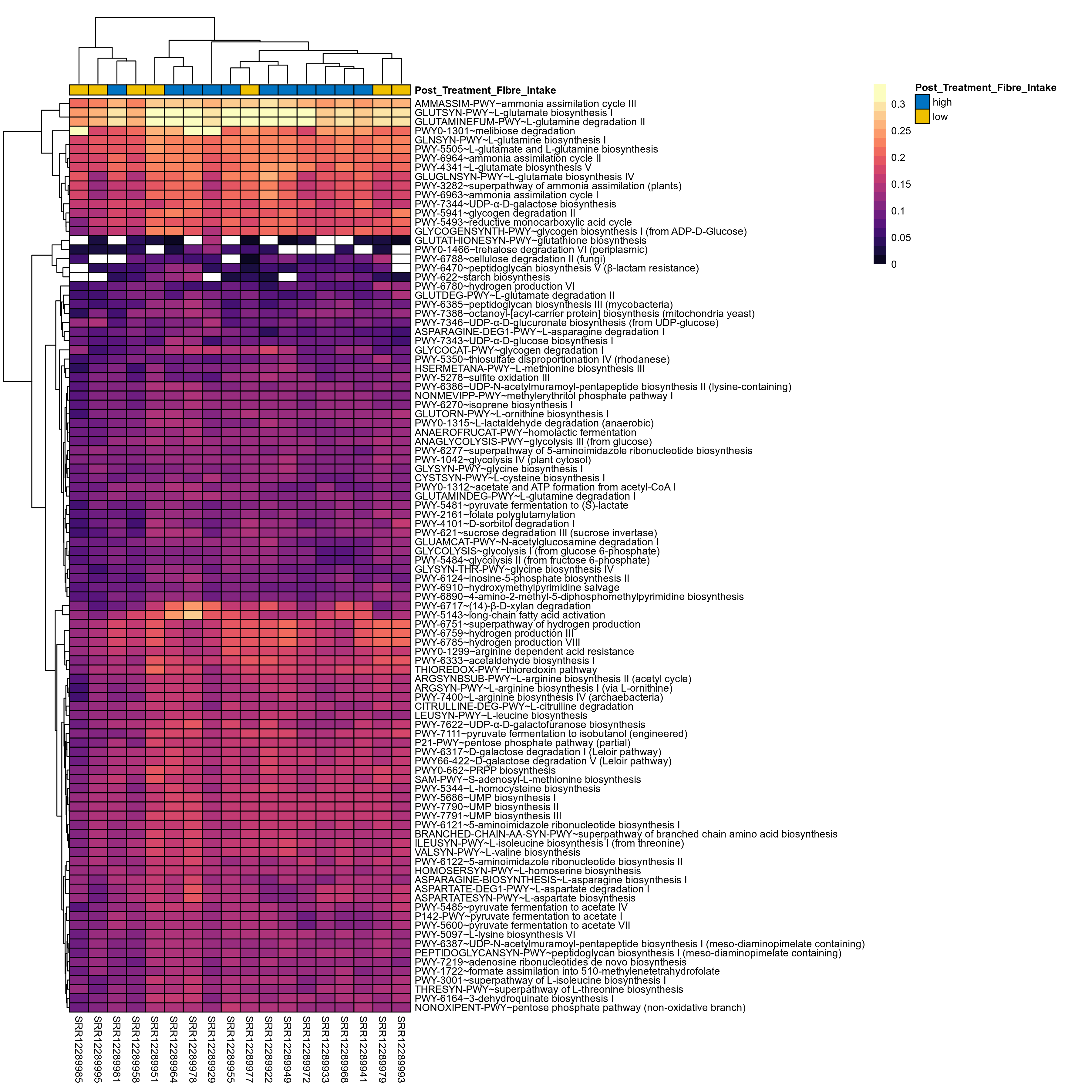

Heatmap of top most abundant features filtered by max abundance

Profiles were clustered by hierarchical clustering. Color scale shows not-detected (white), and abundance ranging from low (blue) to high (yellow).

Click here to open full-sized image in new window.

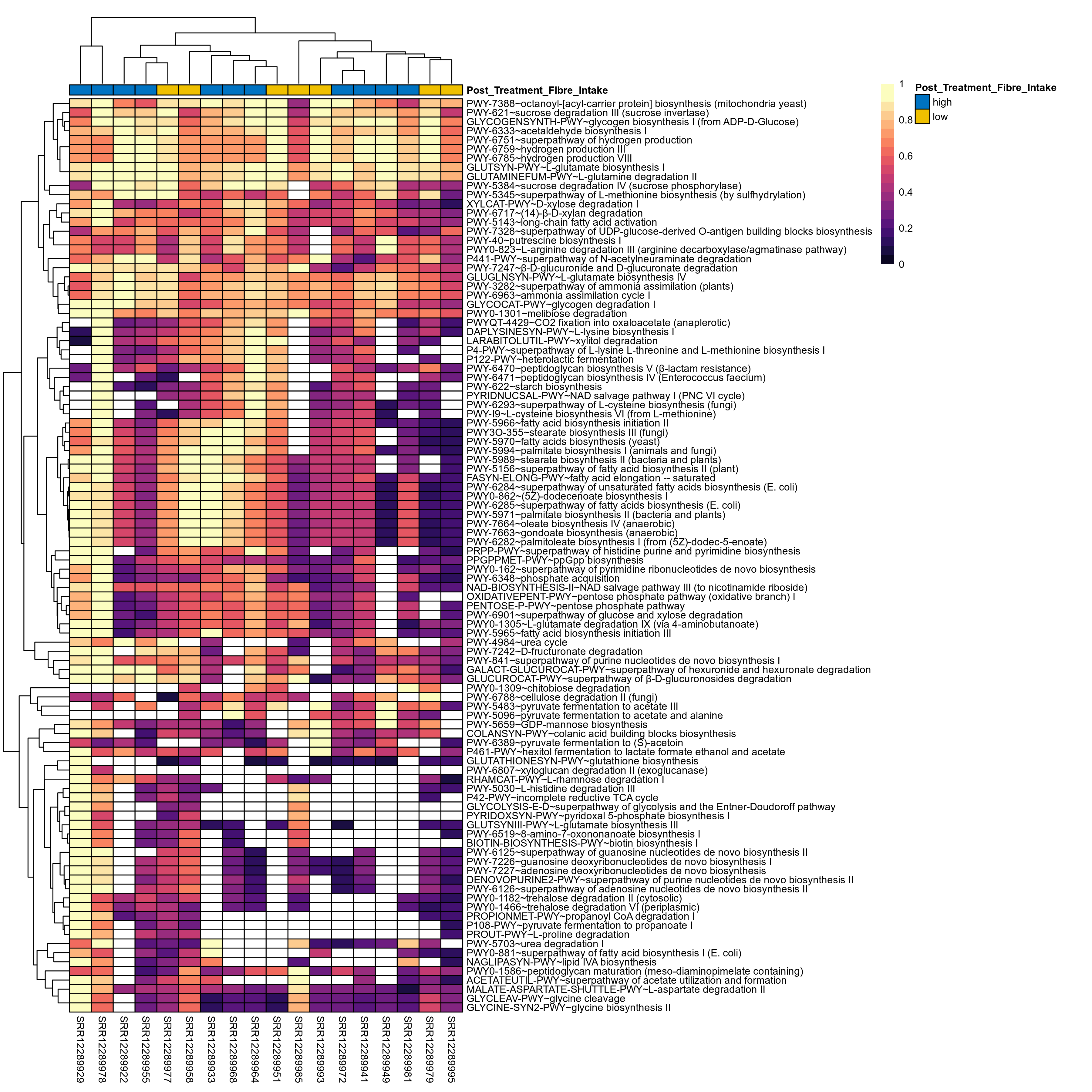

Scaled heatmap of top most variable features

Profiles were clustered by hierarchical clustering. Abundances were scaled to a max value of 1. Color scale shows not-detected (white), and abundance ranging from low (blue) to high (yellow).

Click here to open full-sized image in new window.

MetaCyc Pathway

Functional Alpha Diversity

This page provides an overview of the functional alpha diversity of the analysed sample. Alpha diversity was measured using the Shannon index and functional richnes. Richness measures the total number of gene functions present in each sample. Shannon index combines richness and evenness.

Methods:

Shannon diversity was compared using a standard t-test. Richness was compared using a standard t-test. Data was rarefied to 16649 reads.

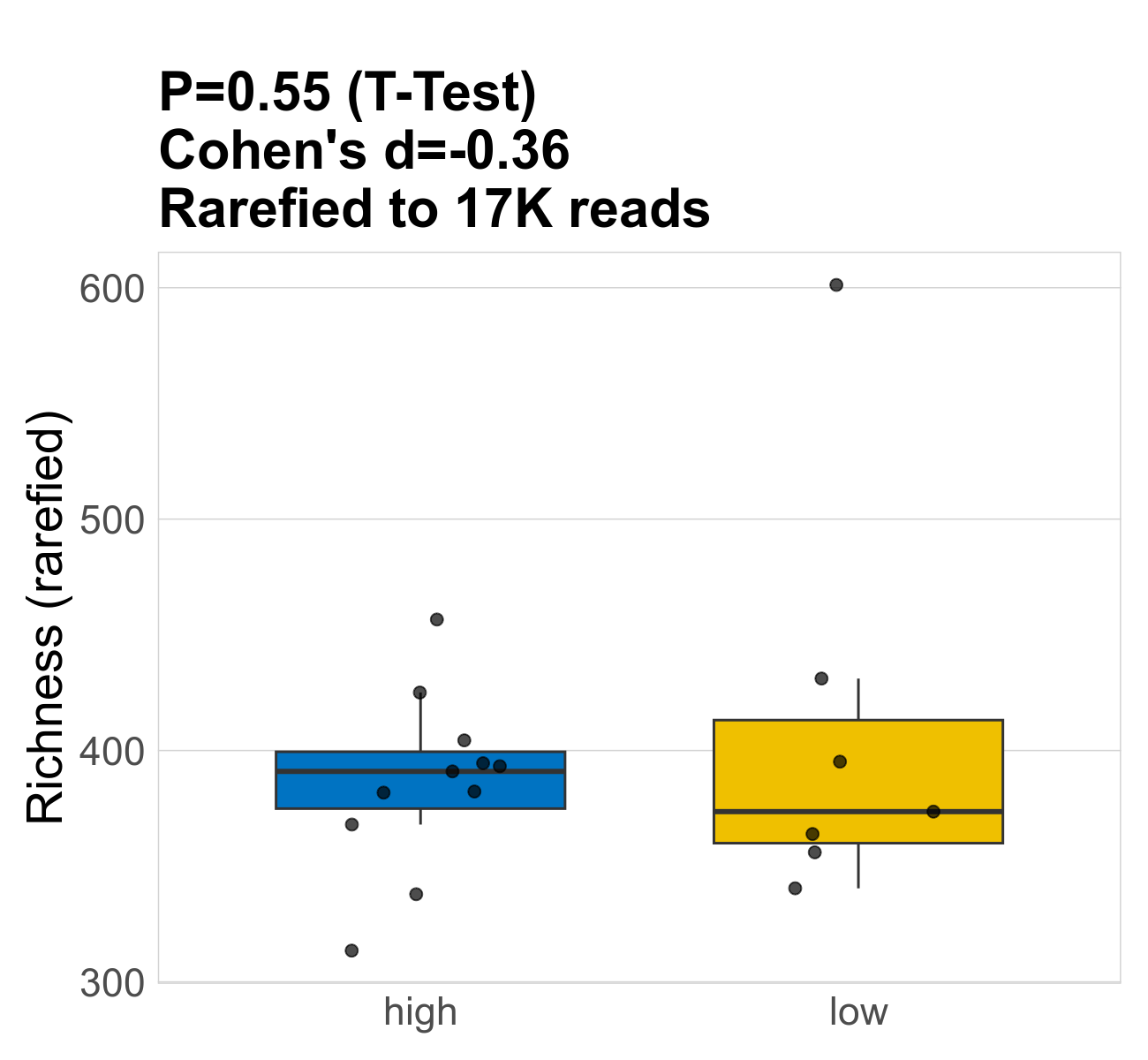

Index: Richness

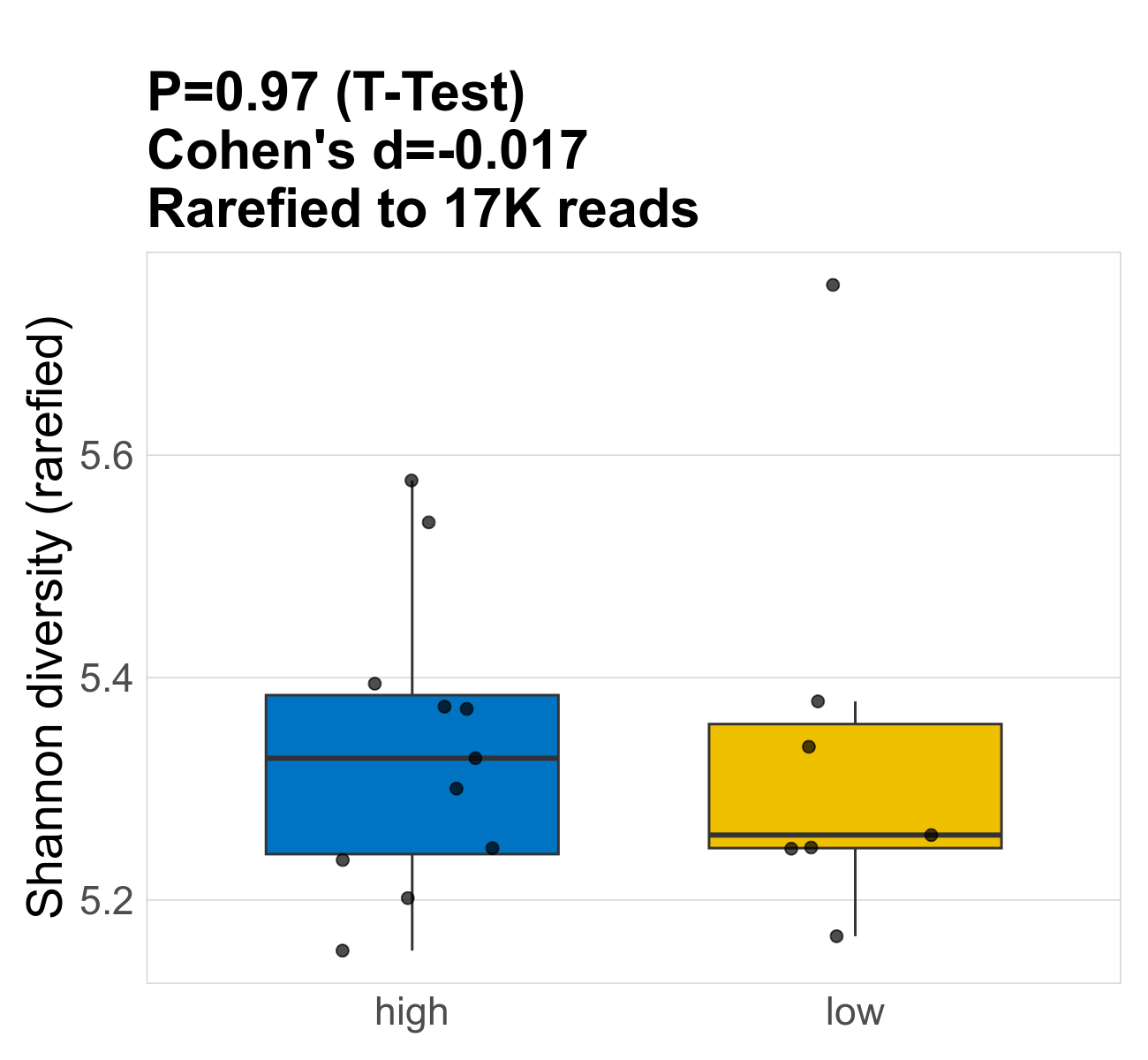

Index: Shannon index

Summary Table

Index rarefiedTo P Welch's t-test Mean Pos Mean Abundance Median Abundance Mean Post_Treatment_Fibre_Intakehigh Median Post_Treatment_Fibre_Intakehigh SD Post_Treatment_Fibre_Intakehigh Mean Post_Treatment_Fibre_Intakelow Median Post_Treatment_Fibre_Intakelow SD Post_Treatment_Fibre_Intakelow Fold Change Log2(Post_Treatment_Fibre_Intakelow/Post_Treatment_Fibre_Intakehigh) Positive samples Positive Post_Treatment_Fibre_Intakehigh Positive Post_Treatment_Fibre_Intakelow Positive_Post_Treatment_Fibre_Intakehigh_percent Positive_Post_Treatment_Fibre_Intakelow_percent
Shannon 16649 0.97 5.3 5.3 5.3 5.3 5.3 0.13 5.3 5.3 0.19 0 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1
Richness 16649 0.55 390 390 390 390 390 39 410 370 90 0.072 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1
Download diversity values in csv format . On some platforms (including Windows) you may need to change the suffix from .txt or .html to .csv before opening the file in a spreadsheet program, like Excel.

Functional clustering and ordination

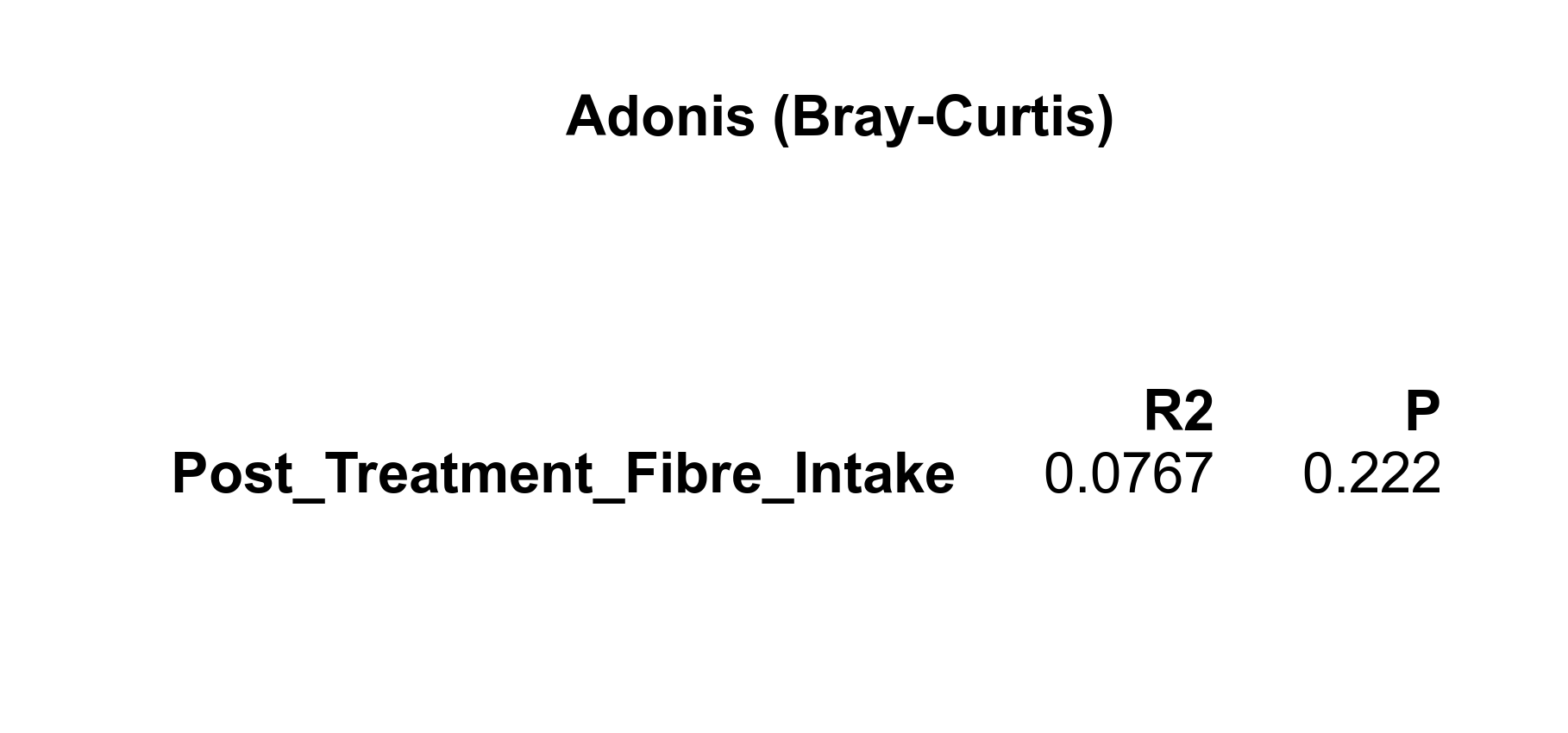

Microbial functions were analyzed using supervised and unsupervised multivariate techniques. Functional profiles were ordinated using the unsupervised methods Principal Coordinates Analysis (PCoA), Non-Metric Multidimensional Scaling (NMDS) and Principal Component Analysis (PCA). The supervised methods Adonis and Redundancy analysis (RDA) were used to assess if variance in the functional profiles was significantly associated with the study condition. A guide explaining these methods can be found here. Sparse Partial Least Square Discriminant Analysis (sPLS-DA) from the MixMc package was additionaly used to extract features associated with the condition of interest.

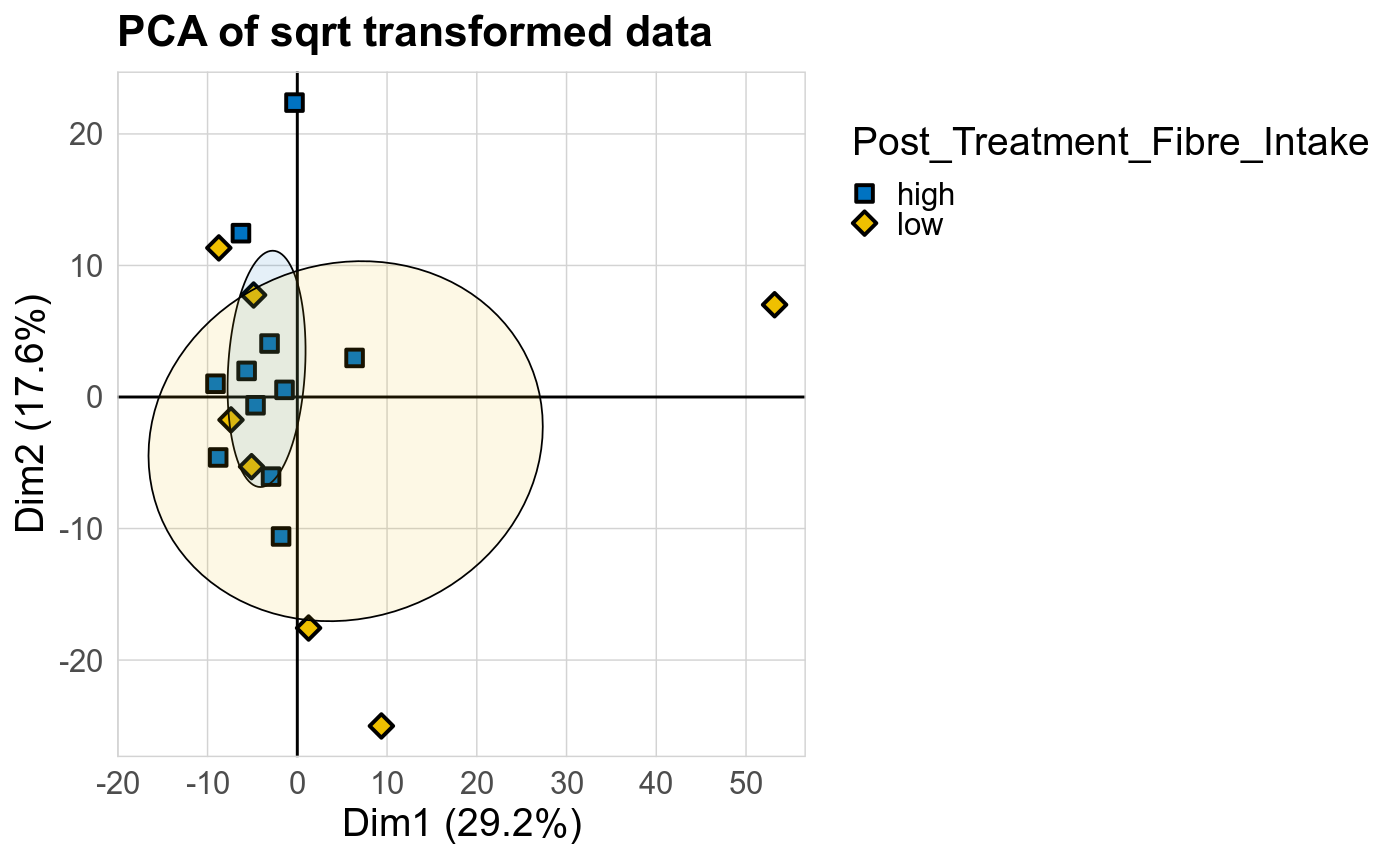

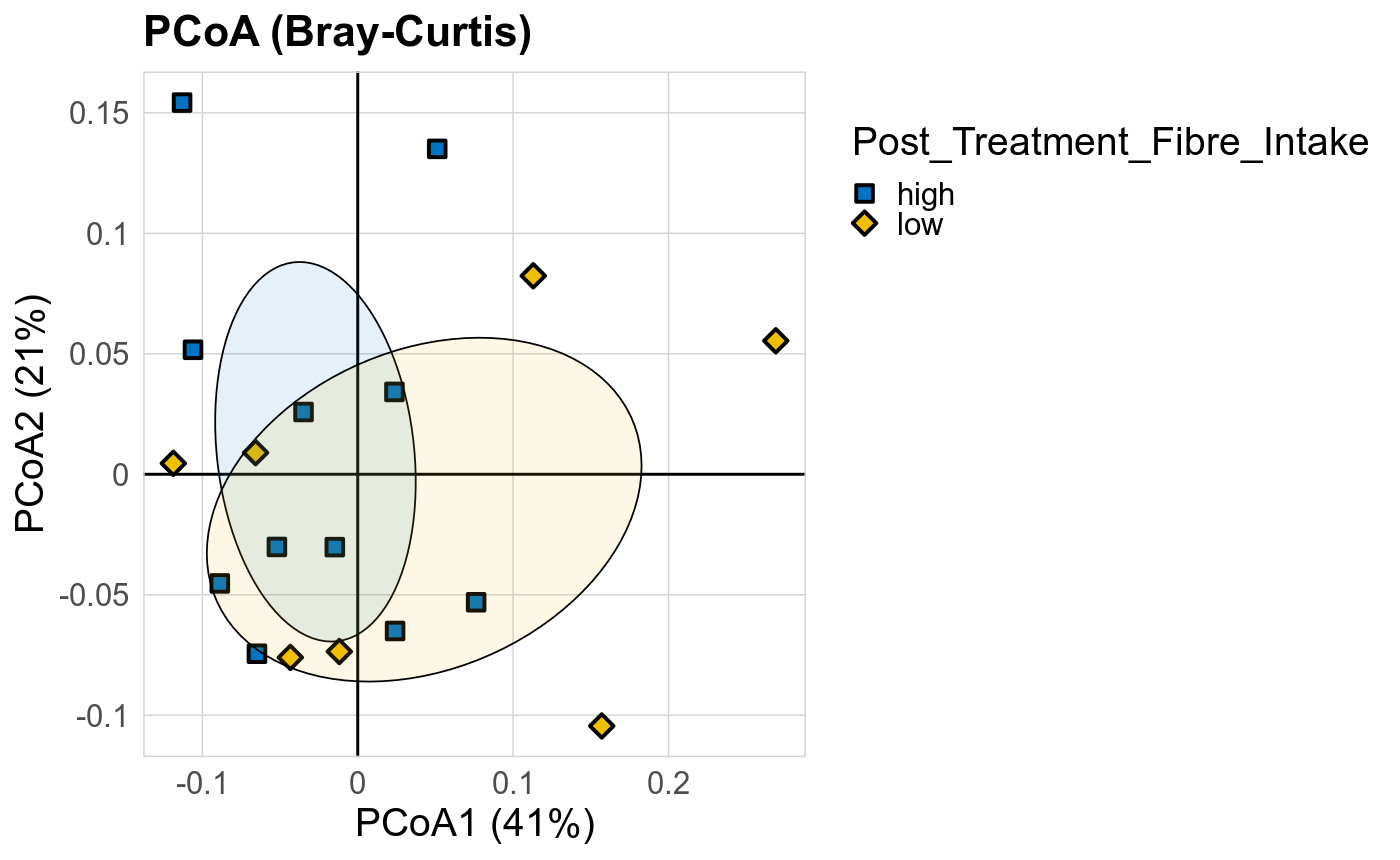

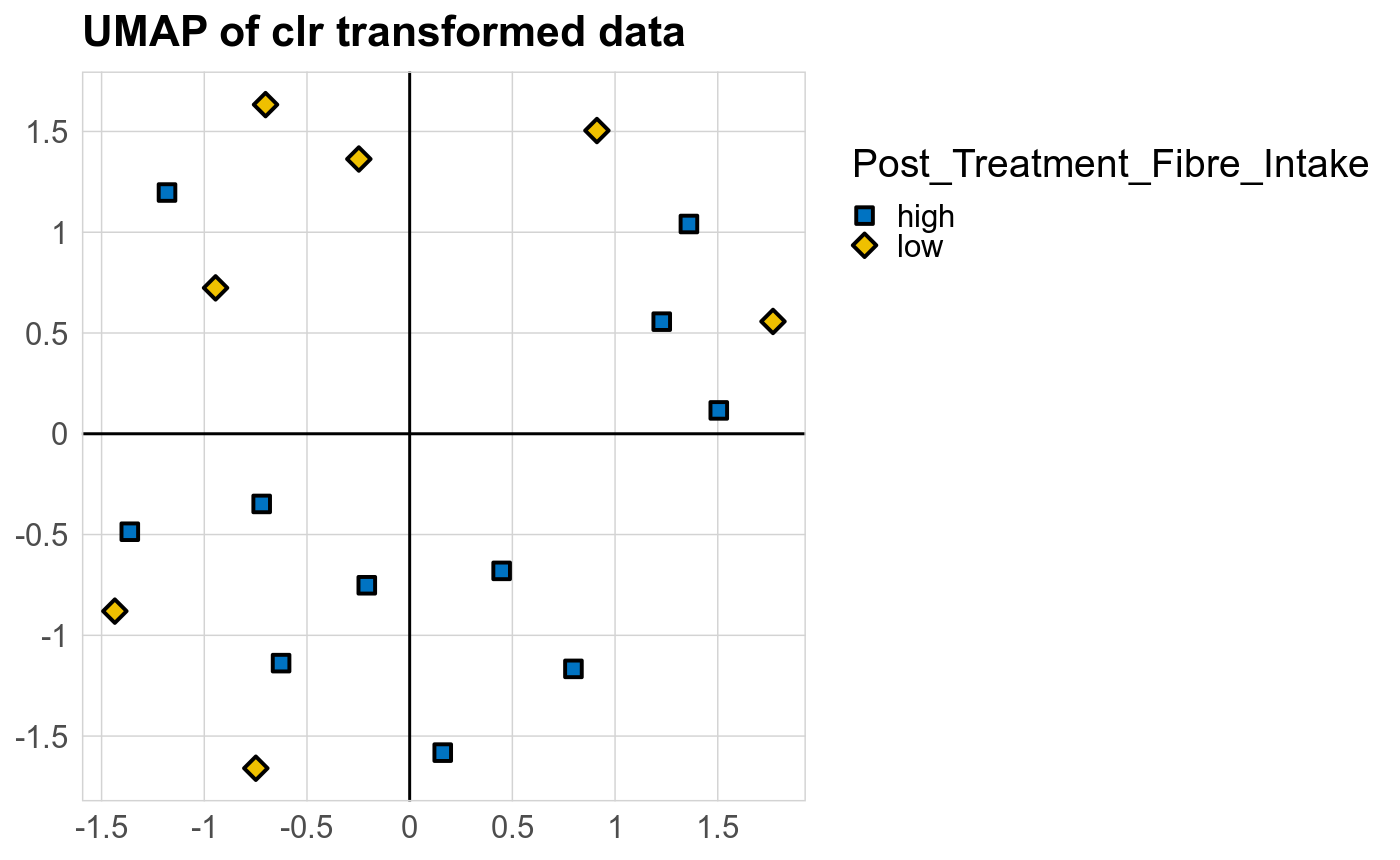

Unsupervised ordination

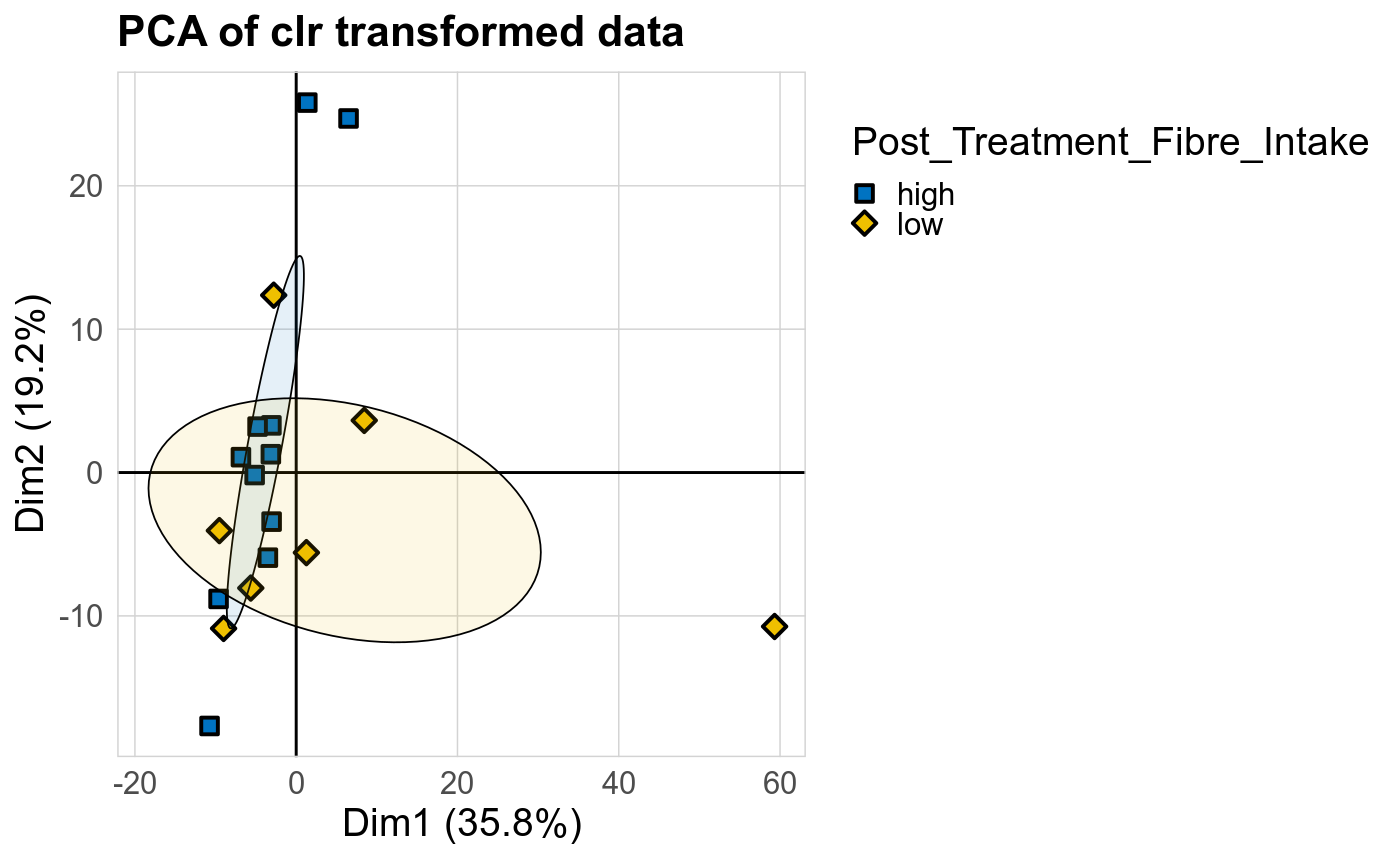

Interactive PCA (clr transformed)

Please click here to view an interactive 3D PCoA.

Please click here to view an interactive 3D PCA.

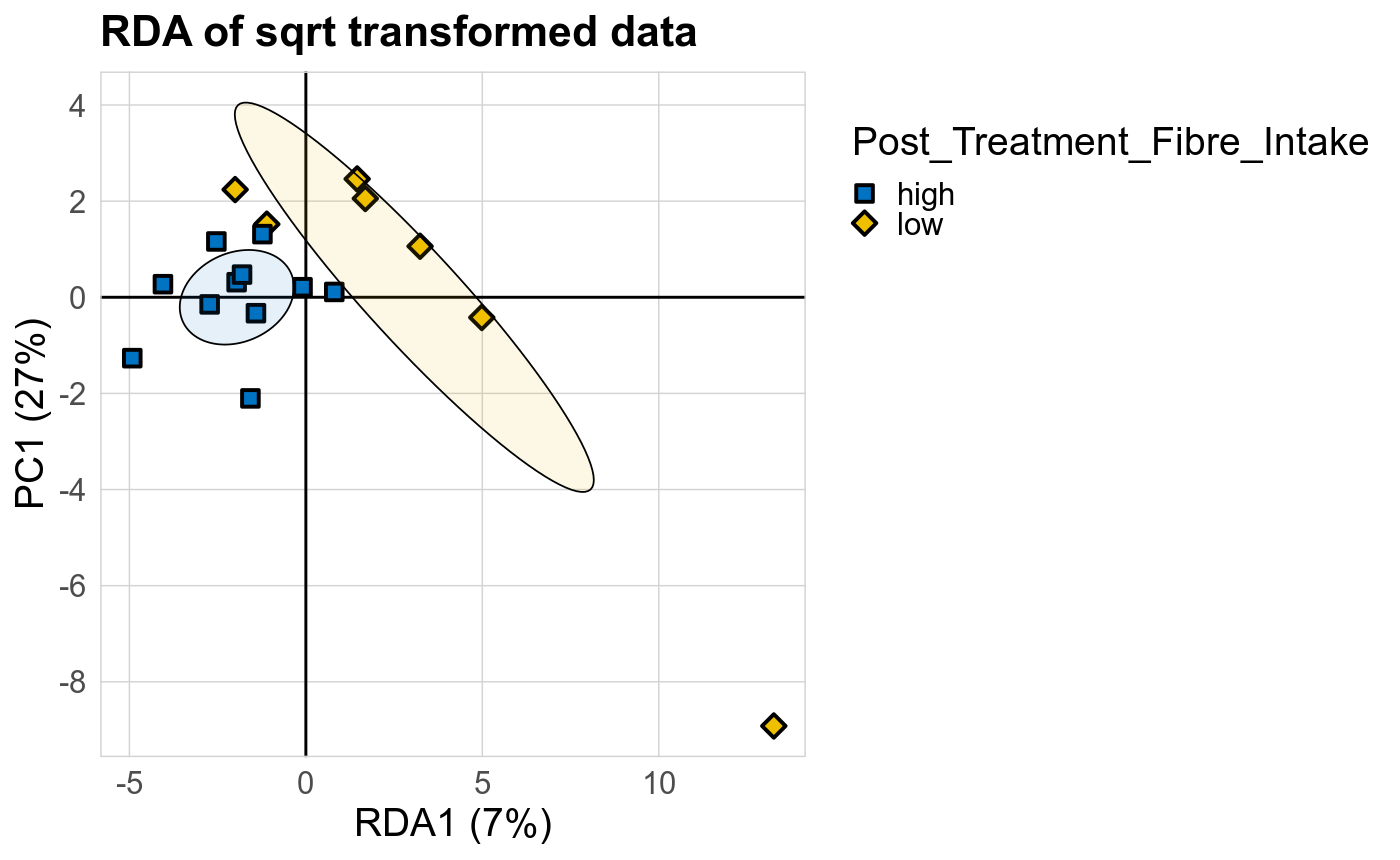

Supervised Analysis

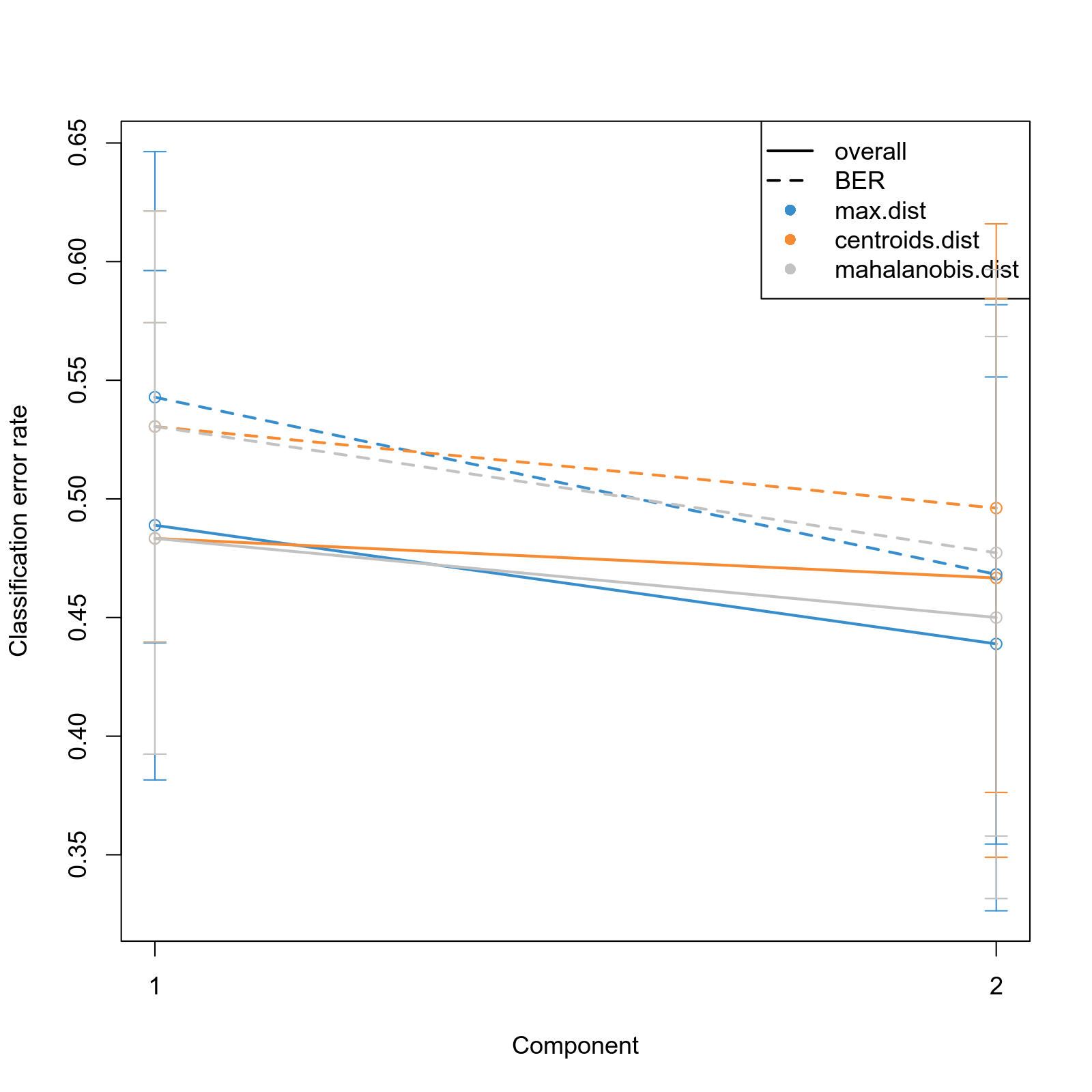

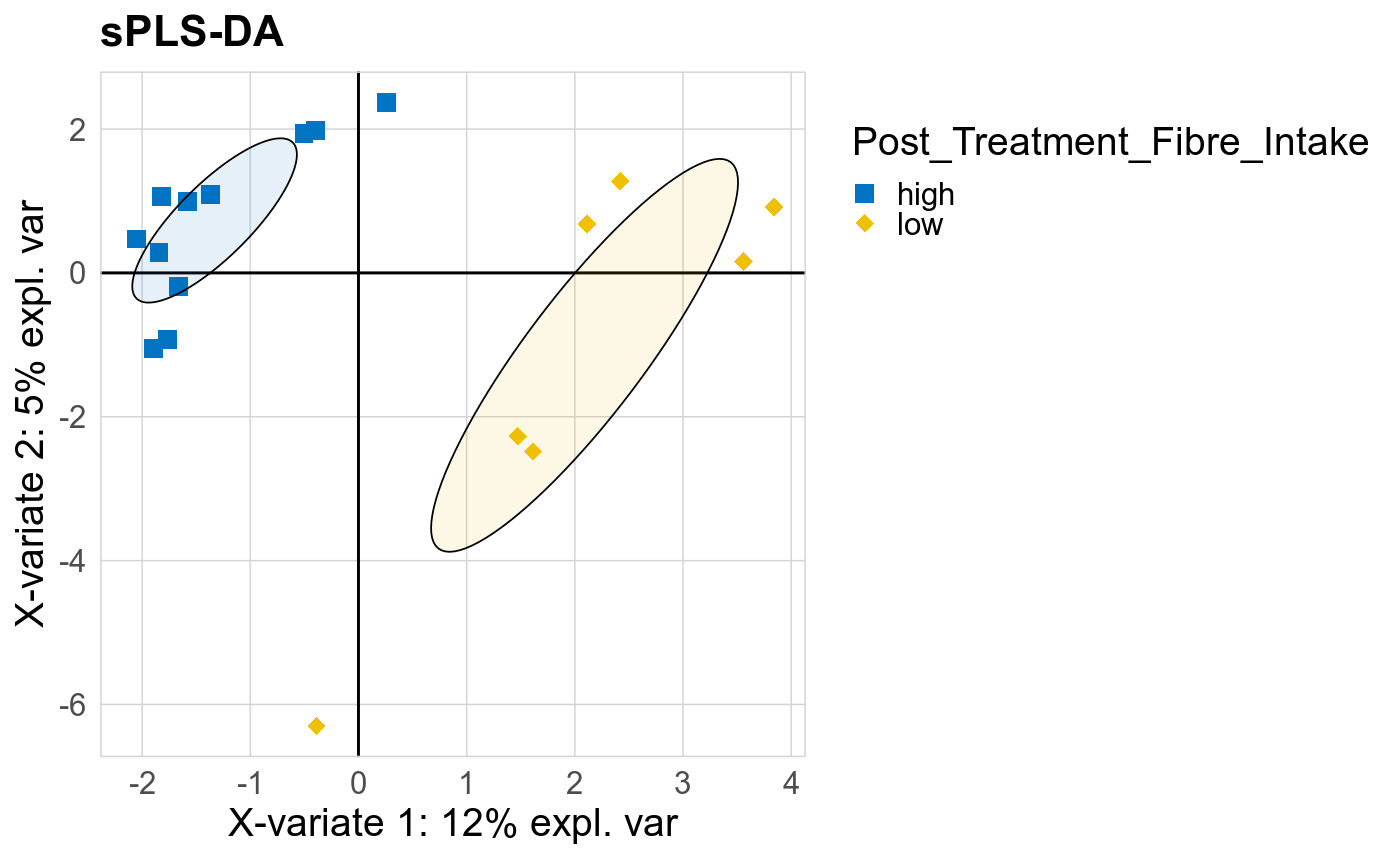

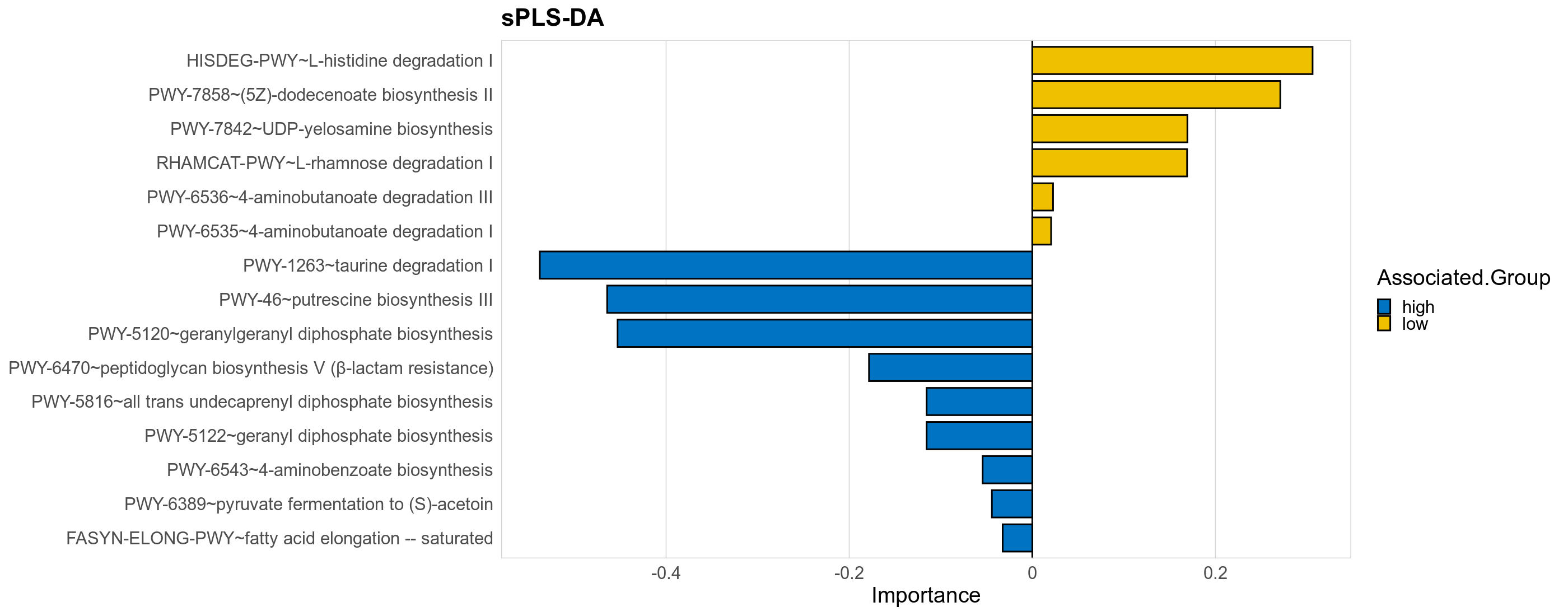

sPLS-DA




MetaCyc Pathway

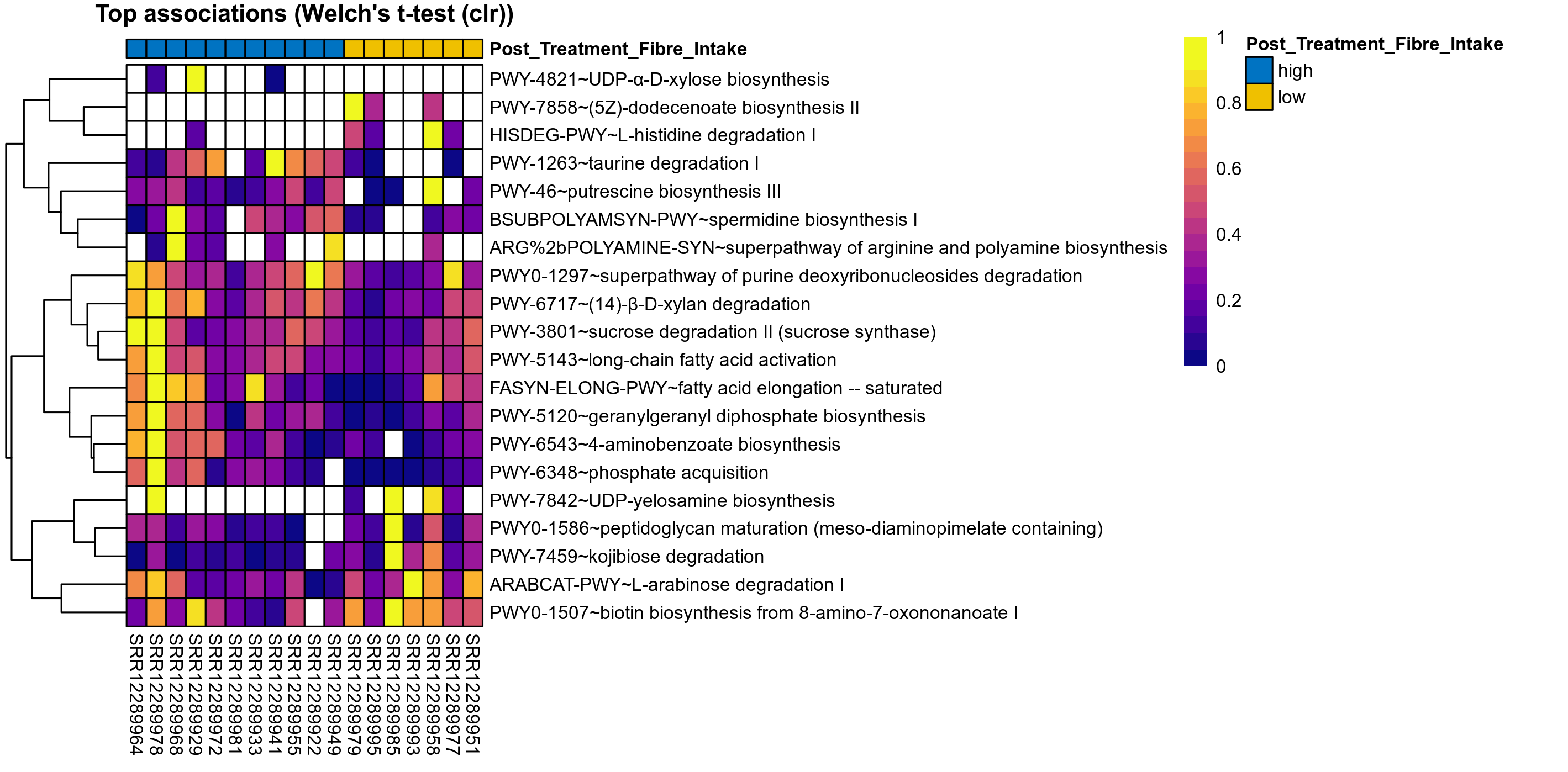

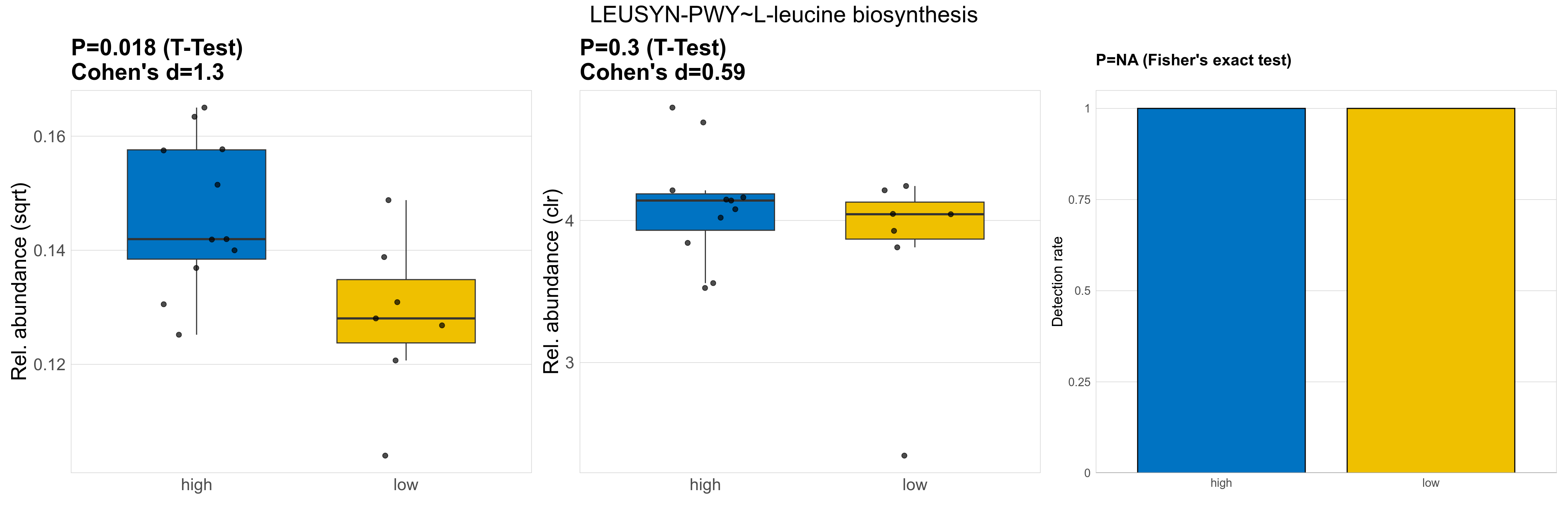

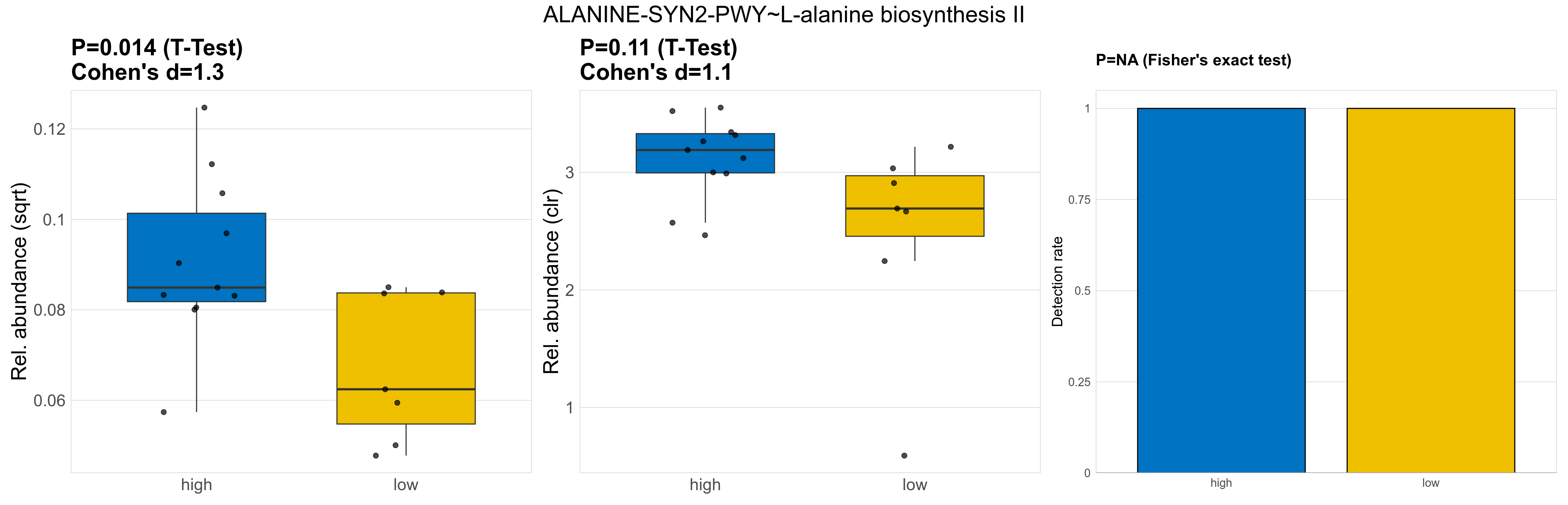

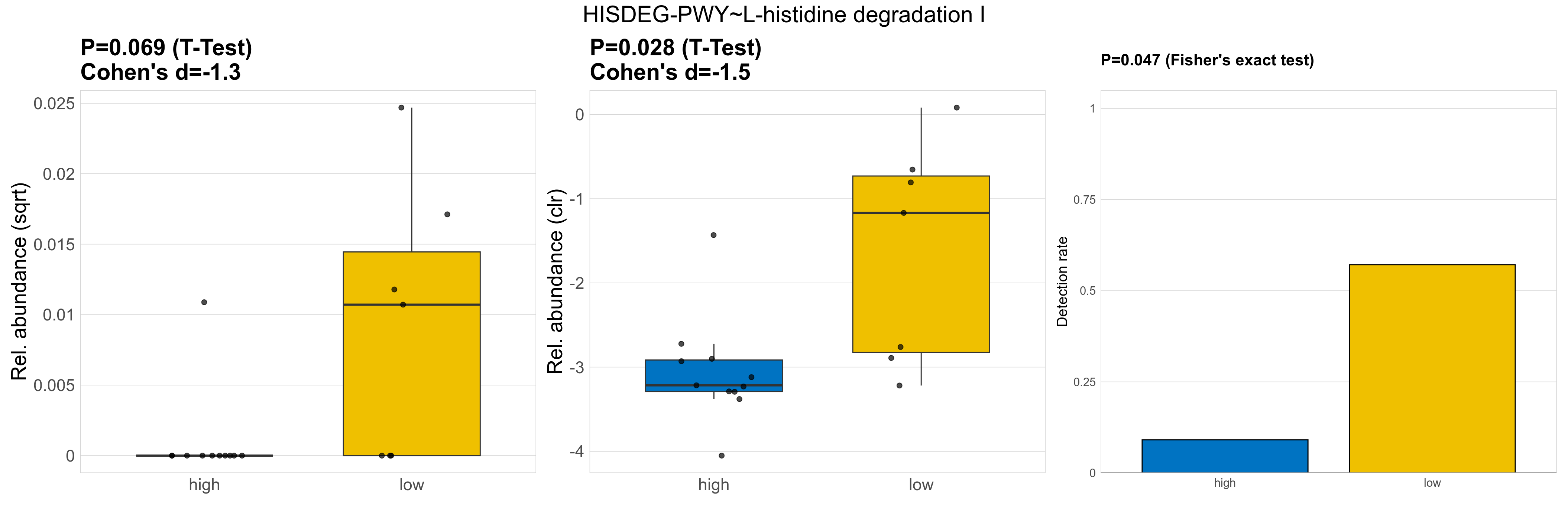

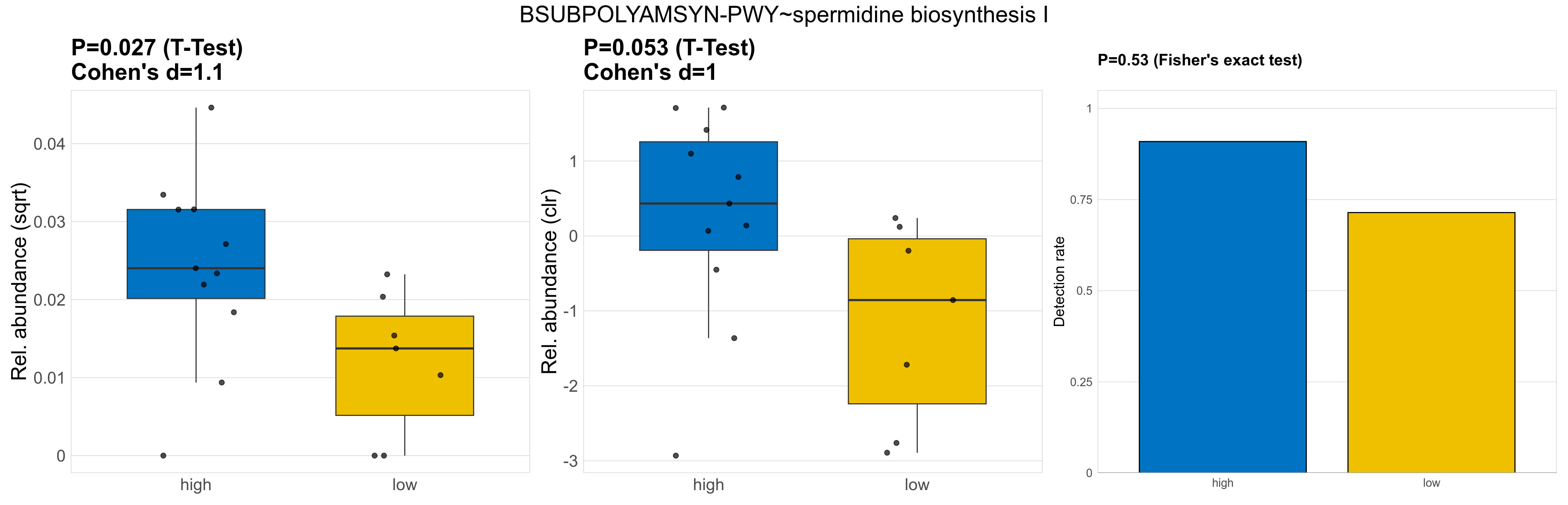

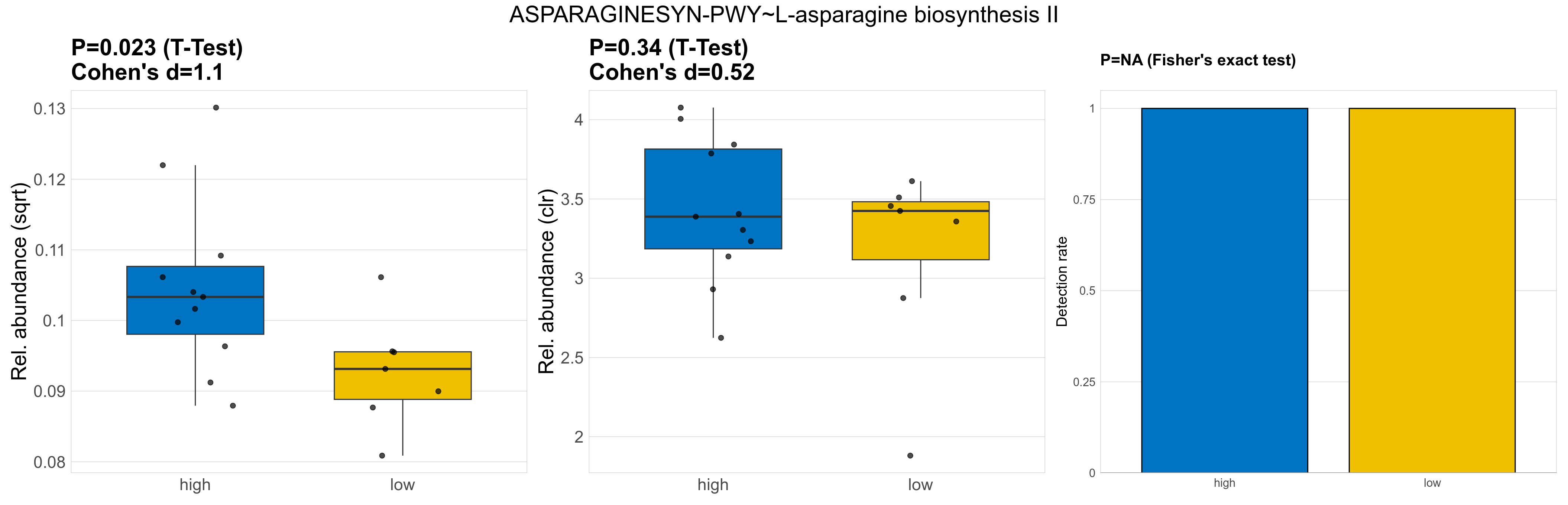

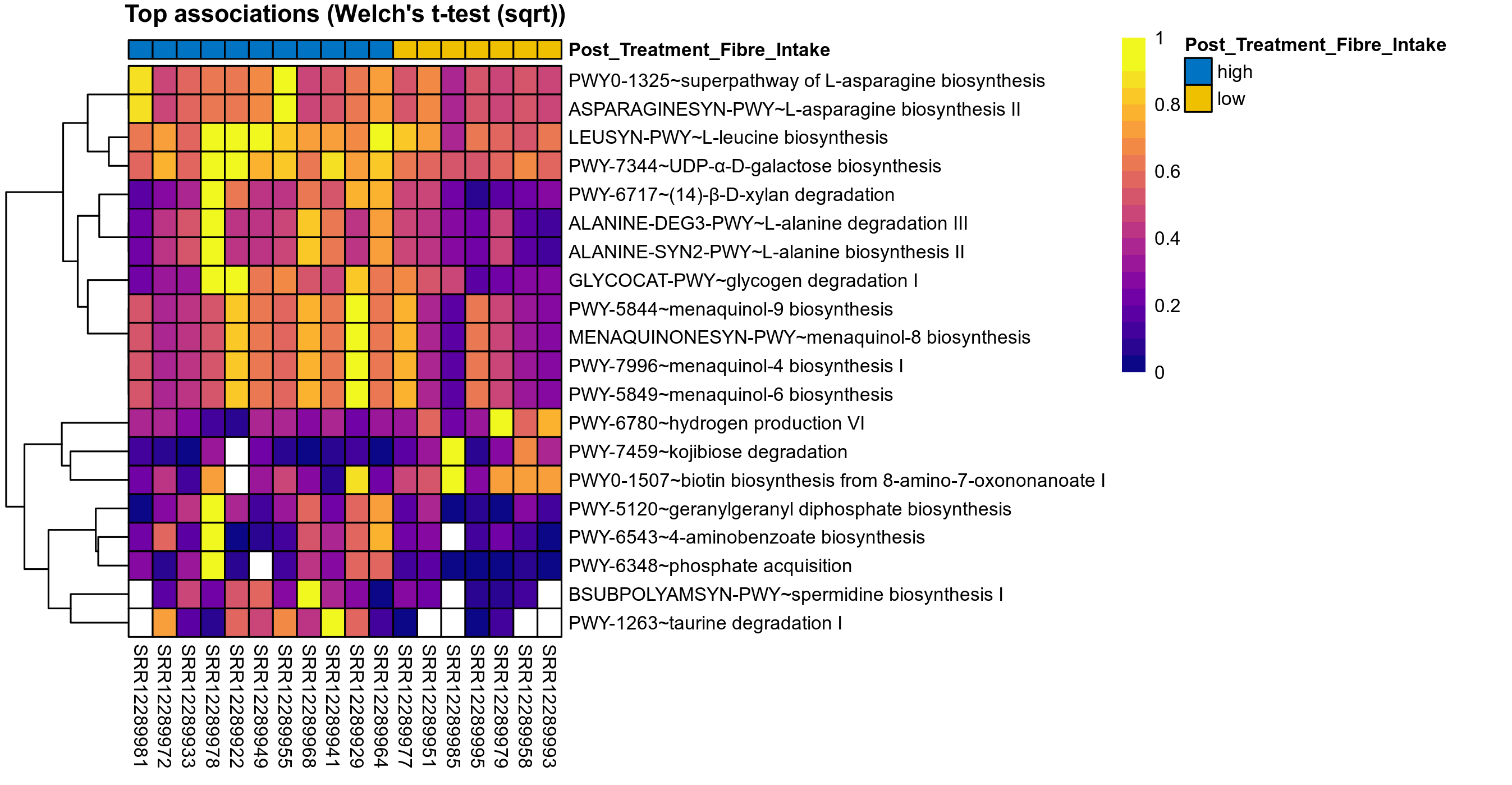

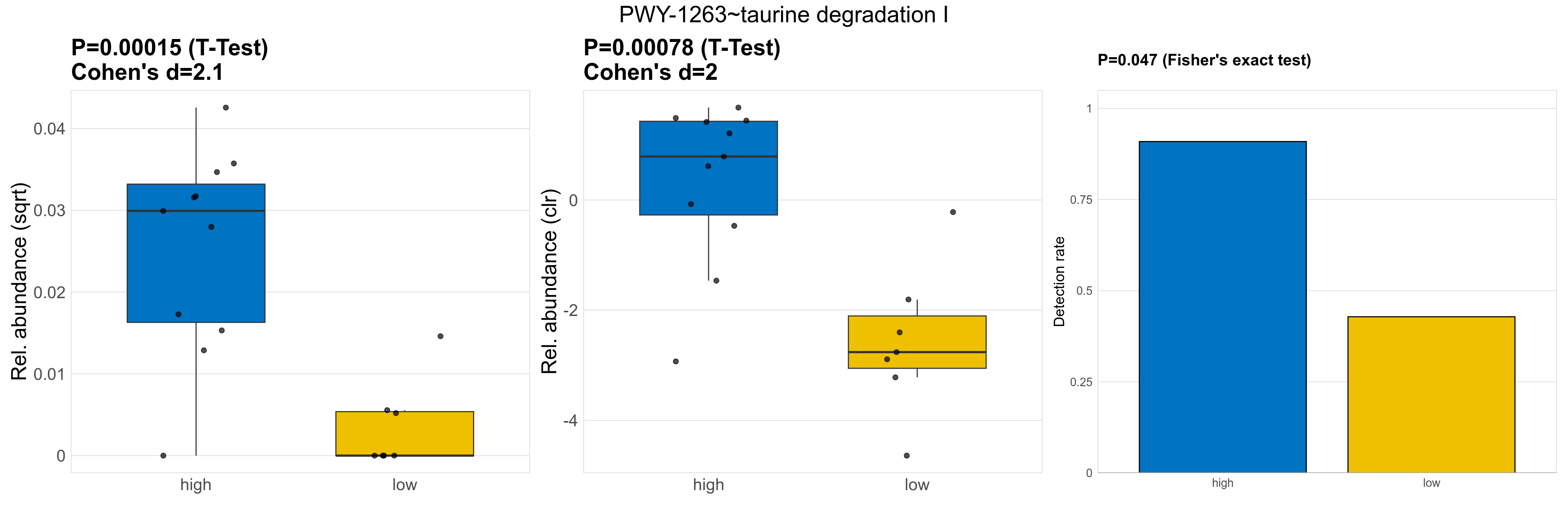

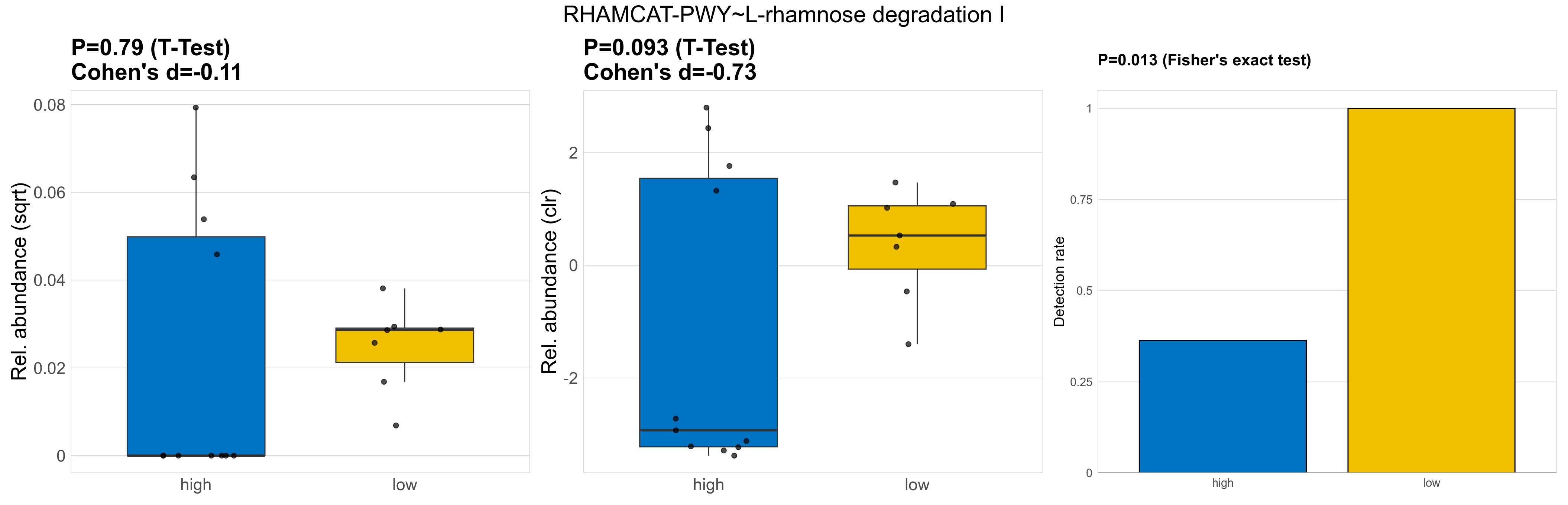

Univariate analysis of microbial functions

Differentially abundant microbial functions were identified using the univariate methods ANOVA or LMER (linear mixed effect regression) on clr transformed relative abundance data, Fisher's exact test, and Aldex2 (ANOVA-like Differential Expression). Aldex2 was run on read count data. Fisher's exact test was used to test for diffrerences in the presence and absence (detection rate) of microbial functions across study groups.

LMER is used for repeated measures data, using random effects to control for correlation between samples from the same subject. Fixed effects are included for treatment groups, time, and treatment over time, where appropriate. The LMER P values correspond to a nested model test of the significance of including the corresponding fixed effect.

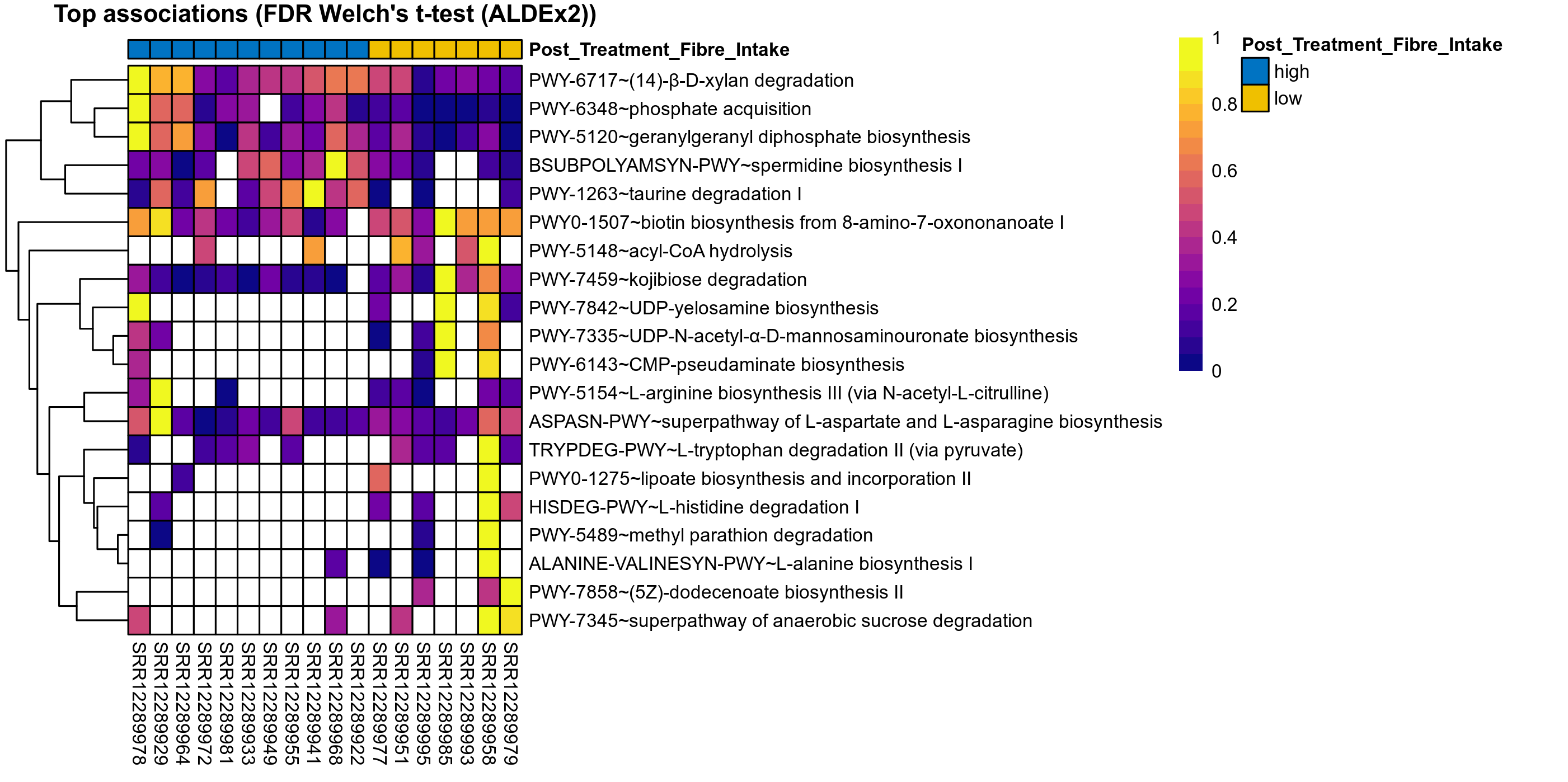

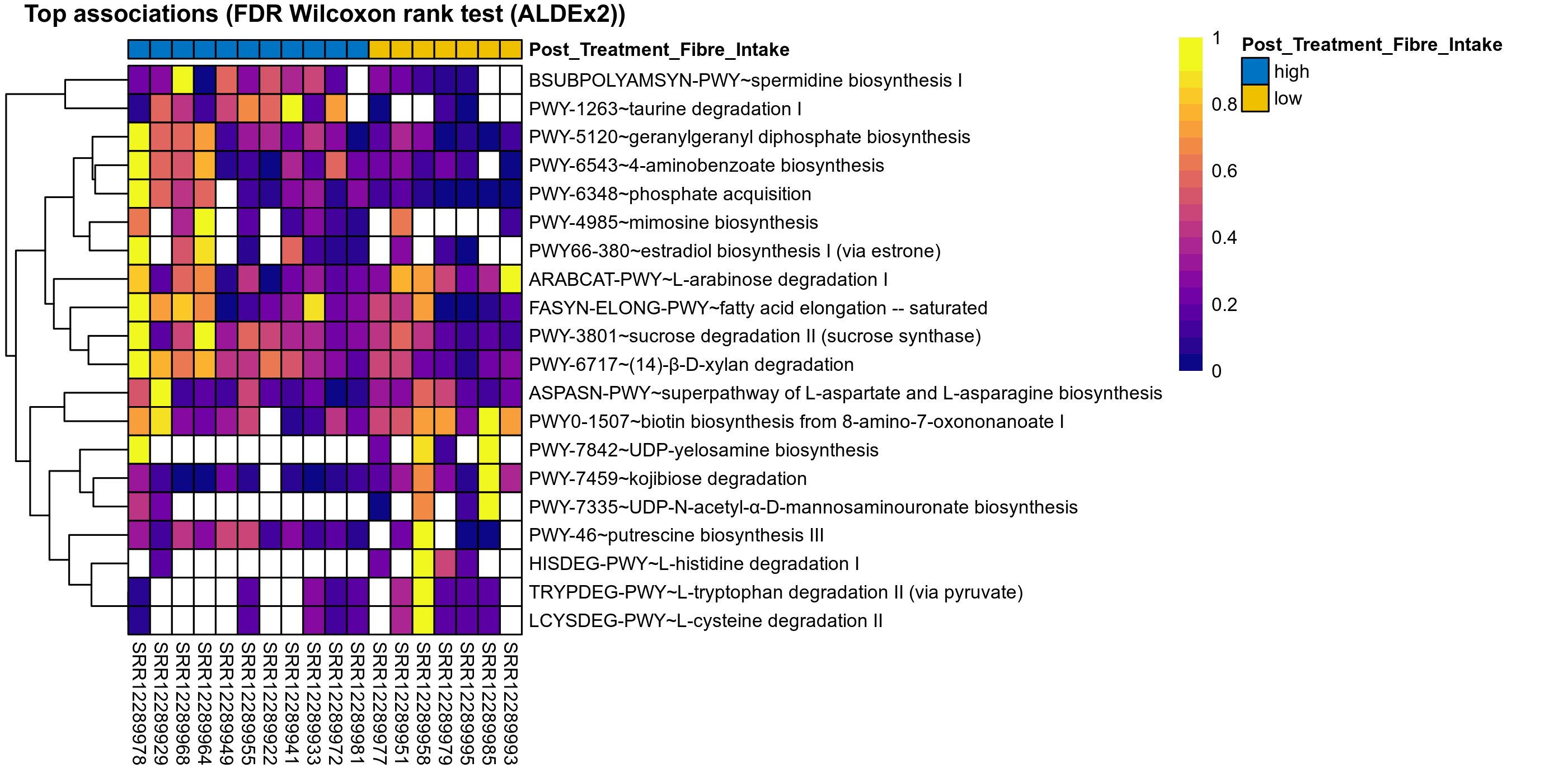

ALDEx2 uses subsampling (Bayesian sampling) to estimate the underlying technical variation. For each subsample instance, center log-ratio transformed data is statistically compared across study groups and computed P values are corrected for multiple testing using the Benjamini–Hochberg procedure. The expected P value (mean P value) is reported, which are those that would likely have been observed if the same samples had been run multiple times. The expected values are reported for both the distribution of P values and for the distribution of Benjamini–Hochberg corrected values.

Function P Welch's t-test (sqrt) FDR Welch's t-test (sqrt) Pbonf Welch's t-test (sqrt) Cohen's d Welch's t-test (sqrt) P Welch's t-test (clr) FDR Welch's t-test (clr) Pbonf Welch's t-test (clr) Cohen's d Welch's t-test (clr) P Fisher's exact test FDR Fisher's exact test Pbonf Fisher's exact test P Welch's t-test (ALDEx2) FDR Welch's t-test (ALDEx2) P Wilcoxon rank test (ALDEx2) FDR Wilcoxon rank test (ALDEx2) Mean Pos Mean Abundance Median Abundance Mean Post_Treatment_Fibre_Intakehigh Median Post_Treatment_Fibre_Intakehigh SD Post_Treatment_Fibre_Intakehigh Mean Post_Treatment_Fibre_Intakelow Median Post_Treatment_Fibre_Intakelow SD Post_Treatment_Fibre_Intakelow Fold Change Log2(Post_Treatment_Fibre_Intakelow/Post_Treatment_Fibre_Intakehigh) Positive samples Positive Post_Treatment_Fibre_Intakehigh Positive Post_Treatment_Fibre_Intakelow Positive_Post_Treatment_Fibre_Intakehigh_percent Positive_Post_Treatment_Fibre_Intakelow_percent
PWY-5481~pyruvate fermentation to (S)-lactate 0.73 0.96 1 0.19 0.7 0.96 1 0.21 NA NA NA 0.88 1 0.87 1 0.013 0.013 0.014 0.013 0.014 0.0029 0.012 0.013 0.0046 -0.12 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1
P108-PWY~pyruvate fermentation to propanoate I 0.64 0.96 1 0.2 0.93 0.98 1 -0.038 0.63 1 1 0.61 1 0.68 1 0.0028 0.00094 0 0.0013 0 0.003 0.00038 0 0.00066 -1.8 6 / 18 (33%) 3 / 11 (27%) 3 / 7 (43%) 0.273 0.429
CITRULLINE-DEG-PWY~L-citrulline degradation 0.82 0.96 1 0.12 0.82 0.96 1 0.13 NA NA NA 0.8 1 0.64 1 0.02 0.02 0.02 0.02 0.021 0.0037 0.02 0.019 0.005 0 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1
PWY-7183~pyrimidine nucleobases salvage I 0.2 0.95 1 0.66 0.56 0.96 1 0.33 NA NA NA 0.81 1 0.81 1 0.011 0.011 0.011 0.012 0.013 0.0025 0.01 0.01 0.0024 -0.26 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1
PWY-5026~indole-3-acetate biosynthesis V (bacteria and fungi) 0.94 0.99 1 0.04 0.91 0.98 1 0.054 1 1 1 0.65 1 0.76 1 0.00057 0.00032 0.00017 0.00032 0.00023 0.00034 0.00031 0.00012 0.00044 -0.046 10 / 18 (56%) 6 / 11 (55%) 4 / 7 (57%) 0.545 0.571
PWY-6385~peptidoglycan biosynthesis III (mycobacteria) 0.73 0.96 1 0.16 0.83 0.96 1 0.11 NA NA NA 0.79 1 0.82 1 0.0096 0.0096 0.0095 0.01 0.0096 0.0047 0.009 0.0081 0.0036 -0.15 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1
COBALSYN-PWY~superpathway of adenosylcobalamin salvage from cobinamide I 0.82 0.96 1 0.12 0.8 0.96 1 0.14 NA NA NA 0.84 1 0.67 1 0.0049 0.0049 0.0051 0.005 0.0056 0.0019 0.0048 0.004 0.0022 -0.059 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1
PWY-5653~NAD biosynthesis from 2-amino-3-carboxymuconate semialdehyde 0.69 0.96 1 0.24 0.71 0.96 1 0.21 NA NA NA 0.88 1 0.8 1 0.0095 0.0095 0.0096 0.0096 0.0099 0.0013 0.0093 0.0083 0.0032 -0.046 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1

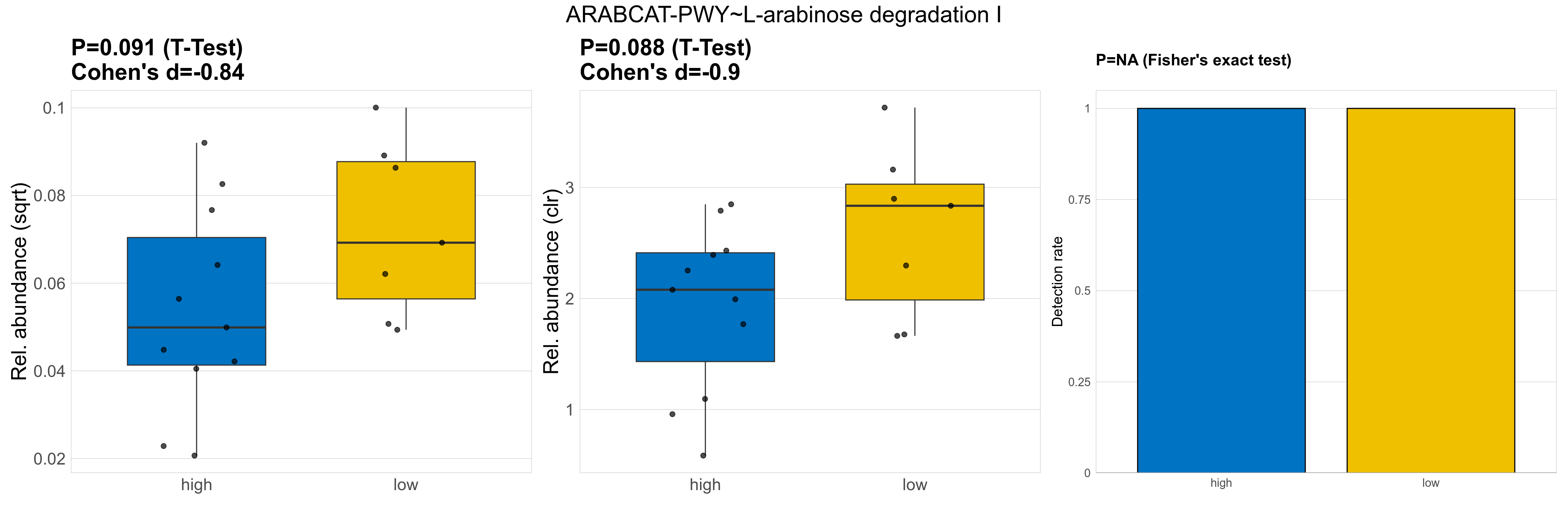

ARABCAT-PWY~L-arabinose degradation I 0.091 0.95 1 -0.84 0.088 0.96 1 -0.9 NA NA NA 0.034 1 0.043 0.99 0.0042 0.0042 0.0035 0.0034 0.0025 0.0026 0.0056 0.0048 0.0029 0.72 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1
SERSYN-PWY~L-serine biosynthesis I 0.88 0.96 1 0.076 0.85 0.97 1 0.1 NA NA NA 0.75 1 0.69 1 0.01 0.01 0.01 0.01 0.011 0.0033 0.01 0.0095 0.0034 0 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1
SORBDEG-PWY~D-sorbitol degradation II 0.77 0.96 1 0.17 0.47 0.96 1 0.44 0.39 1 1 0.64 1 0.78 1 0.0017 0.0016 0.0014 0.0015 0.0016 0.00077 0.0016 0.0012 0.0016 0.093 17 / 18 (94%) 11 / 11 (100%) 6 / 7 (86%) 1 0.857
PWY-6620~guanine and guanosine salvage 0.27 0.95 1 -0.5 0.85 0.97 1 -0.1 NA NA NA 0.45 1 0.34 1 0.0094 0.0094 0.0098 0.0091 0.0097 0.0017 0.0099 0.01 0.0011 0.12 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1
PWY-40~putrescine biosynthesis I 0.17 0.95 1 0.8 0.2 0.96 1 0.83 0.39 1 1 0.25 1 0.34 1 0.006 0.0057 0.0048 0.0066 0.0052 0.0034 0.0043 0.0034 0.0032 -0.62 17 / 18 (94%) 11 / 11 (100%) 6 / 7 (86%) 1 0.857
PWY-7969~5-hydroxybenzimidazolyl adenosylcobamide biosynthesis from adenosylcobinamide-GDP 0.75 0.96 1 0.16 0.79 0.96 1 0.15 NA NA NA 0.82 1 0.67 1 0.0051 0.0051 0.0048 0.0052 0.0051 0.002 0.0049 0.0042 0.0019 -0.086 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1
PWY-7226~guanosine deoxyribonucleotides de novo biosynthesis I 0.86 0.96 1 -0.079 0.37 0.96 1 -0.42 0.6 1 1 0.36 1 0.4 1 0.002 0.0014 0.00046 0.0016 0.00016 0.0028 0.0011 0.00085 0.0012 -0.54 13 / 18 (72%) 7 / 11 (64%) 6 / 7 (86%) 0.636 0.857
PWY-6317~D-galactose degradation I (Leloir pathway) 0.08 0.95 1 1.1 0.28 0.96 1 0.62 NA NA NA 0.45 1 0.58 1 0.023 0.023 0.024 0.025 0.026 0.0039 0.02 0.021 0.0057 -0.32 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1
PWY-6387~UDP-N-acetylmuramoyl-pentapeptide biosynthesis I (meso-diaminopimelate containing) 0.3 0.95 1 0.61 0.56 0.96 1 0.34 NA NA NA 0.85 1 0.85 1 0.017 0.017 0.017 0.018 0.018 0.0025 0.016 0.015 0.0042 -0.17 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1
PWY-6964~ammonia assimilation cycle II 0.12 0.95 1 0.94 0.52 0.96 1 0.36 NA NA NA 0.8 1 0.9 1 0.045 0.045 0.045 0.047 0.045 0.0055 0.041 0.042 0.0089 -0.2 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1
PWY-6619~adenine and adenosine salvage VI 0.69 0.96 1 0.22 0.46 0.96 1 0.39 0.32 1 1 0.57 1 0.59 1 3e-04 1e-04 0 8.7e-05 0 0.00012 0.00012 0 0.00032 0.46 6 / 18 (33%) 5 / 11 (45%) 1 / 7 (14%) 0.455 0.143
PWY-7663~gondoate biosynthesis (anaerobic) 0.3 0.95 1 0.53 0.19 0.96 1 0.66 NA NA NA 0.34 1 0.27 1 0.0053 0.0053 0.0039 0.0061 0.0042 0.0045 0.004 0.0027 0.0043 -0.61 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1
PWY-6828~linezolid resistance 0.13 0.95 1 0.66 0.2 0.96 1 0.58 0.64 1 1 0.55 1 0.51 1 0.00024 9.2e-05 0 0.00014 0 0.00021 2.1e-05 0 3.7e-05 -2.7 7 / 18 (39%) 5 / 11 (45%) 2 / 7 (29%) 0.455 0.286
PWY0-1296~purine ribonucleosides degradation 0.34 0.95 1 -0.49 0.7 0.96 1 -0.19 NA NA NA 0.36 1 0.53 1 0.01 0.01 0.01 0.0095 0.0092 0.0029 0.011 0.011 0.0031 0.21 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1
PWY-6578~8-amino-7-oxononanoate biosynthesis III 0.25 0.95 1 0.58 0.21 0.96 1 0.67 0.15 1 1 0.45 1 0.44 0.99 0.00034 0.00013 0 0.00016 5.9e-05 0.00022 8.1e-05 0 0.00021 -0.98 7 / 18 (39%) 6 / 11 (55%) 1 / 7 (14%) 0.545 0.143
PWY0-1182~trehalose degradation II (cytosolic) 0.43 0.95 1 0.36 0.7 0.96 1 0.18 1 1 1 0.69 1 0.61 1 0.0024 0.0016 0.00054 0.002 8e-04 0.0033 0.00085 0.00048 0.0012 -1.2 12 / 18 (67%) 7 / 11 (64%) 5 / 7 (71%) 0.636 0.714
ASPARAGINE-DEG1-PWY-1~L-asparagine degradation III (mammalian) 0.6 0.96 1 -0.28 0.81 0.96 1 -0.13 1 1 1 0.61 1 0.66 1 0.00036 2e-04 6.1e-05 0.00015 7.7e-05 0.00019 0.00028 4.5e-05 0.00039 0.9 10 / 18 (56%) 6 / 11 (55%) 4 / 7 (57%) 0.545 0.571
PWY-6282~palmitoleate biosynthesis I (from (5Z)-dodec-5-enoate) 0.3 0.95 1 0.53 0.19 0.96 1 0.67 NA NA NA 0.32 1 0.26 1 0.0053 0.0053 0.0039 0.0061 0.0042 0.0045 0.004 0.0027 0.0042 -0.61 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1

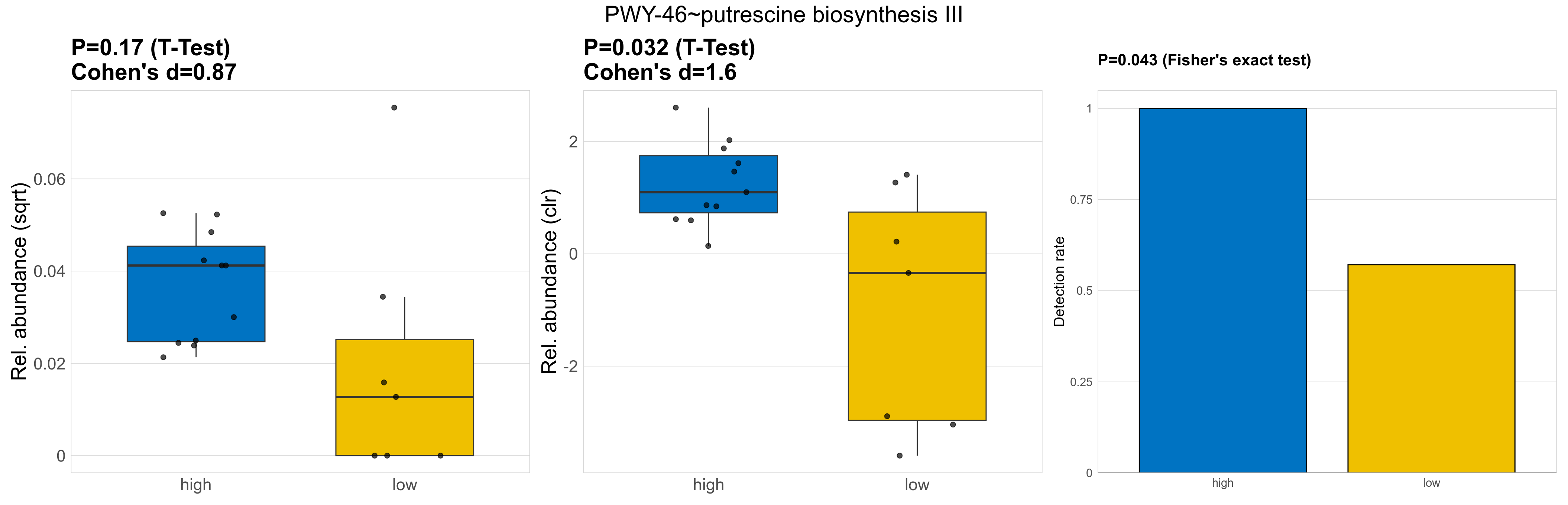

PWY-46~putrescine biosynthesis III 0.17 0.95 1 0.87 0.032 0.96 1 1.6 0.043 1 1 0.077 1 0.076 0.99 0.0016 0.0013 0.00076 0.0015 0.0017 0.00089 0.001 0.00016 0.0021 -0.58 15 / 18 (83%) 11 / 11 (100%) 4 / 7 (57%) 1 0.571
PWY-2941~L-lysine biosynthesis II 0.24 0.95 1 0.61 0.22 0.96 1 0.8 0.14 1 1 0.27 1 0.51 1 0.0018 0.0016 0.00093 0.0019 0.001 0.0021 0.0012 0.00031 0.0013 -0.66 16 / 18 (89%) 11 / 11 (100%) 5 / 7 (71%) 1 0.714
PWY-7509~cardiolipin and phosphatidylethanolamine biosynthesis (Xanthomonas) 0.17 0.95 1 0.79 0.28 0.96 1 0.63 NA NA NA 0.37 1 0.51 1 0.0031 0.0031 0.0032 0.0035 0.0035 0.0011 0.0026 0.0019 0.0015 -0.43 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1
PWY-6759~hydrogen production III 0.82 0.96 1 -0.13 0.97 0.99 1 0.022 NA NA NA 0.69 1 0.6 1 0.031 0.031 0.03 0.03 0.03 0.0075 0.032 0.036 0.011 0.093 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1
GLYSYN-THR-PWY~glycine biosynthesis IV 0.22 0.95 1 0.66 0.42 0.96 1 0.49 NA NA NA 0.59 1 0.74 1 0.011 0.011 0.01 0.012 0.01 0.0033 0.0099 0.0098 0.0037 -0.28 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1
PWY-6839~2-aminoethylphosphonate biosynthesis 0.21 0.95 1 -0.77 0.25 0.96 1 -0.66 0.63 1 1 0.36 1 0.32 0.99 0.00041 0.00014 0 4.9e-05 0 0.00011 0.00028 0 0.00035 2.5 6 / 18 (33%) 3 / 11 (27%) 3 / 7 (43%) 0.273 0.429
PWY-7965~2-methyladeninyl adenosylcobamide biosynthesis from adenosylcobinamide-GDP 0.75 0.96 1 0.16 0.79 0.96 1 0.15 NA NA NA 0.81 1 0.64 1 0.0051 0.0051 0.0048 0.0052 0.0051 0.002 0.0049 0.0042 0.0019 -0.086 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1
PWY0-1535~D-serine degradation 0.15 0.95 1 -0.84 0.15 0.96 1 -0.76 0.37 1 1 0.34 1 0.26 0.99 0.00018 1e-04 7.1e-05 5.1e-05 0 6.8e-05 0.00018 0.00013 0.00023 1.8 10 / 18 (56%) 5 / 11 (45%) 5 / 7 (71%) 0.455 0.714

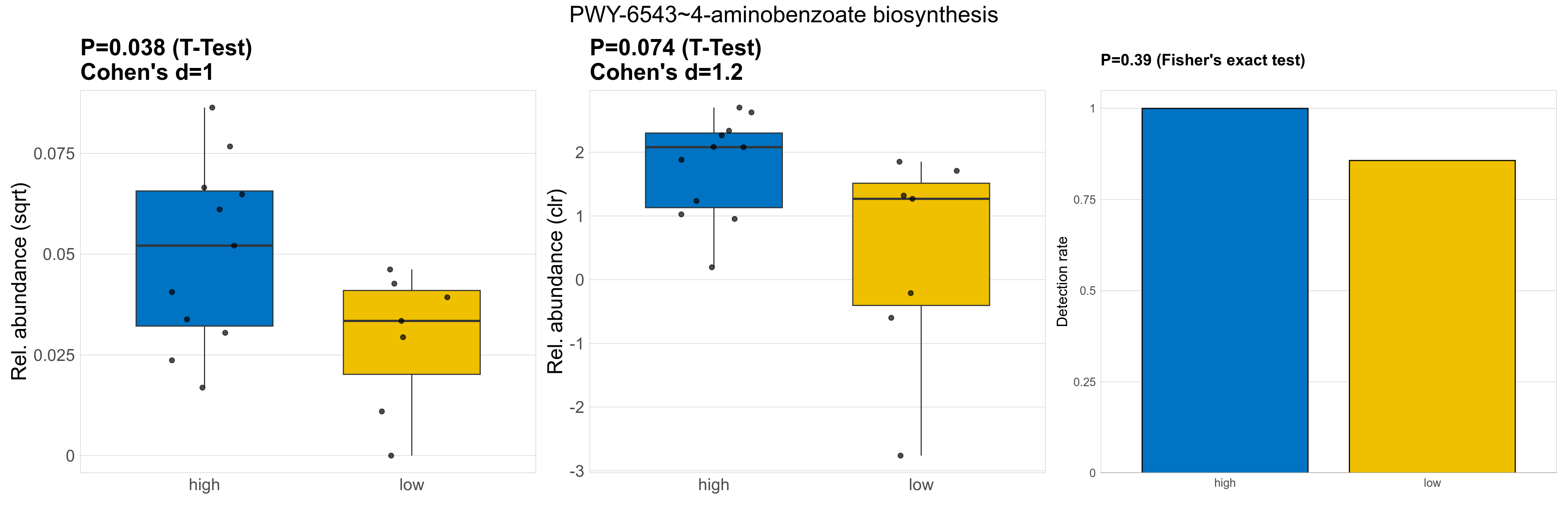

PWY-6543~4-aminobenzoate biosynthesis 0.038 0.95 1 1 0.074 0.96 1 1.2 0.39 1 1 0.12 1 0.065 0.99 0.0024 0.0023 0.0016 0.003 0.0027 0.0024 0.0011 0.0011 0.00082 -1.4 17 / 18 (94%) 11 / 11 (100%) 6 / 7 (86%) 1 0.857
PWY0-1546~muropeptide degradation 0.77 0.96 1 0.14 0.64 0.96 1 0.2 1 1 1 0.56 1 0.6 1 0.00035 9.8e-05 0 0.00011 0 0.00026 7.2e-05 0 0.00018 -0.61 5 / 18 (28%) 3 / 11 (27%) 2 / 7 (29%) 0.273 0.286
PWY-5989~stearate biosynthesis II (bacteria and plants) 0.39 0.95 1 0.43 0.42 0.96 1 0.43 1 1 1 0.57 1 0.48 1 0.0056 0.0049 0.0032 0.0057 0.0035 0.0046 0.0038 0.0026 0.0039 -0.58 16 / 18 (89%) 10 / 11 (91%) 6 / 7 (86%) 0.909 0.857
PWY-6788~cellulose degradation II (fungi) 0.74 0.96 1 0.18 0.5 0.96 1 0.35 1 1 1 0.53 1 0.67 1 0.0072 0.0056 0.0042 0.0055 0.0041 0.004 0.0059 0.0042 0.0079 0.1 14 / 18 (78%) 9 / 11 (82%) 5 / 7 (71%) 0.818 0.714
PWYQT-4429~CO2 fixation into oxaloacetate (anaplerotic) 0.61 0.96 1 0.23 0.89 0.98 1 0.065 1 1 1 0.77 1 0.74 1 0.0031 0.0026 0.002 0.003 0.0026 0.0031 0.0019 0.0015 0.0017 -0.66 15 / 18 (83%) 9 / 11 (82%) 6 / 7 (86%) 0.818 0.857
GALACT-GLUCUROCAT-PWY~superpathway of hexuronide and hexuronate degradation 0.27 0.95 1 0.53 0.42 0.96 1 0.4 1 1 1 0.59 1 0.32 1 0.0035 0.0032 0.0028 0.0038 0.0032 0.003 0.0021 0.0018 0.0018 -0.86 16 / 18 (89%) 10 / 11 (91%) 6 / 7 (86%) 0.909 0.857
PWY-5122~geranyl diphosphate biosynthesis 0.26 0.95 1 0.57 0.14 0.96 1 0.94 0.14 1 1 0.28 1 0.34 1 0.0013 0.0011 0.00089 0.0014 0.00098 0.0014 0.00079 0.00084 0.00085 -0.83 16 / 18 (89%) 11 / 11 (100%) 5 / 7 (71%) 1 0.714
PWY-5891~menaquinol-11 biosynthesis 0.98 0.99 1 -0.0099 0.82 0.96 1 -0.11 1 1 1 0.58 1 0.71 1 0.0018 0.00092 6.1e-05 0.001 0 0.0018 8e-04 0.00012 0.0011 -0.32 9 / 18 (50%) 5 / 11 (45%) 4 / 7 (57%) 0.455 0.571
PWY-5493~reductive monocarboxylic acid cycle 0.38 0.95 1 0.54 0.55 0.96 1 0.35 NA NA NA 0.79 1 0.93 1 0.035 0.035 0.034 0.036 0.034 0.0049 0.032 0.032 0.012 -0.17 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1
XYLCAT-PWY~D-xylose degradation I 0.29 0.95 1 0.54 0.22 0.96 1 0.75 NA NA NA 0.29 1 0.31 1 0.0052 0.0052 0.0046 0.0059 0.0053 0.0041 0.004 0.004 0.0031 -0.56 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1
PWY0-1295~pyrimidine ribonucleosides degradation 0.38 0.95 1 -0.5 0.77 0.96 1 -0.16 NA NA NA 0.43 1 0.49 1 0.0069 0.0069 0.0067 0.0064 0.0064 0.0015 0.0076 0.008 0.0028 0.25 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1
GLNSYN-PWY~L-glutamine biosynthesis I 0.37 0.95 1 0.54 0.69 0.96 1 0.23 NA NA NA 0.92 1 0.68 1 0.048 0.048 0.049 0.049 0.049 0.0046 0.046 0.05 0.0093 -0.091 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1
PWY-7219~adenosine ribonucleotides de novo biosynthesis 0.21 0.95 1 0.69 0.55 0.96 1 0.35 NA NA NA 0.79 1 0.81 1 0.016 0.016 0.017 0.017 0.018 0.0032 0.015 0.014 0.0039 -0.18 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1
PWY-5382~hydrogen oxidation II (aerobic NAD) 0.42 0.95 1 0.35 0.56 0.96 1 0.29 1 1 1 0.59 1 0.64 1 0.00077 0.00026 0 0.00035 0 0.00073 0.00011 0 2e-04 -1.7 6 / 18 (33%) 4 / 11 (36%) 2 / 7 (29%) 0.364 0.286
PWY-5970~fatty acids biosynthesis (yeast) 0.27 0.95 1 0.57 0.22 0.96 1 0.66 1 1 1 0.3 1 0.42 1 0.0042 0.0038 0.0031 0.0044 0.0031 0.0033 0.0027 0.0024 0.0028 -0.7 16 / 18 (89%) 10 / 11 (91%) 6 / 7 (86%) 0.909 0.857
PWY-7971~adenosylcobinamide-GDP salvage from cobinamide I 0.35 0.95 1 0.49 0.46 0.96 1 0.42 NA NA NA 0.57 1 0.8 1 0.0027 0.0027 0.0023 0.003 0.0031 0.0013 0.0023 0.0016 0.0016 -0.38 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1
PWY-6758~hydrogen production II 0.42 0.95 1 0.35 0.56 0.96 1 0.29 1 1 1 0.58 1 0.62 1 0.00077 0.00026 0 0.00035 0 0.00073 0.00011 0 2e-04 -1.7 6 / 18 (33%) 4 / 11 (36%) 2 / 7 (29%) 0.364 0.286
PWY-6197~chlorinated phenols degradation 0.22 0.95 1 -0.72 0.39 0.96 1 -0.42 NA NA NA 0.28 1 0.47 1 0.0015 0.0015 0.0013 0.0012 0.0011 0.00063 0.002 0.0018 0.0014 0.74 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1
PWY-7909~formaldehyde oxidation VII (THF pathway) 0.95 0.99 1 -0.027 0.41 0.96 1 -0.38 0.33 1 1 0.38 1 0.45 1 0.0011 0.00053 4.5e-05 0.00066 0 0.0013 0.00033 0.00018 4e-04 -1 9 / 18 (50%) 4 / 11 (36%) 5 / 7 (71%) 0.364 0.714
PWY-7195~pyrimidine ribonucleosides salvage III 0.3 0.95 1 0.56 0.2 0.96 1 0.72 0.14 1 1 0.31 1 0.47 1 0.0019 0.0013 0.00098 0.0015 0.0012 0.0013 0.00097 0 0.0013 -0.63 12 / 18 (67%) 9 / 11 (82%) 3 / 7 (43%) 0.818 0.429
OANTIGEN-PWY~O-antigen building blocks biosynthesis (E. coli) 0.53 0.96 1 0.34 0.39 0.96 1 0.51 0.39 1 1 0.53 1 0.68 1 0.0038 0.0036 0.0031 0.0038 0.0034 0.0025 0.0032 0.0029 0.0024 -0.25 17 / 18 (94%) 11 / 11 (100%) 6 / 7 (86%) 1 0.857
PWY-5154~L-arginine biosynthesis III (via N-acetyl-L-citrulline) 0.42 0.95 1 -0.36 0.11 0.96 1 -0.79 0.14 1 1 0.16 0.99 0.15 1 0.0019 0.00083 0 0.00088 0 0.0022 0.00076 0.001 0.00068 -0.21 8 / 18 (44%) 3 / 11 (27%) 5 / 7 (71%) 0.273 0.714
PWY-6122~5-aminoimidazole ribonucleotide biosynthesis II 0.88 0.97 1 0.069 0.88 0.98 1 0.091 NA NA NA 0.73 1 0.49 1 0.021 0.021 0.021 0.021 0.02 0.005 0.021 0.021 0.0039 0 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1
GLUTSYN-PWY~L-glutamate biosynthesis I 0.16 0.95 1 0.84 0.55 0.96 1 0.34 NA NA NA 0.84 1 0.91 1 0.091 0.091 0.091 0.095 0.094 0.011 0.084 0.085 0.018 -0.18 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1
PWY-2301~myo-inositol biosynthesis 0.32 0.95 1 0.44 0.73 0.96 1 0.16 0.5 1 1 0.7 1 0.59 1 0.0016 0.0015 0.0012 0.0019 0.0013 0.002 0.00086 0.00042 0.00094 -1.1 16 / 18 (89%) 9 / 11 (82%) 7 / 7 (100%) 0.818 1
PWY-6898~thiamine salvage III 0.11 0.95 1 0.88 0.44 0.96 1 0.47 NA NA NA 0.63 1 0.75 1 0.0081 0.0081 0.0077 0.0087 0.0079 0.0018 0.0071 0.0067 0.002 -0.29 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1
PWY0-1241~ADP-L-glycero-β-D-manno-heptose biosynthesis 0.65 0.96 1 -0.24 0.61 0.96 1 -0.25 0.63 1 1 0.47 1 0.53 1 0.00052 0.00017 0 0.00013 0 0.00026 0.00024 0 0.00051 0.88 6 / 18 (33%) 3 / 11 (27%) 3 / 7 (43%) 0.273 0.429
PWY-7964~adeninyl adenosylcobamide biosynthesis from adenosylcobinamide-GDP 0.75 0.96 1 0.16 0.79 0.96 1 0.15 NA NA NA 0.79 1 0.65 1 0.0051 0.0051 0.0048 0.0052 0.0051 0.002 0.0049 0.0042 0.0019 -0.086 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1
NONMEVIPP-PWY~methylerythritol phosphate pathway I 0.14 0.95 1 0.96 0.33 0.96 1 0.58 NA NA NA 0.49 1 0.73 1 0.014 0.014 0.014 0.015 0.015 0.0022 0.012 0.012 0.0044 -0.32 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1
OXIDATIVEPENT-PWY~pentose phosphate pathway (oxidative branch) I 0.46 0.96 1 0.36 0.41 0.96 1 0.46 0.53 1 1 0.49 1 0.67 1 0.0035 0.003 0.0025 0.0034 0.0026 0.0032 0.0023 0.0024 0.0019 -0.56 15 / 18 (83%) 10 / 11 (91%) 5 / 7 (71%) 0.909 0.714
PWY-5384~sucrose degradation IV (sucrose phosphorylase) 0.088 0.95 1 1 0.12 0.96 1 1 0.39 1 1 0.15 1 0.066 1 0.0062 0.0059 0.0074 0.0071 0.0076 0.0032 0.0039 0.0023 0.0037 -0.86 17 / 18 (94%) 11 / 11 (100%) 6 / 7 (86%) 1 0.857
PWY0-1586~peptidoglycan maturation (meso-diaminopimelate containing) 0.14 0.95 1 -0.81 0.084 0.96 1 -0.79 0.5 1 1 0.071 1 0.11 1 0.0032 0.0029 0.0017 0.002 0.0016 0.0017 0.0043 0.003 0.004 1.1 16 / 18 (89%) 9 / 11 (82%) 7 / 7 (100%) 0.818 1
PWY-5785~di-transpoly-cis-undecaprenyl phosphate biosynthesis 0.25 0.95 1 0.55 0.25 0.96 1 0.58 0.39 1 1 0.41 1 0.22 1 0.0015 0.0014 0.0011 0.0017 0.0015 0.0015 0.00095 0.00053 0.00097 -0.84 17 / 18 (94%) 11 / 11 (100%) 6 / 7 (86%) 1 0.857
TRESYN-PWY~trehalose biosynthesis I 0.54 0.96 1 0.26 0.96 0.99 1 0.022 1 1 1 0.61 1 0.72 1 0.0013 0.00067 4.7e-05 0.00095 0 0.002 0.00024 9.4e-05 0.00032 -2 9 / 18 (50%) 5 / 11 (45%) 4 / 7 (57%) 0.455 0.571
PWY0-881~superpathway of fatty acid biosynthesis I (E. coli) 0.66 0.96 1 0.19 0.75 0.96 1 -0.15 0.37 1 1 0.57 1 0.78 1 0.0028 0.0015 0.00025 0.002 0 0.0033 0.00082 3e-04 0.001 -1.3 10 / 18 (56%) 5 / 11 (45%) 5 / 7 (71%) 0.455 0.714
PWY-6587~pyruvate fermentation to ethanol III 0.94 0.99 1 0.038 0.99 0.99 1 -0.0056 1 1 1 0.73 1 0.81 1 0.0014 0.00092 0.00054 0.00094 0.00043 0.0011 0.00088 0.00064 0.0013 -0.095 12 / 18 (67%) 7 / 11 (64%) 5 / 7 (71%) 0.636 0.714
PWY-2622~trehalose biosynthesis IV 0.76 0.96 1 0.15 0.78 0.96 1 0.15 NA NA NA 0.85 1 0.85 1 0.0034 0.0034 0.0031 0.0035 0.0031 0.002 0.0032 0.003 0.0017 -0.13 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1
COA-PWY-1~superpathway of coenzyme A biosynthesis III (mammals) 0.36 0.95 1 0.48 0.5 0.96 1 0.41 NA NA NA 0.74 1 0.8 1 0.0083 0.0083 0.0078 0.0089 0.0087 0.0029 0.0075 0.0064 0.0033 -0.25 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1
MET-SAM-PWY~superpathway of S-adenosyl-L-methionine biosynthesis 0.74 0.96 1 -0.16 0.7 0.96 1 -0.19 1 1 1 0.54 1 0.58 1 0.00091 0.00035 0 0.00034 0 0.00087 0.00038 0 6e-04 0.16 7 / 18 (39%) 4 / 11 (36%) 3 / 7 (43%) 0.364 0.429
PWY-6124~inosine-5-phosphate biosynthesis II 0.072 0.95 1 1 0.29 0.96 1 0.65 NA NA NA 0.36 1 0.55 1 0.012 0.012 0.011 0.013 0.013 0.003 0.0095 0.01 0.0036 -0.45 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1

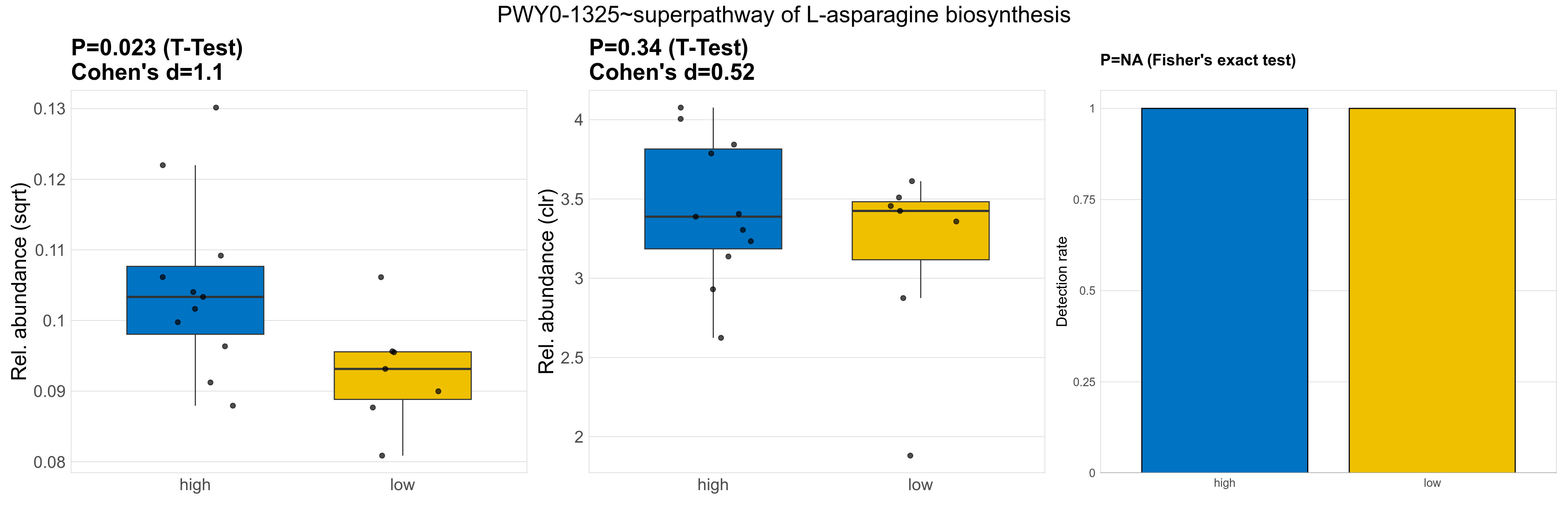

PWY0-1325~superpathway of L-asparagine biosynthesis 0.023 0.95 1 1.1 0.34 0.96 1 0.52 NA NA NA 0.56 1 0.67 1 0.01 0.01 0.0096 0.011 0.011 0.0027 0.0086 0.0087 0.0015 -0.36 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1
P21-PWY~pentose phosphate pathway (partial) 0.12 0.95 1 1 0.34 0.96 1 0.56 NA NA NA 0.46 1 0.53 1 0.022 0.022 0.022 0.023 0.024 0.0032 0.019 0.019 0.007 -0.28 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1
FASYN-ELONG-PWY~fatty acid elongation -- saturated 0.17 0.95 1 0.69 0.067 0.96 1 0.98 NA NA NA 0.13 1 0.13 0.99 0.0059 0.0059 0.0045 0.0071 0.0049 0.0049 0.0041 0.0026 0.0038 -0.79 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1
PWY-6608~guanosine nucleotides degradation III 0.37 0.95 1 -0.5 0.63 0.96 1 -0.25 NA NA NA 0.43 1 0.41 1 0.0038 0.0038 0.0039 0.0032 0.0035 0.0018 0.0049 0.0057 0.0031 0.61 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1
GLUTSYNIII-PWY~L-glutamate biosynthesis III 0.58 0.96 1 -0.25 0.18 0.96 1 -0.65 0.32 1 1 0.19 1 0.21 1 0.0026 0.0017 0.00033 0.0018 7.5e-05 0.004 0.0016 0.00043 0.0021 -0.17 12 / 18 (67%) 6 / 11 (55%) 6 / 7 (86%) 0.545 0.857
PWY-7211~superpathway of pyrimidine deoxyribonucleotides de novo biosynthesis 0.84 0.96 1 -0.089 0.51 0.96 1 -0.32 0.64 1 1 0.46 1 0.48 1 0.0016 0.00095 0.00011 0.0011 9.5e-05 0.002 0.00078 0.00055 0.00092 -0.5 11 / 18 (61%) 6 / 11 (55%) 5 / 7 (71%) 0.545 0.714
PWY0-1319~CDP-diacylglycerol biosynthesis II 0.65 0.96 1 -0.23 0.79 0.96 1 -0.13 1 1 1 0.62 1 0.71 1 0.001 0.00087 0.00076 0.00077 0.00071 0.00053 0.001 0.00086 0.00093 0.38 15 / 18 (83%) 9 / 11 (82%) 6 / 7 (86%) 0.818 0.857
PENTOSE-P-PWY~pentose phosphate pathway 0.39 0.95 1 0.42 0.5 0.96 1 0.36 1 1 1 0.63 1 0.5 1 0.0032 0.0029 0.0025 0.0033 0.0026 0.003 0.0021 0.0024 0.0017 -0.65 16 / 18 (89%) 10 / 11 (91%) 6 / 7 (86%) 0.909 0.857
PWY-5966~fatty acid biosynthesis initiation II 0.19 0.95 1 0.68 0.11 0.96 1 1 0.39 1 1 0.15 1 0.17 1 0.0056 0.0053 0.004 0.0063 0.0044 0.005 0.0036 0.0024 0.0039 -0.81 17 / 18 (94%) 11 / 11 (100%) 6 / 7 (86%) 1 0.857
PWY-5938~pyruvate fermentation to (R)-acetoin I 0.67 0.96 1 0.19 0.83 0.96 1 0.1 1 1 1 0.62 1 0.7 1 0.00049 0.00014 0 0.00018 0 0.00044 6.7e-05 0 0.00012 -1.4 5 / 18 (28%) 3 / 11 (27%) 2 / 7 (29%) 0.273 0.286
PWY-6125~superpathway of guanosine nucleotides de novo biosynthesis II 0.84 0.96 1 -0.091 0.38 0.96 1 -0.42 0.37 1 1 0.37 1 0.39 1 0.0019 0.001 0.00018 0.0012 0 0.0023 0.00077 0.00059 0.00084 -0.64 10 / 18 (56%) 5 / 11 (45%) 5 / 7 (71%) 0.455 0.714
POLYISOPRENSYN-PWY~polyisoprenoid biosynthesis (E. coli) 0.27 0.95 1 0.55 0.19 0.96 1 0.68 0.33 1 1 0.37 1 0.31 1 0.0016 0.00096 0.00073 0.0012 0.00084 0.0014 6e-04 0 0.00085 -1 11 / 18 (61%) 8 / 11 (73%) 3 / 7 (43%) 0.727 0.429
PWY-6549~L-glutamine biosynthesis III 0.75 0.96 1 0.16 0.72 0.96 1 0.18 1 1 1 0.67 1 0.73 1 0.00081 0.00027 0 0.00029 0 0.00043 0.00024 0 5e-04 -0.27 6 / 18 (33%) 4 / 11 (36%) 2 / 7 (29%) 0.364 0.286
ASPARAGINE-DEG1-PWY~L-asparagine degradation I 0.36 0.95 1 0.41 0.44 0.96 1 0.42 NA NA NA 0.74 1 0.62 1 0.0087 0.0087 0.0081 0.0095 0.0087 0.0046 0.0075 0.0079 0.0027 -0.34 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1
PWY-5807~heptaprenyl diphosphate biosynthesis 0.62 0.96 1 0.23 0.76 0.96 1 0.13 1 1 1 0.71 1 0.63 1 0.00088 0.00084 0.00079 0.00092 9e-04 0.00071 7e-04 0.00074 0.00056 -0.39 17 / 18 (94%) 10 / 11 (91%) 7 / 7 (100%) 0.909 1
PWY0-501~lipoate biosynthesis and incorporation I 0.57 0.96 1 -0.28 0.5 0.96 1 -0.35 1 1 1 0.4 1 0.36 1 0.0013 0.00064 7.1e-05 0.00058 0 0.0013 0.00073 2e-04 0.00095 0.33 9 / 18 (50%) 5 / 11 (45%) 4 / 7 (57%) 0.455 0.571
PWY-4341~L-glutamate biosynthesis V 0.073 0.95 1 1.1 0.43 0.96 1 0.43 NA NA NA 0.66 1 0.75 1 0.045 0.045 0.046 0.048 0.049 0.0066 0.04 0.038 0.0093 -0.26 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1
HOMOSER-THRESYN-PWY~L-threonine biosynthesis 0.23 0.95 1 0.6 0.43 0.96 1 0.43 NA NA NA 0.66 1 0.6 1 0.008 0.008 0.008 0.0086 0.0089 0.0026 0.007 0.0077 0.0024 -0.3 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1
PWY-5030~L-histidine degradation III 0.7 0.96 1 -0.18 0.35 0.96 1 -0.47 0.33 1 1 0.38 1 0.46 1 0.002 0.00098 8.1e-05 0.001 0 0.0021 0.00092 0.00032 0.0015 -0.12 9 / 18 (50%) 4 / 11 (36%) 5 / 7 (71%) 0.364 0.714
PWY-5097~L-lysine biosynthesis VI 0.28 0.95 1 0.67 0.56 0.96 1 0.34 NA NA NA 0.86 1 0.84 1 0.018 0.018 0.019 0.018 0.019 0.002 0.017 0.017 0.0043 -0.082 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1
ANAEROFRUCAT-PWY~homolactic fermentation 0.48 0.96 1 0.4 0.59 0.96 1 0.32 NA NA NA 0.85 1 0.86 1 0.014 0.014 0.014 0.015 0.014 0.0026 0.014 0.015 0.0042 -0.1 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1
PWY-7494~choline degradation IV 0.67 0.96 1 -0.2 0.57 0.96 1 -0.27 1 1 1 0.5 1 0.58 1 0.001 0.00051 7.5e-05 5e-04 0 0.00096 0.00051 0.00064 0.00051 0.029 9 / 18 (50%) 5 / 11 (45%) 4 / 7 (57%) 0.455 0.571
PWY-5347~superpathway of L-methionine biosynthesis (transsulfuration) 0.59 0.96 1 -0.27 0.49 0.96 1 -0.35 0.63 1 1 0.5 1 0.52 1 0.0012 0.00038 0 0.00034 0 0.00095 0.00045 0 0.00076 0.4 6 / 18 (33%) 3 / 11 (27%) 3 / 7 (43%) 0.273 0.429
PWY-7459~kojibiose degradation 0.01 0.89 1 -1.7 0.0064 0.96 1 -1.4 1 1 1 0.012 0.92 0.0098 0.86 0.00088 0.00083 0.00051 0.00039 0.00033 0.00035 0.0015 0.0011 0.0011 1.9 17 / 18 (94%) 10 / 11 (91%) 7 / 7 (100%) 0.909 1
ASPARTATE-DEG1-PWY~L-aspartate degradation I 0.85 0.96 1 -0.093 0.99 0.99 1 0.0068 NA NA NA 0.48 1 0.48 1 0.02 0.02 0.021 0.02 0.019 0.0069 0.021 0.023 0.0057 0.07 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1
PWY-6700~queuosine biosynthesis 0.73 0.96 1 -0.16 0.81 0.96 1 -0.13 NA NA NA 0.52 1 0.66 1 0.0029 0.0029 0.0025 0.0028 0.0022 0.0018 0.003 0.0027 0.0017 0.1 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1
PWY-6922~L-Nδ-acetylornithine biosynthesis 0.59 0.96 1 0.24 0.78 0.96 1 0.13 1 1 1 0.61 1 0.68 1 0.0017 0.00046 0 0.00063 0 0.0013 2e-04 0 0.00035 -1.7 5 / 18 (28%) 3 / 11 (27%) 2 / 7 (29%) 0.273 0.286
GOLPDLCAT-PWY~superpathway of glycerol degradation to 13-propanediol 0.44 0.95 1 -0.44 0.56 0.96 1 -0.33 1 1 1 0.5 1 0.51 1 0.00046 1e-04 0 4.9e-05 0 0.00011 0.00019 0 0.00035 2 4 / 18 (22%) 2 / 11 (18%) 2 / 7 (29%) 0.182 0.286
GLUTDEG-PWY~L-glutamate degradation II 0.66 0.96 1 -0.25 0.92 0.98 1 -0.059 NA NA NA 0.52 1 0.71 1 0.0091 0.0091 0.0091 0.0085 0.0072 0.0036 0.01 0.011 0.0056 0.23 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1
PWY-6284~superpathway of unsaturated fatty acids biosynthesis (E. coli) 0.27 0.95 1 0.57 0.14 0.96 1 0.78 NA NA NA 0.24 1 0.23 1 0.0052 0.0052 0.0039 0.006 0.0042 0.0044 0.0038 0.0027 0.004 -0.66 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1
P142-PWY~pyruvate fermentation to acetate I 0.86 0.96 1 0.085 0.85 0.97 1 0.1 NA NA NA 0.76 1 0.68 1 0.017 0.017 0.018 0.017 0.018 0.0043 0.017 0.016 0.0046 0 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1
FASYN-INITIAL-PWY~superpathway of fatty acid biosynthesis initiation (E. coli) 0.71 0.96 1 0.17 0.92 0.98 1 0.047 1 1 1 0.62 1 0.71 1 0.0019 0.00072 0 9e-04 0 0.0018 0.00043 0 0.00085 -1.1 7 / 18 (39%) 4 / 11 (36%) 3 / 7 (43%) 0.364 0.429
PWY0-461~L-lysine degradation I 0.59 0.96 1 0.32 0.36 0.96 1 0.57 0.39 1 1 0.48 1 0.72 1 0.005 0.0047 0.0049 0.0049 0.0048 0.0022 0.0045 0.0054 0.0029 -0.12 17 / 18 (94%) 11 / 11 (100%) 6 / 7 (86%) 1 0.857
PWY-5890~menaquinol-10 biosynthesis 0.98 0.99 1 -0.0099 0.82 0.96 1 -0.11 1 1 1 0.56 1 0.68 1 0.0018 0.00092 6.1e-05 0.001 0 0.0018 8e-04 0.00012 0.0011 -0.32 9 / 18 (50%) 5 / 11 (45%) 4 / 7 (57%) 0.455 0.571
PWY-6744~hydrogen production I 0.44 0.95 1 -0.41 0.56 0.96 1 -0.32 0.53 1 1 0.44 0.99 0.46 0.99 8.5e-05 1.4e-05 0 9.9e-06 0 3.3e-05 2.1e-05 0 3.7e-05 1.1 3 / 18 (17%) 1 / 11 (9.1%) 2 / 7 (29%) 0.0909 0.286
COA-PWY~coenzyme A biosynthesis I (prokaryotic) 0.23 0.95 1 0.63 0.39 0.96 1 0.52 NA NA NA 0.58 1 0.81 1 0.0081 0.0081 0.0077 0.0088 0.0082 0.0029 0.0071 0.006 0.0029 -0.31 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1
PWY0-1312~acetate and ATP formation from acetyl-CoA I 0.95 0.99 1 0.028 0.87 0.97 1 0.092 NA NA NA 0.59 1 0.65 1 0.013 0.013 0.013 0.013 0.013 0.0034 0.013 0.013 0.003 0 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1
METSYN-PWY~superpathway of L-homoserine and L-methionine biosynthesis 0.73 0.96 1 -0.17 0.69 0.96 1 -0.2 1 1 1 0.59 1 0.65 1 0.00093 0.00036 0 0.00035 0 0.00088 0.00039 0 0.00061 0.16 7 / 18 (39%) 4 / 11 (36%) 3 / 7 (43%) 0.364 0.429
PWY4FS-8~phosphatidylglycerol biosynthesis II (non-plastidic) 0.37 0.95 1 0.52 0.18 0.96 1 0.78 0.25 1 1 0.36 1 0.39 1 0.0011 0.00084 0.00093 0.00091 0.001 0.00052 0.00074 6e-04 0.00095 -0.3 14 / 18 (78%) 10 / 11 (91%) 4 / 7 (57%) 0.909 0.571
PWY0-1314~fructose degradation 0.32 0.95 1 -0.56 0.49 0.96 1 -0.37 1 1 1 0.51 1 0.4 1 0.00038 0.00021 0.00011 0.00012 1e-04 0.00015 0.00034 0.00034 0.00036 1.5 10 / 18 (56%) 6 / 11 (55%) 4 / 7 (57%) 0.545 0.571
GLUTAMATE-SYN2-PWY~L-glutamate biosynthesis II 0.93 0.99 1 -0.041 0.98 0.99 1 -0.011 1 1 1 0.66 1 0.75 1 0.0016 0.00072 0 0.00072 0 0.0016 0.00071 0 0.0012 -0.02 8 / 18 (44%) 5 / 11 (45%) 3 / 7 (43%) 0.455 0.429
PWY-7198~pyrimidine deoxyribonucleotides de novo biosynthesis IV 0.18 0.95 1 -0.89 0.17 0.96 1 -0.81 0.33 1 1 0.38 1 0.36 1 0.0011 3e-04 0 4.7e-05 0 0.00012 7e-04 0 0.0013 3.9 5 / 18 (28%) 2 / 11 (18%) 3 / 7 (43%) 0.182 0.429
PWY-5951~(RR)-butanediol biosynthesis 0.94 0.99 1 -0.037 0.93 0.98 1 -0.041 1 1 1 0.48 0.99 0.52 1 1e-04 2.3e-05 0 2.6e-05 0 6.8e-05 1.7e-05 0 3e-05 -0.61 4 / 18 (22%) 2 / 11 (18%) 2 / 7 (29%) 0.182 0.286
ORN-AMINOPENTANOATE-CAT-PWY~L-ornithine degradation I (L-proline biosynthesis) 0.97 0.99 1 0.02 0.83 0.96 1 0.11 1 1 1 0.73 1 0.86 1 0.00098 0.00076 0.00057 0.00076 0.00057 0.00085 0.00076 9e-04 0.00061 0 14 / 18 (78%) 9 / 11 (82%) 5 / 7 (71%) 0.818 0.714
PWY-6293~superpathway of L-cysteine biosynthesis (fungi) 0.25 0.95 1 0.55 0.27 0.96 1 0.57 0.33 1 1 0.37 1 0.32 1 0.0031 0.0022 0.00094 0.0028 0.0015 0.0034 0.0013 0.00058 0.002 -1.1 13 / 18 (72%) 9 / 11 (82%) 4 / 7 (57%) 0.818 0.571
PWY-5418~phenol degradation I (aerobic) 0.22 0.95 1 -0.72 0.39 0.96 1 -0.42 NA NA NA 0.27 1 0.46 1 0.0015 0.0015 0.0013 0.0012 0.0011 0.00063 0.002 0.0018 0.0014 0.74 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1
PWY-5483~pyruvate fermentation to acetate III 0.68 0.96 1 0.21 0.56 0.96 1 0.3 1 1 1 0.66 1 0.76 1 0.0034 0.0027 0.0022 0.0027 0.0022 0.0023 0.0026 0.0013 0.0029 -0.054 14 / 18 (78%) 9 / 11 (82%) 5 / 7 (71%) 0.818 0.714
ARGSYN-PWY~L-arginine biosynthesis I (via L-ornithine) 0.4 0.95 1 0.51 0.43 0.96 1 0.47 NA NA NA 0.62 1 0.94 1 0.02 0.02 0.021 0.021 0.021 0.004 0.018 0.02 0.0074 -0.22 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1
PWY-7858~(5Z)-dodecenoate biosynthesis II 0.09 0.95 1 -1.2 0.087 0.96 1 -1.2 0.043 1 1 0.29 0.99 0.26 0.98 0.00019 3.2e-05 0 0 0 0 8.1e-05 0 0.00012 Inf 3 / 18 (17%) 0 / 11 (0%) 3 / 7 (43%) 0 0.429
COMPLETE-ARO-PWY~superpathway of aromatic amino acid biosynthesis 0.69 0.96 1 -0.2 0.67 0.96 1 -0.2 1 1 1 0.52 1 0.64 1 0.0018 0.00089 0.00022 0.00079 0 0.00099 0.001 0.00045 0.0012 0.34 9 / 18 (50%) 5 / 11 (45%) 4 / 7 (57%) 0.455 0.571
PWY-4985~mimosine biosynthesis 0.16 0.95 1 0.71 0.12 0.96 1 0.86 0.14 1 1 0.23 1 0.21 0.99 0.0014 0.00079 0.00034 0.001 0.00045 0.0013 0.00042 0 0.00093 -1.3 10 / 18 (56%) 8 / 11 (73%) 2 / 7 (29%) 0.727 0.286
PWY0-1305~L-glutamate degradation IX (via 4-aminobutanoate) 0.76 0.96 1 0.14 0.74 0.96 1 -0.15 1 1 1 0.59 1 0.86 1 0.0027 0.0025 0.0018 0.0029 0.0019 0.0029 0.002 0.0018 0.0016 -0.54 17 / 18 (94%) 10 / 11 (91%) 7 / 7 (100%) 0.909 1
GLUTAMINDEG-PWY~L-glutamine degradation I 0.11 0.95 1 0.86 0.39 0.96 1 0.53 NA NA NA 0.61 1 0.81 1 0.015 0.015 0.015 0.016 0.016 0.0034 0.013 0.013 0.0031 -0.3 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1
BRANCHED-CHAIN-AA-SYN-PWY~superpathway of branched chain amino acid biosynthesis 0.35 0.95 1 0.52 0.56 0.96 1 0.33 NA NA NA 0.83 1 0.89 1 0.022 0.022 0.023 0.023 0.023 0.0045 0.021 0.02 0.0059 -0.13 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1
PWY-7309~acrylonitrile degradation II 0.52 0.96 1 -0.34 0.64 0.96 1 -0.24 1 1 1 0.54 1 0.48 1 0.00031 0.00021 0.00013 0.00017 8.9e-05 2e-04 0.00027 0.00022 0.00033 0.67 12 / 18 (67%) 7 / 11 (64%) 5 / 7 (71%) 0.636 0.714
PWY-6510~methanol oxidation to formaldehyde II 0.53 0.96 1 0.32 0.58 0.96 1 0.29 0.39 1 1 0.69 1 0.66 1 8e-04 0.00076 0.00068 0.00083 0.00068 0.00056 0.00065 0.00062 0.00047 -0.35 17 / 18 (94%) 11 / 11 (100%) 6 / 7 (86%) 1 0.857
PWY-6163~chorismate biosynthesis from 3-dehydroquinate 0.74 0.96 1 0.2 0.67 0.96 1 0.25 NA NA NA 0.87 1 0.75 1 0.011 0.011 0.012 0.011 0.012 0.002 0.011 0.012 0.0045 0 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1
PWY-5939~pyruvate fermentation to (R)-acetoin II 0.82 0.96 1 -0.1 0.47 0.96 1 -0.34 0.33 1 1 0.39 1 0.52 1 0.00074 0.00037 6e-05 0.00042 0 8e-04 0.00029 0.00015 0.00041 -0.53 9 / 18 (50%) 4 / 11 (36%) 5 / 7 (71%) 0.364 0.714
PWY-7400~L-arginine biosynthesis IV (archaebacteria) 0.37 0.95 1 0.55 0.42 0.96 1 0.49 NA NA NA 0.6 1 0.91 1 0.019 0.019 0.02 0.02 0.021 0.0037 0.018 0.019 0.0074 -0.15 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1
PWY0-1315~L-lactaldehyde degradation (anaerobic) 0.49 0.96 1 0.38 0.6 0.96 1 0.3 NA NA NA 0.86 1 0.9 1 0.015 0.015 0.014 0.015 0.015 0.0035 0.014 0.014 0.0047 -0.1 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1
PRPP-PWY~superpathway of histidine purine and pyrimidine biosynthesis 0.63 0.96 1 0.22 0.94 0.99 1 0.033 1 1 1 0.72 1 0.72 1 0.0026 0.0021 0.0012 0.0024 0.0017 0.0026 0.0015 0.00054 0.0016 -0.68 14 / 18 (78%) 8 / 11 (73%) 6 / 7 (86%) 0.727 0.857
ILEUSYN-PWY~L-isoleucine biosynthesis I (from threonine) 0.47 0.96 1 0.4 0.62 0.96 1 0.28 NA NA NA 0.89 1 0.85 1 0.023 0.023 0.023 0.024 0.023 0.0046 0.022 0.021 0.0064 -0.13 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1
PWY-66~GDP-L-fucose biosynthesis I (from GDP-D-mannose) 0.43 0.95 1 -0.43 0.67 0.96 1 -0.26 NA NA NA 0.45 1 0.67 1 0.0034 0.0034 0.0037 0.003 0.0026 0.0015 0.004 0.0039 0.0026 0.42 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1
PWY-922~mevalonate pathway I 0.97 0.99 1 -0.022 0.97 0.99 1 0.021 1 1 1 0.61 1 0.67 1 0.00025 7e-05 0 6.5e-05 0 0.00012 7.6e-05 0 0.00017 0.23 5 / 18 (28%) 3 / 11 (27%) 2 / 7 (29%) 0.273 0.286
PWY-6630~superpathway of L-tyrosine biosynthesis 0.48 0.96 1 0.35 0.48 0.96 1 0.42 NA NA NA 0.61 1 0.7 1 0.0034 0.0034 0.003 0.0037 0.0035 0.0023 0.003 0.0027 0.0017 -0.3 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1
PWY-5108~L-isoleucine biosynthesis V 0.79 0.96 1 -0.12 0.56 0.96 1 -0.29 0.63 1 1 0.54 1 0.66 1 0.0018 0.00079 0 0.00081 0 0.0016 0.00074 0.00025 0.0012 -0.13 8 / 18 (44%) 4 / 11 (36%) 4 / 7 (57%) 0.364 0.571
THREONINE-DEG2-PWY~L-threonine degradation II 0.76 0.96 1 0.13 0.99 0.99 1 -0.005 NA NA NA 0.66 1 0.7 1 0.0021 0.0021 0.0014 0.0023 0.0011 0.0026 0.0017 0.0017 0.0011 -0.44 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1
PWY0-1597~prenylated FMNH2 biosynthesis 0.83 0.96 1 0.13 0.57 0.96 1 0.36 NA NA NA 0.7 1 0.54 1 0.0014 0.0014 0.0013 0.0014 0.0015 5e-04 0.0015 0.0012 0.0015 0.1 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1
PWY-7392~taxadiene biosynthesis (engineered) 0.75 0.96 1 0.15 0.98 0.99 1 -0.0089 1 1 1 0.66 1 0.78 1 0.0016 0.001 0.00053 0.0012 0.00052 0.0017 0.00077 0.00054 0.00082 -0.64 12 / 18 (67%) 7 / 11 (64%) 5 / 7 (71%) 0.636 0.714
PWY-5783~octaprenyl diphosphate biosynthesis 0.26 0.95 1 0.49 0.46 0.96 1 0.33 NA NA NA 0.66 1 0.42 1 0.003 0.003 0.0023 0.0036 0.0029 0.0031 0.002 0.0018 0.0012 -0.85 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1
PWY-8015~glycine degradation (Stickland reaction) 0.56 0.96 1 0.32 0.44 0.96 1 0.46 0.39 1 1 0.48 1 0.71 1 0.0014 0.0013 0.00099 0.0013 0.001 0.0011 0.0012 0.00084 0.0016 -0.12 17 / 18 (94%) 11 / 11 (100%) 6 / 7 (86%) 1 0.857
PWY-7806~glyphosate degradation II 0.25 0.95 1 0.53 0.33 0.96 1 0.47 0.63 1 1 0.46 1 0.48 1 0.00063 0.00042 0.00019 0.00054 0.00036 0.00065 0.00022 8.1e-05 0.00029 -1.3 12 / 18 (67%) 8 / 11 (73%) 4 / 7 (57%) 0.727 0.571
PWY-6173~histamine biosynthesis 0.39 0.95 1 0.36 0.56 0.96 1 0.27 1 1 1 0.54 1 0.59 1 0.00062 0.00017 0 0.00026 0 0.00057 3.8e-05 0 7.2e-05 -2.8 5 / 18 (28%) 3 / 11 (27%) 2 / 7 (29%) 0.273 0.286
PWY-6970~acetyl-CoA biosynthesis II (NADP-dependent pyruvate dehydrogenase) 0.33 0.95 1 0.44 0.36 0.96 1 0.45 0.64 1 1 0.51 1 0.49 1 0.0018 0.00069 0 0.00095 0 0.0018 0.00029 0 0.00069 -1.7 7 / 18 (39%) 5 / 11 (45%) 2 / 7 (29%) 0.455 0.286
PWY-5123~trans trans-farnesyl diphosphate biosynthesis 0.38 0.95 1 0.4 0.27 0.96 1 0.52 0.37 1 1 0.48 1 0.49 1 0.0011 0.00047 0 0.00063 0.00011 0.0012 0.00023 0 4e-04 -1.5 8 / 18 (44%) 6 / 11 (55%) 2 / 7 (29%) 0.545 0.286
PWY-7790~UMP biosynthesis II 0.16 0.95 1 0.83 0.54 0.96 1 0.36 NA NA NA 0.79 1 0.86 1 0.024 0.024 0.025 0.026 0.025 0.0035 0.022 0.023 0.0055 -0.24 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1
PWY-5005~biotin biosynthesis II 0.38 0.95 1 0.43 0.31 0.96 1 0.53 0.32 1 1 0.5 1 0.49 1 4e-04 0.00013 0 0.00016 0 0.00022 9.9e-05 0 0.00026 -0.69 6 / 18 (33%) 5 / 11 (45%) 1 / 7 (14%) 0.455 0.143
PWY-6901~superpathway of glucose and xylose degradation 0.46 0.96 1 0.35 0.59 0.96 1 0.28 1 1 1 0.68 1 0.6 1 0.0033 0.0029 0.0024 0.0034 0.0024 0.0031 0.0022 0.0024 0.0018 -0.63 16 / 18 (89%) 10 / 11 (91%) 6 / 7 (86%) 0.909 0.857
PWY0-781~aspartate superpathway 0.36 0.95 1 0.47 0.3 0.96 1 0.59 0.53 1 1 0.46 1 0.39 1 0.0018 0.0015 0.0013 0.0017 0.0019 0.0014 0.0012 0.00091 0.0011 -0.5 15 / 18 (83%) 10 / 11 (91%) 5 / 7 (71%) 0.909 0.714
GLUCUROCAT-PWY~superpathway of β-D-glucuronosides degradation 0.97 0.99 1 0.016 0.93 0.98 1 -0.039 1 1 1 0.77 1 0.82 1 0.0046 0.0043 0.0047 0.0043 0.005 0.0031 0.0042 0.0045 0.0032 -0.034 17 / 18 (94%) 10 / 11 (91%) 7 / 7 (100%) 0.909 1
PWY-5676~acetyl-CoA fermentation to butanoate II 0.69 0.96 1 -0.21 0.92 0.98 1 -0.052 NA NA NA 0.62 1 0.66 1 0.0016 0.0016 0.0012 0.0015 0.0012 0.001 0.0018 0.0018 0.0016 0.26 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1
PWY-3821~D-galactose detoxification 0.49 0.96 1 0.37 0.25 0.96 1 0.58 0.33 1 1 0.46 1 0.42 1 0.0013 0.00082 0.00063 0.00087 0.00064 0.00077 0.00074 0 0.0011 -0.23 11 / 18 (61%) 8 / 11 (73%) 3 / 7 (43%) 0.727 0.429
ARGSYNBSUB-PWY~L-arginine biosynthesis II (acetyl cycle) 0.48 0.96 1 0.42 0.57 0.96 1 0.32 NA NA NA 0.85 1 0.89 1 0.021 0.021 0.022 0.022 0.023 0.0033 0.02 0.022 0.0066 -0.14 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1
PWY-4121~glutathionylspermidine biosynthesis 0.88 0.97 1 0.071 0.95 0.99 1 0.03 1 1 1 0.61 1 0.67 1 0.0013 0.00035 0 4e-04 0 0.00084 0.00027 0 0.00054 -0.57 5 / 18 (28%) 3 / 11 (27%) 2 / 7 (29%) 0.273 0.286
BSUBPOLYAMSYN-PWY~spermidine biosynthesis I 0.027 0.95 1 1.1 0.053 0.96 1 1 0.53 1 1 0.2 0.99 0.13 0.99 0.00062 0.00052 0.00045 0.00072 0.00058 0.00056 0.00021 0.00019 2e-04 -1.8 15 / 18 (83%) 10 / 11 (91%) 5 / 7 (71%) 0.909 0.714
PWY-5686~UMP biosynthesis I 0.17 0.95 1 0.81 0.56 0.96 1 0.34 NA NA NA 0.81 1 0.87 1 0.025 0.025 0.025 0.026 0.026 0.0036 0.023 0.022 0.0052 -0.18 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1
P124-PWY~Bifidobacterium shunt 0.85 0.96 1 0.11 0.79 0.96 1 0.15 NA NA NA 0.84 1 0.72 1 0.011 0.011 0.011 0.011 0.011 0.0016 0.011 0.012 0.0035 0 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1
PWY-1001~cellulose biosynthesis 0.72 0.96 1 -0.19 0.92 0.98 1 0.054 1 1 1 0.73 1 0.82 1 0.0015 0.00093 2e-04 0.00071 3e-04 0.001 0.0013 2.7e-05 0.0018 0.87 11 / 18 (61%) 7 / 11 (64%) 4 / 7 (57%) 0.636 0.571
PWY-7968~5-methylbenzimidazolyl adenosylcobamide biosynthesis from adenosylcobinamide-GDP 0.75 0.96 1 0.16 0.79 0.96 1 0.15 NA NA NA 0.78 1 0.68 1 0.0051 0.0051 0.0048 0.0052 0.0051 0.002 0.0049 0.0042 0.0019 -0.086 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1
PWY-7197~pyrimidine deoxyribonucleotide phosphorylation 0.87 0.96 1 -0.085 0.97 0.99 1 0.02 1 1 1 0.62 1 0.68 1 0.00036 0.00022 8e-05 2e-04 9.4e-05 0.00027 0.00026 6.1e-05 0.00032 0.38 11 / 18 (61%) 7 / 11 (64%) 4 / 7 (57%) 0.636 0.571
DENOVOPURINE2-PWY~superpathway of purine nucleotides de novo biosynthesis II 0.96 0.99 1 0.025 0.78 0.96 1 -0.14 1 1 1 0.61 1 0.63 1 0.0017 0.0011 3e-04 0.0013 0.00016 0.0024 0.00085 0.00063 9e-04 -0.61 12 / 18 (67%) 7 / 11 (64%) 5 / 7 (71%) 0.636 0.714
PWY0-823~L-arginine degradation III (arginine decarboxylase/agmatinase pathway) 0.17 0.95 1 0.8 0.2 0.96 1 0.83 0.39 1 1 0.25 1 0.35 1 0.006 0.0057 0.0048 0.0066 0.0052 0.0034 0.0043 0.0034 0.0032 -0.62 17 / 18 (94%) 11 / 11 (100%) 6 / 7 (86%) 1 0.857
PWY-7111~pyruvate fermentation to isobutanol (engineered) 0.61 0.96 1 0.28 0.66 0.96 1 0.25 NA NA NA 0.9 1 0.82 1 0.024 0.024 0.025 0.024 0.025 0.0057 0.023 0.025 0.0084 -0.061 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1
PWY0-1298~superpathway of pyrimidine deoxyribonucleosides degradation 0.56 0.96 1 -0.25 0.49 0.96 1 -0.3 NA NA NA 0.33 1 0.6 1 0.0032 0.0032 0.0033 0.0031 0.0025 0.0019 0.0033 0.0038 0.00091 0.09 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1
HISTSYN-PWY~L-histidine biosynthesis 0.39 0.95 1 0.44 0.58 0.96 1 0.33 NA NA NA 0.84 1 0.77 1 0.01 0.01 0.0097 0.01 0.0099 0.0025 0.0093 0.0089 0.0025 -0.1 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1
ALANINE-DEG3-PWY~L-alanine degradation III 0.014 0.89 1 1.3 0.11 0.96 1 1.1 NA NA NA 0.11 1 0.12 1 0.0071 0.0071 0.007 0.0086 0.0072 0.0034 0.0048 0.0039 0.0022 -0.84 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1
MALTOSECAT-PWY~maltose degradation 0.8 0.96 1 -0.12 0.65 0.96 1 -0.23 0.63 1 1 0.54 1 0.62 1 0.00059 2e-04 0 2e-04 0 0.00037 0.00018 0 0.00023 -0.15 6 / 18 (33%) 3 / 11 (27%) 3 / 7 (43%) 0.273 0.429
PWY-4261~glycerol degradation I 0.9 0.98 1 0.066 0.49 0.96 1 0.36 0.33 1 1 0.65 1 0.81 1 0.0012 0.00089 0.00052 0.00079 0.00041 0.00073 0.0011 0.00062 0.0017 0.48 13 / 18 (72%) 9 / 11 (82%) 4 / 7 (57%) 0.818 0.571
PWY-6470~peptidoglycan biosynthesis V (β-lactam resistance) 0.15 0.95 1 0.8 0.1 0.96 1 1.1 0.14 1 1 0.14 1 0.18 1 0.0058 0.0052 0.0034 0.0063 0.005 0.0054 0.0035 0.0014 0.0042 -0.85 16 / 18 (89%) 11 / 11 (100%) 5 / 7 (71%) 1 0.714
PWY-6376~desferrioxamine B biosynthesis 0.59 0.96 1 0.32 0.36 0.96 1 0.57 0.39 1 1 0.47 1 0.71 1 0.005 0.0047 0.0049 0.0049 0.0048 0.0022 0.0045 0.0054 0.0029 -0.12 17 / 18 (94%) 11 / 11 (100%) 6 / 7 (86%) 1 0.857
PWY-7388~octanoyl-[acyl-carrier protein] biosynthesis (mitochondria yeast) 0.96 0.99 1 -0.027 0.86 0.97 1 0.099 NA NA NA 0.79 1 0.64 1 0.012 0.012 0.014 0.012 0.015 0.0049 0.013 0.014 0.005 0.12 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1
PWY-7221~guanosine ribonucleotides de novo biosynthesis 0.91 0.98 1 0.05 0.59 0.96 1 -0.25 0.6 1 1 0.51 1 0.74 1 0.0012 0.00088 0.00055 0.001 0.00047 0.0015 0.00063 0.00063 0.00044 -0.67 13 / 18 (72%) 7 / 11 (64%) 6 / 7 (86%) 0.636 0.857
PWY-7003~glycerol degradation to butanol 0.67 0.96 1 0.21 0.5 0.96 1 0.33 0.64 1 1 0.56 1 0.58 1 0.0018 0.00071 0 0.00075 0 0.00098 0.00065 0 0.0012 -0.21 7 / 18 (39%) 5 / 11 (45%) 2 / 7 (29%) 0.455 0.286
ASPARAGINESYN-PWY~L-asparagine biosynthesis II 0.023 0.95 1 1.1 0.34 0.96 1 0.52 NA NA NA 0.55 1 0.66 1 0.01 0.01 0.0096 0.011 0.011 0.0027 0.0086 0.0087 0.0015 -0.36 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1
PWY-6527~stachyose degradation 0.49 0.96 1 0.36 0.27 0.96 1 0.56 0.33 1 1 0.48 1 0.49 1 0.002 0.0012 0.00068 0.0013 7e-04 0.0013 0.001 0 0.0014 -0.38 11 / 18 (61%) 8 / 11 (73%) 3 / 7 (43%) 0.727 0.429
PWY-7176~UTP and CTP de novo biosynthesis 0.98 0.99 1 0.013 0.58 0.96 1 -0.26 0.6 1 1 0.52 1 0.76 1 0.0011 0.00078 0.00047 9e-04 0.00048 0.0012 6e-04 0.00047 0.00049 -0.58 13 / 18 (72%) 7 / 11 (64%) 6 / 7 (86%) 0.636 0.857
PWY-6012-1~acyl carrier protein activation 0.82 0.96 1 0.11 0.77 0.96 1 0.15 NA NA NA 0.78 1 0.81 1 0.0029 0.0029 0.0027 0.003 0.0027 0.0017 0.0028 0.0027 0.0014 -0.1 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1
PWY-7356~thiamine salvage IV (yeast) 0.83 0.96 1 0.12 0.49 0.96 1 0.41 0.39 1 1 0.61 1 0.83 1 0.0041 0.0039 0.0041 0.0039 0.0031 0.0025 0.0039 0.0045 0.0027 0 17 / 18 (94%) 11 / 11 (100%) 6 / 7 (86%) 1 0.857
PWY-4821~UDP-α-D-xylose biosynthesis 0.16 0.95 1 0.58 0.079 0.96 1 0.77 0.25 1 1 0.37 1 0.41 0.99 0.00096 0.00016 0 0.00026 0 0.00074 0 0 0 -Inf 3 / 18 (17%) 3 / 11 (27%) 0 / 7 (0%) 0.273 0
LARABITOLUTIL-PWY~xylitol degradation 0.51 0.96 1 0.34 0.39 0.96 1 0.46 0.53 1 1 0.53 1 0.46 1 0.0033 0.0028 0.0017 0.0031 0.0019 0.0029 0.0023 0.0014 0.0027 -0.43 15 / 18 (83%) 10 / 11 (91%) 5 / 7 (71%) 0.909 0.714
GLUTATHIONESYN-PWY~glutathione biosynthesis 0.89 0.97 1 0.055 0.28 0.96 1 -0.48 0.15 1 1 0.36 1 0.31 1 0.0025 0.0015 0.00013 0.0022 0 0.0068 0.00045 0.00036 0.00044 -2.3 11 / 18 (61%) 5 / 11 (45%) 6 / 7 (86%) 0.455 0.857
RHAMCAT-PWY~L-rhamnose degradation I 0.79 0.96 1 -0.11 0.093 0.96 1 -0.73 0.013 1 1 0.11 1 0.33 1 0.0018 0.0011 0.00047 0.0014 0 0.0022 0.00071 0.00082 0.00045 -0.98 11 / 18 (61%) 4 / 11 (36%) 7 / 7 (100%) 0.364 1
PWY3O-355~stearate biosynthesis III (fungi) 0.23 0.95 1 0.61 0.24 0.96 1 0.62 1 1 1 0.36 1 0.27 1 0.0055 0.0049 0.004 0.0059 0.0044 0.0045 0.0033 0.0026 0.0035 -0.84 16 / 18 (89%) 10 / 11 (91%) 6 / 7 (86%) 0.909 0.857
P121-PWY~adenine and adenosine salvage I 0.81 0.96 1 0.13 0.8 0.96 1 0.15 NA NA NA 0.79 1 0.82 1 0.0071 0.0071 0.0072 0.0072 0.0071 0.0015 0.007 0.0075 0.0018 -0.041 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1
ASPARTATESYN-PWY~L-aspartate biosynthesis 0.85 0.96 1 -0.093 0.99 0.99 1 0.0068 NA NA NA 0.49 1 0.5 1 0.02 0.02 0.021 0.02 0.019 0.0069 0.021 0.023 0.0057 0.07 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1
PWY66-409~superpathway of purine nucleotide salvage 0.31 0.95 1 0.45 0.43 0.96 1 0.39 0.63 1 1 0.54 1 0.49 1 0.0015 0.00099 0.00041 0.0013 0.00036 0.0021 0.00045 0.00063 0.00044 -1.5 12 / 18 (67%) 8 / 11 (73%) 4 / 7 (57%) 0.727 0.571
PWY-6628~superpathway of L-phenylalanine biosynthesis 0.54 0.96 1 0.36 0.51 0.96 1 0.4 NA NA NA 0.73 1 0.8 1 0.011 0.011 0.011 0.011 0.011 0.0027 0.01 0.0096 0.0051 -0.14 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1
PWY-7208~superpathway of pyrimidine nucleobases salvage 0.71 0.96 1 0.17 0.97 0.99 1 0.02 1 1 1 0.65 1 0.84 1 0.0011 0.00075 5e-04 0.00088 0.00051 0.0012 0.00053 0.00049 0.00052 -0.73 12 / 18 (67%) 7 / 11 (64%) 5 / 7 (71%) 0.636 0.714
PWY-6277~superpathway of 5-aminoimidazole ribonucleotide biosynthesis 0.42 0.95 1 -0.4 0.89 0.98 1 -0.078 NA NA NA 0.53 1 0.37 1 0.014 0.014 0.015 0.014 0.013 0.0027 0.015 0.016 0.0026 0.1 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1
ETOH-ACETYLCOA-ANA-PWY~ethanol degradation I 0.69 0.96 1 0.21 0.41 0.96 1 0.4 NA NA NA 0.66 1 0.5 1 0.0031 0.0031 0.0021 0.0032 0.0026 0.0025 0.0029 0.0014 0.0028 -0.14 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1
PROSYN-PWY~L-proline biosynthesis I 0.29 0.95 1 0.68 0.38 0.96 1 0.52 NA NA NA 0.58 1 0.74 1 0.011 0.011 0.01 0.011 0.012 0.0015 0.0097 0.0091 0.0041 -0.18 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1
GLUCONEO-PWY~gluconeogenesis I 0.14 0.95 1 0.69 0.46 0.96 1 0.43 NA NA NA 0.62 1 0.83 1 0.008 0.008 0.0078 0.0088 0.0091 0.0032 0.0068 0.0066 0.002 -0.37 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1
PWY-7199~pyrimidine deoxyribonucleosides salvage 0.8 0.96 1 0.12 0.96 0.99 1 0.027 1 1 1 0.71 1 0.79 1 0.0013 0.00096 0.00059 0.0011 0.00048 0.0015 0.00074 0.00076 0.00062 -0.57 13 / 18 (72%) 8 / 11 (73%) 5 / 7 (71%) 0.727 0.714
RIBOKIN-PWY~ribose phosphorylation 0.47 0.96 1 -0.42 0.68 0.96 1 -0.21 1 1 1 0.57 1 0.6 1 0.00067 0.00055 0.00031 0.00038 0.00028 3e-04 0.00084 0.00039 0.0012 1.1 15 / 18 (83%) 9 / 11 (82%) 6 / 7 (86%) 0.818 0.857
GLUTAMATE-DEG1-PWY~L-glutamate degradation I 0.19 0.95 1 0.65 0.25 0.96 1 0.56 NA NA NA 0.38 1 0.19 1 0.0029 0.0029 0.0027 0.0034 0.0035 0.0022 0.002 0.002 0.0017 -0.77 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1
FOLSYN-PWY~superpathway of tetrahydrofolate biosynthesis and salvage 0.96 0.99 1 0.024 0.64 0.96 1 -0.22 0.33 1 1 0.52 1 0.56 1 0.001 0.00028 0 0.00035 0 0.00083 0.00016 0 0.00027 -1.1 5 / 18 (28%) 2 / 11 (18%) 3 / 7 (43%) 0.182 0.429
PWY-4101~D-sorbitol degradation I 0.58 0.96 1 0.34 0.54 0.96 1 0.37 NA NA NA 0.7 1 0.84 1 0.014 0.014 0.014 0.014 0.014 0.0027 0.013 0.013 0.0081 -0.11 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1
PWY-5831~CDP-abequose biosynthesis 0.39 0.95 1 0.35 0.41 0.96 1 0.39 1 1 1 0.54 0.99 0.56 1 0.00043 7.1e-05 0 0.00011 0 0.00037 3.9e-06 0 1e-05 -4.8 3 / 18 (17%) 2 / 11 (18%) 1 / 7 (14%) 0.182 0.143
PWY-5344~L-homocysteine biosynthesis 0.1 0.95 1 1 0.41 0.96 1 0.47 NA NA NA 0.59 1 0.65 1 0.023 0.023 0.024 0.025 0.025 0.0038 0.02 0.02 0.0062 -0.32 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1
PWY-7247~β-D-glucuronide and D-glucuronate degradation 0.86 0.96 1 -0.088 0.89 0.98 1 -0.065 NA NA NA 0.59 1 0.89 1 0.0081 0.0081 0.0082 0.0079 0.0072 0.004 0.0083 0.0092 0.0047 0.071 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1
PWY0-1477~ethanolamine utilization 0.62 0.96 1 0.25 0.4 0.96 1 0.49 0.39 1 1 0.53 1 0.54 1 0.0029 0.0028 0.0024 0.0029 0.0025 0.0024 0.0025 0.0024 0.0022 -0.21 17 / 18 (94%) 11 / 11 (100%) 6 / 7 (86%) 1 0.857
PWY-5490~paraoxon degradation 0.3 0.95 1 -0.69 0.19 0.96 1 -0.85 0.53 1 1 0.43 1 0.42 1 0.00064 0.00011 0 5.4e-06 0 1.8e-05 0.00027 0 0.00066 5.6 3 / 18 (17%) 1 / 11 (9.1%) 2 / 7 (29%) 0.0909 0.286
PWY-7229~superpathway of adenosine nucleotides de novo biosynthesis I 0.69 0.96 1 0.19 0.67 0.96 1 0.26 NA NA NA 0.78 1 0.75 1 0.0072 0.0072 0.0063 0.0075 0.0061 0.0033 0.0068 0.008 0.0024 -0.14 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1
LACTOSECAT-PWY~lactose and galactose degradation I 0.88 0.97 1 -0.079 0.9 0.98 1 0.064 1 1 1 0.69 1 0.75 1 0.00075 0.00038 8.8e-05 0.00033 0.00018 0.00044 0.00046 0 0.00062 0.48 9 / 18 (50%) 6 / 11 (55%) 3 / 7 (43%) 0.545 0.429
PWY0-662~PRPP biosynthesis 0.55 0.96 1 0.35 0.63 0.96 1 0.27 NA NA NA 0.89 1 0.81 1 0.024 0.024 0.026 0.025 0.026 0.0044 0.023 0.022 0.0082 -0.12 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1
PWY4LZ-257~superpathway of fermentation (Chlamydomonas reinhardtii) 0.39 0.95 1 -0.52 0.33 0.96 1 -0.53 0.53 1 1 0.42 1 0.42 0.99 0.0016 0.00026 0 8.9e-05 0 0.00029 0.00054 0 0.0013 2.6 3 / 18 (17%) 1 / 11 (9.1%) 2 / 7 (29%) 0.0909 0.286
PWY-7581~N-acetylneuraminate and N-acetylmannosamine degradation II 0.5 0.96 1 0.28 0.83 0.96 1 0.1 1 1 1 0.62 1 0.63 1 0.0012 0.00026 0 0.00039 0 0.00087 6e-05 0 0.00011 -2.7 4 / 18 (22%) 2 / 11 (18%) 2 / 7 (29%) 0.182 0.286
PWY-7686~L-malate degradation II 0.099 0.95 1 0.88 0.39 0.96 1 0.46 NA NA NA 0.58 1 0.68 1 0.0069 0.0069 0.0068 0.0076 0.007 0.002 0.0059 0.0048 0.002 -0.37 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1
PWY-7179-1~purine deoxyribonucleosides degradation II 0.38 0.95 1 0.5 0.33 0.96 1 0.56 NA NA NA 0.46 1 0.55 1 0.0034 0.0034 0.0032 0.0036 0.0037 0.0015 0.0029 0.0024 0.0022 -0.31 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1
PWY0-1309~chitobiose degradation 0.57 0.96 1 -0.27 0.38 0.96 1 -0.45 0.33 1 1 0.46 1 0.51 1 0.0057 0.0016 0 0.0015 0 0.0036 0.0016 0 0.0021 0.093 5 / 18 (28%) 2 / 11 (18%) 3 / 7 (43%) 0.182 0.429
PWY-5853~demethylmenaquinol-6 biosynthesis I 0.6 0.96 1 0.25 0.89 0.98 1 0.063 1 1 1 0.77 1 0.69 1 0.0028 0.0027 0.0027 0.003 0.0034 0.0025 0.0021 0.0026 0.0017 -0.51 17 / 18 (94%) 10 / 11 (91%) 7 / 7 (100%) 0.909 1
DTDPRHAMSYN-PWY~dTDP-L-rhamnose biosynthesis 0.48 0.96 1 0.31 0.68 0.96 1 0.22 NA NA NA 0.84 1 0.88 1 0.011 0.011 0.011 0.011 0.011 0.0037 0.01 0.01 0.002 -0.14 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1
ACETATEUTIL-PWY~superpathway of acetate utilization and formation 0.7 0.96 1 -0.19 0.59 0.96 1 -0.27 0.64 1 1 0.48 1 0.6 1 0.0027 0.0016 0.00057 0.0016 0.00034 0.0025 0.0018 0.00082 0.0022 0.17 11 / 18 (61%) 6 / 11 (55%) 5 / 7 (71%) 0.545 0.714
PWY-7167~choline degradation III 0.31 0.95 1 -0.65 0.33 0.96 1 -0.55 1 1 1 0.4 1 0.43 0.99 0.00095 0.00021 0 3.1e-05 0 8e-05 0.00049 0 0.0011 4 4 / 18 (22%) 2 / 11 (18%) 2 / 7 (29%) 0.182 0.286
N2FIX-PWY~nitrogen fixation I (ferredoxin) 0.35 0.95 1 0.49 0.51 0.96 1 0.35 NA NA NA 0.73 1 0.72 1 0.0085 0.0085 0.009 0.0092 0.0096 0.0033 0.0076 0.0062 0.0037 -0.28 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1
PWY0-541~cyclopropane fatty acid (CFA) biosynthesis 0.13 0.95 1 -0.87 0.23 0.96 1 -0.57 NA NA NA 0.12 1 0.19 1 0.0035 0.0035 0.0034 0.0029 0.0028 0.0012 0.0046 0.0044 0.0025 0.67 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1
PWY-7761~NAD salvage pathway II (PNC IV cycle) 0.77 0.96 1 0.13 0.92 0.98 1 0.05 1 1 1 0.57 1 0.67 1 0.0011 0.00043 0 0.00052 0 0.00095 3e-04 0 0.00048 -0.79 7 / 18 (39%) 4 / 11 (36%) 3 / 7 (43%) 0.364 0.429
PWY-1042~glycolysis IV (plant cytosol) 0.94 0.99 1 -0.044 0.92 0.98 1 0.058 NA NA NA 0.69 1 0.43 1 0.015 0.015 0.016 0.015 0.015 0.0022 0.015 0.017 0.0032 0 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1
GLYCOLYSIS-E-D~superpathway of glycolysis and the Entner-Doudoroff pathway 0.74 0.96 1 -0.16 0.43 0.96 1 -0.41 0.33 1 1 0.47 1 0.47 1 0.0032 0.00089 0 0.00095 0 0.0022 0.00079 0 0.0014 -0.27 5 / 18 (28%) 2 / 11 (18%) 3 / 7 (43%) 0.182 0.429
HSERMETANA-PWY~L-methionine biosynthesis III 0.23 0.95 1 0.74 0.35 0.96 1 0.56 NA NA NA 0.44 1 0.89 1 0.011 0.011 0.012 0.013 0.012 0.0036 0.0097 0.012 0.0054 -0.42 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1
GLYCOCAT-PWY~glycogen degradation I 0.051 0.95 1 1 0.14 0.96 1 0.89 NA NA NA 0.15 1 0.2 1 0.015 0.015 0.015 0.018 0.019 0.0073 0.011 0.0084 0.0056 -0.71 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1
PYRIDOXSYN-PWY~pyridoxal 5-phosphate biosynthesis I 0.62 0.96 1 -0.24 0.4 0.96 1 -0.44 0.33 1 1 0.43 1 0.44 1 0.0033 9e-04 0 0.00087 0 0.0023 0.00097 0 0.0017 0.16 5 / 18 (28%) 2 / 11 (18%) 3 / 7 (43%) 0.182 0.429
PHOSPHONOTASE-PWY~2-aminoethylphosphonate degradation I 0.78 0.96 1 -0.15 0.82 0.96 1 -0.12 1 1 1 0.48 1 0.54 1 0.00032 7e-05 0 6.2e-05 0 0.00017 8.3e-05 0 2e-04 0.42 4 / 18 (22%) 2 / 11 (18%) 2 / 7 (29%) 0.182 0.286
PWY-5100~pyruvate fermentation to acetate and lactate II 0.73 0.96 1 0.21 0.57 0.96 1 0.33 NA NA NA 0.79 1 0.84 1 0.01 0.01 0.011 0.011 0.011 0.0025 0.01 0.012 0.0051 -0.14 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1
PWY-6285~superpathway of fatty acids biosynthesis (E. coli) 0.29 0.95 1 0.54 0.19 0.96 1 0.65 NA NA NA 0.33 1 0.28 1 0.0052 0.0052 0.0038 0.006 0.0042 0.0044 0.0038 0.0026 0.004 -0.66 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1
MALATE-ASPARTATE-SHUTTLE-PWY~L-aspartate degradation II 0.66 0.96 1 -0.21 0.45 0.96 1 -0.37 NA NA NA 0.33 1 0.43 1 0.0032 0.0032 0.0018 0.003 0.0017 0.0038 0.0033 0.002 0.0033 0.14 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1
FUC-RHAMCAT-PWY~superpathway of fucose and rhamnose degradation 0.43 0.95 1 -0.45 0.45 0.96 1 -0.42 1 1 1 0.53 1 0.57 1 0.001 0.00023 0 0.00012 0 0.00034 4e-04 0 0.00069 1.7 4 / 18 (22%) 2 / 11 (18%) 2 / 7 (29%) 0.182 0.286
GALACTUROCAT-PWY~D-galacturonate degradation I 0.43 0.95 1 0.37 0.57 0.96 1 0.26 NA NA NA 0.79 1 0.64 1 0.0037 0.0037 0.0028 0.0042 0.0055 0.0029 0.0029 0.0025 0.002 -0.53 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1
PWY-5659~GDP-mannose biosynthesis 0.7 0.96 1 0.21 0.35 0.96 1 0.58 0.14 1 1 0.41 1 0.69 1 0.0029 0.0026 0.0018 0.0026 0.0021 0.0022 0.0026 0.0013 0.0028 0 16 / 18 (89%) 11 / 11 (100%) 5 / 7 (71%) 1 0.714
PWY-5194~siroheme biosynthesis 0.39 0.95 1 0.39 0.62 0.96 1 0.24 1 1 1 0.67 1 0.61 1 4e-04 0.00035 3e-04 0.00042 3e-04 0.00037 0.00025 3e-04 0.00012 -0.75 16 / 18 (89%) 10 / 11 (91%) 6 / 7 (86%) 0.909 0.857
PWY0-1313~acetate conversion to acetyl-CoA 0.41 0.95 1 0.45 0.31 0.96 1 0.63 0.39 1 1 0.42 1 0.65 1 0.0037 0.0035 0.0045 0.0038 0.0045 0.0023 0.003 0.0045 0.0023 -0.34 17 / 18 (94%) 11 / 11 (100%) 6 / 7 (86%) 1 0.857
PWY-5669~phosphatidylethanolamine biosynthesis I 0.17 0.95 1 0.79 0.28 0.96 1 0.63 NA NA NA 0.37 1 0.49 1 0.0031 0.0031 0.0032 0.0035 0.0035 0.0011 0.0026 0.0019 0.0015 -0.43 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1
PWY-5156~superpathway of fatty acid biosynthesis II (plant) 0.38 0.95 1 0.45 0.4 0.96 1 0.44 1 1 1 0.51 1 0.39 1 0.0054 0.0048 0.0032 0.0055 0.0035 0.0044 0.0037 0.0026 0.0038 -0.57 16 / 18 (89%) 10 / 11 (91%) 6 / 7 (86%) 0.909 0.857
PWY-7970~benzimidazolyl adenosylcobamide biosynthesis from adenosylcobinamide-GDP 0.75 0.96 1 0.16 0.79 0.96 1 0.15 NA NA NA 0.78 1 0.64 1 0.0051 0.0051 0.0048 0.0052 0.0051 0.002 0.0049 0.0042 0.0019 -0.086 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1
PWY-7205~CMP phosphorylation 0.72 0.96 1 -0.14 0.19 0.96 1 -0.55 0.25 1 1 0.2 1 0.51 1 0.00069 0.00057 0.00041 0.00063 0.00035 0.00084 0.00048 0.00048 0.00026 -0.39 15 / 18 (83%) 8 / 11 (73%) 7 / 7 (100%) 0.727 1
GLUGLNSYN-PWY~L-glutamate biosynthesis IV 0.16 0.95 1 0.77 0.39 0.96 1 0.49 NA NA NA 0.51 1 0.69 1 0.039 0.039 0.038 0.043 0.042 0.013 0.033 0.032 0.014 -0.38 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1
PWY-6617~adenosine nucleotides degradation III 0.7 0.96 1 -0.18 0.46 0.96 1 -0.37 0.33 1 1 0.39 1 0.46 1 0.0013 0.00052 0 0.00052 0 0.0011 0.00052 5.4e-05 0.00078 0 7 / 18 (39%) 3 / 11 (27%) 4 / 7 (57%) 0.273 0.571
PWY-5148~acyl-CoA hydrolysis 0.13 0.95 1 -0.85 0.13 0.96 1 -0.82 0.14 1 1 0.33 0.99 0.28 0.99 3e-04 1e-04 0 5.1e-05 0 0.00012 0.00018 0.00016 0.00019 1.8 6 / 18 (33%) 2 / 11 (18%) 4 / 7 (57%) 0.182 0.571
GDPRHAMSYN-PWY~GDP-D-rhamnose biosynthesis 0.38 0.95 1 0.39 0.41 0.96 1 0.39 1 1 1 0.57 1 0.6 1 0.0017 0.00039 0 0.00054 0 0.001 0.00015 0 4e-04 -1.8 4 / 18 (22%) 3 / 11 (27%) 1 / 7 (14%) 0.273 0.143
PLPSAL-PWY~pyridoxal 5-phosphate salvage I 0.93 0.99 1 0.047 0.83 0.96 1 0.11 1 1 1 0.68 1 0.83 1 0.0013 0.00094 0.00067 0.00095 0.00068 0.001 0.00092 0.00066 0.00095 -0.046 13 / 18 (72%) 8 / 11 (73%) 5 / 7 (71%) 0.727 0.714
PWY-7242~D-fructuronate degradation 0.52 0.96 1 0.3 0.79 0.96 1 0.12 1 1 1 0.74 1 0.46 1 0.0029 0.0024 0.0016 0.0028 0.0032 0.0025 0.0018 0.00091 0.0017 -0.64 15 / 18 (83%) 9 / 11 (82%) 6 / 7 (86%) 0.818 0.857
PWY-6164~3-dehydroquinate biosynthesis I 0.24 0.95 1 0.65 0.47 0.96 1 0.42 NA NA NA 0.7 1 0.85 1 0.018 0.018 0.019 0.02 0.019 0.0046 0.017 0.017 0.0055 -0.23 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1
PWY-724~superpathway of L-lysine L-threonine and L-methionine biosynthesis II 0.26 0.95 1 0.69 0.28 0.96 1 0.69 NA NA NA 0.37 1 0.79 1 0.0094 0.0094 0.01 0.01 0.01 0.0031 0.008 0.01 0.0044 -0.32 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1
PWY-7346~UDP-α-D-glucuronate biosynthesis (from UDP-glucose) 0.49 0.96 1 -0.33 0.76 0.96 1 -0.17 NA NA NA 0.49 1 0.64 1 0.011 0.011 0.01 0.01 0.011 0.0045 0.012 0.01 0.004 0.26 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1
DAPLYSINESYN-PWY~L-lysine biosynthesis I 0.37 0.95 1 0.42 0.5 0.96 1 0.34 1 1 1 0.65 1 0.42 1 0.0027 0.0024 0.0016 0.0029 0.0015 0.0028 0.0017 0.0017 0.0015 -0.77 16 / 18 (89%) 10 / 11 (91%) 6 / 7 (86%) 0.909 0.857
HISDEG-PWY~L-histidine degradation I 0.069 0.95 1 -1.3 0.028 0.96 1 -1.5 0.047 1 1 0.18 0.95 0.11 0.94 0.00025 7.1e-05 0 1.1e-05 0 3.6e-05 0.00017 0.00011 0.00022 3.9 5 / 18 (28%) 1 / 11 (9.1%) 4 / 7 (57%) 0.0909 0.571
PWY-7518~atromentin biosynthesis 0.99 0.99 1 0.0094 0.81 0.96 1 0.12 1 1 1 0.65 1 0.75 1 0.00076 0.00055 0.00046 0.00053 0.00045 0.00053 0.00058 0.00047 0.00067 0.13 13 / 18 (72%) 8 / 11 (73%) 5 / 7 (71%) 0.727 0.714
PWY-2161~folate polyglutamylation 0.54 0.96 1 0.37 0.61 0.96 1 0.31 NA NA NA 0.8 1 0.79 1 0.013 0.013 0.013 0.013 0.013 0.0027 0.012 0.014 0.0058 -0.12 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1
PWY-7432~L-phenylalanine biosynthesis III (cytosolic plants) 0.95 0.99 1 -0.03 0.82 0.96 1 0.11 1 1 1 0.67 1 0.81 1 0.00088 0.00064 0.00055 0.00059 0.00044 0.00054 0.00071 0.00066 8e-04 0.27 13 / 18 (72%) 8 / 11 (73%) 5 / 7 (71%) 0.727 0.714
PWY-622~starch biosynthesis 0.21 0.95 1 0.58 0.4 0.96 1 0.41 1 1 1 0.53 1 0.33 1 0.0069 0.0053 0.002 0.007 0.0053 0.0077 0.0027 0.002 0.0038 -1.4 14 / 18 (78%) 9 / 11 (82%) 5 / 7 (71%) 0.818 0.714
PWY0-1545~cardiolipin biosynthesis III 0.78 0.96 1 0.14 0.52 0.96 1 0.29 1 1 1 0.61 1 0.64 1 0.00038 0.00017 0 0.00017 0 0.00029 0.00017 0 4e-04 0 8 / 18 (44%) 5 / 11 (45%) 3 / 7 (43%) 0.455 0.429
PWY-6612~superpathway of tetrahydrofolate biosynthesis 0.87 0.96 1 0.075 0.86 0.97 1 -0.082 0.63 1 1 0.53 1 0.61 1 0.00083 0.00028 0 0.00035 0 0.00079 0.00016 0 0.00029 -1.1 6 / 18 (33%) 3 / 11 (27%) 3 / 7 (43%) 0.273 0.429
PWY-621~sucrose degradation III (sucrose invertase) 0.58 0.96 1 0.33 0.52 0.96 1 0.38 NA NA NA 0.67 1 0.85 1 0.015 0.015 0.015 0.015 0.015 0.0038 0.014 0.018 0.0081 -0.1 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1
PWY-2781~cis-zeatin biosynthesis 0.11 0.95 1 0.88 0.41 0.96 1 0.51 NA NA NA 0.67 1 0.63 1 0.012 0.012 0.012 0.013 0.013 0.0023 0.011 0.01 0.0025 -0.24 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1
PWY-6910~hydroxymethylpyrimidine salvage 0.9 0.97 1 0.073 0.79 0.96 1 0.16 NA NA NA 0.8 1 0.8 1 0.011 0.011 0.01 0.011 0.01 0.0021 0.011 0.011 0.0042 0 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1
GLYSYN-PWY~glycine biosynthesis I 0.66 0.96 1 0.23 0.79 0.96 1 0.15 NA NA NA 0.86 1 0.63 1 0.013 0.013 0.013 0.014 0.013 0.0027 0.013 0.014 0.0031 -0.11 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1
GLUAMCAT-PWY~N-acetylglucosamine degradation I 0.71 0.96 1 -0.18 0.93 0.98 1 -0.052 NA NA NA 0.51 1 0.46 1 0.013 0.013 0.014 0.013 0.013 0.0041 0.014 0.014 0.0034 0.11 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1
PWY-5895~menaquinol-13 biosynthesis 0.98 0.99 1 -0.0099 0.82 0.96 1 -0.11 1 1 1 0.64 1 0.75 1 0.0018 0.00092 6.1e-05 0.001 0 0.0018 8e-04 0.00012 0.0011 -0.32 9 / 18 (50%) 5 / 11 (45%) 4 / 7 (57%) 0.455 0.571
PWY-6050~dimethyl sulfoxide degradation 0.65 0.96 1 -0.26 0.87 0.97 1 -0.083 1 1 1 0.6 1 0.67 1 0.00075 0.00033 0 0.00019 0 3e-04 0.00055 0 0.0012 1.5 8 / 18 (44%) 5 / 11 (45%) 3 / 7 (43%) 0.455 0.429
PWY-6130~glycerol degradation III 0.65 0.96 1 0.27 0.36 0.96 1 0.58 0.14 1 1 0.47 1 0.88 1 0.0017 0.0015 0.0013 0.0015 0.0014 8e-04 0.0016 0.0012 0.0016 0.093 16 / 18 (89%) 11 / 11 (100%) 5 / 7 (71%) 1 0.714
PWY18C3-24~methylsalicylate degradation 0.89 0.97 1 0.077 0.45 0.96 1 0.42 NA NA NA 0.68 1 0.76 1 0.002 0.002 0.0016 0.0019 0.0016 0.00084 0.0021 0.0017 0.0019 0.14 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1
GLYCLEAV-PWY~glycine cleavage 0.34 0.95 1 -0.45 0.18 0.96 1 -0.65 1 1 1 0.19 1 0.14 1 0.0023 0.0021 0.00079 0.0019 0.00064 0.0033 0.0025 0.0017 0.0022 0.4 17 / 18 (94%) 10 / 11 (91%) 7 / 7 (100%) 0.909 1
PWY-6139~CMP-N-acetylneuraminate biosynthesis II (bacteria) 0.84 0.96 1 -0.088 0.44 0.96 1 -0.37 0.53 1 1 0.5 1 0.49 0.99 0.0017 0.00029 0 0.00035 0 0.0012 0.00018 0 0.00032 -0.96 3 / 18 (17%) 1 / 11 (9.1%) 2 / 7 (29%) 0.0909 0.286
PWY-7184~pyrimidine deoxyribonucleotides de novo biosynthesis I 0.39 0.95 1 -0.5 0.5 0.96 1 -0.36 1 1 1 0.55 1 0.5 1 0.00072 0.00036 2.5e-05 0.00018 0 0.00028 0.00065 5.1e-05 0.0012 1.9 9 / 18 (50%) 5 / 11 (45%) 4 / 7 (57%) 0.455 0.571
PWY-8004~Entner-Doudoroff pathway I 0.55 0.96 1 -0.3 0.42 0.96 1 -0.43 0.53 1 1 0.53 1 0.53 1 0.0025 0.00042 0 0.00036 0 0.0012 0.00052 0 0.001 0.53 3 / 18 (17%) 1 / 11 (9.1%) 2 / 7 (29%) 0.0909 0.286
PWY-3801~sucrose degradation II (sucrose synthase) 0.12 0.95 1 0.78 0.071 0.96 1 0.94 NA NA NA 0.14 1 0.1 0.99 0.0047 0.0047 0.0044 0.0055 0.0045 0.0031 0.0035 0.0023 0.0021 -0.65 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1
PWY-6519~8-amino-7-oxononanoate biosynthesis I 0.78 0.96 1 -0.13 0.54 0.96 1 -0.31 0.63 1 1 0.5 1 0.51 1 0.0032 0.0014 0 0.0015 0 0.0033 0.0013 0.00011 0.0018 -0.21 8 / 18 (44%) 4 / 11 (36%) 4 / 7 (57%) 0.364 0.571
PWY4FS-7~phosphatidylglycerol biosynthesis I (plastidic) 0.37 0.95 1 0.52 0.18 0.96 1 0.78 0.25 1 1 0.35 1 0.38 1 0.0011 0.00084 0.00093 0.00091 0.001 0.00052 0.00074 6e-04 0.00095 -0.3 14 / 18 (78%) 10 / 11 (91%) 4 / 7 (57%) 0.909 0.571
PWY0-162~superpathway of pyrimidine ribonucleotides de novo biosynthesis 0.26 0.95 1 0.49 0.71 0.96 1 0.15 1 1 1 0.76 1 0.34 1 0.0038 0.0036 0.0025 0.0044 0.0034 0.0039 0.0023 0.0017 0.0016 -0.94 17 / 18 (94%) 10 / 11 (91%) 7 / 7 (100%) 0.909 1
PWY-5674~nitrate reduction IV (dissimilatory) 0.24 0.95 1 -0.74 0.2 0.96 1 -0.76 0.33 1 1 0.38 1 0.35 1 0.00055 0.00015 0 3.6e-05 0 9.1e-05 0.00033 0 0.00068 3.2 5 / 18 (28%) 2 / 11 (18%) 3 / 7 (43%) 0.182 0.429
PWY-3282~superpathway of ammonia assimilation (plants) 0.18 0.95 1 0.69 0.45 0.96 1 0.41 NA NA NA 0.65 1 0.71 1 0.033 0.033 0.034 0.036 0.038 0.0098 0.029 0.029 0.009 -0.31 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1
PWY-6610~adenine salvage 0.39 0.95 1 0.47 0.51 0.96 1 0.37 NA NA NA 0.75 1 0.76 1 0.0054 0.0054 0.0055 0.0057 0.0056 0.0019 0.0049 0.0052 0.0021 -0.22 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1
PWY-6590~superpathway of Clostridium acetobutylicum acidogenic fermentation 0.89 0.97 1 -0.07 0.97 0.99 1 0.022 1 1 1 0.66 1 0.73 1 0.00056 0.00035 0.00025 0.00032 0.00016 0.00035 0.00039 0.00034 0.00047 0.29 11 / 18 (61%) 7 / 11 (64%) 4 / 7 (57%) 0.636 0.571
PWY-6348~phosphate acquisition 0.016 0.92 1 1.1 0.063 0.96 1 0.83 1 1 1 0.16 0.98 0.033 0.97 0.0026 0.0025 0.0014 0.0035 0.0028 0.0032 0.00077 0.00048 0.00058 -2.2 17 / 18 (94%) 10 / 11 (91%) 7 / 7 (100%) 0.909 1
PWY-6389~pyruvate fermentation to (S)-acetoin 0.55 0.96 1 0.36 0.16 0.96 1 0.87 0.047 1 1 0.2 1 0.21 1 0.0022 0.0016 0.00092 0.0014 0.001 0.0012 0.0019 0 0.0041 0.44 13 / 18 (72%) 10 / 11 (91%) 3 / 7 (43%) 0.909 0.429
P23-PWY~reductive TCA cycle I 0.48 0.96 1 -0.38 0.38 0.96 1 -0.48 0.53 1 1 0.51 1 0.56 1 0.0016 0.00027 0 2e-04 0 0.00066 0.00038 0 0.00072 0.93 3 / 18 (17%) 1 / 11 (9.1%) 2 / 7 (29%) 0.0909 0.286
PWY3O-4106~NAD salvage pathway IV (from nicotinamide riboside) 0.28 0.95 1 -0.64 0.26 0.96 1 -0.58 0.63 1 1 0.4 1 0.36 1 0.00041 0.00018 0 8.5e-05 0 0.00015 0.00034 0.00013 0.00061 2 8 / 18 (44%) 4 / 11 (36%) 4 / 7 (57%) 0.364 0.571
PWY66-366~flavin biosynthesis IV (mammalian) 0.45 0.95 1 0.42 0.72 0.96 1 0.2 NA NA NA 0.86 1 0.8 1 0.011 0.011 0.011 0.012 0.011 0.0015 0.011 0.011 0.0021 -0.13 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1
PWY-5981~CDP-diacylglycerol biosynthesis III 0.87 0.96 1 0.097 0.76 0.96 1 0.17 NA NA NA 0.87 1 0.81 1 0.01 0.01 0.011 0.01 0.01 0.0021 0.01 0.011 0.0035 0 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1
PWY0-1587~N6-L-threonylcarbamoyladenosine37-modified tRNA biosynthesis 0.92 0.99 1 0.043 0.9 0.98 1 0.066 NA NA NA 0.75 1 0.63 1 0.01 0.01 0.0099 0.01 0.0099 0.0018 0.01 0.0095 0.0013 0 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1
MANNCAT-PWY~D-mannose degradation 0.47 0.96 1 0.39 0.59 0.96 1 0.3 NA NA NA 0.76 1 0.92 1 0.0071 0.0071 0.0065 0.0074 0.0067 0.0026 0.0065 0.005 0.0037 -0.19 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1
PWY-7335~UDP-N-acetyl-α-D-mannosaminouronate biosynthesis 0.21 0.95 1 -0.74 0.15 0.96 1 -0.83 0.14 1 1 0.25 0.99 0.22 0.99 0.0017 0.00057 0 0.00024 0 0.00057 0.0011 0.00014 0.0017 2.2 6 / 18 (33%) 2 / 11 (18%) 4 / 7 (57%) 0.182 0.571
UDPNAGSYN-PWY~UDP-N-acetyl-D-glucosamine biosynthesis I 0.14 0.95 1 0.7 0.28 0.96 1 0.53 NA NA NA 0.42 1 0.3 1 0.0068 0.0068 0.0066 0.0078 0.009 0.0039 0.0051 0.0041 0.0027 -0.61 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1
PWY-7204~pyridoxal 5-phosphate salvage II (plants) 0.8 0.96 1 0.13 0.62 0.96 1 0.24 1 1 1 0.61 1 0.62 1 9e-04 0.00045 0.00024 0.00045 0.00048 0.00051 0.00045 0 0.00075 0 9 / 18 (50%) 6 / 11 (55%) 3 / 7 (43%) 0.545 0.429
GLYCOGENSYNTH-PWY~glycogen biosynthesis I (from ADP-D-Glucose) 0.33 0.95 1 0.57 0.49 0.96 1 0.4 NA NA NA 0.67 1 0.86 1 0.035 0.035 0.039 0.037 0.039 0.0079 0.032 0.039 0.013 -0.21 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1
PWY0-1391~S-methyl-5-thioadenosine degradation IV 0.44 0.95 1 -0.43 0.36 0.96 1 -0.5 0.53 1 1 0.5 1 0.51 0.99 0.00035 5.8e-05 0 3.5e-05 0 0.00012 9.5e-05 0 2e-04 1.4 3 / 18 (17%) 1 / 11 (9.1%) 2 / 7 (29%) 0.0909 0.286
PWY-6381~bisucaberin biosynthesis 0.59 0.96 1 0.32 0.36 0.96 1 0.57 0.39 1 1 0.49 1 0.75 1 0.005 0.0047 0.0049 0.0049 0.0048 0.0022 0.0045 0.0054 0.0029 -0.12 17 / 18 (94%) 11 / 11 (100%) 6 / 7 (86%) 1 0.857
PWY-5910~superpathway of geranylgeranyldiphosphate biosynthesis I (via mevalonate) 0.097 0.95 1 0.7 0.12 0.96 1 0.67 0.25 1 1 0.51 1 0.49 0.99 0.00025 4.2e-05 0 6.8e-05 0 0.00014 0 0 0 -Inf 3 / 18 (17%) 3 / 11 (27%) 0 / 7 (0%) 0.273 0
PWY-4381~fatty acid biosynthesis initiation I 0.56 0.96 1 0.31 0.63 0.96 1 0.26 NA NA NA 0.86 1 0.88 1 0.0093 0.0093 0.0089 0.0096 0.0089 0.0028 0.0088 0.0088 0.0034 -0.13 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1
PWY-7664~oleate biosynthesis IV (anaerobic) 0.3 0.95 1 0.53 0.19 0.96 1 0.66 NA NA NA 0.34 1 0.26 1 0.0052 0.0052 0.0038 0.006 0.0042 0.0044 0.0039 0.0027 0.0042 -0.62 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1
PWY-6595~superpathway of guanosine nucleotides degradation (plants) 0.84 0.96 1 0.1 0.7 0.96 1 0.18 1 1 1 0.63 1 0.72 1 0.0011 0.00037 0 0.00036 0 0.00058 0.00037 0 0.00084 0.04 6 / 18 (33%) 4 / 11 (36%) 2 / 7 (29%) 0.364 0.286
SAM-PWY~S-adenosyl-L-methionine biosynthesis 0.81 0.96 1 0.14 0.78 0.96 1 0.16 NA NA NA 0.89 1 0.68 1 0.024 0.024 0.024 0.024 0.024 0.0027 0.024 0.022 0.0083 0 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1
PWY-7179~purine deoxyribonucleosides degradation I 0.4 0.95 1 0.48 0.33 0.96 1 0.56 NA NA NA 0.46 1 0.56 1 0.0035 0.0035 0.0033 0.0037 0.0037 0.0016 0.003 0.0025 0.0024 -0.3 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1
PWY0-1275~lipoate biosynthesis and incorporation II 0.23 0.95 1 -0.79 0.12 0.96 1 -0.94 0.53 1 1 0.37 0.99 0.36 0.99 0.00027 4.5e-05 0 5.3e-06 0 1.8e-05 0.00011 0 0.00019 4.4 3 / 18 (17%) 1 / 11 (9.1%) 2 / 7 (29%) 0.0909 0.286
PANTO-PWY~phosphopantothenate biosynthesis I 0.36 0.95 1 -0.45 0.55 0.96 1 -0.33 NA NA NA 0.27 1 0.21 1 0.0034 0.0034 0.003 0.0031 0.0025 0.0016 0.0038 0.0033 0.0017 0.29 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1
PWY-7996~menaquinol-4 biosynthesis I 0.06 0.95 1 1.1 0.19 0.96 1 0.79 NA NA NA 0.29 1 0.23 1 0.0057 0.0057 0.0057 0.0065 0.0064 0.0018 0.0045 0.004 0.0021 -0.53 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1
GLYCOLYSIS~glycolysis I (from glucose 6-phosphate) 0.96 0.99 1 0.028 0.88 0.98 1 0.079 NA NA NA 0.74 1 0.72 1 0.012 0.012 0.012 0.012 0.012 0.0032 0.012 0.013 0.0034 0 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1
PWY-3001~superpathway of L-isoleucine biosynthesis I 0.65 0.96 1 0.24 0.71 0.96 1 0.22 NA NA NA 0.88 1 0.59 1 0.018 0.018 0.018 0.018 0.018 0.0042 0.017 0.018 0.0057 -0.082 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1
PWY-5695~inosine 5-phosphate degradation 0.68 0.96 1 -0.24 0.99 0.99 1 -0.0077 NA NA NA 0.63 1 0.64 1 0.0065 0.0065 0.006 0.0061 0.0057 0.0016 0.0072 0.0063 0.0038 0.24 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1
GLCMANNANAUT-PWY~superpathway of N-acetylglucosamine N-acetylmannosamine and N-acetylneuraminate degradation 0.56 0.96 1 -0.29 0.75 0.96 1 -0.17 NA NA NA 0.49 1 0.55 1 0.0046 0.0046 0.0041 0.0043 0.0037 0.0023 0.005 0.0056 0.0024 0.22 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1
PWY-5849~menaquinol-6 biosynthesis 0.06 0.95 1 1.1 0.19 0.96 1 0.79 NA NA NA 0.29 1 0.22 1 0.0057 0.0057 0.0057 0.0065 0.0064 0.0018 0.0045 0.004 0.0021 -0.53 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1
PWY-5516~D-xylose degradation II 0.23 0.95 1 0.61 0.38 0.96 1 0.49 NA NA NA 0.57 1 0.6 1 0.00073 0.00073 0.00075 8e-04 8e-04 0.00032 0.00061 0.00057 0.00029 -0.39 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1
PWY0-1317~L-lactaldehyde degradation (aerobic) 0.79 0.96 1 0.12 0.82 0.96 1 -0.11 0.63 1 1 0.55 1 0.6 1 0.0015 0.00049 0 0.00064 0 0.0014 0.00024 0 0.00035 -1.4 6 / 18 (33%) 3 / 11 (27%) 3 / 7 (43%) 0.273 0.429
BIOTIN-BIOSYNTHESIS-PWY~biotin biosynthesis I 0.82 0.96 1 -0.11 0.72 0.96 1 -0.18 1 1 1 0.63 1 0.67 1 0.0033 0.0013 0 0.0013 0 0.0029 0.0012 0 0.0018 -0.12 7 / 18 (39%) 4 / 11 (36%) 3 / 7 (43%) 0.364 0.429
P41-PWY~pyruvate fermentation to acetate and (S)-lactate I 0.44 0.95 1 0.4 0.25 0.96 1 0.69 0.39 1 1 0.38 1 0.31 1 0.0024 0.0023 0.0016 0.0025 0.0017 0.0023 0.0019 0.0014 0.0021 -0.4 17 / 18 (94%) 11 / 11 (100%) 6 / 7 (86%) 1 0.857
PWY-5482~pyruvate fermentation to acetate II 0.4 0.95 1 0.44 0.25 0.96 1 0.69 0.39 1 1 0.38 1 0.3 1 0.0026 0.0024 0.0016 0.0027 0.0017 0.0024 0.002 0.0011 0.002 -0.43 17 / 18 (94%) 11 / 11 (100%) 6 / 7 (86%) 1 0.857
PWY-5886~4-hydroxyphenylpyruvate biosynthesis 0.99 0.99 1 0.0094 0.81 0.96 1 0.12 1 1 1 0.66 1 0.78 1 0.00076 0.00055 0.00046 0.00053 0.00045 0.00053 0.00058 0.00047 0.00067 0.13 13 / 18 (72%) 8 / 11 (73%) 5 / 7 (71%) 0.727 0.714
PWY-723~alkylnitronates degradation 0.57 0.96 1 0.25 0.66 0.96 1 0.22 1 1 1 0.54 1 0.59 1 0.00022 3.7e-05 0 5.3e-05 0 0.00015 1.3e-05 0 3.6e-05 -2 3 / 18 (17%) 2 / 11 (18%) 1 / 7 (14%) 0.182 0.143
PWY-5851~demethylmenaquinol-9 biosynthesis 0.6 0.96 1 0.25 0.89 0.98 1 0.063 1 1 1 0.78 1 0.69 1 0.0028 0.0027 0.0027 0.003 0.0034 0.0025 0.0021 0.0026 0.0017 -0.51 17 / 18 (94%) 10 / 11 (91%) 7 / 7 (100%) 0.909 1
PWY-6028~acetoin degradation 0.9 0.97 1 -0.057 0.69 0.96 1 -0.18 0.33 1 1 0.54 1 0.57 1 3e-04 8.2e-05 0 1e-04 0 0.00029 5.1e-05 0 8.7e-05 -0.97 5 / 18 (28%) 2 / 11 (18%) 3 / 7 (43%) 0.182 0.429
PWY0-845~superpathway of pyridoxal 5-phosphate biosynthesis and salvage 0.61 0.96 1 -0.25 0.4 0.96 1 -0.44 0.33 1 1 0.47 1 0.46 1 0.0027 0.00074 0 7e-04 0 0.0019 0.00081 0 0.0014 0.21 5 / 18 (28%) 2 / 11 (18%) 3 / 7 (43%) 0.182 0.429
PWY-6353~purine nucleotides degradation II (aerobic) 0.67 0.96 1 -0.25 0.98 0.99 1 -0.015 NA NA NA 0.66 1 0.72 1 0.0058 0.0058 0.0053 0.0055 0.0052 0.0014 0.0064 0.0059 0.0032 0.22 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1
P4-PWY~superpathway of L-lysine L-threonine and L-methionine biosynthesis I 0.31 0.95 1 0.5 0.28 0.96 1 0.56 0.33 1 1 0.44 1 0.33 1 0.0035 0.0025 0.0014 0.0031 0.0017 0.0032 0.0016 0.0012 0.002 -0.95 13 / 18 (72%) 9 / 11 (82%) 4 / 7 (57%) 0.818 0.571
ARGDEG-III-PWY~L-arginine degradation IV (arginine decarboxylase/agmatine deiminase pathway) 0.3 0.95 1 -0.56 0.65 0.96 1 -0.23 NA NA NA 0.33 1 0.22 1 0.0068 0.0068 0.0059 0.0062 0.0054 0.0022 0.0077 0.0065 0.003 0.31 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1
PWY-701~L-methionine degradation II 0.15 0.95 1 -0.84 0.15 0.96 1 -0.76 0.37 1 1 0.33 1 0.26 0.99 0.00018 1e-04 7.1e-05 5.1e-05 0 6.8e-05 0.00018 0.00013 0.00023 1.8 10 / 18 (56%) 5 / 11 (45%) 5 / 7 (71%) 0.455 0.714
ALACAT2-PWY~L-alanine degradation II (to D-lactate) 0.79 0.96 1 -0.13 0.46 0.96 1 -0.39 0.14 1 1 0.47 1 0.46 1 0.0018 0.00059 0 0.00066 0 0.0015 0.00047 3.6e-05 0.00086 -0.49 6 / 18 (33%) 2 / 11 (18%) 4 / 7 (57%) 0.182 0.571
PWY0-1466~trehalose degradation VI (periplasmic) 0.33 0.95 1 0.42 0.72 0.96 1 0.16 1 1 1 0.72 1 0.59 1 0.0034 0.0023 0.00089 0.0031 0.00091 0.0054 0.00094 0.00042 0.0013 -1.7 12 / 18 (67%) 7 / 11 (64%) 5 / 7 (71%) 0.636 0.714
PWY-6897~thiamine salvage II 0.48 0.96 1 0.36 0.64 0.96 1 0.27 NA NA NA 0.86 1 0.76 1 0.01 0.01 0.011 0.011 0.011 0.0029 0.0096 0.011 0.0028 -0.2 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1
PWY-5964~guanylyl molybdenum cofactor biosynthesis 0.22 0.95 1 -0.69 0.35 0.96 1 -0.47 NA NA NA 0.29 1 0.35 1 0.0014 0.0014 0.0011 0.0011 0.001 0.00068 0.002 0.0017 0.0014 0.86 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1
PWY-5345~superpathway of L-methionine biosynthesis (by sulfhydrylation) 0.36 0.95 1 0.53 0.26 0.96 1 0.73 0.39 1 1 0.32 1 0.54 1 0.0051 0.0048 0.0043 0.0053 0.0043 0.0028 0.0042 0.0041 0.0032 -0.34 17 / 18 (94%) 11 / 11 (100%) 6 / 7 (86%) 1 0.857
PWY-6892~thiazole biosynthesis I (facultative anaerobic bacteria) 0.28 0.95 1 -0.62 0.33 0.96 1 -0.52 0.63 1 1 0.43 1 0.42 1 0.00058 0.00026 0 0.00014 0 0.00022 0.00045 0.00016 0.00062 1.7 8 / 18 (44%) 4 / 11 (36%) 4 / 7 (57%) 0.364 0.571
PWY-5489~methyl parathion degradation 0.3 0.95 1 -0.69 0.19 0.96 1 -0.85 0.53 1 1 0.37 0.99 0.38 1 0.00064 0.00011 0 5.4e-06 0 1.8e-05 0.00027 0 0.00066 5.6 3 / 18 (17%) 1 / 11 (9.1%) 2 / 7 (29%) 0.0909 0.286
PWY-6333~acetaldehyde biosynthesis I 0.93 0.99 1 0.053 0.78 0.96 1 0.16 NA NA NA 0.89 1 0.76 1 0.028 0.028 0.028 0.028 0.027 0.0045 0.028 0.035 0.012 0 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1
PWY-7622~UDP-α-D-galactofuranose biosynthesis 0.13 0.95 1 0.78 0.32 0.96 1 0.57 NA NA NA 0.49 1 0.62 1 0.022 0.022 0.02 0.025 0.021 0.0075 0.019 0.02 0.0058 -0.4 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1
PWY-1881~formate oxidation to CO2 0.97 0.99 1 0.021 0.75 0.96 1 0.15 1 1 1 0.69 1 0.77 1 0.00063 0.00045 0.00015 4e-04 0.00022 0.00042 0.00053 0.00012 0.0011 0.41 13 / 18 (72%) 8 / 11 (73%) 5 / 7 (71%) 0.727 0.714
PWY-6893~thiamine diphosphate biosynthesis II (Bacillus) 0.51 0.96 1 0.34 0.34 0.96 1 0.52 0.53 1 1 0.52 1 0.39 1 0.0016 0.0013 0.00092 0.0014 0.001 0.0016 0.0011 0.00043 0.0017 -0.35 15 / 18 (83%) 10 / 11 (91%) 5 / 7 (71%) 0.909 0.714
RIBOSYN2-PWY~flavin biosynthesis I (bacteria and plants) 0.38 0.95 1 0.42 0.64 0.96 1 0.26 NA NA NA 0.84 1 0.75 1 0.0057 0.0057 0.0058 0.006 0.007 0.0021 0.0052 0.0057 0.0016 -0.21 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1
ARGDEGRAD-PWY~L-arginine degradation V (arginine deiminase pathway) 0.42 0.95 1 -0.4 0.52 0.96 1 -0.32 1 1 1 0.4 1 0.39 1 0.0011 0.00094 8e-04 0.00081 7e-04 0.00077 0.0012 0.0016 0.00082 0.57 15 / 18 (83%) 9 / 11 (82%) 6 / 7 (86%) 0.818 0.857
PWY-6126~superpathway of adenosine nucleotides de novo biosynthesis II 0.98 0.99 1 -0.0088 0.68 0.96 1 -0.2 1 1 1 0.55 1 0.61 1 0.0018 0.0012 0.00036 0.0014 0.00018 0.0024 0.00092 8e-04 0.001 -0.61 12 / 18 (67%) 7 / 11 (64%) 5 / 7 (71%) 0.636 0.714
P185-PWY~formaldehyde assimilation III (dihydroxyacetone cycle) 0.82 0.96 1 0.13 0.71 0.96 1 0.2 NA NA NA 0.87 1 0.65 1 0.0074 0.0074 0.0075 0.0074 0.0073 0.002 0.0074 0.0082 0.0036 0 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1
PWY-5852~demethylmenaquinol-8 biosynthesis I 0.6 0.96 1 0.25 0.89 0.98 1 0.063 1 1 1 0.79 1 0.72 1 0.0028 0.0027 0.0027 0.003 0.0034 0.0025 0.0021 0.0026 0.0017 -0.51 17 / 18 (94%) 10 / 11 (91%) 7 / 7 (100%) 0.909 1
PWY-7796~pentose phosphate pathway (oxidative branch) II 0.84 0.96 1 0.11 0.49 0.96 1 0.4 0.39 1 1 0.59 1 0.73 1 0.00062 0.00058 0.00049 0.00054 5e-04 0.00042 0.00065 0.00048 0.00076 0.27 17 / 18 (94%) 11 / 11 (100%) 6 / 7 (86%) 1 0.857
HOMOSERSYN-PWY~L-homoserine biosynthesis 0.27 0.95 1 0.61 0.63 0.96 1 0.29 NA NA NA 0.89 1 0.62 1 0.02 0.02 0.02 0.021 0.021 0.0029 0.019 0.019 0.004 -0.14 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1
PWY-6894~thiamine diphosphate biosynthesis I (E. coli) 0.51 0.96 1 0.34 0.34 0.96 1 0.52 0.53 1 1 0.56 1 0.39 1 0.0016 0.0013 0.00092 0.0014 0.001 0.0016 0.0011 0.00043 0.0017 -0.35 15 / 18 (83%) 10 / 11 (91%) 5 / 7 (71%) 0.909 0.714
P441-PWY~superpathway of N-acetylneuraminate degradation 0.58 0.96 1 -0.27 0.62 0.96 1 -0.24 NA NA NA 0.41 1 0.49 1 0.0056 0.0056 0.0043 0.0053 0.0041 0.0037 0.0061 0.0054 0.0035 0.2 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1
PWY-7181~pyrimidine deoxyribonucleosides degradation 0.88 0.96 1 -0.068 0.73 0.96 1 -0.15 NA NA NA 0.52 1 0.79 1 0.0034 0.0034 0.0033 0.0035 0.0028 0.0019 0.0034 0.0038 0.0013 -0.042 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1
SER-GLYSYN-PWY~superpathway of L-serine and glycine biosynthesis I 0.79 0.96 1 0.13 0.81 0.96 1 0.13 NA NA NA 0.84 1 0.62 1 0.0084 0.0084 0.0086 0.0085 0.009 0.0031 0.0081 0.0072 0.0033 -0.07 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1
GLYCINE-SYN2-PWY~glycine biosynthesis II 0.34 0.95 1 -0.45 0.18 0.96 1 -0.65 1 1 1 0.19 1 0.14 1 0.0023 0.0021 0.00079 0.0019 0.00064 0.0033 0.0025 0.0017 0.0022 0.4 17 / 18 (94%) 10 / 11 (91%) 7 / 7 (100%) 0.909 1
PWY-7997~demethylmenaquinol-4 biosynthesis 0.6 0.96 1 0.25 0.89 0.98 1 0.063 1 1 1 0.81 1 0.7 1 0.0028 0.0027 0.0027 0.003 0.0034 0.0025 0.0021 0.0026 0.0017 -0.51 17 / 18 (94%) 10 / 11 (91%) 7 / 7 (100%) 0.909 1
ASPASN-PWY~superpathway of L-aspartate and L-asparagine biosynthesis 0.48 0.96 1 -0.32 0.21 0.96 1 -0.58 NA NA NA 0.1 0.99 0.1 0.99 0.003 0.003 0.0021 0.0028 0.0017 0.0029 0.0032 0.0031 0.0016 0.19 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1
PWY-6507~4-deoxy-L-threo-hex-4-enopyranuronate degradation 0.78 0.96 1 -0.14 0.72 0.96 1 -0.17 1 1 1 0.55 1 0.58 1 0.00075 0.00017 0 0.00015 0 0.00043 0.00018 0 0.00041 0.26 4 / 18 (22%) 2 / 11 (18%) 2 / 7 (29%) 0.182 0.286
PWY-7228~superpathway of guanosine nucleotides de novo biosynthesis I 0.85 0.96 1 -0.078 0.22 0.96 1 -0.52 0.12 1 1 0.24 1 0.55 1 0.0015 0.0012 0.00083 0.0014 0.00065 0.0019 0.00093 0.001 0.00063 -0.59 14 / 18 (78%) 7 / 11 (64%) 7 / 7 (100%) 0.636 1
PWY-7194~pyrimidine nucleobases salvage II 0.43 0.95 1 0.38 0.43 0.96 1 0.42 0.53 1 1 0.6 1 0.65 1 0.0013 0.0011 0.00075 0.0012 0.00066 0.0013 0.00078 0.00085 0.00076 -0.62 15 / 18 (83%) 10 / 11 (91%) 5 / 7 (71%) 0.909 0.714
PWY-5731~atrazine degradation III 0.59 0.96 1 0.25 0.75 0.96 1 0.15 1 1 1 0.66 1 0.7 1 0.00068 0.00026 0 0.00034 0 0.00059 0.00015 0 0.00029 -1.2 7 / 18 (39%) 4 / 11 (36%) 3 / 7 (43%) 0.364 0.429
PWY-7791~UMP biosynthesis III 0.18 0.95 1 0.79 0.56 0.96 1 0.34 NA NA NA 0.81 1 0.84 1 0.024 0.024 0.025 0.026 0.025 0.0035 0.022 0.022 0.0055 -0.24 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1
PWY-6131~glycerol degradation II 0.39 0.95 1 -0.5 0.69 0.96 1 -0.23 NA NA NA 0.42 1 0.39 1 0.0027 0.0027 0.0023 0.0023 0.0022 0.00094 0.0033 0.0032 0.0025 0.52 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1
TYRSYN~L-tyrosine biosynthesis I 0.61 0.96 1 -0.27 0.86 0.97 1 -0.086 1 1 1 0.65 1 0.67 1 0.00085 0.00052 0.00037 4e-04 0.00018 0.00041 7e-04 0.00056 0.00076 0.81 11 / 18 (61%) 7 / 11 (64%) 4 / 7 (57%) 0.636 0.571
PWY-6609~adenine and adenosine salvage III 0.44 0.95 1 0.45 0.31 0.96 1 0.64 0.39 1 1 0.4 1 0.63 1 0.0031 0.0029 0.0028 0.0031 0.0031 0.0013 0.0027 0.0024 0.0021 -0.2 17 / 18 (94%) 11 / 11 (100%) 6 / 7 (86%) 1 0.857
PWY-7227~adenosine deoxyribonucleotides de novo biosynthesis 0.86 0.96 1 -0.079 0.37 0.96 1 -0.42 0.6 1 1 0.37 1 0.41 1 0.002 0.0014 0.00046 0.0016 0.00016 0.0028 0.0011 0.00085 0.0012 -0.54 13 / 18 (72%) 7 / 11 (64%) 6 / 7 (86%) 0.636 0.857
NAD-BIOSYNTHESIS-II~NAD salvage pathway III (to nicotinamide riboside) 0.3 0.95 1 0.5 0.58 0.96 1 0.25 1 1 1 0.68 1 0.23 1 0.0049 0.0046 0.0043 0.0054 0.0045 0.004 0.0033 0.0039 0.0026 -0.71 17 / 18 (94%) 10 / 11 (91%) 7 / 7 (100%) 0.909 1
ARGININE-SYN4-PWY~L-ornithine biosynthesis II 0.41 0.95 1 0.35 0.54 0.96 1 0.28 1 1 1 0.56 1 0.64 1 0.0016 0.00027 0 0.00041 0 0.001 5.6e-05 0 0.00015 -2.9 3 / 18 (17%) 2 / 11 (18%) 1 / 7 (14%) 0.182 0.143
PWY-7639~bis(guanylyl molybdenum cofactor) biosynthesis 0.22 0.95 1 -0.69 0.35 0.96 1 -0.47 NA NA NA 0.3 1 0.35 1 0.0014 0.0014 0.0011 0.0011 0.001 0.00068 0.002 0.0017 0.0014 0.86 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1
PWY-5142~acyl-[acyl-carrier protein] thioesterase pathway 0.43 0.95 1 0.48 0.2 0.96 1 0.83 0.14 1 1 0.3 1 0.73 1 0.0019 0.0017 0.0014 0.0017 0.0015 0.001 0.0016 0.00092 0.0016 -0.087 16 / 18 (89%) 11 / 11 (100%) 5 / 7 (71%) 1 0.714
PWY-1722~formate assimilation into 510-methylenetetrahydrofolate 0.27 0.95 1 0.61 0.63 0.96 1 0.28 NA NA NA 0.87 1 0.86 1 0.016 0.016 0.015 0.016 0.016 0.0022 0.015 0.015 0.0029 -0.093 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1
PWY3O-4107~NAD salvage pathway V (PNC V cycle) 0.36 0.95 1 0.42 0.51 0.96 1 0.32 1 1 1 0.58 1 0.41 1 0.0018 0.0014 8e-04 0.0018 0.00099 0.0021 0.00087 0.00063 0.001 -1 14 / 18 (78%) 9 / 11 (82%) 5 / 7 (71%) 0.818 0.714
SALVADEHYPOX-PWY~adenosine nucleotides degradation II 0.83 0.96 1 -0.12 0.93 0.98 1 0.051 NA NA NA 0.75 1 0.71 1 0.0077 0.0077 0.0067 0.0074 0.0061 0.0019 0.0081 0.0072 0.0041 0.13 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1
PWY-5994~palmitate biosynthesis I (animals and fungi) 0.22 0.95 1 0.67 0.12 0.96 1 1 0.39 1 1 0.16 1 0.28 1 0.0048 0.0045 0.0037 0.0053 0.004 0.0039 0.0032 0.0026 0.0035 -0.73 17 / 18 (94%) 11 / 11 (100%) 6 / 7 (86%) 1 0.857
CITRULBIO-PWY~L-citrulline biosynthesis 0.63 0.96 1 0.21 0.82 0.96 1 0.11 1 1 1 0.61 1 0.69 1 0.0018 5e-04 0 0.00066 0 0.0014 0.00024 0 0.00045 -1.5 5 / 18 (28%) 3 / 11 (27%) 2 / 7 (29%) 0.273 0.286
PWY0-1301~melibiose degradation 0.57 0.96 1 0.29 0.66 0.96 1 0.27 NA NA NA 0.93 1 0.81 1 0.058 0.058 0.056 0.06 0.058 0.02 0.055 0.045 0.021 -0.13 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1
PROUT-PWY~L-proline degradation 0.69 0.96 1 0.17 0.87 0.97 1 -0.078 0.63 1 1 0.56 1 0.65 1 0.0025 0.00085 0 0.0011 0 0.0023 0.00039 0 0.00061 -1.5 6 / 18 (33%) 3 / 11 (27%) 3 / 7 (43%) 0.273 0.429
PWY-6614~tetrahydrofolate biosynthesis 0.56 0.96 1 0.32 0.34 0.96 1 0.62 0.39 1 1 0.48 1 0.7 1 0.0019 0.0018 0.0017 0.0019 0.0014 0.0011 0.0017 0.0024 0.0012 -0.16 17 / 18 (94%) 11 / 11 (100%) 6 / 7 (86%) 1 0.857
PWY-6646~fluoroacetate degradation 0.14 0.95 1 0.8 0.14 0.96 1 0.94 0.14 1 1 0.18 1 0.26 1 0.0019 0.0017 0.0012 0.002 0.0012 0.0019 0.0011 4e-04 0.0013 -0.86 16 / 18 (89%) 11 / 11 (100%) 5 / 7 (71%) 1 0.714
PWY-6121~5-aminoimidazole ribonucleotide biosynthesis I 0.38 0.95 1 0.48 0.65 0.96 1 0.26 NA NA NA 0.9 1 0.83 1 0.023 0.023 0.023 0.024 0.024 0.0041 0.022 0.022 0.0049 -0.13 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1
PANTOSYN-PWY~superpathway of coenzyme A biosynthesis I (bacteria) 0.94 0.99 1 -0.042 0.88 0.98 1 0.089 NA NA NA 0.74 1 0.58 1 0.0043 0.0043 0.0043 0.0042 0.0043 0.0012 0.0044 0.0046 0.002 0.067 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1
PWY0-1582~glycerol-3-phosphate to fumarate electron transfer 0.64 0.96 1 -0.25 0.72 0.96 1 -0.18 1 1 1 0.55 1 0.58 1 0.0013 0.00051 0 0.00039 0 0.00058 0.00071 0 0.0012 0.86 7 / 18 (39%) 4 / 11 (36%) 3 / 7 (43%) 0.364 0.429
GLUCONSUPER-PWY~D-gluconate degradation 0.26 0.95 1 0.53 0.27 0.96 1 0.53 1 1 1 0.46 1 0.31 1 0.0012 0.0011 0.00047 0.0013 0.00083 0.0014 0.00064 0.00021 0.00078 -1 16 / 18 (89%) 10 / 11 (91%) 6 / 7 (86%) 0.909 0.857
PWY-5892~menaquinol-12 biosynthesis 0.98 0.99 1 -0.0099 0.82 0.96 1 -0.11 1 1 1 0.59 1 0.72 1 0.0018 0.00092 6.1e-05 0.001 0 0.0018 8e-04 0.00012 0.0011 -0.32 9 / 18 (50%) 5 / 11 (45%) 4 / 7 (57%) 0.455 0.571
ARG%2bPOLYAMINE-SYN~superpathway of arginine and polyamine biosynthesis 0.12 0.95 1 0.71 0.057 0.96 1 0.87 0.15 1 1 0.25 1 0.25 0.99 0.0018 0.00071 0 0.001 0.00029 0.0015 0.00024 0 0.00064 -2.1 7 / 18 (39%) 6 / 11 (55%) 1 / 7 (14%) 0.545 0.143
PWY0-1264~biotin-carboxyl carrier protein assembly 0.56 0.96 1 -0.35 0.91 0.98 1 -0.065 NA NA NA 0.62 1 0.67 1 0.0086 0.0086 0.0078 0.008 0.0075 0.002 0.0095 0.008 0.0046 0.25 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1
GLYCEROLMETAB-PWY~glycerol degradation V 0.48 0.96 1 -0.44 0.87 0.97 1 -0.097 NA NA NA 0.66 1 0.5 1 0.0032 0.0032 0.0026 0.0026 0.0025 0.0011 0.0041 0.0036 0.0035 0.66 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1
PWY0-1280~ethylene glycol degradation 0.83 0.96 1 0.1 0.96 0.99 1 0.026 1 1 1 0.61 1 0.67 1 0.0016 0.00044 0 0.00053 0 0.0012 0.00029 0 0.00053 -0.87 5 / 18 (28%) 3 / 11 (27%) 2 / 7 (29%) 0.273 0.286
PWY-3841~folate transformations II 0.41 0.95 1 0.41 0.68 0.96 1 0.25 NA NA NA 0.85 1 0.67 1 0.0096 0.0096 0.0096 0.0099 0.0099 0.0019 0.0091 0.0094 0.0019 -0.12 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1
PWY0-1300~2-O-α-mannosyl-D-glycerate degradation 0.72 0.96 1 -0.17 0.71 0.96 1 -0.19 0.53 1 1 0.42 1 0.46 0.99 0.00016 2.7e-05 0 3e-05 0 9.9e-05 2.3e-05 0 4.7e-05 -0.38 3 / 18 (17%) 1 / 11 (9.1%) 2 / 7 (29%) 0.0909 0.286
ALANINE-SYN2-PWY~L-alanine biosynthesis II 0.014 0.89 1 1.3 0.11 0.96 1 1.1 NA NA NA 0.12 1 0.12 1 0.0071 0.0071 0.007 0.0086 0.0072 0.0034 0.0048 0.0039 0.0022 -0.84 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1
PWY-7625~phosphatidylinositol biosynthesis II (eukaryotes) 0.52 0.96 1 0.32 0.61 0.96 1 0.26 1 1 1 0.6 1 0.54 1 0.001 0.00085 6e-04 0.00096 0.00062 0.00098 0.00068 0.00024 9e-04 -0.5 15 / 18 (83%) 9 / 11 (82%) 6 / 7 (86%) 0.818 0.857
P122-PWY~heterolactic fermentation 0.67 0.96 1 0.21 0.75 0.96 1 0.15 1 1 1 0.74 1 0.59 1 0.0028 0.002 0.0012 0.0022 0.0013 0.0023 0.0016 0.00082 0.0018 -0.46 13 / 18 (72%) 8 / 11 (73%) 5 / 7 (71%) 0.727 0.714
TREDEGLOW-PWY~trehalose degradation I (low osmolarity) 0.69 0.96 1 0.21 0.36 0.96 1 0.5 NA NA NA 0.55 1 0.63 1 0.0035 0.0035 0.0025 0.0036 0.0025 0.0024 0.0034 0.0021 0.0031 -0.082 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1
PWY-5512~UDP-N-acetyl-D-galactosamine biosynthesis I 0.59 0.96 1 -0.28 0.49 0.96 1 -0.37 1 1 1 0.53 1 0.54 0.99 0.00057 0.00013 0 1e-04 0 0.00033 0.00016 0 0.00033 0.68 4 / 18 (22%) 2 / 11 (18%) 2 / 7 (29%) 0.182 0.286
PWY-6151~S-adenosyl-L-methionine cycle I 0.19 0.95 1 0.78 0.25 0.96 1 0.72 NA NA NA 0.34 1 0.47 1 0.0082 0.0082 0.0085 0.009 0.0086 0.0025 0.0069 0.0084 0.0035 -0.38 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1
PWY-5350~thiosulfate disproportionation IV (rhodanese) 0.96 0.99 1 -0.025 0.8 0.96 1 0.13 NA NA NA 0.84 1 0.91 1 0.0094 0.0094 0.0089 0.0092 0.0085 0.0026 0.0097 0.0092 0.0049 0.076 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1
VALSYN-PWY~L-valine biosynthesis 0.5 0.96 1 0.37 0.63 0.96 1 0.27 NA NA NA 0.9 1 0.87 1 0.023 0.023 0.023 0.024 0.023 0.0046 0.022 0.021 0.0065 -0.13 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1
THIOREDOX-PWY~thioredoxin pathway 0.62 0.96 1 0.29 0.67 0.96 1 0.24 NA NA NA 0.9 1 0.86 1 0.028 0.028 0.029 0.028 0.029 0.005 0.027 0.03 0.01 -0.052 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1
PWY-7842~UDP-yelosamine biosynthesis 0.14 0.95 1 -0.86 0.068 0.96 1 -1.1 0.047 1 1 0.2 0.98 0.17 0.98 0.00057 0.00016 0 7.8e-05 0 0.00026 0.00028 0.00011 0.00039 1.8 5 / 18 (28%) 1 / 11 (9.1%) 4 / 7 (57%) 0.0909 0.571
PWY-6698~oxalate degradation V 0.25 0.95 1 -0.66 0.48 0.96 1 -0.4 NA NA NA 0.37 1 0.36 1 8e-04 8e-04 0.00065 0.00063 0.00057 0.00041 0.0011 0.00074 0.00078 0.8 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1
ARO-PWY~chorismate biosynthesis I 0.76 0.96 1 0.17 0.69 0.96 1 0.24 NA NA NA 0.88 1 0.77 1 0.011 0.011 0.011 0.011 0.011 0.0027 0.011 0.011 0.0047 0 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1
PWY-6143~CMP-pseudaminate biosynthesis 0.18 0.95 1 -0.84 0.16 0.96 1 -0.88 0.25 1 1 0.33 0.99 0.32 0.99 0.00091 2e-04 0 5.3e-05 0 0.00018 0.00044 0 7e-04 3.1 4 / 18 (22%) 1 / 11 (9.1%) 3 / 7 (43%) 0.0909 0.429
ANAGLYCOLYSIS-PWY~glycolysis III (from glucose) 0.41 0.95 1 0.49 0.59 0.96 1 0.31 NA NA NA 0.86 1 0.86 1 0.016 0.016 0.016 0.016 0.015 0.0023 0.015 0.017 0.004 -0.093 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1
PWY0-381~glycerol and glycerophosphodiester degradation 0.67 0.96 1 -0.23 0.8 0.96 1 -0.12 1 1 1 0.58 1 0.63 1 0.00091 4e-04 0 0.00029 0 0.00051 0.00058 0 0.0011 1 8 / 18 (44%) 5 / 11 (45%) 3 / 7 (43%) 0.455 0.429
GLYSYN-ALA-PWY~glycine biosynthesis III 0.88 0.96 1 0.076 0.85 0.97 1 0.092 1 1 1 0.67 1 0.76 1 0.00051 0.00028 8.2e-05 3e-04 0.00011 5e-04 0.00025 5.4e-05 0.00037 -0.26 10 / 18 (56%) 6 / 11 (55%) 4 / 7 (57%) 0.545 0.571
PWY-6613~tetrahydrofolate salvage from 510-methenyltetrahydrofolate 0.43 0.95 1 0.37 0.75 0.96 1 0.17 NA NA NA 0.83 1 0.7 1 0.0092 0.0092 0.0092 0.0094 0.0097 0.0016 0.0089 0.0092 0.0012 -0.079 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1
PWY-6785~hydrogen production VIII 0.82 0.96 1 -0.13 0.97 0.99 1 0.022 NA NA NA 0.69 1 0.61 1 0.031 0.031 0.03 0.03 0.03 0.0075 0.032 0.036 0.011 0.093 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1
PWY-6588~pyruvate fermentation to acetone 0.68 0.96 1 -0.24 0.79 0.96 1 0.16 0.39 1 1 0.77 1 0.74 1 0.0017 0.0016 0.0016 0.0014 0.0015 0.00066 0.002 0.0018 0.0017 0.51 17 / 18 (94%) 11 / 11 (100%) 6 / 7 (86%) 1 0.857
PWY-6512~hydrogen oxidation III (anaerobic NADP) 0.83 0.96 1 -0.095 0.47 0.96 1 -0.35 0.63 1 1 0.39 1 0.43 1 0.0016 7e-04 0 0.00082 0 0.0017 0.00051 0.00061 0.00053 -0.69 8 / 18 (44%) 4 / 11 (36%) 4 / 7 (57%) 0.364 0.571
PWY-43~putrescine biosynthesis II 0.3 0.95 1 -0.56 0.65 0.96 1 -0.23 NA NA NA 0.34 1 0.22 1 0.0068 0.0068 0.0059 0.0062 0.0054 0.0022 0.0077 0.0065 0.003 0.31 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1
PWY-5965~fatty acid biosynthesis initiation III 0.4 0.95 1 0.36 0.97 0.99 1 -0.015 1 1 1 0.76 1 0.73 1 0.0043 0.004 0.0029 0.0049 0.0034 0.0046 0.0027 0.0021 0.0017 -0.86 17 / 18 (94%) 10 / 11 (91%) 7 / 7 (100%) 0.909 1
PROPIONMET-PWY~propanoyl CoA degradation I 0.67 0.96 1 0.18 0.77 0.96 1 -0.13 0.63 1 1 0.54 1 0.67 1 0.0028 0.0012 0 0.0017 0 0.0035 0.00053 0.00026 0.00076 -1.7 8 / 18 (44%) 4 / 11 (36%) 4 / 7 (57%) 0.364 0.571
PWY-5121~superpathway of geranylgeranyl diphosphate biosynthesis II (via MEP) 0.32 0.95 1 0.62 0.29 0.96 1 0.68 NA NA NA 0.36 1 0.85 1 0.0082 0.0082 0.0086 0.0089 0.0086 0.0021 0.0073 0.0084 0.005 -0.29 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1
PWY-5278~sulfite oxidation III 0.78 0.96 1 0.15 0.79 0.96 1 0.14 NA NA NA 0.91 1 0.87 1 0.012 0.012 0.012 0.012 0.011 0.0039 0.011 0.014 0.0043 -0.13 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1
PWY-5436~L-threonine degradation IV 0.39 0.95 1 0.42 0.27 0.96 1 0.57 NA NA NA 0.43 1 0.36 1 0.0022 0.0022 0.0014 0.0025 0.0017 0.0024 0.0017 0.0014 0.0016 -0.56 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1
PWY66-428~L-threonine degradation V 0.78 0.96 1 0.13 0.85 0.97 1 0.088 1 1 1 0.66 1 0.75 1 0.0012 0.00055 0 0.00063 0 0.001 0.00042 0 7e-04 -0.58 8 / 18 (44%) 5 / 11 (45%) 3 / 7 (43%) 0.455 0.429
PWY-5703~urea degradation I 0.43 0.95 1 0.36 0.66 0.96 1 0.21 1 1 1 0.69 1 0.67 1 0.0032 0.0023 0.00056 0.0029 0.00057 0.004 0.0013 0.00054 0.0023 -1.2 13 / 18 (72%) 8 / 11 (73%) 5 / 7 (71%) 0.727 0.714
PWY-7345~superpathway of anaerobic sucrose degradation 0.23 0.95 1 -0.72 0.23 0.96 1 -0.69 0.33 1 1 0.39 0.99 0.36 0.99 0.00093 0.00026 0 0.00011 0 0.00025 0.00049 0 0.00066 2.2 5 / 18 (28%) 2 / 11 (18%) 3 / 7 (43%) 0.182 0.429
PWY0-1324~N-acetylneuraminate and N-acetylmannosamine degradation I 0.75 0.96 1 -0.17 0.81 0.96 1 -0.12 1 1 1 0.62 1 0.69 1 0.00089 0.00035 0 0.00029 0 0.00043 0.00044 0 8e-04 0.6 7 / 18 (39%) 4 / 11 (36%) 3 / 7 (43%) 0.364 0.429
PYRIDNUCSAL-PWY~NAD salvage pathway I (PNC VI cycle) 0.52 0.96 1 0.29 0.89 0.98 1 0.062 1 1 1 0.74 1 0.64 1 0.0021 0.0014 7e-04 0.0017 0.001 0.0021 0.00084 0.00053 0.001 -1 12 / 18 (67%) 7 / 11 (64%) 5 / 7 (71%) 0.636 0.714
PWY-2722~trehalose degradation IV 0.97 0.99 1 -0.018 0.74 0.96 1 0.16 1 1 1 0.59 1 0.59 1 9e-04 2e-04 0 0.00016 0 0.00037 0.00026 0 7e-04 0.7 4 / 18 (22%) 3 / 11 (27%) 1 / 7 (14%) 0.273 0.143
GLUTORN-PWY~L-ornithine biosynthesis I 0.53 0.96 1 0.39 0.52 0.96 1 0.38 NA NA NA 0.77 1 0.86 1 0.016 0.016 0.017 0.016 0.017 0.0023 0.015 0.016 0.0055 -0.093 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1
PEPTIDOGLYCANSYN-PWY~peptidoglycan biosynthesis I (meso-diaminopimelate containing) 0.29 0.95 1 0.63 0.55 0.96 1 0.35 NA NA NA 0.81 1 0.86 1 0.017 0.017 0.018 0.018 0.019 0.0026 0.016 0.016 0.0046 -0.17 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1
PWY1-2~L-alanine degradation IV 0.27 0.95 1 -0.51 0.12 0.96 1 -0.72 1 1 1 0.086 1 0.095 1 0.0015 0.0014 0.00062 0.0013 0.00043 0.0018 0.0017 0.0012 0.0013 0.39 17 / 18 (94%) 10 / 11 (91%) 7 / 7 (100%) 0.909 1
PWY-7560~methylerythritol phosphate pathway II 0.63 0.96 1 0.29 0.61 0.96 1 0.31 NA NA NA 0.8 1 0.64 1 0.0077 0.0077 0.0079 0.0078 0.0079 0.0016 0.0074 0.0088 0.0039 -0.076 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1
PWY-5973~cis-vaccenate biosynthesis 0.26 0.95 1 0.62 0.2 0.96 1 0.81 NA NA NA 0.28 1 0.46 1 0.0047 0.0047 0.0044 0.0053 0.0048 0.0032 0.0038 0.0026 0.003 -0.48 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1
PWY-7234~inosine-5-phosphate biosynthesis III 0.44 0.95 1 0.36 0.64 0.96 1 0.22 1 1 1 0.72 1 0.55 1 0.0019 0.0016 0.0011 0.0019 0.0011 0.0019 0.0011 0.00091 0.0012 -0.79 15 / 18 (83%) 9 / 11 (82%) 6 / 7 (86%) 0.818 0.857
PWY-2942~L-lysine biosynthesis III 0.16 0.95 1 -0.69 0.41 0.96 1 -0.46 NA NA NA 0.17 1 0.18 1 0.0064 0.0064 0.0058 0.0057 0.0054 0.0028 0.0076 0.0066 0.003 0.42 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1
P283-PWY~hydrogen oxidation I (aerobic) 0.69 0.96 1 -0.22 0.84 0.97 1 -0.096 0.63 1 1 0.6 1 0.63 1 0.0013 0.00045 0 0.00026 0 0.00062 0.00075 0 0.0019 1.5 6 / 18 (33%) 3 / 11 (27%) 3 / 7 (43%) 0.273 0.429
PWY-7328~superpathway of UDP-glucose-derived O-antigen building blocks biosynthesis 0.23 0.95 1 0.64 0.24 0.96 1 0.73 0.39 1 1 0.33 1 0.37 1 0.0048 0.0045 0.0046 0.0052 0.0052 0.0033 0.0034 0.0042 0.0024 -0.61 17 / 18 (94%) 11 / 11 (100%) 6 / 7 (86%) 1 0.857
PWY-5805~nonaprenyl diphosphate biosynthesis I 0.47 0.96 1 -0.38 0.48 0.96 1 -0.41 0.53 1 1 0.52 1 0.51 0.99 0.00033 5.5e-05 0 4.2e-05 0 0.00014 7.6e-05 0 0.00013 0.86 3 / 18 (17%) 1 / 11 (9.1%) 2 / 7 (29%) 0.0909 0.286
PWY-1269~CMP-3-deoxy-D-manno-octulosonate biosynthesis 0.66 0.96 1 -0.22 0.55 0.96 1 -0.31 0.63 1 1 0.51 1 0.56 1 0.0016 0.00052 0 0.00048 0 0.00099 0.00057 0 0.00085 0.25 6 / 18 (33%) 3 / 11 (27%) 3 / 7 (43%) 0.273 0.429
PWY-5941~glycogen degradation II 0.42 0.95 1 0.47 0.57 0.96 1 0.33 NA NA NA 0.84 1 0.9 1 0.036 0.036 0.036 0.037 0.038 0.007 0.034 0.034 0.012 -0.12 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1
PWY-6765~hydrogen production IV 0.83 0.96 1 -0.095 0.47 0.96 1 -0.35 0.63 1 1 0.42 1 0.45 1 0.0016 7e-04 0 0.00082 0 0.0017 0.00051 0.00061 0.00053 -0.69 8 / 18 (44%) 4 / 11 (36%) 4 / 7 (57%) 0.364 0.571
PWY-6606~guanosine nucleotides degradation II 0.83 0.96 1 0.11 0.69 0.96 1 0.19 1 1 1 0.64 1 0.7 1 0.0013 0.00044 0 0.00044 0 0.00071 0.00044 0 0.001 0 6 / 18 (33%) 4 / 11 (36%) 2 / 7 (29%) 0.364 0.286
PWY-5535~acetate and ATP formation from acetyl-CoA II 0.51 0.96 1 0.3 0.68 0.96 1 0.2 1 1 1 0.72 1 0.8 1 0.00082 0.00064 0.00022 8e-04 0.00022 0.0013 0.00038 0.00032 0.00043 -1.1 14 / 18 (78%) 9 / 11 (82%) 5 / 7 (71%) 0.818 0.714
PWY-5704~urea degradation II 0.54 0.96 1 -0.32 0.83 0.96 1 -0.11 NA NA NA 0.59 1 0.48 1 0.0039 0.0039 0.0033 0.0036 0.0028 0.0021 0.0044 0.0046 0.0024 0.29 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1
1CMET2-PWY~N10-formyl-tetrahydrofolate biosynthesis 0.8 0.96 1 0.14 0.74 0.96 1 0.2 NA NA NA 0.86 1 0.67 1 0.0053 0.0053 0.0054 0.0053 0.0055 0.0016 0.0052 0.005 0.0026 -0.027 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1
PWY-6717~(14)-β-D-xylan degradation 0.012 0.89 1 1.3 0.043 0.96 1 1.3 NA NA NA 0.026 0.99 0.038 0.98 0.026 0.026 0.025 0.032 0.031 0.014 0.016 0.013 0.0086 -1 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1
PWY-6890~4-amino-2-methyl-5-diphosphomethylpyrimidine biosynthesis 0.55 0.96 1 0.35 0.6 0.96 1 0.31 NA NA NA 0.86 1 0.82 1 0.012 0.012 0.012 0.013 0.012 0.0023 0.012 0.013 0.0043 -0.12 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1
LEUSYN-PWY~L-leucine biosynthesis 0.018 0.92 1 1.3 0.3 0.96 1 0.59 NA NA NA 0.49 1 0.57 1 0.02 0.02 0.019 0.022 0.02 0.0039 0.017 0.016 0.0036 -0.37 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1
PWY0-1299~arginine dependent acid resistance 0.63 0.96 1 0.25 0.76 0.96 1 0.16 NA NA NA 0.87 1 0.78 1 0.025 0.025 0.024 0.026 0.024 0.0049 0.024 0.025 0.0056 -0.12 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1
PWY-5364~sulfur reduction II (via polysulfide) 0.091 0.95 1 0.78 0.15 0.96 1 0.72 0.63 1 1 0.28 1 0.21 1 0.0011 0.00062 0.00011 0.00088 0.00057 0.0011 2e-04 0 0.00044 -2.1 10 / 18 (56%) 7 / 11 (64%) 3 / 7 (43%) 0.636 0.429
TRYPDEG-PWY~L-tryptophan degradation II (via pyruvate) 0.15 0.95 1 -0.84 0.15 0.96 1 -0.76 0.37 1 1 0.29 0.99 0.23 0.99 0.00018 1e-04 7.1e-05 5.1e-05 0 6.8e-05 0.00018 0.00013 0.00023 1.8 10 / 18 (56%) 5 / 11 (45%) 5 / 7 (71%) 0.455 0.714
PWY-6466~pyridoxal 5-phosphate biosynthesis II 0.18 0.95 1 0.81 0.23 0.96 1 0.72 NA NA NA 0.32 1 0.29 1 0.01 0.01 0.01 0.011 0.011 0.0032 0.0085 0.0075 0.0046 -0.37 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1
PWY-5332~sulfur reduction I 0.091 0.95 1 0.78 0.15 0.96 1 0.72 0.63 1 1 0.27 1 0.2 1 0.0011 0.00062 0.00011 0.00088 0.00057 0.0011 2e-04 0 0.00044 -2.1 10 / 18 (56%) 7 / 11 (64%) 3 / 7 (43%) 0.636 0.429
PWY-7013~(S)-propane-12-diol degradation 0.42 0.95 1 -0.41 0.42 0.96 1 -0.38 0.5 1 1 0.36 1 0.5 1 0.0016 0.0014 0.0012 0.0012 0.0011 0.00099 0.0017 0.0013 0.0014 0.5 16 / 18 (89%) 9 / 11 (82%) 7 / 7 (100%) 0.818 1
NONOXIPENT-PWY~pentose phosphate pathway (non-oxidative branch) 0.15 0.95 1 0.89 0.41 0.96 1 0.48 NA NA NA 0.59 1 0.64 1 0.017 0.017 0.018 0.019 0.019 0.0028 0.015 0.017 0.005 -0.34 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1
PWY-5723~Rubisco shunt 0.86 0.96 1 -0.1 0.93 0.98 1 0.051 NA NA NA 0.73 1 0.28 1 0.011 0.011 0.011 0.011 0.01 0.0021 0.011 0.012 0.0044 0 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1
PWY-6386~UDP-N-acetylmuramoyl-pentapeptide biosynthesis II (lysine-containing) 0.48 0.96 1 0.4 0.59 0.96 1 0.32 NA NA NA 0.85 1 0.85 1 0.015 0.015 0.014 0.015 0.014 0.0029 0.014 0.014 0.0049 -0.1 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1
PWY-6780~hydrogen production VI 0.047 0.95 1 -1.3 0.17 0.96 1 -0.74 NA NA NA 0.071 1 0.15 1 0.0077 0.0077 0.0069 0.0058 0.0063 0.0021 0.011 0.011 0.0056 0.92 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1
PWY-7344~UDP-α-D-galactose biosynthesis 0.00092 0.24 0.48 1.7 0.22 0.96 1 0.7 NA NA NA 0.36 1 0.49 1 0.034 0.034 0.032 0.038 0.038 0.007 0.028 0.027 0.0029 -0.44 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1
CYANCAT-PWY~cyanate degradation 0.49 0.96 1 0.32 0.57 0.96 1 0.33 NA NA NA 0.76 1 0.62 1 0.0032 0.0032 0.0028 0.0035 0.003 0.0022 0.0028 0.0024 0.0016 -0.32 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1
HOMOSER-METSYN-PWY~L-methionine biosynthesis I 0.48 0.96 1 -0.35 0.4 0.96 1 -0.44 0.63 1 1 0.48 1 0.41 1 0.00067 3e-04 0 0.00026 0 0.00064 0.00036 2e-04 0.00049 0.47 8 / 18 (44%) 4 / 11 (36%) 4 / 7 (57%) 0.364 0.571
ACETOACETATE-DEG-PWY~acetoacetate degradation (to acetyl CoA) 0.46 0.96 1 -0.46 0.97 0.99 1 0.02 0.39 1 1 0.64 1 0.47 1 8e-04 0.00076 0.00066 0.00059 0.00062 2e-04 0.001 0.00071 0.00079 0.76 17 / 18 (94%) 11 / 11 (100%) 6 / 7 (86%) 1 0.857
PWY-6629~superpathway of L-tryptophan biosynthesis 0.96 0.99 1 -0.029 0.52 0.96 1 0.41 0.39 1 1 0.68 1 0.62 1 0.0025 0.0023 0.0021 0.0021 0.0021 0.00048 0.0027 0.0025 0.0021 0.36 17 / 18 (94%) 11 / 11 (100%) 6 / 7 (86%) 1 0.857
PWY0-1507~biotin biosynthesis from 8-amino-7-oxononanoate I 0.013 0.89 1 -1.2 0.048 0.96 1 -0.9 1 1 1 0.029 0.99 0.023 0.95 0.003 0.0028 0.0027 0.0021 0.0016 0.0017 0.004 0.0045 0.0014 0.93 17 / 18 (94%) 10 / 11 (91%) 7 / 7 (100%) 0.909 1
PPGPPMET-PWY~ppGpp biosynthesis 0.51 0.96 1 0.29 0.97 0.99 1 0.017 1 1 1 0.75 1 0.62 1 0.0035 0.0033 0.0023 0.0039 0.0024 0.0044 0.0024 0.00092 0.0022 -0.7 17 / 18 (94%) 10 / 11 (91%) 7 / 7 (100%) 0.909 1
PWY-7196~superpathway of pyrimidine ribonucleosides salvage 0.39 0.95 1 0.38 0.38 0.96 1 0.4 0.64 1 1 0.53 1 0.57 1 0.001 4e-04 0 0.00055 0 0.0012 0.00015 0 0.00026 -1.9 7 / 18 (39%) 5 / 11 (45%) 2 / 7 (29%) 0.455 0.286
PWY0-1297~superpathway of purine deoxyribonucleosides degradation 0.085 0.95 1 0.92 0.092 0.96 1 0.9 NA NA NA 0.14 1 0.23 1 0.0029 0.0029 0.0023 0.0034 0.0031 0.0016 0.0021 0.0017 0.0016 -0.7 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1
PWY66-422~D-galactose degradation V (Leloir pathway) 0.08 0.95 1 1.1 0.28 0.96 1 0.62 NA NA NA 0.44 1 0.57 1 0.023 0.023 0.024 0.025 0.026 0.0039 0.02 0.021 0.0057 -0.32 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1
ASPARAGINE-BIOSYNTHESIS~L-asparagine biosynthesis I 0.87 0.96 1 0.075 0.84 0.97 1 0.11 NA NA NA 0.67 1 0.51 1 0.018 0.018 0.019 0.019 0.019 0.0052 0.018 0.018 0.0041 -0.078 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1
P461-PWY~hexitol fermentation to lactate formate ethanol and acetate 0.58 0.96 1 0.31 0.38 0.96 1 0.49 0.53 1 1 0.49 1 0.46 1 0.0031 0.0026 0.0023 0.0027 0.0024 0.0017 0.0025 0.002 0.0027 -0.11 15 / 18 (83%) 10 / 11 (91%) 5 / 7 (71%) 0.909 0.714
PWY-7966~5-methoxy-6-methylbenzimidazolyl adenosylcobamide biosynthesis from adenosylcobinamide-GDP 0.75 0.96 1 0.16 0.79 0.96 1 0.15 NA NA NA 0.8 1 0.65 1 0.0051 0.0051 0.0048 0.0052 0.0051 0.002 0.0049 0.0042 0.0019 -0.086 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1
PWY-5816~all trans undecaprenyl diphosphate biosynthesis 0.26 0.95 1 0.57 0.14 0.96 1 0.94 0.14 1 1 0.27 1 0.34 1 0.0013 0.0011 0.00089 0.0014 0.00098 0.0014 0.00079 0.00084 0.00085 -0.83 16 / 18 (89%) 11 / 11 (100%) 5 / 7 (71%) 1 0.714
PWY-5120~geranylgeranyl diphosphate biosynthesis 0.012 0.89 1 1.3 0.012 0.96 1 1.6 NA NA NA 0.032 0.99 0.0099 0.9 0.0029 0.0029 0.0023 0.0039 0.0034 0.0025 0.0013 0.00096 0.0012 -1.6 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1
PWY-5485~pyruvate fermentation to acetate IV 0.68 0.96 1 0.23 0.64 0.96 1 0.28 NA NA NA 0.88 1 0.89 1 0.018 0.018 0.018 0.019 0.018 0.004 0.018 0.018 0.0066 -0.078 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1
PWY-6270~isoprene biosynthesis I 0.14 0.95 1 0.96 0.33 0.96 1 0.58 NA NA NA 0.48 1 0.72 1 0.014 0.014 0.014 0.015 0.015 0.0022 0.012 0.012 0.0044 -0.32 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1
PWY-7343~UDP-α-D-glucose biosynthesis I 0.15 0.95 1 0.65 0.28 0.96 1 0.56 NA NA NA 0.53 1 0.44 1 0.0082 0.0082 0.0076 0.0092 0.0079 0.0045 0.0067 0.0068 0.0019 -0.46 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1
ARGASEDEG-PWY~L-arginine degradation I (arginase pathway) 0.44 0.95 1 0.32 0.74 0.96 1 0.15 1 1 1 0.58 1 0.6 1 0.002 0.00045 0 0.00067 0 0.0016 9.2e-05 0 0.00022 -2.9 4 / 18 (22%) 2 / 11 (18%) 2 / 7 (29%) 0.182 0.286
PHENOLDEG-PWY~phenol degradation II (anaerobic) 0.85 0.96 1 0.1 0.42 0.96 1 0.39 0.37 1 1 0.52 1 0.57 1 0.00058 0.00026 0 0.00021 3e-05 0.00034 0.00032 0 8e-04 0.61 8 / 18 (44%) 6 / 11 (55%) 2 / 7 (29%) 0.545 0.286
PWY3O-246~(RR)-butanediol degradation 0.94 0.99 1 -0.037 0.93 0.98 1 -0.041 1 1 1 0.52 1 0.57 1 1e-04 2.3e-05 0 2.6e-05 0 6.8e-05 1.7e-05 0 3e-05 -0.61 4 / 18 (22%) 2 / 11 (18%) 2 / 7 (29%) 0.182 0.286
PYRIDNUCSYN-PWY~NAD de novo biosynthesis I (from aspartate) 0.96 0.99 1 0.027 0.81 0.96 1 0.14 NA NA NA 0.83 1 0.63 1 0.011 0.011 0.01 0.011 0.01 0.0013 0.011 0.012 0.0043 0 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1
PWY-6963~ammonia assimilation cycle I 0.18 0.95 1 0.7 0.47 0.96 1 0.4 NA NA NA 0.68 1 0.8 1 0.035 0.035 0.035 0.038 0.039 0.01 0.031 0.031 0.0093 -0.29 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1
PWY-5096~pyruvate fermentation to acetate and alanine 0.29 0.95 1 0.48 0.45 0.96 1 0.35 1 1 1 0.57 1 0.48 1 0.0022 0.0011 0.00023 0.0015 0.00091 0.002 0.00053 0 0.00078 -1.5 9 / 18 (50%) 6 / 11 (55%) 3 / 7 (43%) 0.545 0.429
ALANINE-VALINESYN-PWY~L-alanine biosynthesis I 0.3 0.95 1 -0.65 0.15 0.96 1 -0.79 0.25 1 1 0.31 0.99 0.32 0.99 0.00071 0.00016 0 3.9e-05 0 0.00013 0.00034 0 0.00083 3.1 4 / 18 (22%) 1 / 11 (9.1%) 3 / 7 (43%) 0.0909 0.429
PWY-7967~5-methoxybenzimidazolyl adenosylcobamide biosynthesis from adenosylcobinamide-GDP 0.75 0.96 1 0.16 0.79 0.96 1 0.15 NA NA NA 0.8 1 0.64 1 0.0051 0.0051 0.0048 0.0052 0.0051 0.002 0.0049 0.0042 0.0019 -0.086 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1
PWY-6707~gallate biosynthesis 0.48 0.96 1 0.39 0.64 0.96 1 0.25 NA NA NA 0.88 1 0.88 1 0.012 0.012 0.012 0.012 0.013 0.0022 0.011 0.011 0.0032 -0.13 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1
P42-PWY~incomplete reductive TCA cycle 0.69 0.96 1 -0.19 0.38 0.96 1 -0.45 0.33 1 1 0.45 1 0.48 1 0.0045 0.0017 0 0.0017 0 0.0037 0.0017 0.00036 0.0031 0 7 / 18 (39%) 3 / 11 (27%) 4 / 7 (57%) 0.273 0.571
MENAQUINONESYN-PWY~menaquinol-8 biosynthesis 0.06 0.95 1 1.1 0.19 0.96 1 0.79 NA NA NA 0.28 1 0.23 1 0.0057 0.0057 0.0057 0.0065 0.0064 0.0018 0.0045 0.004 0.0021 -0.53 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1
SERDEG-PWY~L-serine degradation 0.15 0.95 1 -0.84 0.15 0.96 1 -0.76 0.37 1 1 0.37 1 0.25 0.99 0.00018 1e-04 7.1e-05 5.1e-05 0 6.8e-05 0.00018 0.00013 0.00023 1.8 10 / 18 (56%) 5 / 11 (45%) 5 / 7 (71%) 0.455 0.714
PWY-6751~superpathway of hydrogen production 0.82 0.96 1 -0.13 0.97 0.99 1 0.022 NA NA NA 0.69 1 0.61 1 0.031 0.031 0.03 0.03 0.03 0.0075 0.032 0.036 0.011 0.093 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1
PWY-5600~pyruvate fermentation to acetate VII 0.86 0.96 1 0.085 0.85 0.97 1 0.1 NA NA NA 0.74 1 0.66 1 0.017 0.017 0.018 0.017 0.018 0.0043 0.017 0.016 0.0046 0 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1
PWY-6517~N-acetylglucosamine degradation II 1 1 1 0.00019 0.94 0.99 1 0.038 NA NA NA 0.75 1 0.85 1 0.0017 0.0017 0.0015 0.0017 0.0015 0.0011 0.0018 0.0017 0.0014 0.082 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1
SALVPURINE2-PWY~xanthine and xanthosine salvage 0.74 0.96 1 -0.18 0.99 0.99 1 0.0045 NA NA NA 0.58 1 0.57 1 0.0087 0.0087 0.0087 0.0085 0.0089 0.0018 0.009 0.0084 0.0026 0.082 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1
PWY-5143~long-chain fatty acid activation 0.092 0.95 1 0.82 0.087 0.96 1 1.1 NA NA NA 0.082 1 0.13 1 0.032 0.032 0.03 0.036 0.036 0.018 0.024 0.023 0.011 -0.58 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1
CYSTSYN-PWY~L-cysteine biosynthesis I 0.4 0.95 1 0.39 0.7 0.96 1 0.21 NA NA NA 0.88 1 0.79 1 0.013 0.013 0.014 0.014 0.014 0.0031 0.012 0.012 0.0022 -0.22 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1
COLANSYN-PWY~colanic acid building blocks biosynthesis 0.69 0.96 1 -0.21 0.84 0.97 1 0.11 0.53 1 1 0.77 1 0.76 1 0.003 0.0025 0.0016 0.0022 0.0011 0.0028 0.0031 0.0023 0.003 0.49 15 / 18 (83%) 10 / 11 (91%) 5 / 7 (71%) 0.909 0.714
P161-PWY~acetylene degradation 0.55 0.96 1 0.31 0.32 0.96 1 0.59 0.39 1 1 0.43 1 0.33 1 0.0027 0.0025 0.0019 0.0027 0.002 0.0023 0.0023 0.0011 0.0023 -0.23 17 / 18 (94%) 11 / 11 (100%) 6 / 7 (86%) 1 0.857
PWY-7675~Kdo transfer to lipid IVA II 0.4 0.95 1 0.35 0.53 0.96 1 0.29 1 1 1 0.56 1 0.61 1 0.0014 0.00023 0 0.00035 0 0.00083 5.1e-05 0 0.00013 -2.8 3 / 18 (17%) 2 / 11 (18%) 1 / 7 (14%) 0.182 0.143
PWY-5667~CDP-diacylglycerol biosynthesis I 0.65 0.96 1 -0.23 0.79 0.96 1 -0.13 1 1 1 0.58 1 0.7 1 0.001 0.00087 0.00076 0.00077 0.00071 0.00053 0.001 0.00086 0.00093 0.38 15 / 18 (83%) 9 / 11 (82%) 6 / 7 (86%) 0.818 0.857
PWY-6123~inosine-5-phosphate biosynthesis I 0.18 0.95 1 0.76 0.39 0.96 1 0.53 NA NA NA 0.52 1 0.8 1 0.01 0.01 0.01 0.011 0.011 0.0028 0.0088 0.0096 0.0034 -0.32 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1
PWY-1861~formaldehyde assimilation II (assimilatory RuMP Cycle) 0.72 0.96 1 -0.21 0.64 0.96 1 0.28 0.39 1 1 0.77 1 0.67 1 0.0035 0.0033 0.0032 0.0028 0.0036 0.0012 0.0041 0.0029 0.0034 0.55 17 / 18 (94%) 11 / 11 (100%) 6 / 7 (86%) 1 0.857
PWY-I9~L-cysteine biosynthesis VI (from L-methionine) 0.38 0.95 1 0.41 0.59 0.96 1 0.26 1 1 1 0.66 1 0.54 1 0.0024 0.0017 0.00086 0.0022 0.0015 0.0026 0.001 0.00053 0.0014 -1.1 13 / 18 (72%) 8 / 11 (73%) 5 / 7 (71%) 0.727 0.714
PWY-7645~hyaluronan degradation 0.4 0.95 1 -0.5 0.54 0.96 1 -0.35 1 1 1 0.52 1 0.55 1 0.00026 5.7e-05 0 2.4e-05 0 5.3e-05 0.00011 0 2e-04 2.2 4 / 18 (22%) 2 / 11 (18%) 2 / 7 (29%) 0.182 0.286
DETOX1-PWY~superoxide radicals degradation 0.37 0.95 1 -0.47 0.25 0.96 1 -0.61 0.33 1 1 0.31 1 0.3 1 0.0013 5e-04 0 0.00036 0 0.00092 0.00072 0.00015 0.0012 1 7 / 18 (39%) 3 / 11 (27%) 4 / 7 (57%) 0.273 0.571
PWY-6952~glycerophosphodiester degradation 0.78 0.96 1 -0.15 0.76 0.96 1 -0.15 1 1 1 0.57 1 0.63 1 0.0012 0.00058 6.7e-05 0.00051 0 0.00075 0.00069 0.00013 0.0012 0.44 9 / 18 (50%) 5 / 11 (45%) 4 / 7 (57%) 0.455 0.571
THRESYN-PWY~superpathway of L-threonine biosynthesis 0.51 0.96 1 0.35 0.69 0.96 1 0.25 NA NA NA 0.89 1 0.58 1 0.017 0.017 0.018 0.018 0.018 0.0036 0.017 0.017 0.0044 -0.082 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1
PWY66-380~estradiol biosynthesis I (via estrone) 0.061 0.95 1 0.86 0.11 0.96 1 0.84 0.33 1 1 0.27 1 0.19 0.99 0.00094 0.00057 0.00018 0.00084 0.00023 0.001 0.00015 0 0.00027 -2.5 11 / 18 (61%) 8 / 11 (73%) 3 / 7 (43%) 0.727 0.429
AMMASSIM-PWY~ammonia assimilation cycle III 0.19 0.95 1 0.79 0.58 0.96 1 0.31 NA NA NA 0.88 1 0.88 1 0.068 0.068 0.066 0.07 0.066 0.0075 0.063 0.065 0.013 -0.15 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1
PWY-5480~pyruvate fermentation to ethanol I 0.76 0.96 1 0.16 0.51 0.96 1 0.33 NA NA NA 0.73 1 0.56 1 0.0033 0.0033 0.0027 0.0034 0.0033 0.0025 0.0032 0.0022 0.003 -0.087 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1
PWY-5004~superpathway of L-citrulline metabolism 0.39 0.95 1 0.36 0.55 0.96 1 0.28 1 1 1 0.58 1 0.61 1 0.0022 0.00037 0 0.00056 0 0.0013 7.9e-05 0 0.00021 -2.8 3 / 18 (17%) 2 / 11 (18%) 1 / 7 (14%) 0.182 0.143
PWY-7586~β-14-D-mannosyl-N-acetyl-D-glucosamine degradation 0.48 0.96 1 0.3 0.65 0.96 1 0.23 1 1 1 0.56 1 0.56 1 0.0015 0.00025 0 0.00036 0 0.00082 8.4e-05 0 0.00022 -2.1 3 / 18 (17%) 2 / 11 (18%) 1 / 7 (14%) 0.182 0.143
PWY-4983~nitric oxide biosynthesis II (mammals) 0.55 0.96 1 -0.33 0.77 0.96 1 -0.16 1 1 1 0.59 1 0.59 1 0.00045 2e-04 0 0.00013 0 0.00019 0.00031 0 0.00045 1.3 8 / 18 (44%) 5 / 11 (45%) 3 / 7 (43%) 0.455 0.429
CENTFERM-PWY~pyruvate fermentation to butanoate 0.8 0.96 1 0.13 0.69 0.96 1 0.21 0.63 1 1 0.7 1 0.77 1 0.00057 0.00038 0.00033 0.00038 0.00044 0.00035 0.00038 0.00032 0.00048 0 12 / 18 (67%) 8 / 11 (73%) 4 / 7 (57%) 0.727 0.571
PWY-5509~adenosylcobalamin biosynthesis from adenosylcobinamide-GDP I 0.75 0.96 1 0.16 0.79 0.96 1 0.15 NA NA NA 0.8 1 0.64 1 0.0051 0.0051 0.0048 0.0052 0.0051 0.002 0.0049 0.0042 0.0019 -0.086 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1
MANNIDEG-PWY~mannitol degradation I 0.52 0.96 1 0.37 0.39 0.96 1 0.52 NA NA NA 0.51 1 0.62 1 0.003 0.003 0.0026 0.0032 0.0027 0.0016 0.0028 0.0024 0.0026 -0.19 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1
PWY-5340~sulfate activation for sulfonation 0.81 0.96 1 0.13 0.81 0.96 1 0.14 NA NA NA 0.86 1 0.31 1 0.0082 0.0082 0.008 0.0083 0.0078 0.0031 0.008 0.0082 0.0035 -0.053 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1
PWY-5155~β-alanine biosynthesis III 0.87 0.96 1 0.096 0.62 0.96 1 0.3 NA NA NA 0.79 1 0.88 1 0.0034 0.0034 0.0033 0.0033 0.0032 0.00095 0.0035 0.0035 0.0023 0.085 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1
PWY-5971~palmitate biosynthesis II (bacteria and plants) 0.29 0.95 1 0.53 0.2 0.96 1 0.65 NA NA NA 0.34 1 0.24 1 0.0052 0.0052 0.0038 0.006 0.0042 0.0044 0.0038 0.0026 0.0039 -0.66 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1
PWY-3341~L-proline biosynthesis III 0.62 0.96 1 0.21 0.8 0.96 1 0.12 1 1 1 0.57 1 0.62 1 0.0012 0.00033 0 0.00044 0 0.001 0.00015 0 0.00026 -1.6 5 / 18 (28%) 3 / 11 (27%) 2 / 7 (29%) 0.273 0.286
PWY-7180~2-deoxy-α-D-ribose 1-phosphate degradation 0.54 0.96 1 -0.31 0.54 0.96 1 -0.33 0.53 1 1 0.47 1 0.52 1 0.00061 1e-04 0 9.1e-05 0 3e-04 0.00012 0 0.00021 0.4 3 / 18 (17%) 1 / 11 (9.1%) 2 / 7 (29%) 0.0909 0.286
GLUTAMINEFUM-PWY~L-glutamine degradation II 0.16 0.95 1 0.84 0.55 0.96 1 0.34 NA NA NA 0.83 1 0.93 1 0.091 0.091 0.091 0.095 0.094 0.011 0.084 0.085 0.018 -0.18 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1
PWY0-862~(5Z)-dodecenoate biosynthesis I 0.27 0.95 1 0.57 0.14 0.96 1 0.77 NA NA NA 0.22 1 0.22 1 0.0051 0.0051 0.0038 0.0059 0.0042 0.0042 0.0038 0.0026 0.004 -0.63 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1
PWY-4984~urea cycle 0.16 0.95 1 0.73 0.16 0.96 1 0.74 0.33 1 1 0.32 1 0.26 1 0.0025 0.0015 0.00084 0.0019 0.0024 0.0016 0.00092 0 0.0019 -1 11 / 18 (61%) 8 / 11 (73%) 3 / 7 (43%) 0.727 0.429
LCYSDEG-PWY~L-cysteine degradation II 0.15 0.95 1 -0.84 0.15 0.96 1 -0.76 0.37 1 1 0.3 1 0.24 0.99 0.00018 1e-04 7.1e-05 5.1e-05 0 6.8e-05 0.00018 0.00013 0.00023 1.8 10 / 18 (56%) 5 / 11 (45%) 5 / 7 (71%) 0.455 0.714
PWY-5839~menaquinol-7 biosynthesis 0.98 0.99 1 -0.0099 0.82 0.96 1 -0.11 1 1 1 0.61 1 0.72 1 0.0018 0.00092 6.1e-05 0.001 0 0.0018 8e-04 0.00012 0.0011 -0.32 9 / 18 (50%) 5 / 11 (45%) 4 / 7 (57%) 0.455 0.571
NAGLIPASYN-PWY~lipid IVA biosynthesis 0.32 0.95 1 0.43 0.7 0.96 1 0.17 1 1 1 0.69 1 0.77 1 0.002 0.00098 4.9e-05 0.0014 0 0.002 0.00033 9.7e-05 0.00048 -2.1 9 / 18 (50%) 5 / 11 (45%) 4 / 7 (57%) 0.455 0.571
PWY-5844~menaquinol-9 biosynthesis 0.06 0.95 1 1.1 0.19 0.96 1 0.79 NA NA NA 0.29 1 0.23 1 0.0057 0.0057 0.0057 0.0065 0.0064 0.0018 0.0045 0.004 0.0021 -0.53 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1
PWY-5484~glycolysis II (from fructose 6-phosphate) 0.78 0.96 1 0.14 0.8 0.96 1 0.13 NA NA NA 0.82 1 0.74 1 0.012 0.012 0.013 0.012 0.012 0.0032 0.012 0.013 0.0034 0 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1
PWY-5766~L-glutamate degradation X 0.93 0.99 1 -0.041 0.98 0.99 1 -0.011 1 1 1 0.67 1 0.76 1 0.0016 0.00072 0 0.00072 0 0.0016 0.00071 0 0.0012 -0.02 8 / 18 (44%) 5 / 11 (45%) 3 / 7 (43%) 0.455 0.429
PWY-6599~guanine and guanosine salvage II 0.35 0.95 1 0.52 0.24 0.96 1 0.72 0.39 1 1 0.38 1 0.38 1 0.0017 0.0016 0.0017 0.0018 0.0018 0.00096 0.0014 0.0017 0.0011 -0.36 17 / 18 (94%) 11 / 11 (100%) 6 / 7 (86%) 1 0.857
PWY-841~superpathway of purine nucleotides de novo biosynthesis I 0.43 0.95 1 0.44 0.27 0.96 1 0.73 0.39 1 1 0.35 1 0.27 1 0.0045 0.0043 0.0033 0.0046 0.0035 0.0032 0.0037 0.003 0.0031 -0.31 17 / 18 (94%) 11 / 11 (100%) 6 / 7 (86%) 1 0.857
PHESYN~L-phenylalanine biosynthesis I 0.77 0.96 1 0.13 0.77 0.96 1 0.16 NA NA NA 0.85 1 0.86 1 0.0044 0.0044 0.0048 0.0047 0.0047 0.0037 0.004 0.0051 0.0022 -0.23 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1
PWY-5897~superpathway of menaquinol-11 biosynthesis 0.97 0.99 1 0.02 0.87 0.97 1 0.077 1 1 1 0.58 1 0.63 1 0.00058 9.7e-05 0 9.9e-05 0 0.00028 9.5e-05 0 0.00025 -0.06 3 / 18 (17%) 2 / 11 (18%) 1 / 7 (14%) 0.182 0.143
PWY-6471~peptidoglycan biosynthesis IV (Enterococcus faecium) 0.19 0.95 1 0.63 0.28 0.96 1 0.57 0.63 1 1 0.39 1 0.32 1 0.0042 0.0028 0.00083 0.0037 0.0031 0.0041 0.0015 2e-04 0.0027 -1.3 12 / 18 (67%) 8 / 11 (73%) 4 / 7 (57%) 0.727 0.571
PWY-1263~taurine degradation I 0.00015 0.076 0.076 2.1 0.00078 0.4 0.4 2 0.047 1 1 0.026 0.87 0.0092 0.82 0.00069 5e-04 0.00022 0.00079 9e-04 0.00056 3.9e-05 0 7.8e-05 -4.3 13 / 18 (72%) 10 / 11 (91%) 3 / 7 (43%) 0.909 0.429
PWY-5505~L-glutamate and L-glutamine biosynthesis 0.37 0.95 1 0.54 0.69 0.96 1 0.23 NA NA NA 0.91 1 0.67 1 0.048 0.048 0.049 0.049 0.049 0.0046 0.046 0.05 0.0093 -0.091 18 / 18 (100%) 11 / 11 (100%) 7 / 7 (100%) 1 1
PWY66-423~fructose 26-bisphosphate biosynthesis 0.32 0.95 1 0.48 0.37 0.96 1 0.45 1 1 1 0.55 1 0.35 1 0.0016 0.0012 0.00081 0.0015 0.001 0.0018 0.00079 0.00052 0.001 -0.93 14 / 18 (78%) 9 / 11 (82%) 5 / 7 (71%) 0.818 0.714
ARG-PRO-PWY~L-arginine degradation VI (arginase 2 pathway) 0.36 0.95 1 0.38 0.5 0.96 1 0.31 1 1 1 0.55 1 0.61 1 0.0018 3e-04 0 0.00045 0 0.0011 5.1e-05 0 0.00014 -3.1 3 / 18 (17%) 2 / 11 (18%) 1 / 7 (14%) 0.182 0.143

Click here to open full-sized image in new window.

Click here to open full-sized image in new window.

Click here to open full-sized image in new window.

Click here to open full-sized image in new window.

Methods:

P Fisher's exact test: differences in detection rate were detected by Fisher's exact test.

P Welch's t-test (sqrt): Differentially abundant functions were identified by Welch's t-test.

P Welch's t-test (clr): Differentially abundant functions were identified by Welch's t-test.

Glossary:

clr: Centered log-ratio transformation. P Welch's ANOVA (sqrt): Welch's ANOVA p-values (Anova was run on sqrt transformed abundances). It is an alternative to the classic ANOVA and can be used even if the samples have unequal variances and/or unequal sample sizes. P Welch's t-test (sqrt): Welch's T-test p-values (run on sqrt transformed abundances). It is an alternative to the classic Student's t-test and is more reliable if the data violates the assumption of homogeneity of variances and/or if the study conditions have unequal sample sizes. P Welch's ANOVA (clr): Welch's ANOVA p-values (Anova was run on clr transformed abundances). It is an alternative to the classic ANOVA and can be used even if the samples have unequal variances and/or unequal sample sizes. P Welch's t-test (clr): Welch's T-test p-values (run on clr transformed abundances). It is an alternative to the classic Student's t-test and is more reliable if the data violates the assumption of homogeneity of variances and/or if the study conditions have unequal sample sizes. P lmer XXX (clr): P-value of Linear Mixed-Effects Regression on clr transformed abundances, testing significance of XXX effect. Varying intercepts per subjects are used to control for repeated measures. Pbonf: Bonferroni corrected p-value. FDR: False Discovery Rate q-value. Mean Pos: Mean abundance in positive samples. Positive samples: The number and percentage of samples in which each function has been detected. Positive XXX: The number and percentage of positive samples in study group XXX. Positive_XXX_percent: Percentage of positive samples in study group XXX. P Welch's t-test (Aldex2): Expected P value of Welch’s t-test computed by Aldex2. FDR Welch's t-test (Aldex2): Expected Benjamini-Hochberg corrected P value for Welch’s t-test. P Wilcoxon rank test (Aldex2): Expected P value of Wilcoxon rank test computed by Aldex2. FDR Wilcoxon rank test (Aldex2): Expected Benjamini-Hochberg corrected P value of Wilcoxon test. P Kruskal-Wallace test (Aldex2): Expected P value of Kruskal-Wallace test. FDR Kruskal-Wallace test (Aldex2): Expected Benjamini-Hochberg corrected P value of Kruskal-Wallace test. P GLM test (Aldex2): Expected P value of generalized linear model. FDR GLM test (Aldex2): Expected Benjamini-Hochberg corrected P value of generalized linear model.

Differentially Abundant Microbial Functions

The following plots present the distribution of the top most differentially abundant microbial functions across all applied statistical analysis. Plots are ordered alphabetically.

Glossary:

"Rel. Abundance": Relative abundance data; "Rel. Abundance (sqrt)": sqrt (Hellinger) transformed relative abundances; "Rel. Abundance (clr)": centered log-ratio (clr) transformed read counts.
ALANINE DEG3 PWY L alanine degradation III

ALANINE SYN2 PWY L alanine biosynthesis II

ARABCAT PWY L arabinose degradation I

ASPARAGINESYN PWY L asparagine biosynthesis II

BSUBPOLYAMSYN PWY spermidine biosynthesis I

HISDEG PWY L histidine degradation I

LEUSYN PWY L leucine biosynthesis

PWY0 1325 superpathway of L asparagine biosynthesis

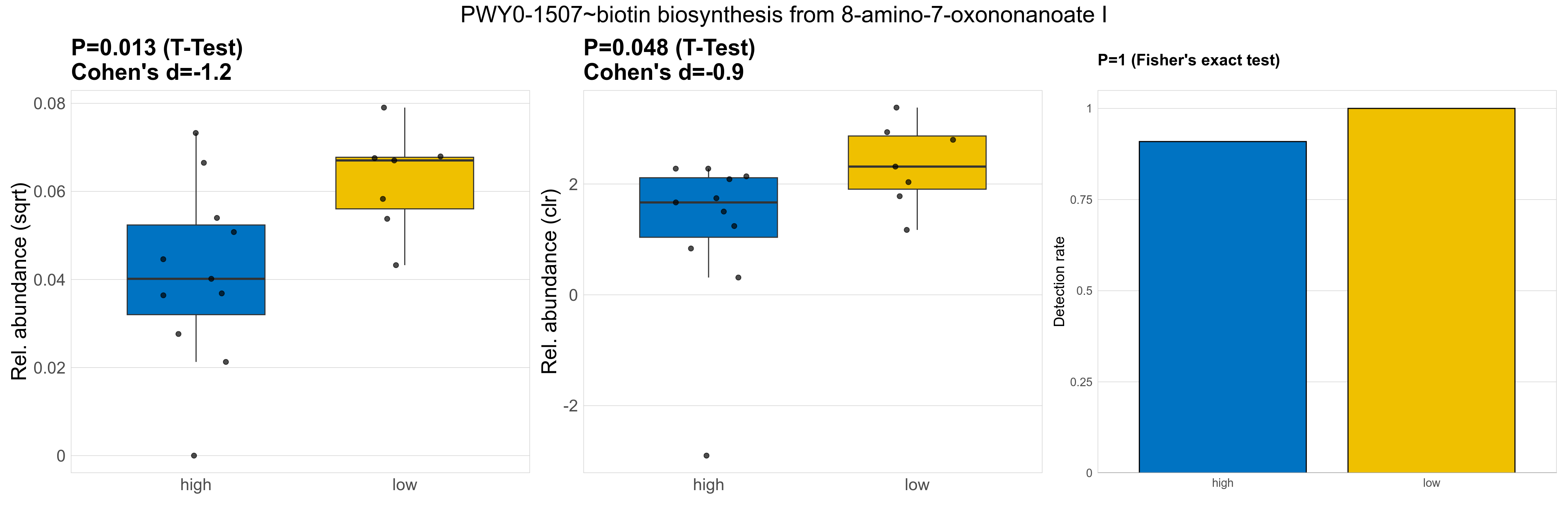

PWY0 1507 biotin biosynthesis from 8 amino 7 oxononanoate I

PWY 46 putrescine biosynthesis III

PWY 1263 taurine degradation I

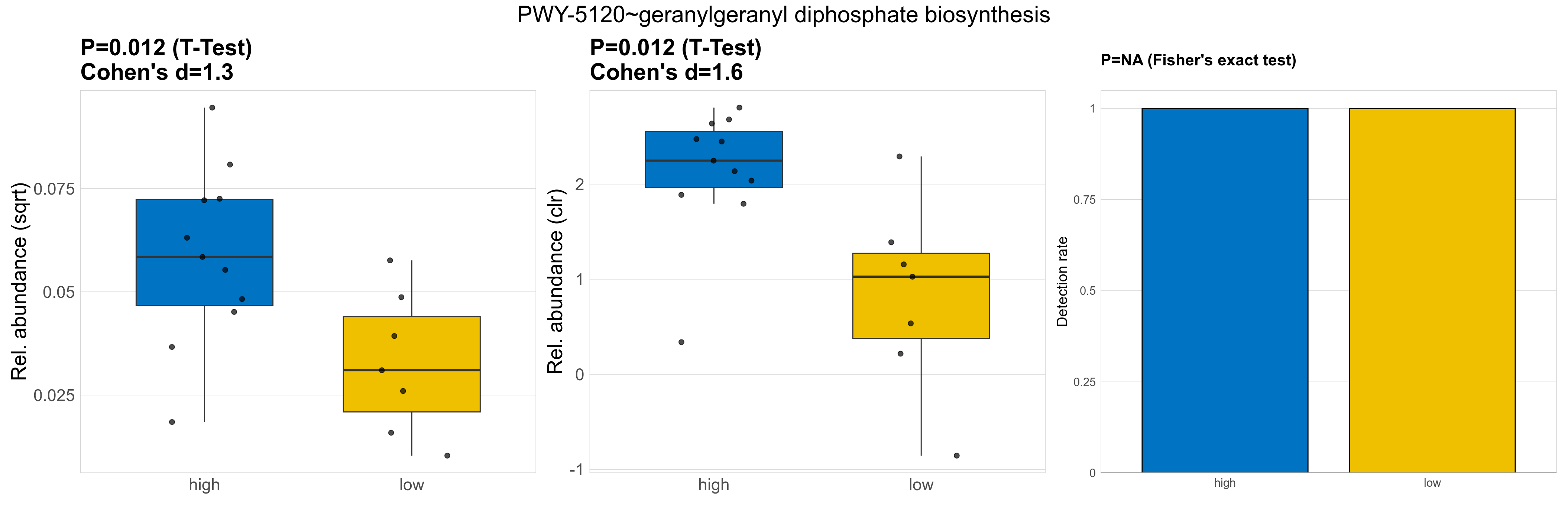

PWY 5120 geranylgeranyl diphosphate biosynthesis

PWY 6348 phosphate acquisition

PWY 6389 pyruvate fermentation to S acetoin

PWY 6543 4 aminobenzoate biosynthesis

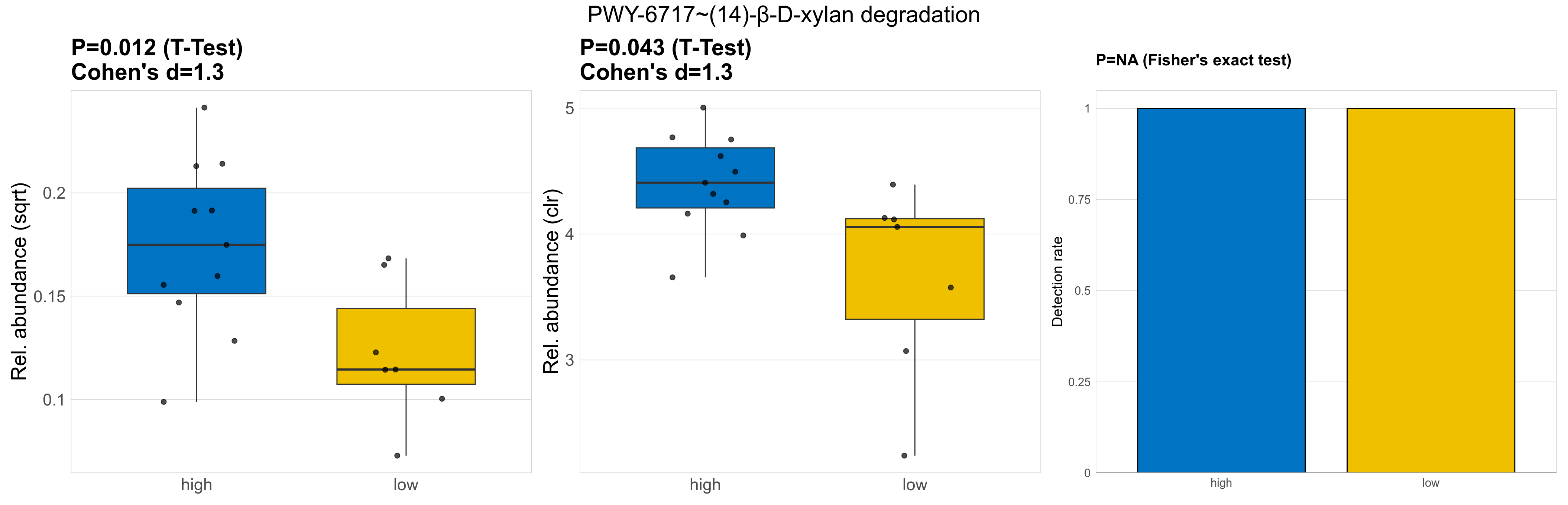

PWY 6717 14 β D xylan degradation

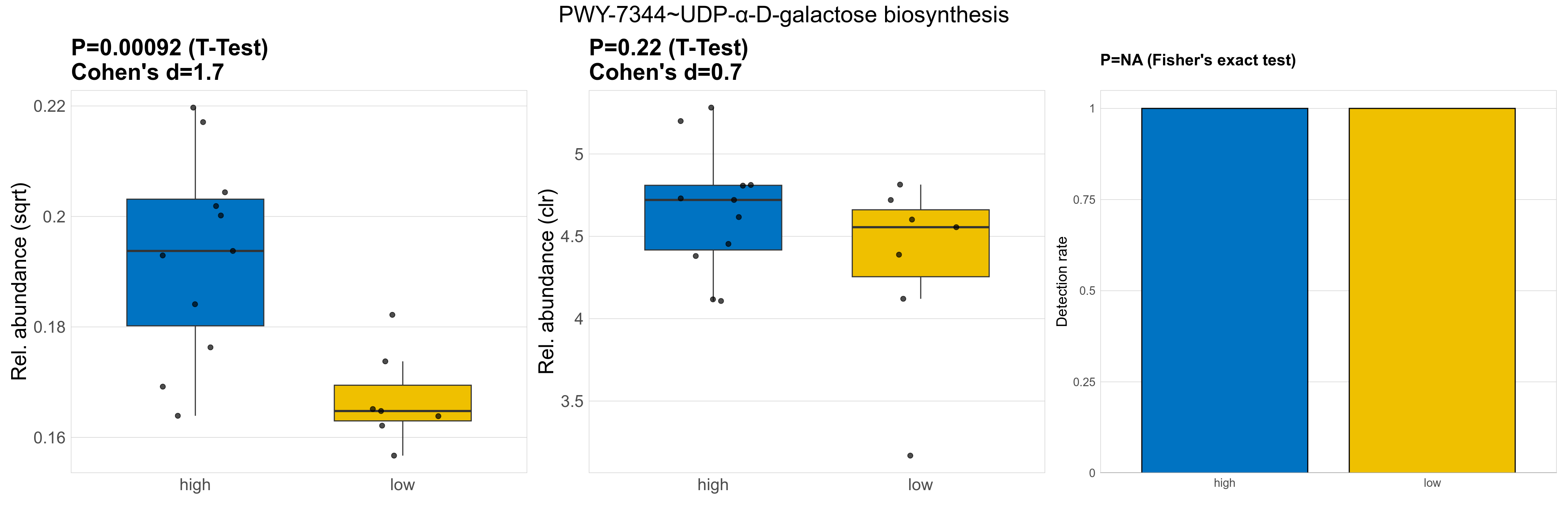

PWY 7344 UDP α D galactose biosynthesis

PWY 7459 kojibiose degradation

PWY 7858 5Z dodecenoate biosynthesis II

RHAMCAT PWY L rhamnose degradation I
